Jugular foramen


The jugular foramen is a large, irregular opening in the posterior part of the skull base, located between the temporal and occipital bones. It serves as a passage for the internal jugular vein, cranial nerves IX (glossopharyngeal), X (vagus), and XI (accessory), and meningeal branches of the ascending pharyngeal and occipital arteries. Its complex anatomy and proximity to critical neurovascular structures make understanding its imaging characteristics essential for radiologists, neurosurgeons, and ENT specialists.

Synonyms

  • Cranial base jugular aperture

  • Foramen jugulare

  • Posterior cranial fossa jugular foramen

  • Jugular skull base foramen

Function

  • Transmits cranial nerves IX, X, and XI from the brainstem to the neck

  • Allows drainage of venous blood from the brain via the internal jugular vein

  • Provides passage for meningeal and pharyngeal branches of arteries

  • Maintains communication between intracranial and extracranial venous systems

MRI Appearance

T1-weighted images:

  • Jugular foramen appears as a low- to intermediate-signal aperture at the skull base

  • Internal jugular vein is intermediate signal; nerves are small linear low-signal structures

T2-weighted images:

  • Jugular vein lumen appears hyperintense, nerves remain low signal

  • Useful to detect vascular tumors, thrombosis, or inflammation

STIR (Short Tau Inversion Recovery):

  • Suppresses fat signal around the jugular foramen

  • Highlights edema, tumor infiltration, or inflammatory changes

CT Appearance

  • Foramen is best visualized on bone-window CT as an irregular aperture between the temporal and occipital bones

  • Internal jugular vein and jugular bulb may be seen after contrast

  • Bony erosions or enlargement suggest tumors, paragangliomas, or trauma

  • Useful for preoperative planning or assessment of skull base fractures

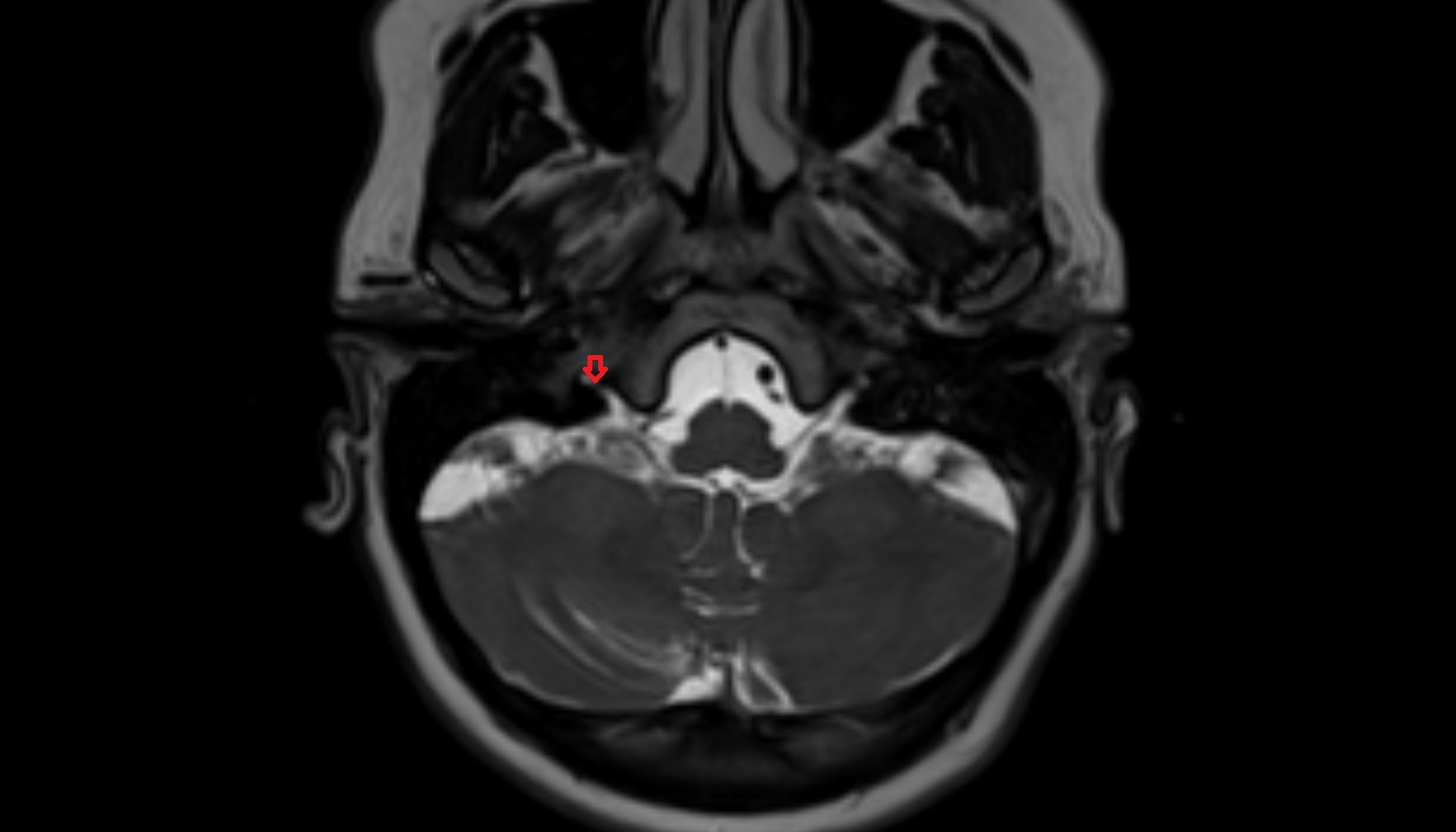

Jugular foramen mri image-img-00000-00000
