Kidney cortex (Renal cortex)

The renal cortex, also known as the kidney cortex, is the outer layer of the kidney that lies between the renal capsule and the renal medulla. It extends inward between the medullary pyramids as renal columns (columns of Bertin), providing structural support and separating the pyramids.

Histologically, the renal cortex contains the renal corpuscles (glomeruli and Bowman’s capsules), proximal and distal convoluted tubules, and associated interstitial tissue. These structures form the functional units of the kidney — the nephrons.

The renal cortex is the primary site of blood filtration, ultrafiltration of plasma, and early stages of urine formation. Its high perfusion rate and dense nephron population make it highly vulnerable to ischemia, toxins, and autoimmune disorders.

Clinically, the renal cortex is central in many conditions, including acute and chronic kidney disease, cortical necrosis, glomerulonephritis, and renal tumors. Evaluation of cortical thickness and corticomedullary differentiation is essential in radiology and nephrology.

Synonyms

  • Kidney cortex

  • Outer renal layer

  • Cortical region of kidney

Function

  • Filtration: Houses glomeruli where blood plasma is filtered

  • Tubular reabsorption and secretion: Initial steps of solute and water handling occur here

  • Endocrine role: Contains juxtaglomerular apparatus for renin secretion, regulating blood pressure

  • Structural support: Forms renal columns between medullary pyramids

  • Metabolic activity: Most metabolically active region of the kidney due to dense nephron concentration

MRI Appearance

T1-weighted images:

  • Cortex appears as intermediate signal intensity, slightly higher than renal medulla

  • Corticomedullary differentiation is best appreciated in T1 images

T2-weighted images:

  • Cortex has higher signal intensity than medulla, especially in hydrated states

  • Differentiation may be reduced in renal disease (e.g., chronic kidney disease, cortical scarring)

STIR:

  • Fat is suppressed; medullary pyramids are hyperintense, cortex is lower/intermediate relative to medulla.

T1 Fat-Saturated (Pre-contrast):

  • Cortex maintains intermediate signal, clearly separated from perirenal fat due to fat suppression

T1 Fat-Saturated Post-Contrast (Gadolinium):

  • Cortex enhances rapidly and more intensely than medulla in the early corticomedullary phase

  • Later phases show homogenization of cortex and medulla

  • Critical in evaluating renal perfusion, tumors, scarring, and cortical necrosis

MRI Non-Contrast 3D Imaging:

  • Provides volumetric reconstruction of renal cortex and medulla

  • Useful for cortical thickness measurement, renal function studies, and surgical planning

CT Appearance

CT Pre-Contrast:

  • Cortex appears as a slightly denser rim compared to medulla

  • Corticomedullary differentiation may be subtle without contrast

  • Calcifications and cortical scars can be detected

CT Post-Contrast:

  • Corticomedullary phase: Cortex enhances rapidly and intensely compared to medulla

  • Nephrographic phase: Enhancement becomes more uniform across cortex and medulla

  • Excretory phase: Outlines collecting system while cortex returns to baseline

  • Used to evaluate tumors, cortical necrosis, scarring, pyelonephritis, and perfusion defects

CT images

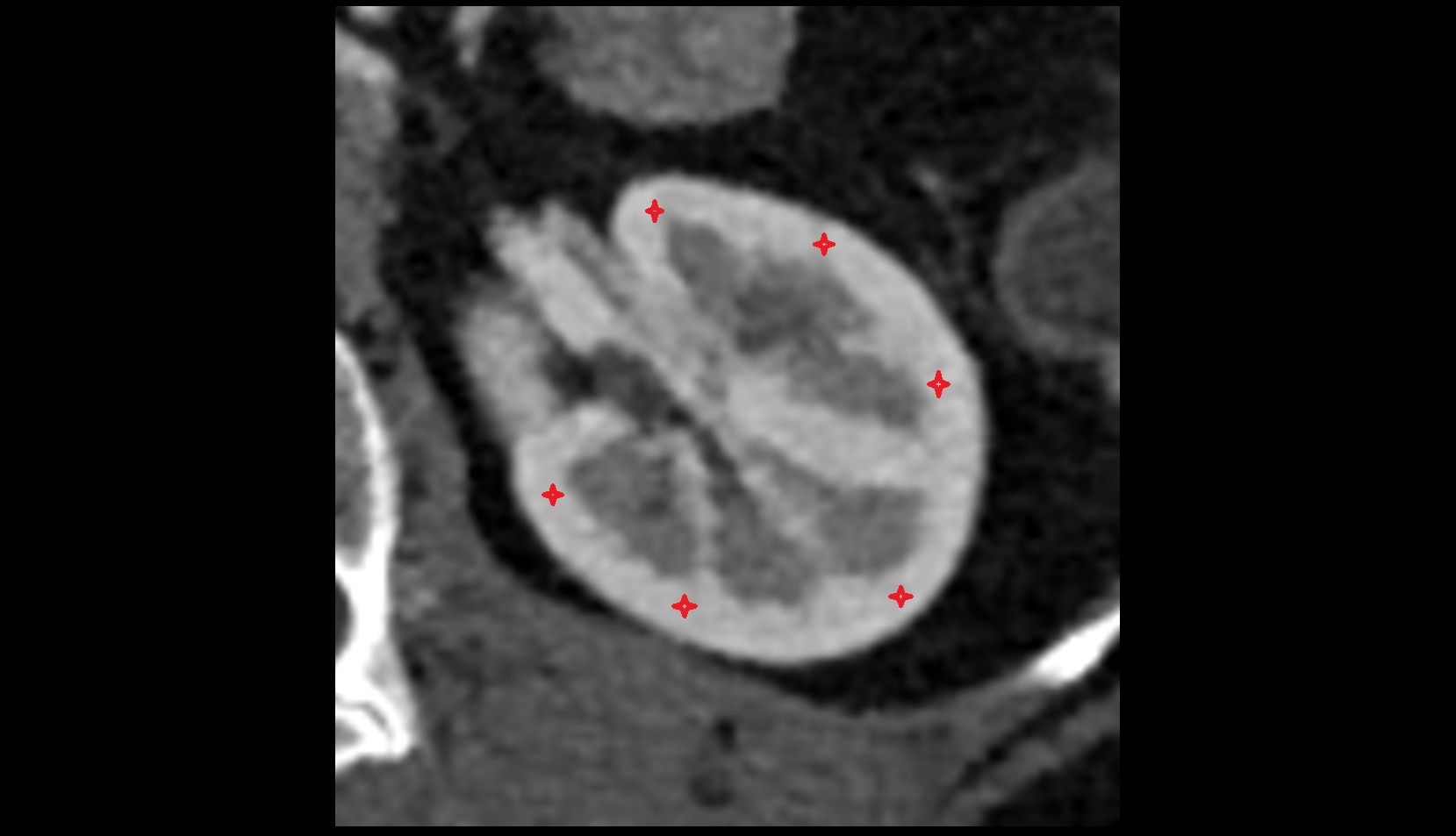

kidney cortex (renal cortex) CT axial image

CT images

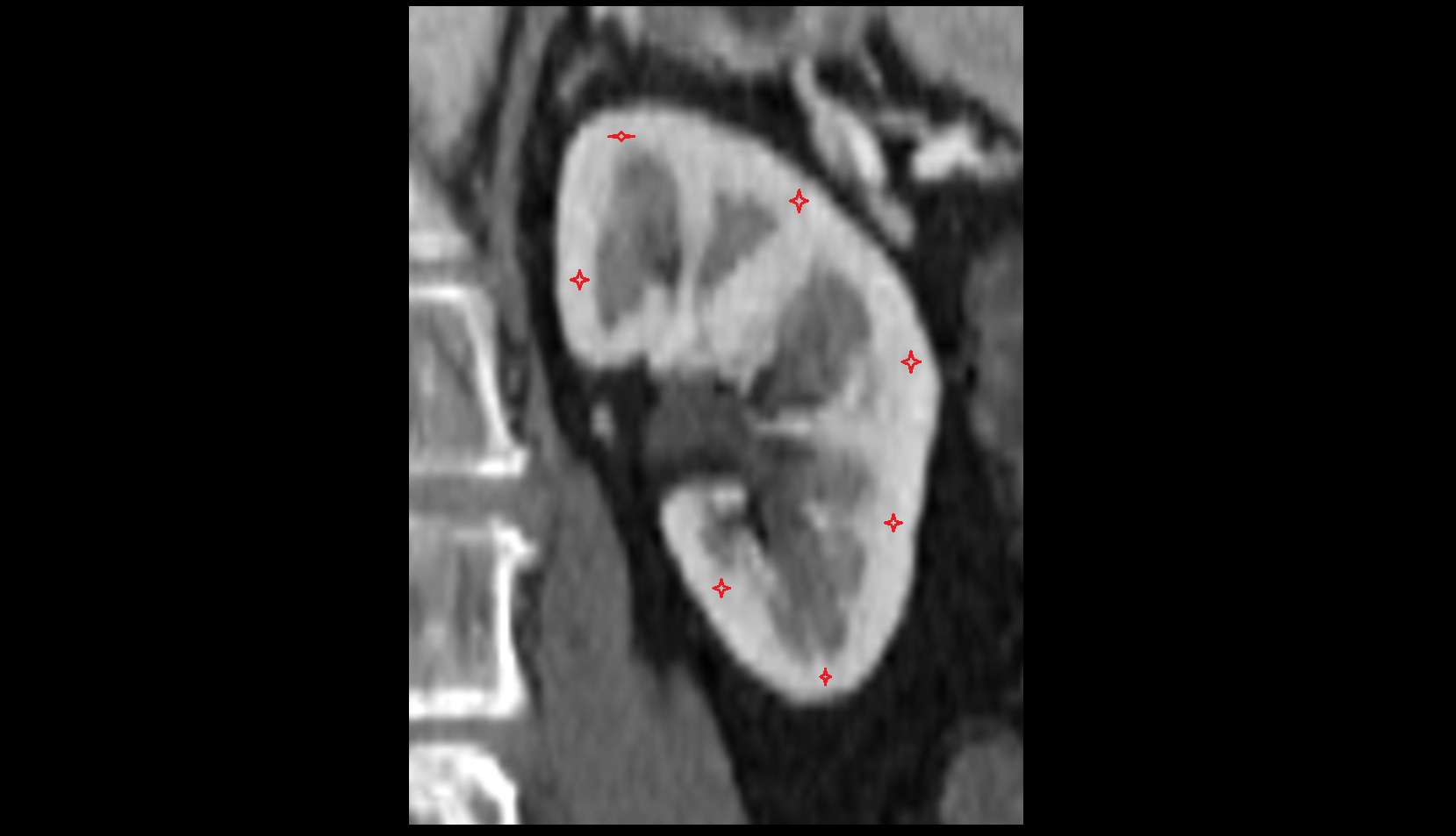

kidney cortex (renal cortex) CT coronal image

MRI image

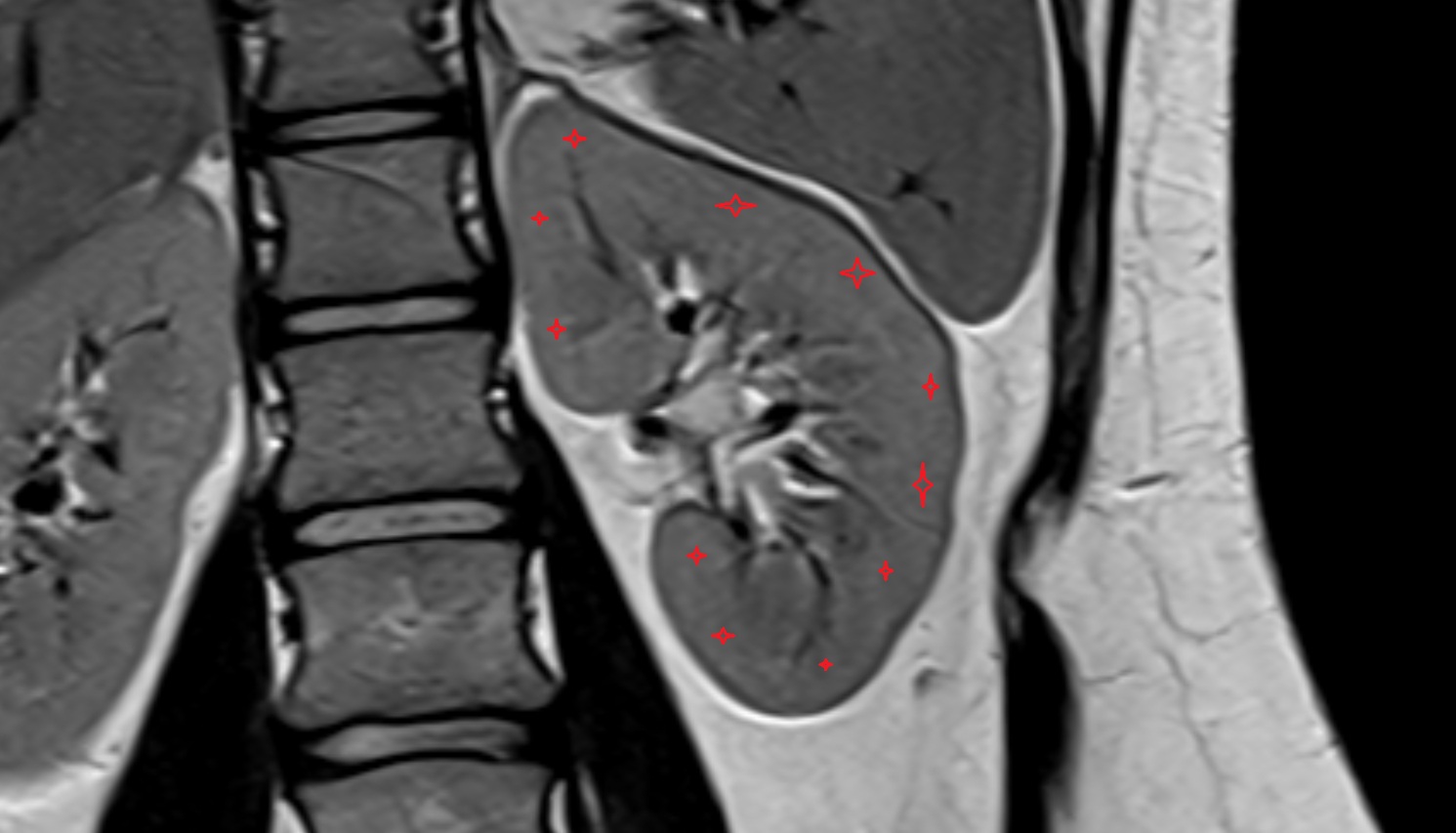

kidney cortex (renal cortex) MRI coronal image anatomy image -img-00000-00000
