Lateral Collateral Ligament Complex of Elbow: Anatomy, Function, Imaging

Topic

Lateral collateral ligament complex of elbow

The lateral collateral ligament complex (LCLC) is a group of stabilizing ligaments on the lateral side of the elbow joint. It provides resistance to varus stress and posterolateral rotatory instability (PLRI). The complex includes the radial collateral ligament (RCL), lateral ulnar collateral ligament (LUCL), annular ligament, and accessory lateral collateral ligament.

This complex is essential for maintaining elbow joint stability, particularly during forearm rotation and weight-bearing activities. Injury to any component, especially the LUCL, can result in posterolateral rotatory instability, a key cause of chronic lateral elbow pain and dysfunction.

Synonyms

Lateral ligamentous complex of elbow
Radial collateral complex
Lateral ulnar collateral system

Components

Radial Collateral Ligament (RCL):
- Originates from the lateral epicondyle of the humerus.
- Blends distally with the annular ligament.
- Provides primary resistance to varus stress.
Lateral Ulnar Collateral Ligament (LUCL):
- Extends from the lateral epicondyle to the supinator crest of the ulna.
- Prevents posterolateral rotatory instability and acts as a key stabilizer.
Annular Ligament:
- Encircles the radial head, maintaining its position within the radial notch of the ulna during pronation and supination.
Accessory Lateral Collateral Ligament:
- Variable band reinforcing the annular ligament inferiorly.

Origin and Insertion

Origin: Lateral epicondyle of the humerus (common for RCL and LUCL).
Insertion:
- RCL blends with annular ligament surrounding radial head.
- LUCL inserts on the supinator crest of the ulna.
- Annular ligament attaches to anterior and posterior margins of the radial notch of the ulna.

Relations

Anteriorly: Capsule of the elbow joint and radial head
Posteriorly: Anconeus muscle and lateral epicondyle
Medially: Capitulum of the humerus and radial head
Laterally: Extensor carpi radialis brevis and extensor digitorum muscles
Inferiorly: Supinator muscle

Function

Varus stability: Prevents medial displacement of the forearm under varus stress.
Posterolateral stabilization: The LUCL prevents posterior subluxation of the radial head and ulna.
Dynamic coordination: Works with the extensor muscle group to stabilize the elbow during movement.
Annular restraint: Maintains the radial head’s congruency during pronation and supination.

Clinical Significance

Posterolateral rotatory instability (PLRI): Most common result of LUCL injury.
Varus instability: Occurs with RCL or LUCL disruption.
Trauma: Direct elbow dislocation or varus force can tear the LCLC.
Iatrogenic injury: May occur during lateral epicondylitis (“tennis elbow”) surgery.
Chronic insufficiency: Leads to recurrent subluxation, pain, and mechanical symptoms.
Imaging role: MRI and CT arthrography essential for assessing ligament tears and capsular injuries.

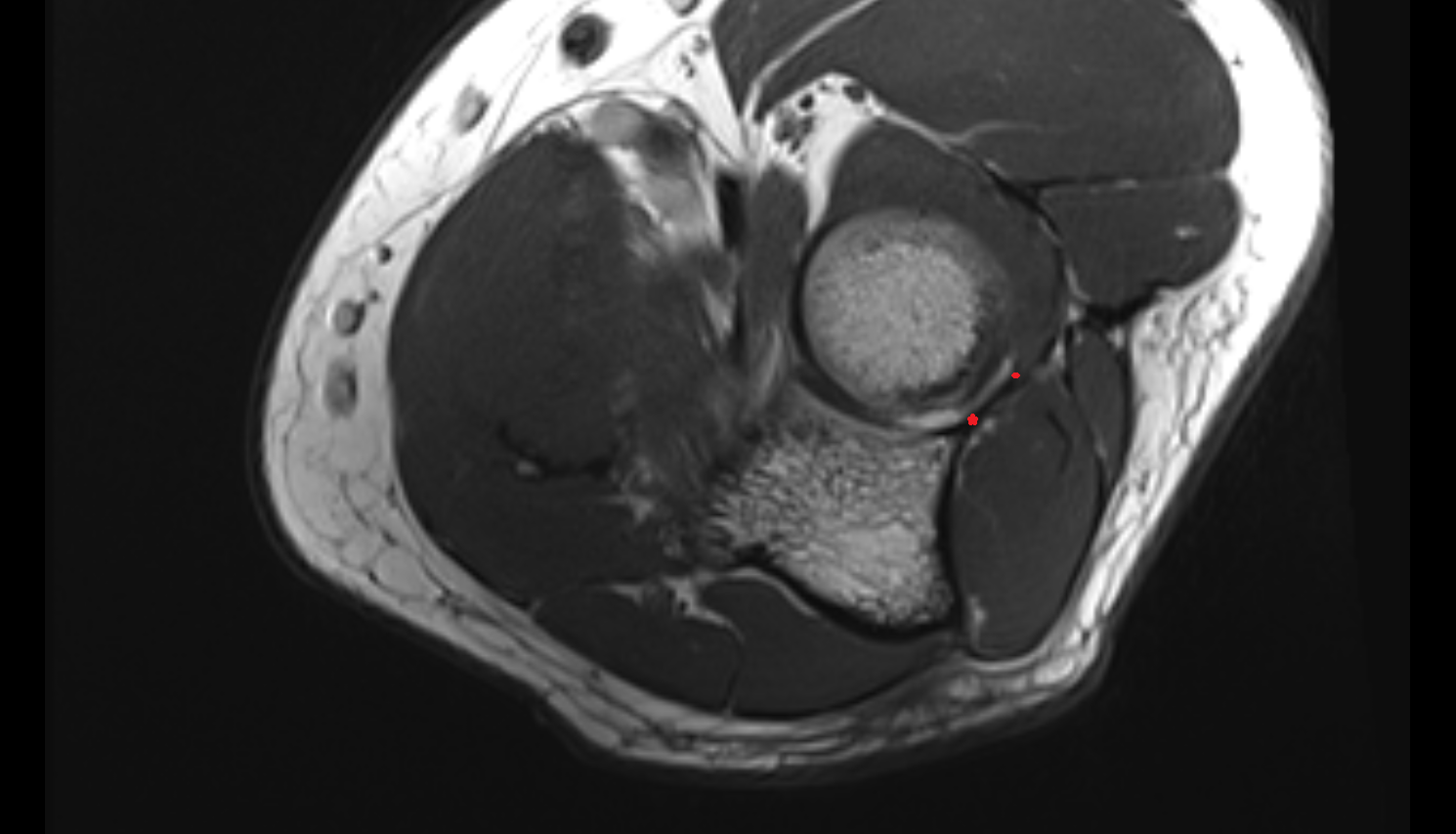

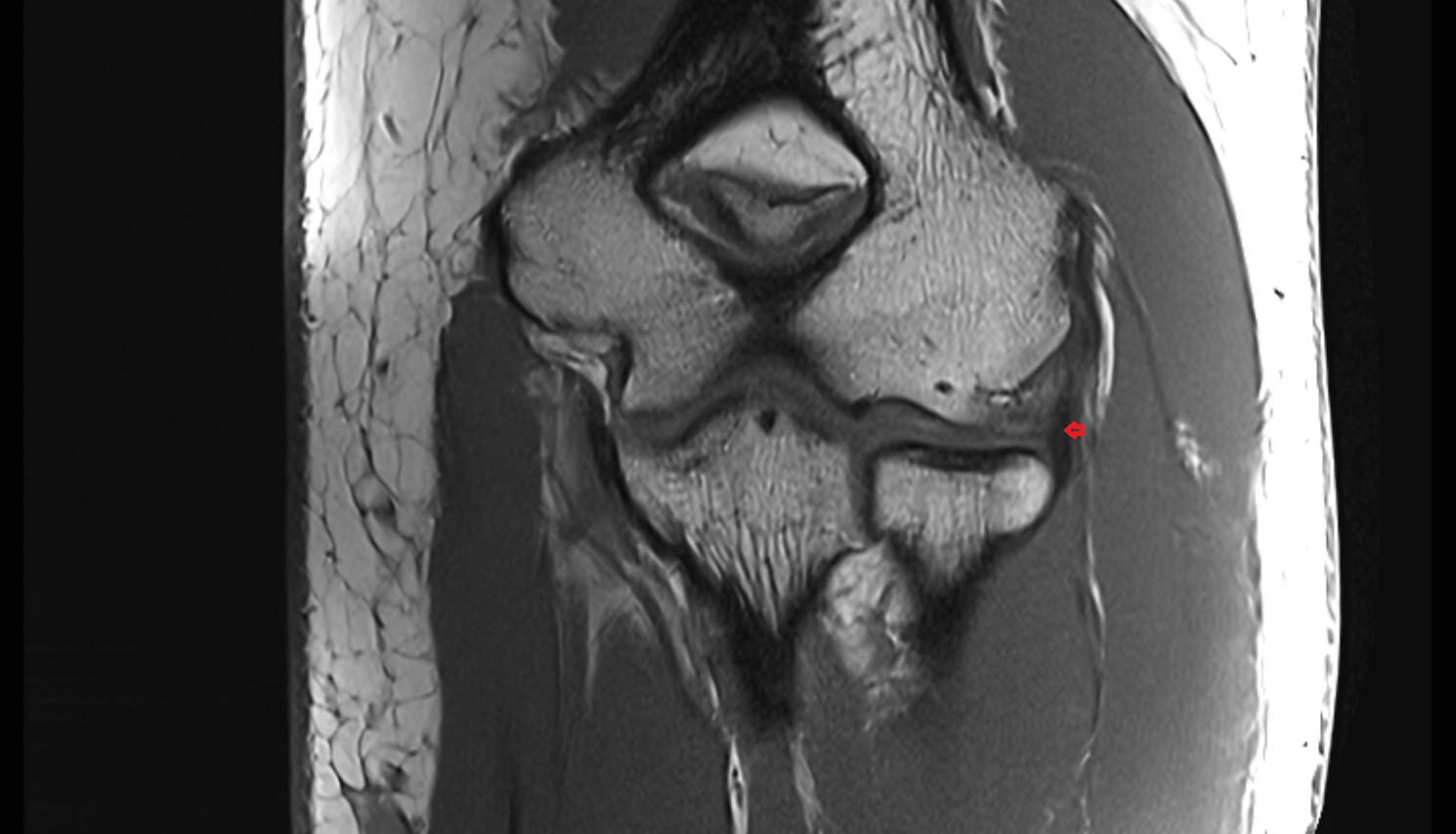

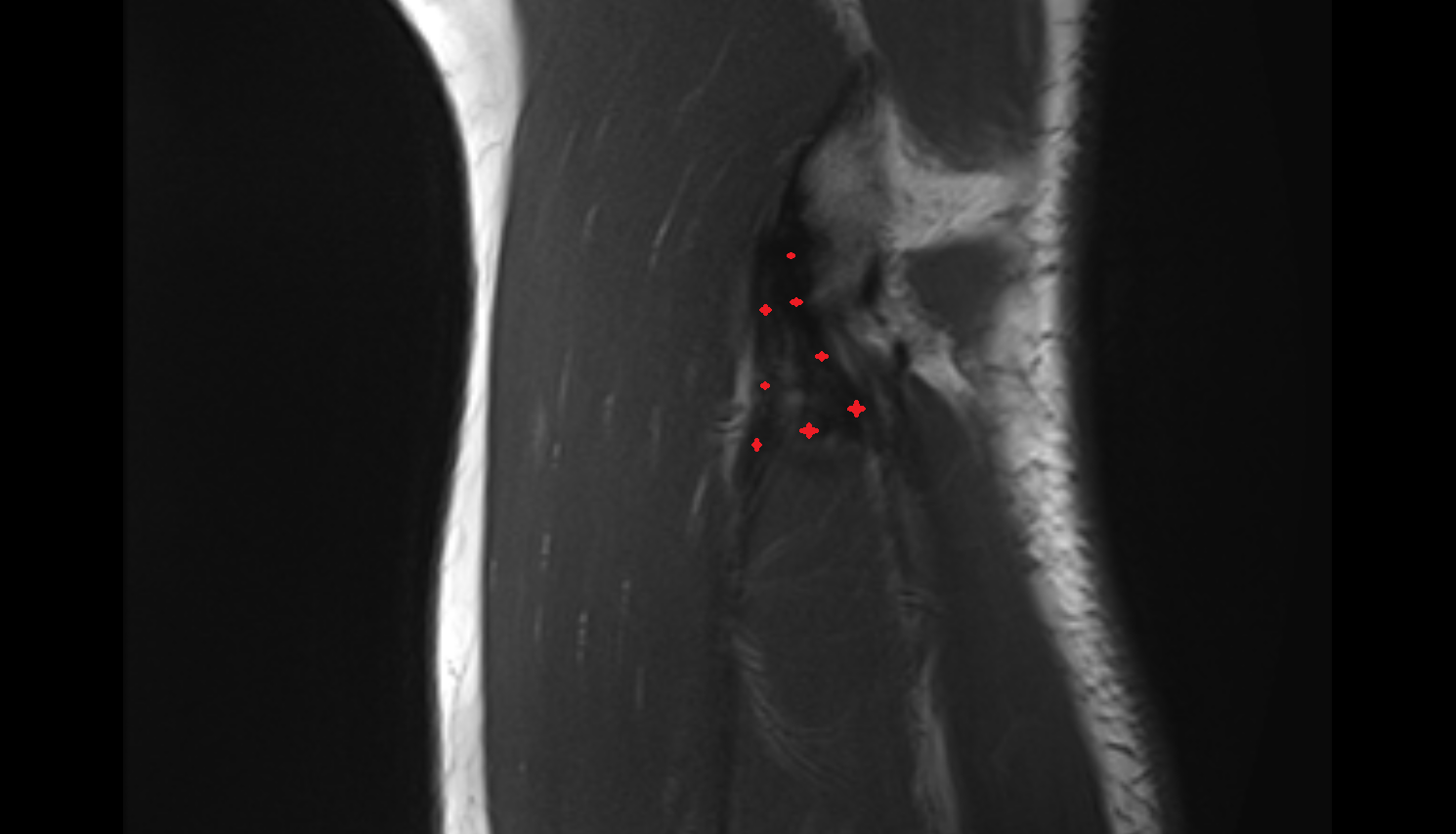

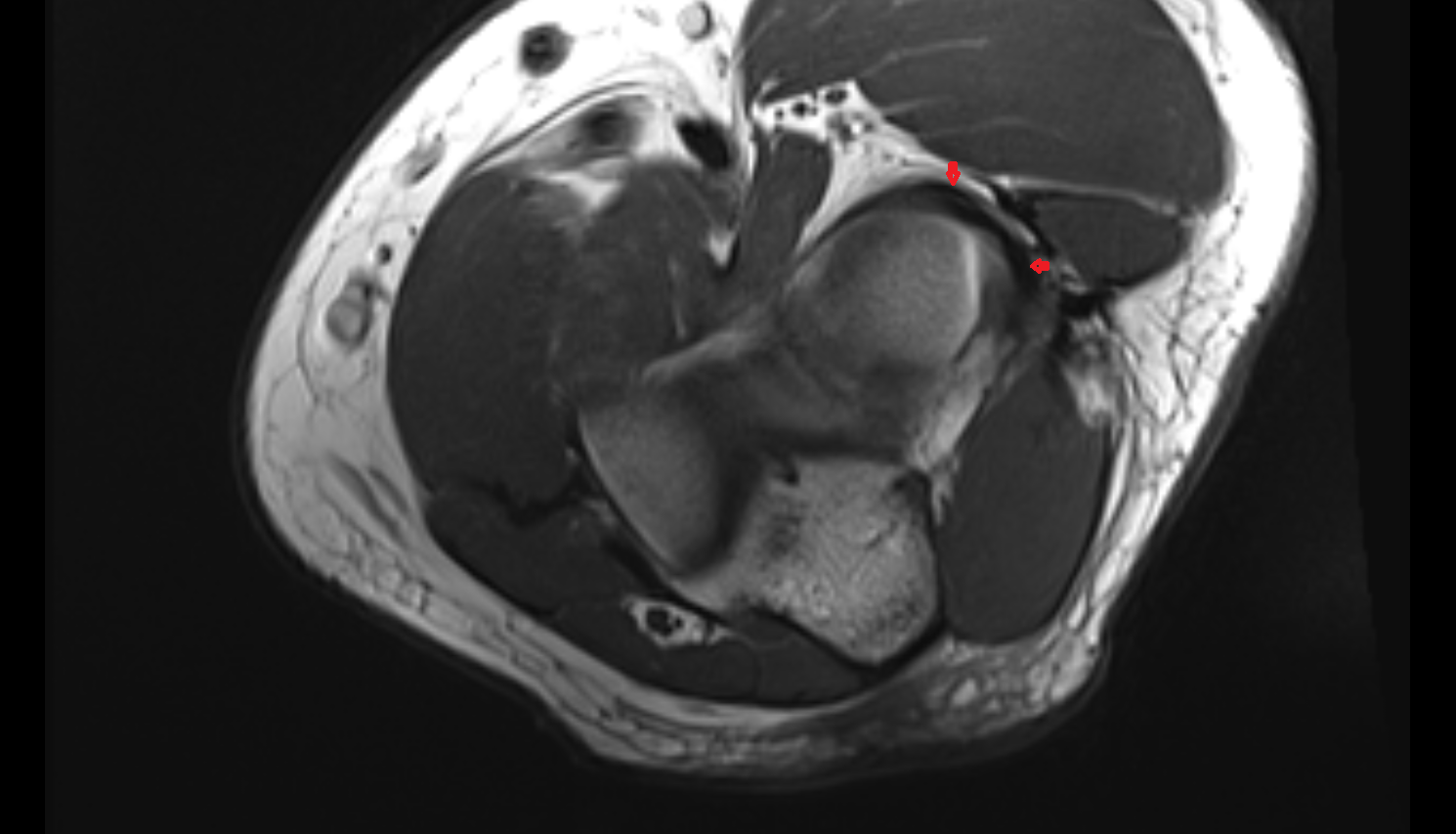

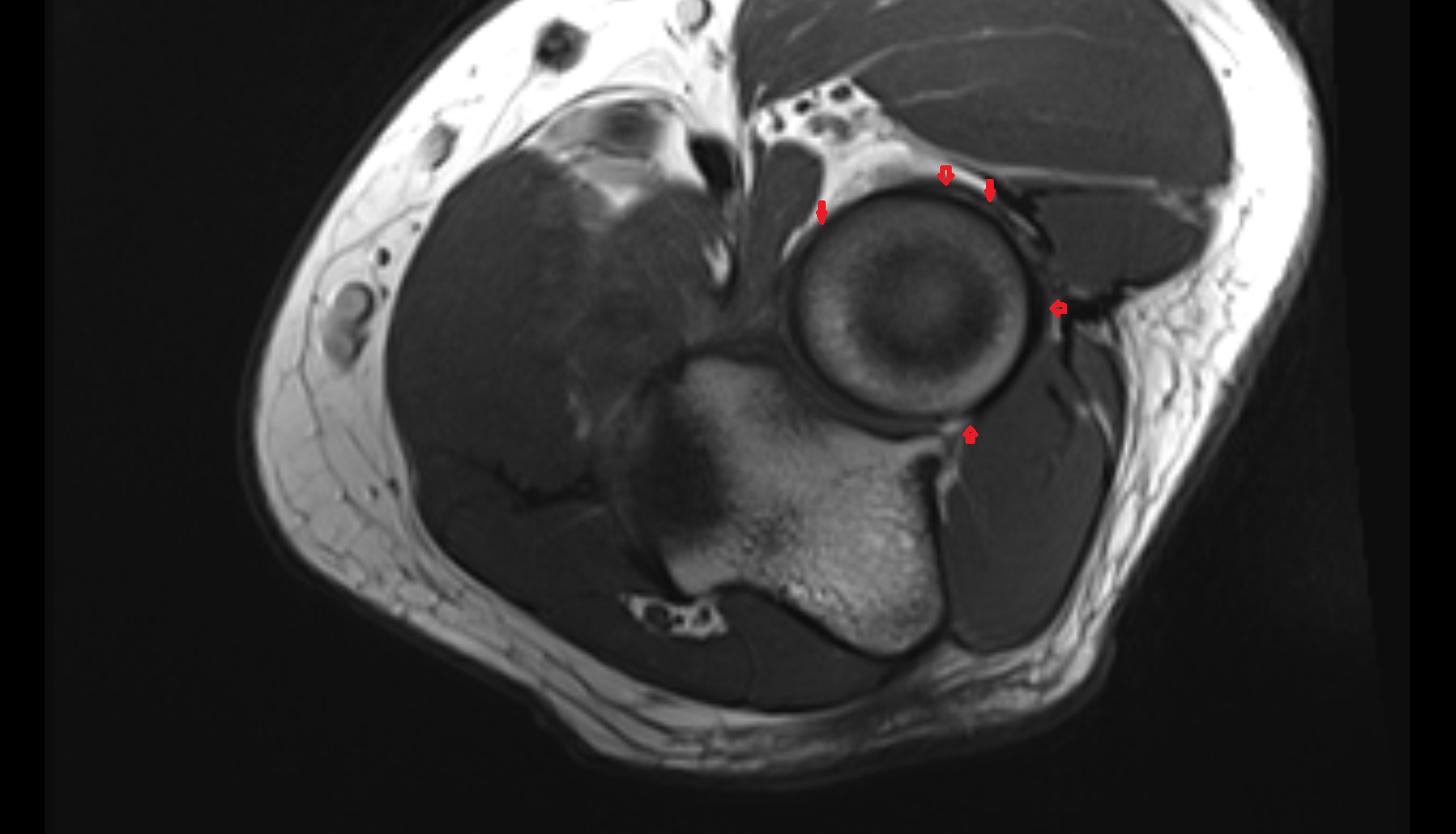

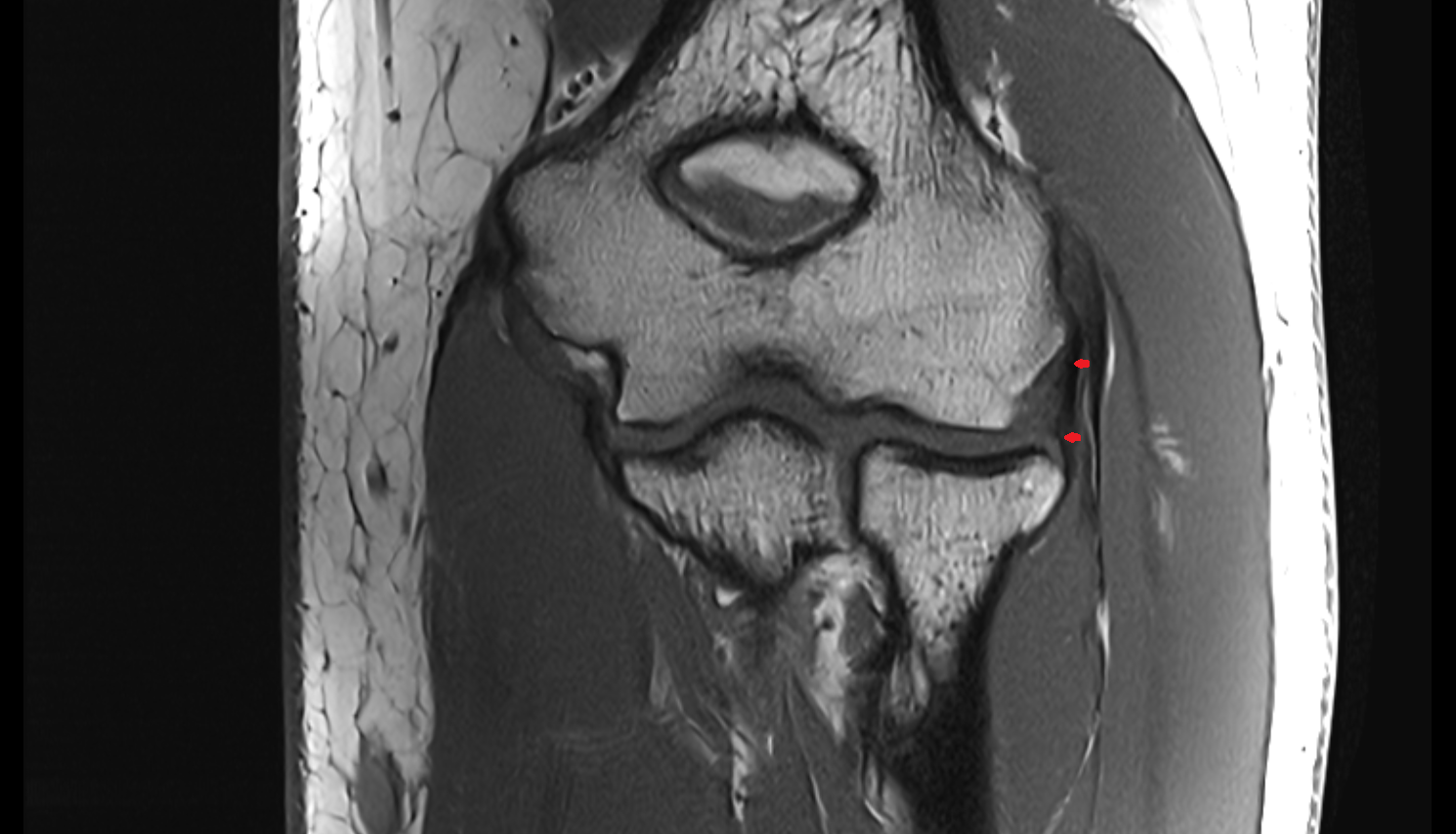

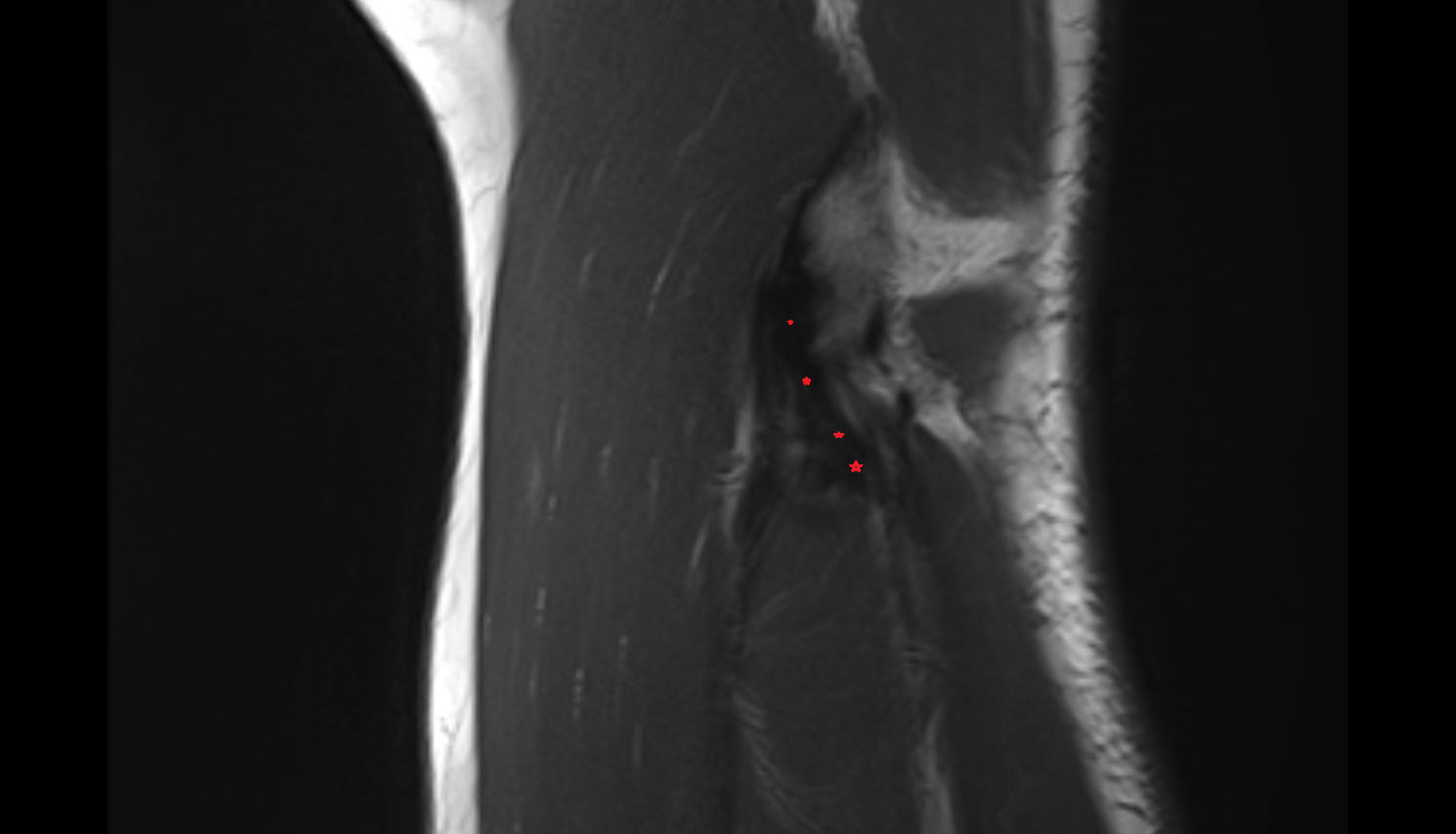

MRI Appearance

T1-weighted images:

Ligaments: Low signal (dark linear bands) outlining the lateral joint margin.
Fat around the epicondyle and capsule: bright, providing contrast for ligament visualization.
Partial tears: irregular or discontinuous low-signal band with small intermediate-signal areas.

T2-weighted images:

Normal ligaments: Low signal, sharply defined.
Partial tear: Hyperintense signal within or adjacent to ligament fibers.
Complete tear: Discontinuity or nonvisualization of ligament fibers with joint effusion or capsular edema.
LUCL disruption: radial head posterior subluxation, capsular distension, and edema along supinator crest.

STIR:

Normal ligaments: Dark (low signal) linear structures.
Pathology: Bright hyperintense edema in torn or inflamed ligaments and adjacent soft tissue.

Proton Density Fat-Saturated (PD FS):

Normal: Low-signal ligament against dark background.
Partial tear: focal bright hyperintense area in ligament substance.
Joint fluid and reactive synovitis: high signal outlining capsule.

T1 Fat-Sat Post-Contrast:

Normal ligaments: minimal enhancement.
Inflamed or injured fibers: mild to moderate enhancement along tear margins.
Chronic injury: fibrotic ligament appears low signal with peripheral rim enhancement.

MRI Arthrogram Appearance

Intra-articular contrast outlines the radial head, capsule, and annular recess.
Normal ligaments: thin dark linear bands, well-demarcated from bright contrast.
Partial tear: contrast insinuates between fibers or along ligament origin/insertion.
Complete tear: contrast extravasation into posterolateral soft tissue or supinator recess.
Useful for confirming LUCL tears, small capsular defects, and posterolateral instability.

CT Appearance

Non-Contrast CT:

Ligaments: not directly visualized due to similar density to soft tissue.
Indirect signs: joint incongruity, radial head subluxation, or avulsion fragments near lateral epicondyle or supinator crest.
Bone irregularity or cortical defects may suggest chronic traction or avulsion injury.

Post-Contrast CT (standard):

Capsule enhancement may indicate inflammation or scarring.
Detects periarticular ossification, chronic avulsion scars, and subtle bone lesions around ligament attachments.

CT Arthrogram Appearance

Contrast outlines the joint capsule and lateral recess, highlighting ligament integrity.
Normal ligaments: thin non-opacified bands between bright contrast spaces.
Tears or capsular defects: contrast leaks into periligamentous planes or supinator recess.
Reveals subtle partial-thickness tears, small avulsions, and posterolateral capsule disruptions.
Highly sensitive for assessing LCLC integrity, especially in post-surgical or chronic instability cases.
