Left brachiocephalic vein

The left brachiocephalic vein, also called the left innominate vein, is a major systemic vein of the thorax formed by the union of the left internal jugular vein and left subclavian vein posterior to the left sternoclavicular joint. It courses obliquely downward and to the right, across the superior mediastinum, anterior to the branches of the aortic arch, to join the right brachiocephalic vein behind the first right costal cartilage. Together, they form the superior vena cava (SVC).

The left brachiocephalic vein is longer (approximately 6 cm) than the right brachiocephalic vein because it must traverse the midline of the chest. Its thin walls and anterior mediastinal position make it susceptible to extrinsic compression by mediastinal masses, thymic tumors, or aortic aneurysms. Clinically, it is significant for central venous access, oncology staging, SVC syndrome, and imaging of venous thrombosis.

Synonyms

  • Left innominate vein

  • Vena brachiocephalica sinistra

Function

  • Drains venous blood from the left upper limb, left side of head and neck, and left thorax

  • Serves as a major tributary to the SVC, facilitating systemic venous return to the right atrium

  • Provides venous connections important in hemodialysis catheters and central venous lines

  • Plays a role in collateral venous circulation during SVC obstruction

Tributaries

  • Left internal jugular vein

  • Left subclavian vein

  • Left vertebral vein

  • Left inferior thyroid vein

  • Left superior intercostal vein

  • Left internal thoracic vein

  • Left pericardiophrenic vein

  • Thymic and mediastinal veins

MRI Appearance

T1-weighted images:

  • Appears as a signal void (black lumen) along the anterior mediastinum

  • Surrounded by hyperintense mediastinal fat, enhancing its visibility

T2-weighted images:

  • Normal flow creates a signal void; intraluminal thrombus may appear hyperintense

  • Demonstrates relationship to great arteries and mediastinal structures

STIR:

  • Suppresses fat, highlighting the venous lumen and perivascular edema if present

  • Useful in thrombosis, compression, or inflammatory conditions

T1 Post-Gadolinium (Gd-enhanced MRI):

  • Lumen enhances homogeneously and brightly

  • Filling defects indicate thrombosis or tumor invasion

  • Valuable in mapping venous obstruction or stenosis

MRI Non-Contrast 3D Cardiac-Gated Imaging:

  • Clearly depicts the course across mediastinum and confluence with right brachiocephalic vein

  • Demonstrates anatomical variations and collateral veins without contrast

  • Useful in patients with renal impairment or contrast contraindications

MRA (Magnetic Resonance Angiography):

  • Contrast-enhanced MRA provides high-resolution 3D imaging of the brachiocephalic veins and SVC

  • Identifies stenosis, occlusion, collateral circulation, and extrinsic compression

CT Appearance

CT Post-Contrast (CT Venography):

  • Enhances brightly as it traverses anterior to the aortic arch branches

  • Filling defects reveal thrombosis, stenosis, or intraluminal mass

  • Multiplanar and 3D reconstructions show anatomical variations and collateral pathways

  • Crucial for evaluating SVC syndrome, oncologic staging, and central venous line placement complications

CT images

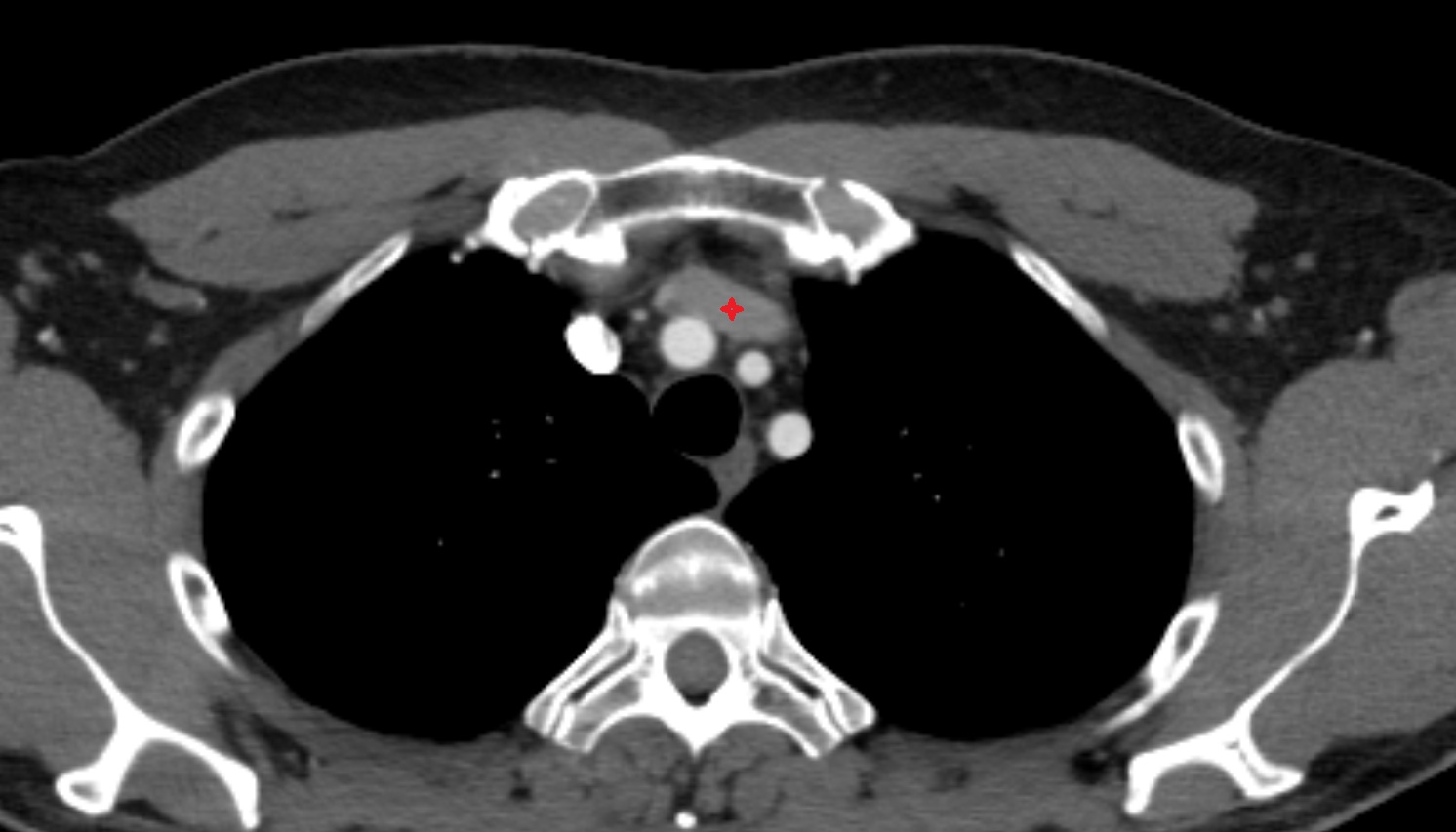

Left brachiocephalic vein anatomy axial CT image -img-00000-00000

CT images

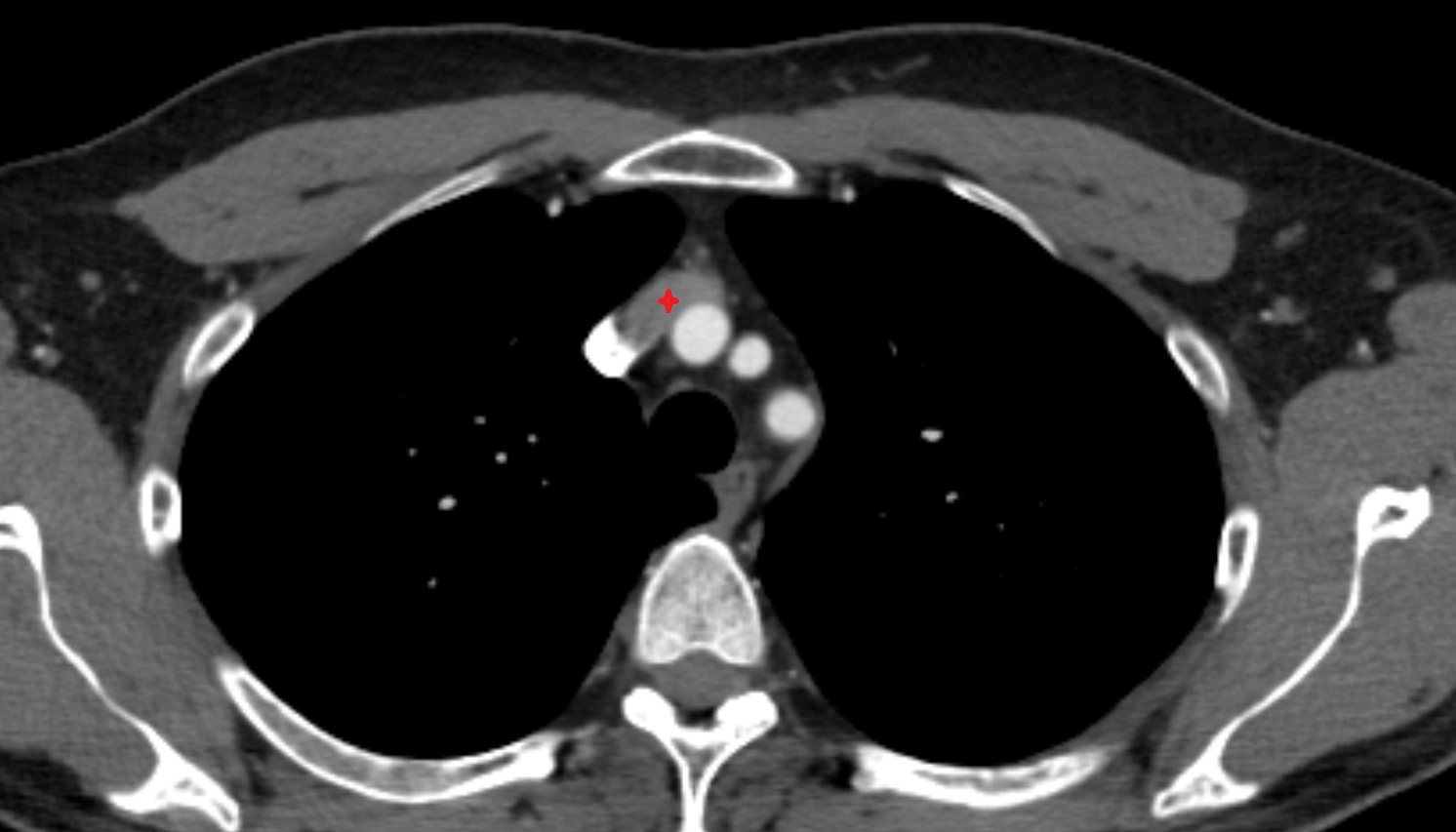

Left brachiocephalic vein anatomy axial CT image -img-00000-00000_00001

MRI image

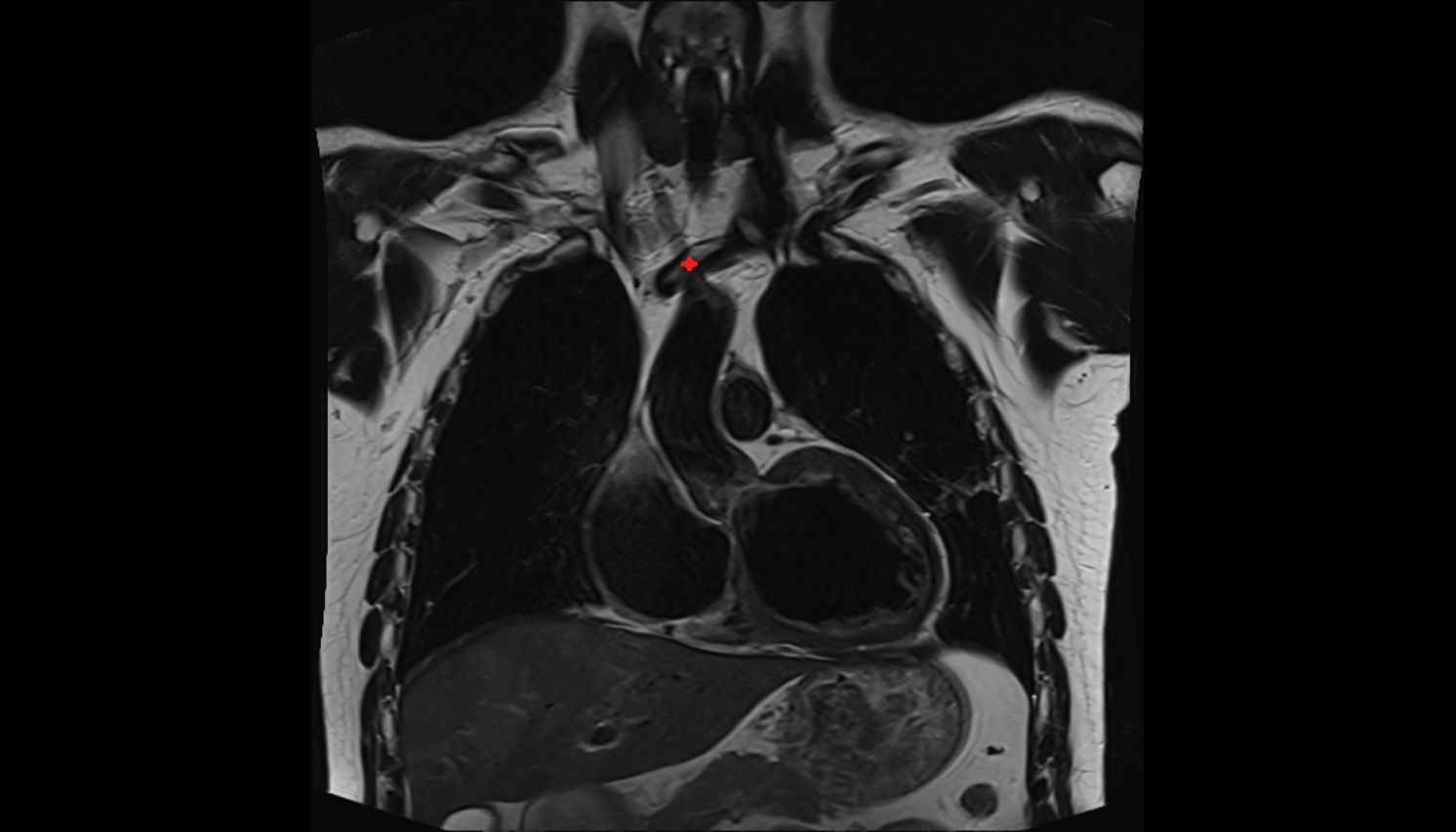

Left brachiocephalic vein anatomy CORONAL MRI image -img-00000-00000
