Left renal vein

The left renal vein (LRV) is the large venous channel that drains blood from the left kidney into the inferior vena cava (IVC). It is typically longer than the right renal vein, crossing anterior to the aorta just below the origin of the superior mesenteric artery (SMA) to reach the IVC. Because of this course, it is anatomically and clinically significant.

The LRV receives tributaries from the left adrenal vein, left gonadal vein (ovarian or testicular), lumbar veins, and the left ureteric vein, in addition to the intrarenal venous system. It usually courses between the SMA anteriorly and aorta posteriorly, a relationship that can lead to compression (nutcracker syndrome).

Anatomical Variants

  • Retroaortic left renal vein: passes behind the aorta to drain into the IVC

  • Circumaortic left renal vein: duplicated branches encircle the aorta (one anterior, one posterior)

  • Multiple renal veins: accessory left renal veins are not uncommon

  • These variants are important in renal surgery, kidney transplantation, and interventional radiology.

Synonyms

  • Left kidney vein

Function

  • Returns deoxygenated blood from the left kidney to the IVC

  • Provides venous outflow for the left adrenal gland and left gonad

  • Acts as an important collateral route in cases of IVC obstruction

Clinical Relevance

  • Nutcracker syndrome: compression of LRV between SMA and aorta → causes hematuria, flank pain, pelvic congestion in women, varicocele in men

  • Renal transplantation: the LRV’s length and tributaries make it the preferred venous outflow vessel

  • Venous thrombosis: rare but serious, can compromise kidney function

  • Surgical significance: awareness of variants prevents complications in nephrectomy and vascular reconstructions

MRI Appearance

T1-weighted images:

  • LRV lumen appears as a flow void (black)

  • Surrounded by hyperintense perirenal fat that improves vessel conspicuity

T2-weighted images:

  • Flowing blood remains a signal void

  • Thrombosis appears as intermediate to hyperintense filling defect, depending on clot age

STIR:

  • Fat suppression highlights the LRV course against renal and retroperitoneal fat

  • Adjacent edema or inflammation (e.g., perinephric pathology) appears hyperintense

T1 Fat-Saturated (Pre-contrast):

  • Lumen shows intermediate signal intensity, standing out against suppressed perirenal fat

  • Useful for vessel-to-parenchyma differentiation

T1 Fat-Saturated Post-Contrast (Gadolinium):

  • LRV enhances homogeneously and brightly during venous phase

  • Filling defects confirm thrombus or extrinsic compression (nutcracker)

MRV (Magnetic Resonance Venography):

  • Provides a non-invasive map of LRV course, tributaries, and variants

  • Demonstrates compression between SMA and aorta in nutcracker syndrome

  • Preferred in young patients to avoid radiation

CT Appearance

CT Pre-Contrast:

  • LRV appears as a soft-tissue density tubular structure crossing anterior to aorta

  • Non-contrast phase may detect intraluminal thrombus (hyperdense clot)

CT Post-Contrast:

  • LRV opacifies in venous phase, showing size, patency, and tributaries

  • Detects stenosis, thrombosis, compression, or dilated tributaries

CT Venography (CTV):

  • Gold-standard for evaluation of renal venous anatomy and nutcracker syndrome

  • Multiplanar and 3D reconstructions show normal course and anatomical variants

  • Essential in donor evaluation, venous hypertension, and tumor invasion mapping

CT image

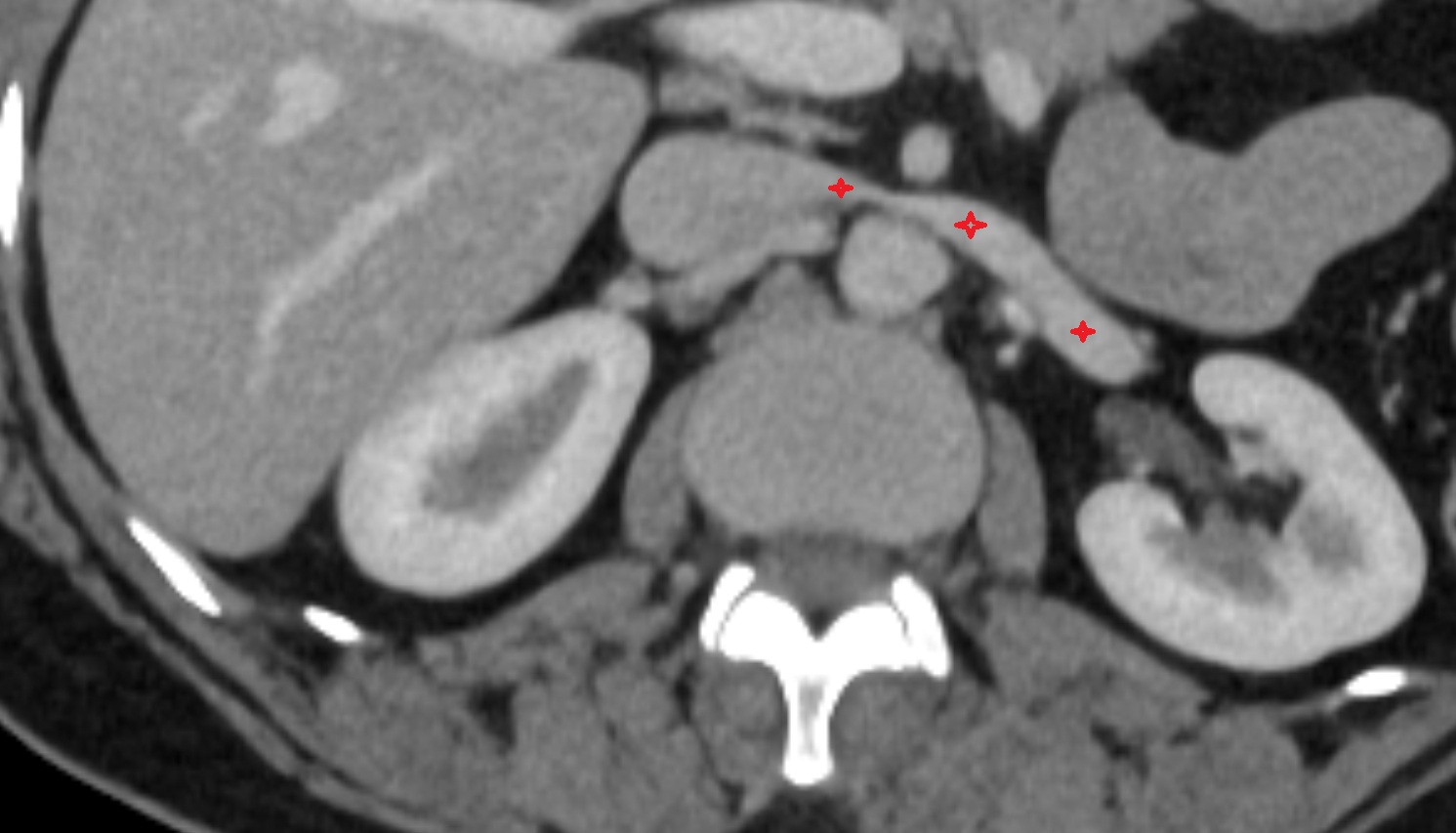

Left renal vein CT AXIAL image anatomy image -img-00000-00000

MRI image

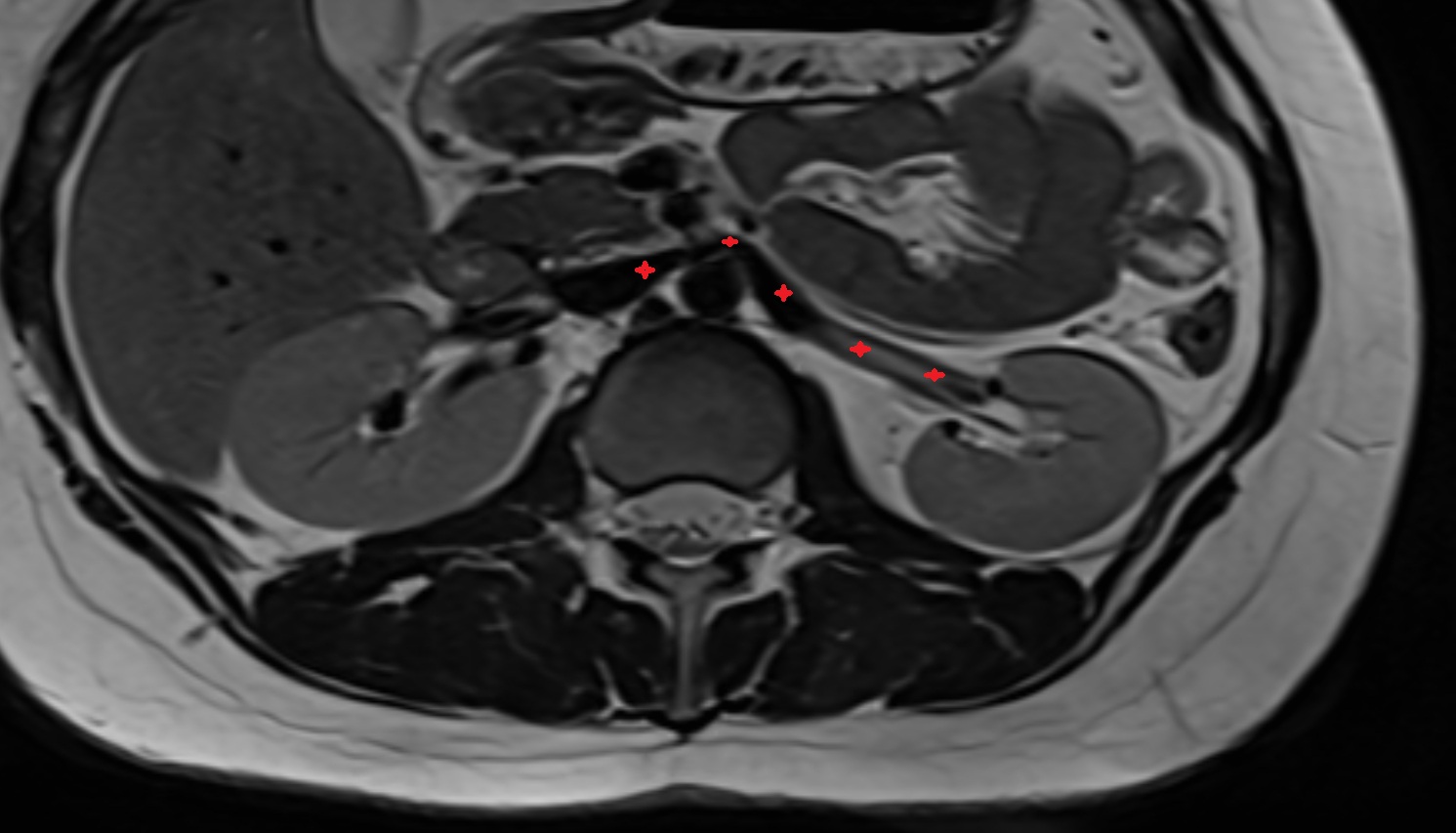

Left renal vein MRI AXIAL image anatomy image -img-00000-00000
