Left subclavian vein

The left subclavian vein is a major venous channel that drains blood from the upper limb, shoulder, thoracic wall, and head/neck via the external jugular vein. It is formed by the continuation of the axillary vein at the outer border of the first rib and courses medially across the superior thoracic aperture.

The vein passes anterior to the scalenus anterior muscle and phrenic nerve, arching over the first rib and lying posterior to the clavicle. At the medial border of the scalenus anterior, it joins the left internal jugular vein to form the left brachiocephalic vein, which then contributes to the superior vena cava (SVC).

Compared to the right, the left subclavian vein is longer and receives tributaries from the thoracic duct, the body’s main lymphatic vessel, which enters at its junction with the left internal jugular vein.

Clinically, the left subclavian vein is significant as a site for central venous catheterization, pacemaker/ICD lead insertion, and dialysis access. It is also involved in thoracic outlet syndrome, venous thrombosis, and SVC obstruction syndromes.

Synonyms

  • Vena subclavia sinistra

  • Left axillary continuation vein

Function

  • Drains deoxygenated blood from the left upper limb, shoulder, and thoracic wall

  • Receives venous return from the external jugular vein and the thoracic duct

  • Contributes to systemic venous return via the brachiocephalic vein → SVC

  • Serves as an access route for central venous catheters and devices

Tributaries

  • Axillary vein (continuation)

  • External jugular vein

  • Dorsal scapular vein (variable)

  • Cephalic vein (via deltopectoral groove)

  • Thoracic duct (lymphatic drainage at venous angle)

MRI Appearance

T1-weighted images:

  • Lumen appears as a signal void (black) due to venous flow

  • Surrounded by hyperintense mediastinal/neck fat, aiding identification

T2-weighted images:

  • Venous lumen shows a signal void; thrombus appears as variable intermediate to high signal depending on clot age

STIR:

  • Suppresses fat to better visualize the vein in the thoracic outlet and root of the neck

  • Useful for detecting perivascular edema, venous obstruction, or extrinsic compression

T1 Post-Contrast (Gadolinium-enhanced MRI):

  • Left subclavian vein enhances homogeneously and brightly

  • Filling defects represent DVT, stenosis, or tumor invasion

  • Useful for MR venography and thoracic outlet evaluation

MRA (MR Venography):

  • Contrast-enhanced venography demonstrates the course, tributaries, and confluence with the internal jugular vein

  • Identifies stenosis, thrombosis, or collaterals in SVC obstruction

CT Appearance

Non-contrast CT:

  • Appears as a tubular soft-tissue density anterior to the scalenus anterior and posterior to clavicle

  • Thrombosed vein appears as hyperdense intraluminal material

CT Post-Contrast (CT Venography):

  • Vein opacifies brightly with intravenous contrast

  • Demonstrates course, caliber, and relation to clavicle, first rib, and scalene muscles

  • Identifies venous thrombosis, extrinsic compression (thoracic outlet syndrome), stenosis, or collateral circulation

  • Key in evaluating catheter complications, tumor compression, and vascular anomalies

CT image

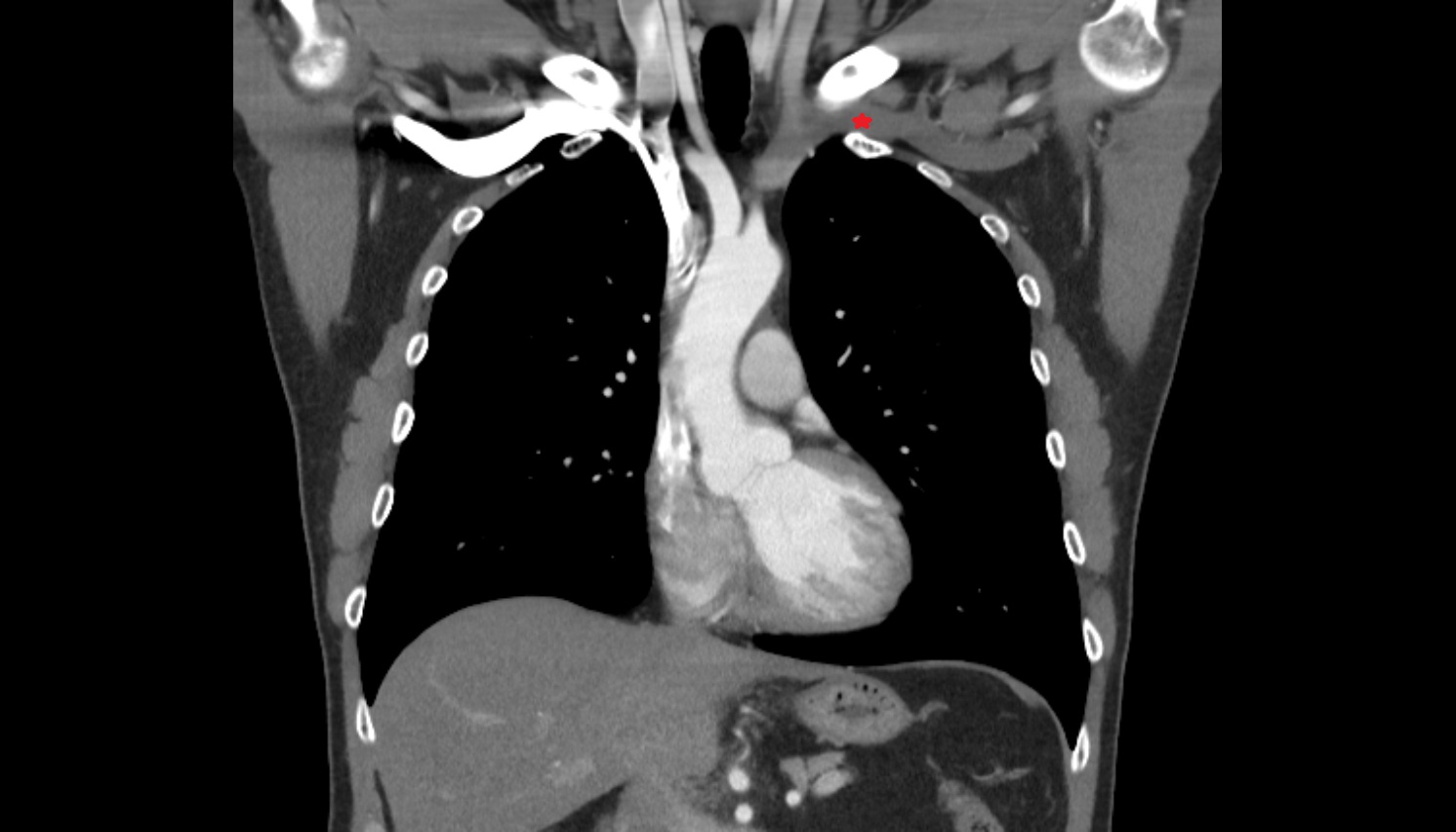

Left subclavian vein anatomy CORONAL CT image -img-00000-00000

MRI image

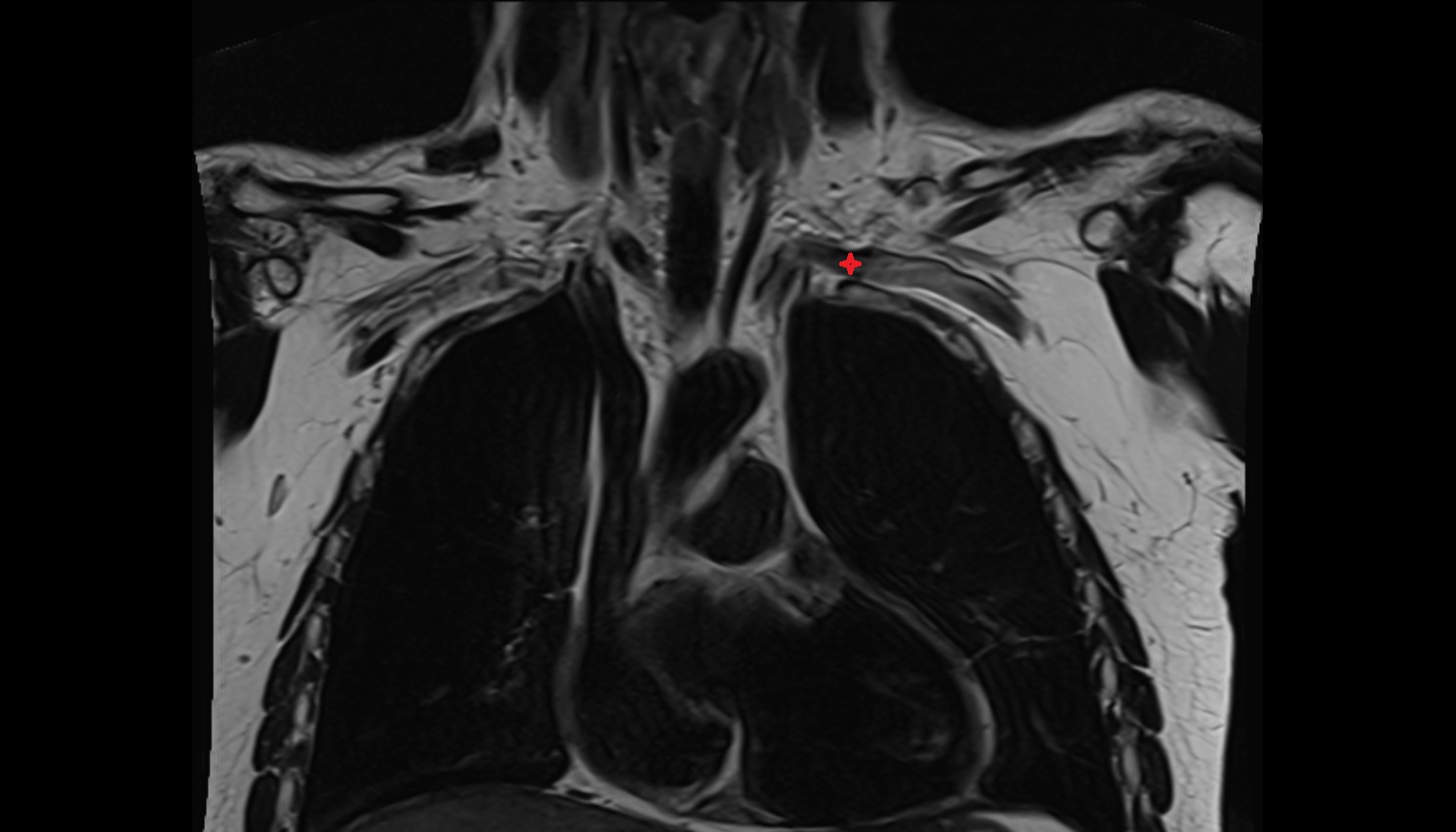

Left subclavian vein anatomy CORONAL MRI image -img-00000-00000
