Lumbosacral joint

The lumbosacral joint, also known as the L5–S1 joint, is the articulation between the last lumbar vertebra (L5) and the sacrum. It represents the transitional zone between the mobile lumbar spine and the rigid sacrum and pelvis. It consists of both an intervertebral disc joint (symphysis type) and zygapophyseal (facet) joints (synovial type).

This joint plays a crucial role in transmitting loads from the spine to the pelvis, maintaining lumbopelvic stability, and permitting flexion, extension, lateral bending, and limited rotation. Because of its biomechanical stress, it is one of the most common sites of degeneration, disc herniation, and spondylolisthesis.

Synonyms

  • L5–S1 articulation

  • Lumbosacral articulation

  • Lumbosacral junction

Articulations, Structure, and Ligaments

  • Articulations:

    • Intervertebral articulation: Between the L5 vertebral body and the superior surface of S1 via the intervertebral disc

    • Facet joints: Between the inferior articular facets of L5 and the superior articular facets of S1 (plane synovial joints)

  • Supporting Ligaments:

    • Anterior longitudinal ligament – strong anterior support, limiting extension

    • Posterior longitudinal ligament – posterior support along vertebral bodies

    • Ligamentum flavum – connects laminae, providing elastic recoil

    • Interspinous and supraspinous ligaments – reinforce posteriorly

    • Iliolumbar ligament – stabilizes L5 to iliac crest, critical at lumbosacral junction

    • Lumbosacral ligament – connects L5 transverse process to sacrum

Relations

  • Anteriorly: Abdominal aorta bifurcation, common iliac vessels, sympathetic chain

  • Posteriorly: Erector spinae and multifidus muscles

  • Laterally: Psoas major muscle and lumbosacral trunk

  • Inferiorly: Sacral canal and sacral nerve roots

Function

  • Acts as a load-bearing joint transmitting forces from lumbar spine to sacrum and pelvis

  • Allows flexion, extension, lateral bending, and limited axial rotation

  • Maintains the lumbosacral angle, important for spinal alignment

  • Provides stability to prevent anterior displacement of L5 over S1

Clinical Significance

  • Degenerative disc disease: Common due to high load-bearing stress

  • Disc herniation: Frequently occurs at L5–S1, compressing S1 nerve root

  • Spondylolisthesis: L5 vertebra may slip forward over S1 due to facet orientation and stress

  • Fractures/trauma: Involve the transitional lumbosacral region

  • Surgical relevance: Important landmark in spinal fusion and decompression surgeries

  • Imaging relevance: Key site for evaluating low back pain and sciatica

MRI Appearance

T1-weighted images:

  • Intervertebral disc shows low-to-intermediate signal

  • Vertebral marrow is bright (fat content), unless edematous or replaced

T2-weighted images:

  • Normal disc nucleus pulposus: bright signal due to high water content

  • Degenerated or desiccated disc: low signal intensity

  • Nerve roots and CSF: bright signal

STIR (Short Tau Inversion Recovery):

  • Normal vertebral marrow: dark

  • Marrow edema or inflammation: bright hyperintensity

  • Disc herniation or annular tears: bright signal against dark disc

T1 Fat-Sat Post-Contrast:

  • Normal disc: minimal enhancement

  • Pathology: annular tears, infection, or tumors show focal or diffuse enhancement

  • Epidural scar tissue enhances; recurrent disc herniation does not

3D T2 SPACE / CISS:

  • Disc and nerve roots are sharply delineated

  • Nerve roots: intermediate to mildly hyperintense compared to muscle

  • CSF: very bright, providing strong contrast for root compression assessment

CT Appearance

Non-Contrast CT:

  • Shows bony detail of vertebral bodies, facets, and sacrum

  • Intervertebral disc appears as soft tissue density

  • Calcified disc or osteophytes appear hyperdense

  • Spondylolisthesis and fractures clearly visualized

Post-Contrast CT:

  • Disc itself does not enhance

  • Epidural or paravertebral pathology (abscess, tumor) may enhance

  • Facet joints and surrounding tissues may show inflammatory changes

MRI image

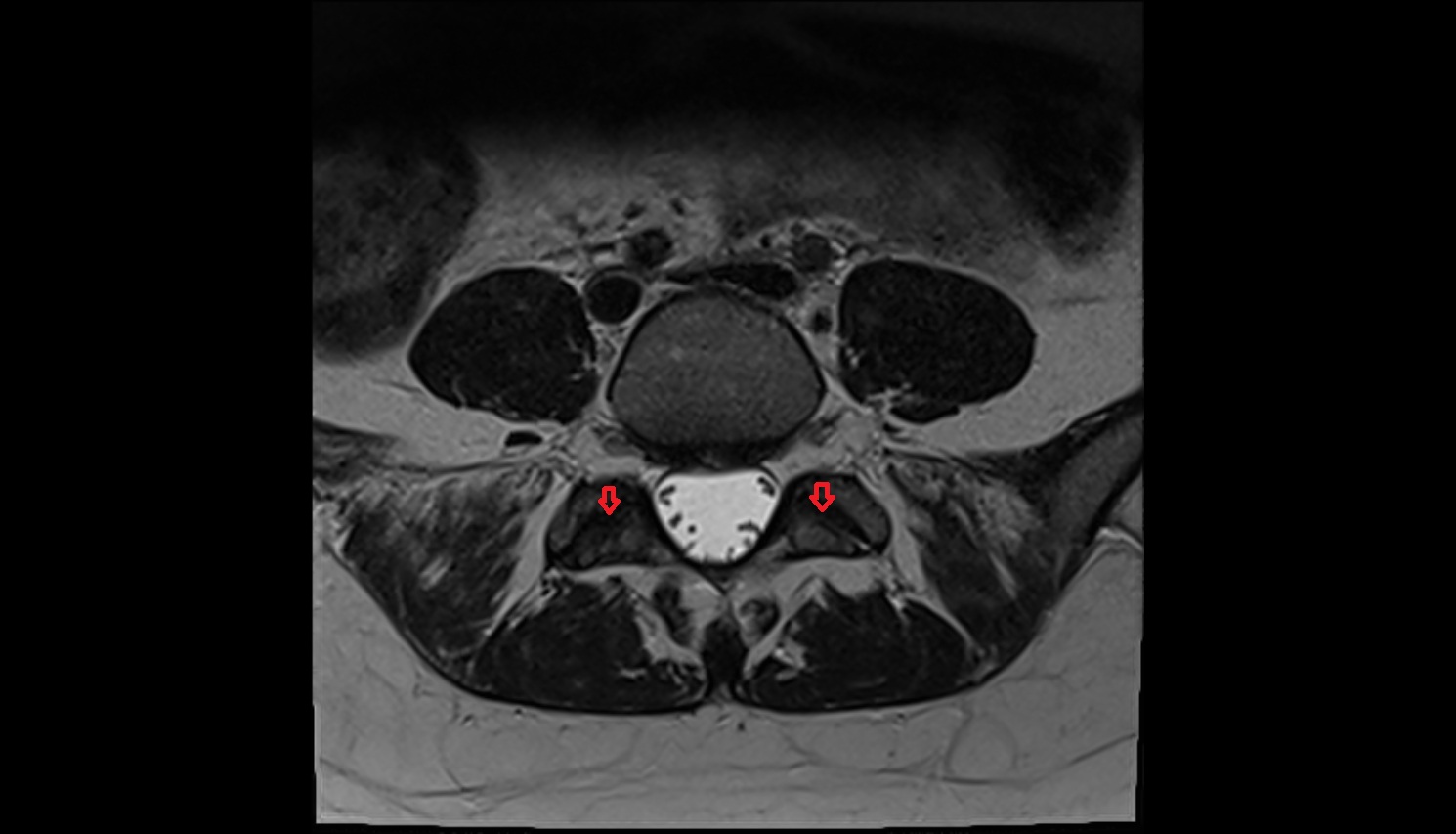

lumbosacral joint ari axial anatomy image-img-00000-00000

MRI image

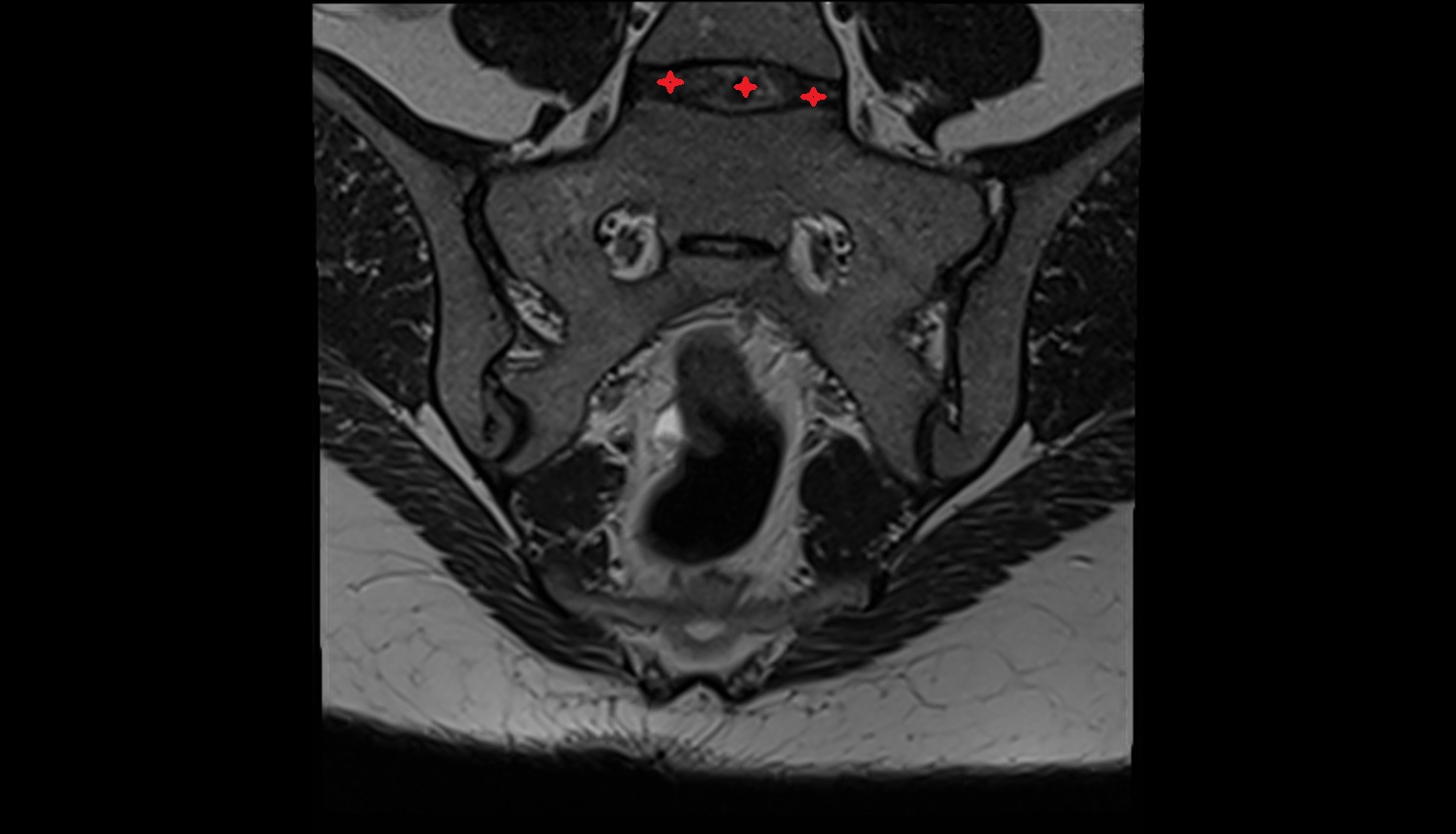

lumbosacral joint ari axial anatomy image-img-00000-00000_00001

MRI image

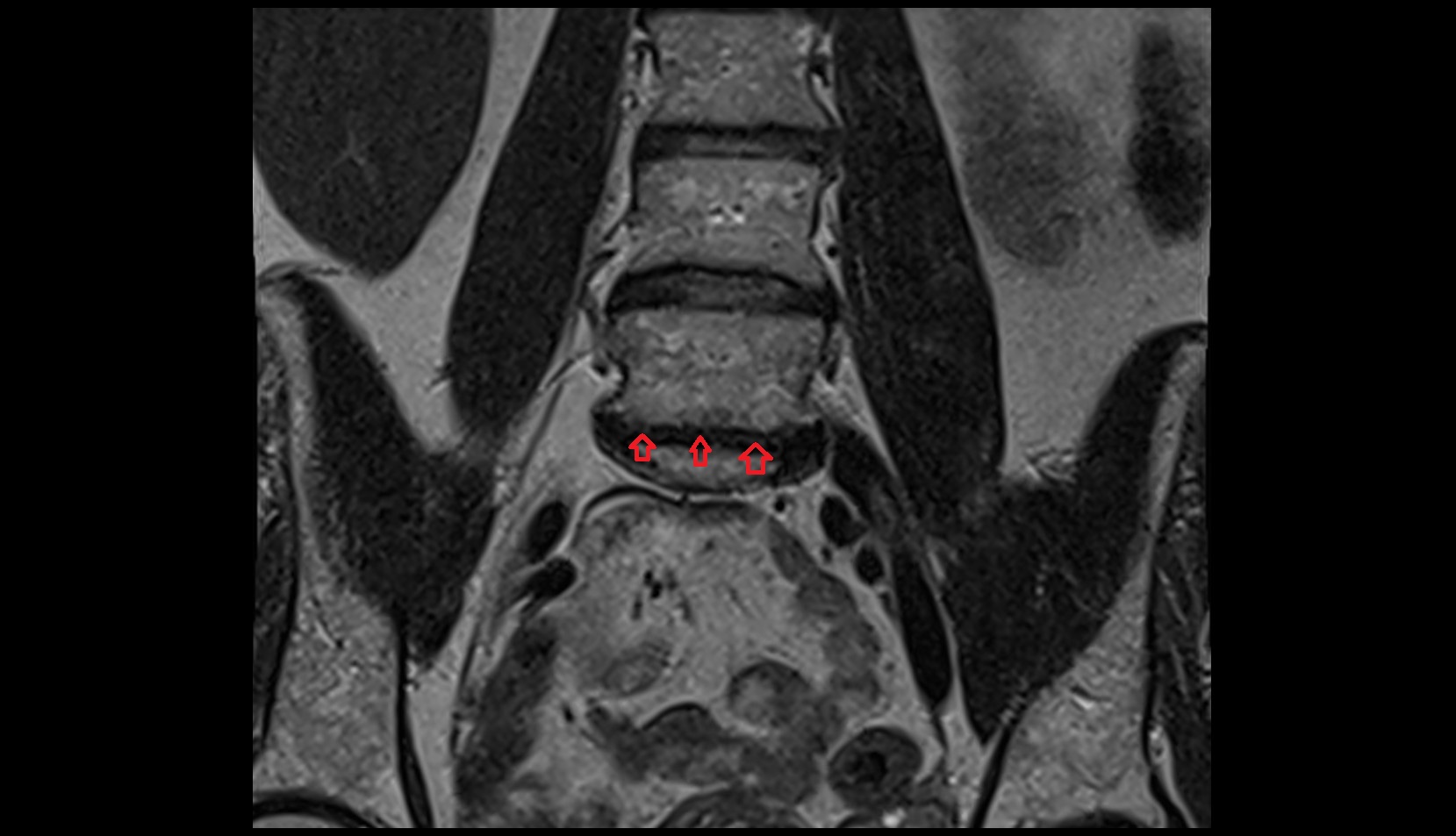

lumbosacral joint CORONAL MRI

MRI image

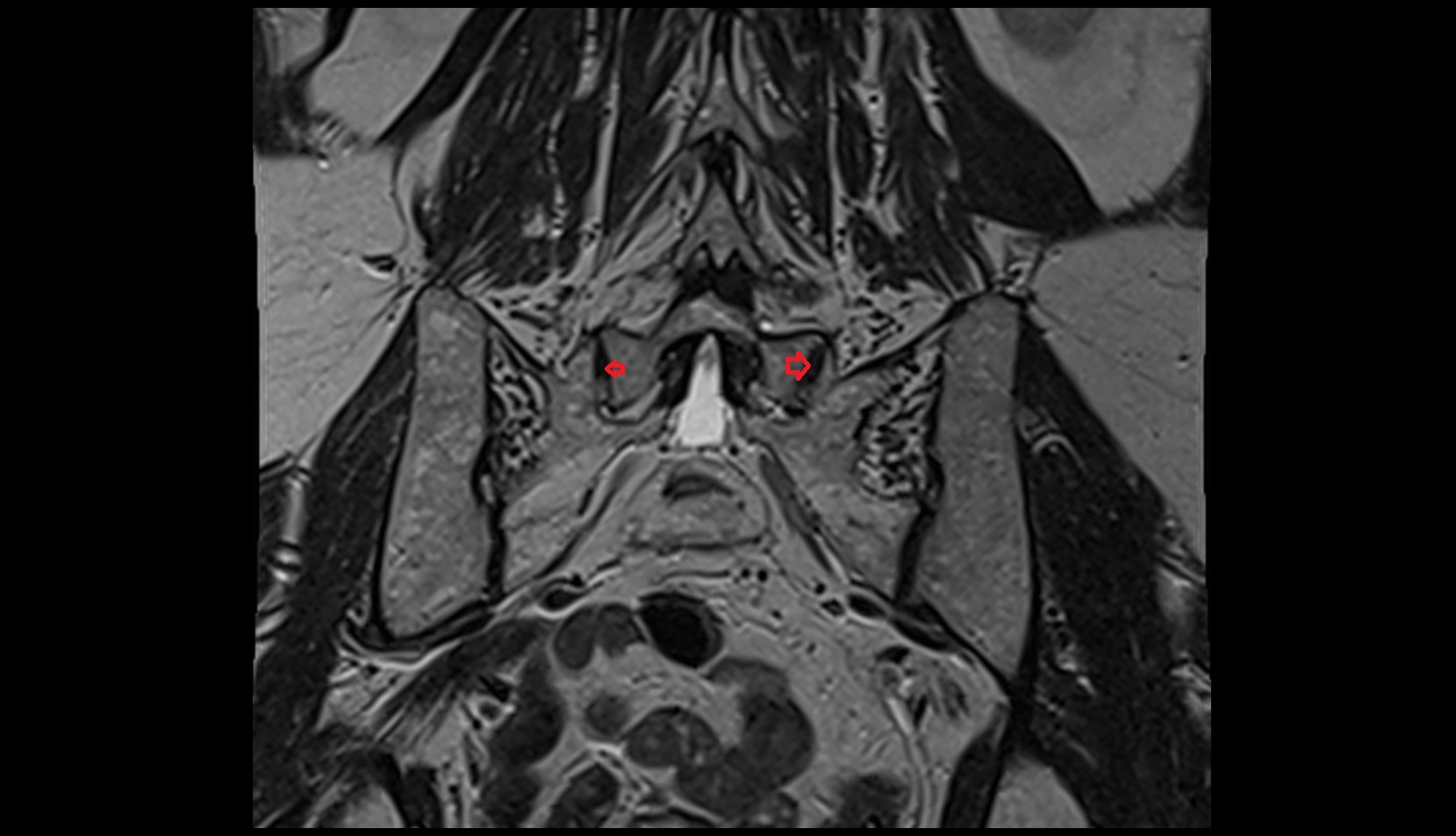

lumbosacral joint mri coronal image

CT image

lumbosacral joint ct coronal anatomy image-img-00000-00000

CT image

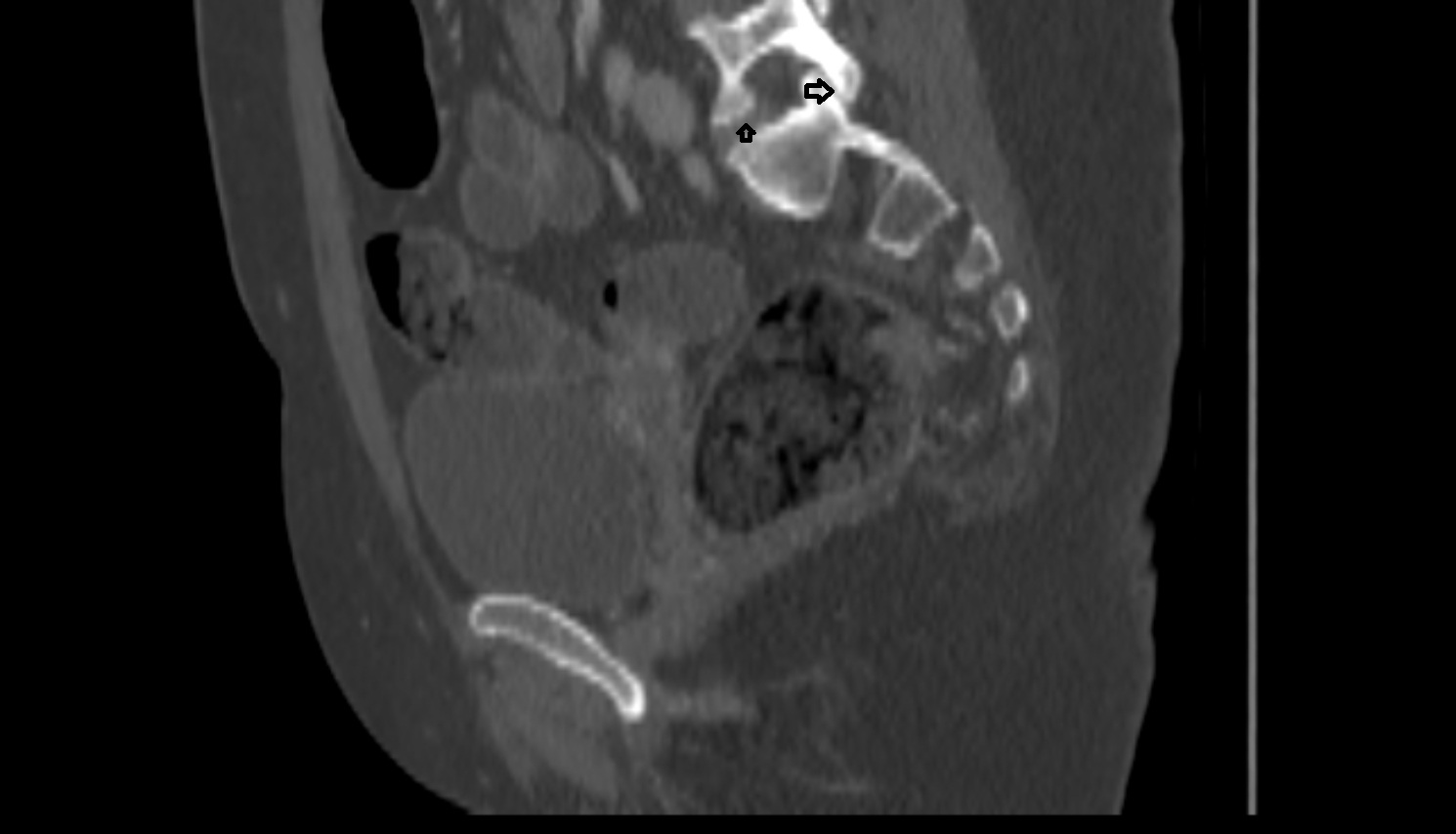

lumbosacral joint ct sag anatomy image-img-00000-00000

CT image

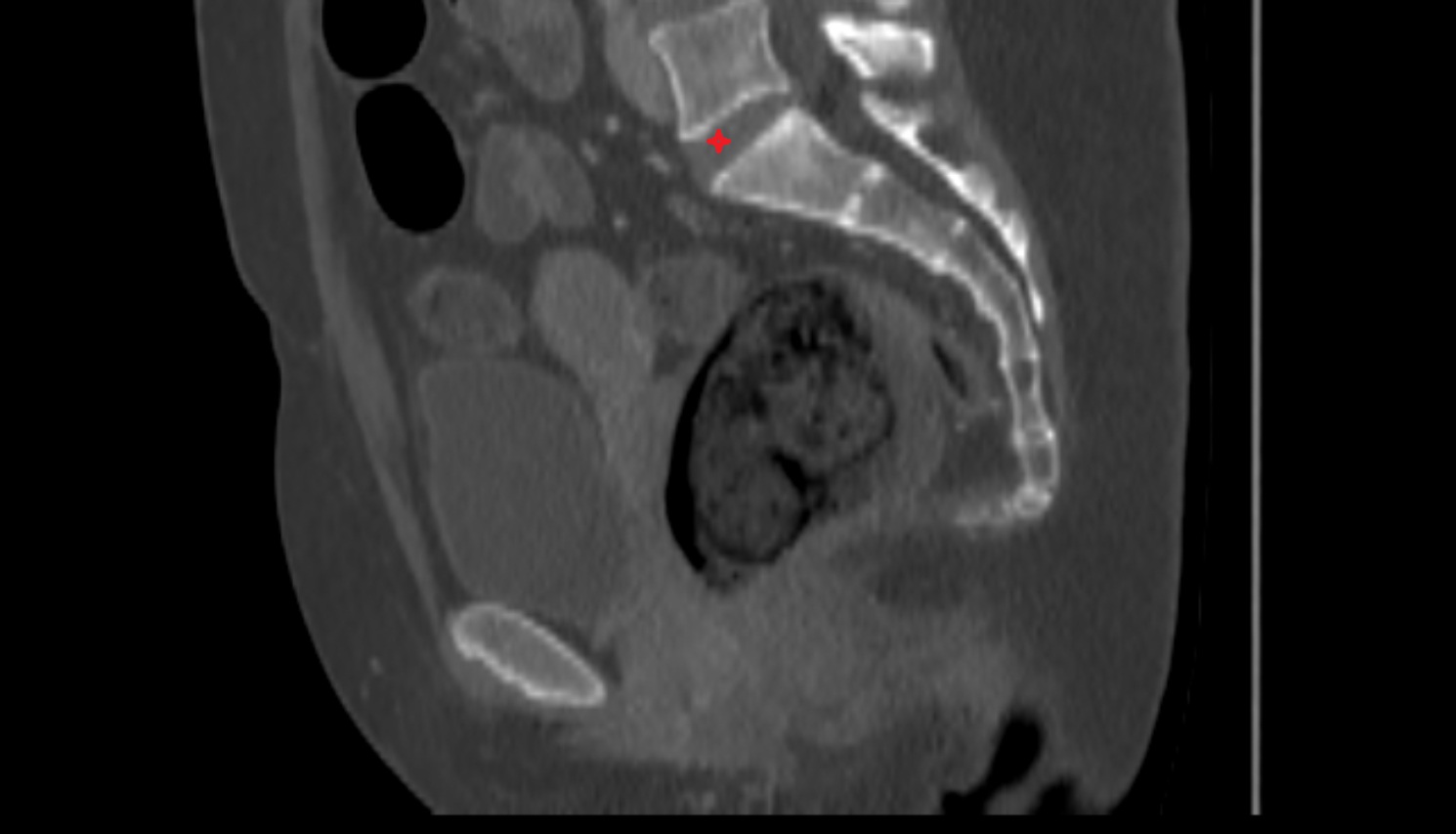

lumbosacral joint CT SAG anatomy image-img-00000-00000
