Mandibular canal

The mandibular canal is a vital anatomical structure within the mandible (lower jaw), serving as the conduit for the inferior alveolar nerve, artery, and vein. It begins at the mandibular foramen on the medial surface of the ramus, travels anteroinferiorly within the mandible, and terminates at the mental foramen. This canal plays a critical role in dental sensation, surgical planning, and radiologic interpretation.

Synonyms

  • Inferior alveolar canal

  • Canalis mandibulae (Latin)

  • Nerve canal of the mandible

Function

  • Transmits the inferior alveolar nerve, artery, and vein.

  • Provides sensory innervation to the lower teeth, gingiva, and lower lip.

  • Supplies blood to the mandibular teeth and adjacent structures.

MRI Appearance

  • T1-weighted:

    • Appears as a linear or oval low signal intensity structure within the marrow fat of the mandible, often surrounded by higher signal from fatty marrow.

    • The neurovascular bundle inside the canal may not be individually distinguished unless pathological.

  • T2-weighted:

    • The canal itself shows low signal intensity, but may be outlined by high signal from surrounding bone marrow.

    • Abnormal high signal may indicate pathology (e.g., edema, tumor, or infection).

  • STIR (Short Tau Inversion Recovery):

    • The canal remains low signal (dark) relative to the high signal of bone marrow fat suppression.

    • STIR is useful for detecting edema or inflammation adjacent to the canal.

CT Appearance

  • The mandibular canal appears as a well-defined, linear, radiolucent (dark) channel within the dense mandibular bone.

  • It is best visualized on panoramic, coronal, and axial CT images, with thin bony cortication (white line) outlining the canal.

MRI images

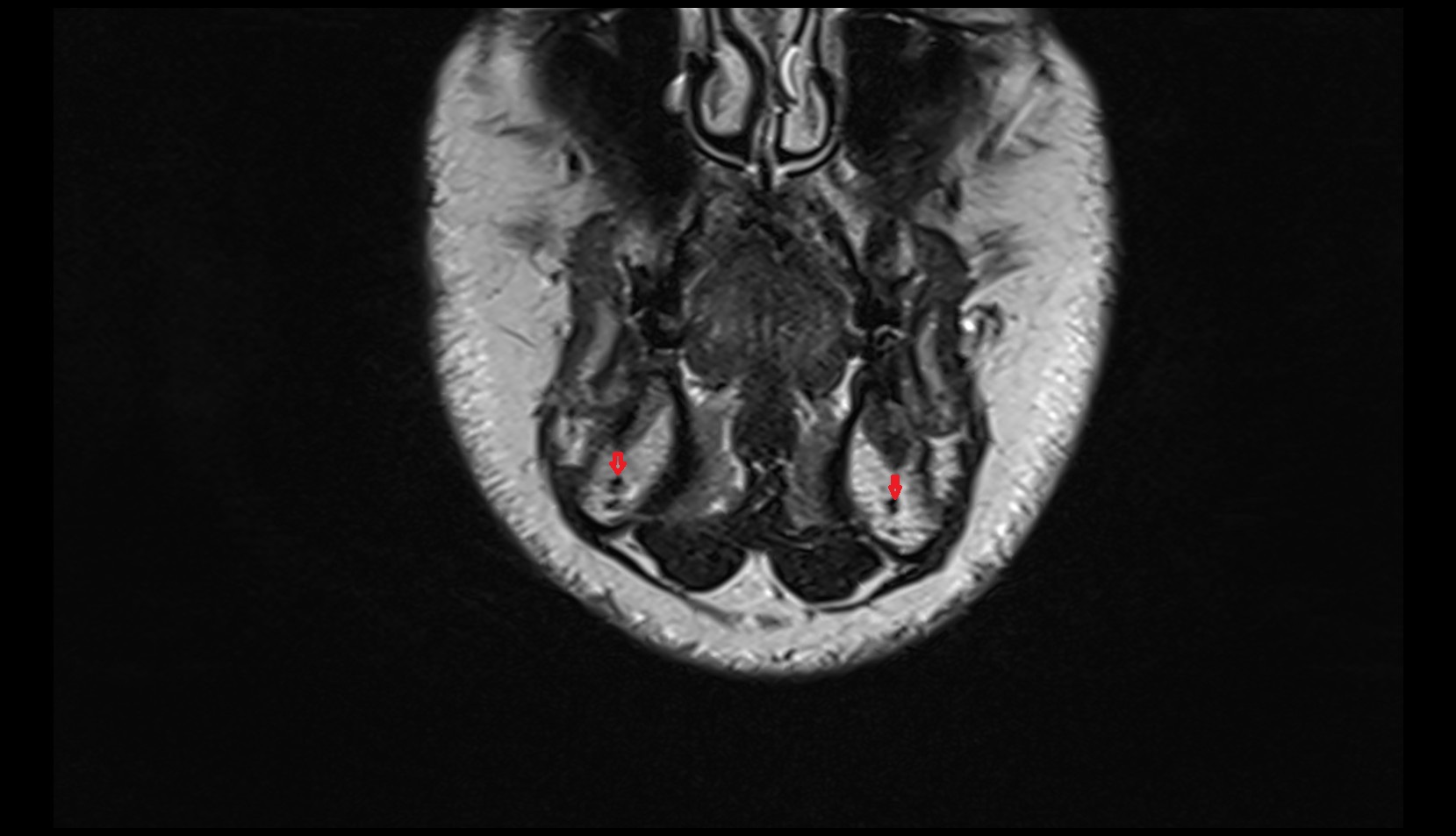

Mandibular canal coronal

MRI images

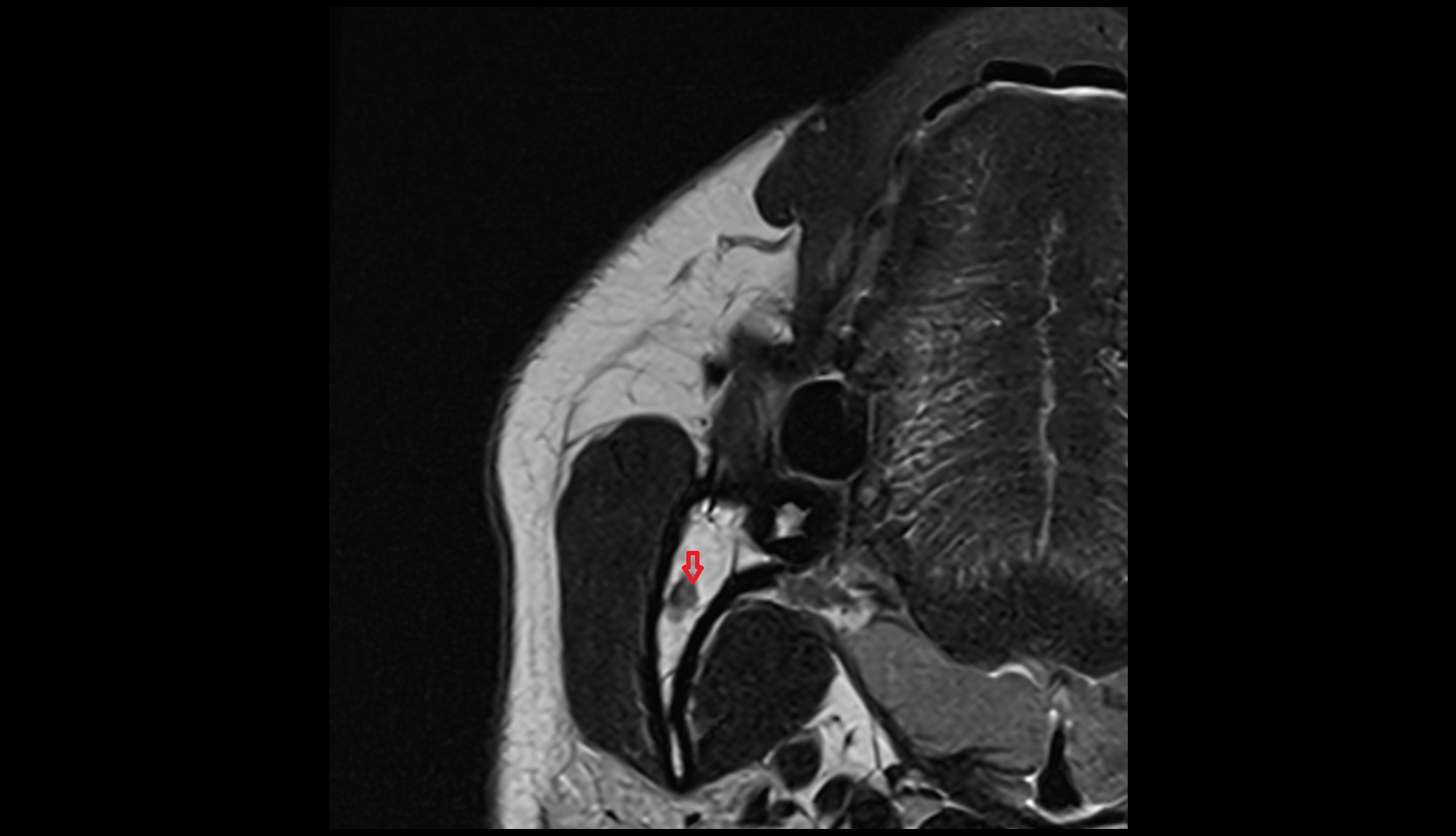

Mandibular canal mri axial image
