Mandibular foramen

The mandibular foramen is a small opening on the medial surface of the mandibular ramus, typically located slightly above the midpoint of the ramus. It serves as the entry point for the inferior alveolar nerve and vessels, which travel through the mandibular canal to supply the lower teeth and mandibular structures. The foramen is oval or round in shape and is often partially covered by a bony ridge called the lingula, which serves as an important landmark for dental anesthesia and surgical procedures. Its position can vary slightly between individuals, affecting the approach for inferior alveolar nerve blocks or mandibular surgeries.

Synonyms

  • Foramen mandibulae

  • Inferior alveolar foramen

  • Mandibular nerve foramen

Function

  • Provides a passage for the inferior alveolar nerve, artery, and vein

  • Supplies sensory innervation to the mandibular teeth, lower lip, and chin via the mental nerve

  • Acts as a key anatomical landmark for dental anesthesia and mandibular surgery

MRI Appearance
T1-weighted images:

  • Appears as a small, low-signal opening within the mandibular ramus

  • Surrounded by hyperintense bone marrow and adjacent soft tissue, enhancing contrast

  • The inferior alveolar nerve within the canal may be low-to-intermediate signal, distinguishable from surrounding marrow

T2-weighted images:

  • The foramen itself remains hypointense, while the nerve inside may show slightly higher signal relative to cortical bone

  • Adjacent marrow is hyperintense, allowing visualization of nerve course and potential edema

STIR (Short Tau Inversion Recovery):

  • Suppresses fat signal in bone marrow and soft tissues

  • Pathological changes such as nerve inflammation, edema, or tumors appear hyperintense

  • Normal mandibular foramen and canal remain low signal

CT Appearance

  • Appears as a well-defined, oval or round hypodense opening on the medial surface of the mandibular ramus

  • The surrounding cortical bone is hyperdense, providing excellent contrast

  • The mandibular canal extending from the foramen is visualized as a hypodense tunnel within dense mandibular bone

  • CT is particularly useful for evaluating anatomical variations, trauma, surgical planning, and dental implant placement

MRI images

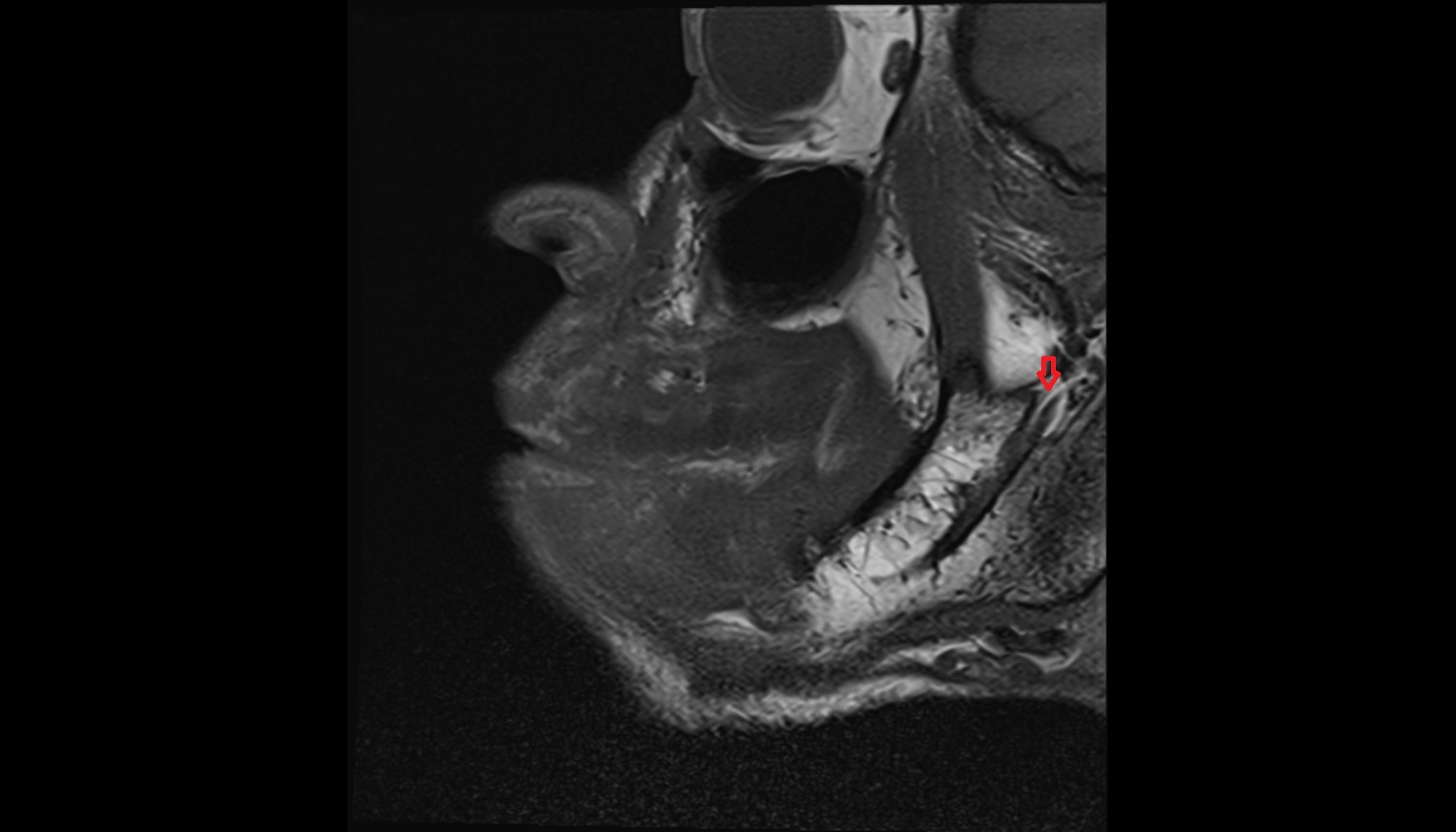

Mandibular foramen mri sagittal image -img-00000-00000
