Medial collateral ligament complex of elbow (ulnar collateral ligament)

The medial collateral ligament complex (MCL), also known as the ulnar collateral ligament complex, is the primary stabilizing structure on the medial side of the elbow. It resists valgus stress and provides static stabilization during throwing, lifting, and weight-bearing activities.

It consists of three major bundles:

Anterior bundle – the strongest and most functionally important part.
Posterior bundle – forms part of the floor of the cubital tunnel.
Transverse (oblique) bundle – spans between the coronoid and olecranon without significant contribution to stability.

The anterior bundle, particularly its anterior and posterior bands, provides the greatest restraint to valgus forces during flexion and extension, making it the key structure injured in throwing athletes or valgus overload conditions.

Synonyms

Ulnar collateral ligament (UCL) of the elbow
Medial ulnar collateral ligament
Internal lateral ligament of the elbow

Origin, Course, and Insertion

Origin: Medial epicondyle of the humerus, just inferior to the joint capsule
Course: Descends obliquely anteroinferiorly across the medial aspect of the elbow joint
Insertion:

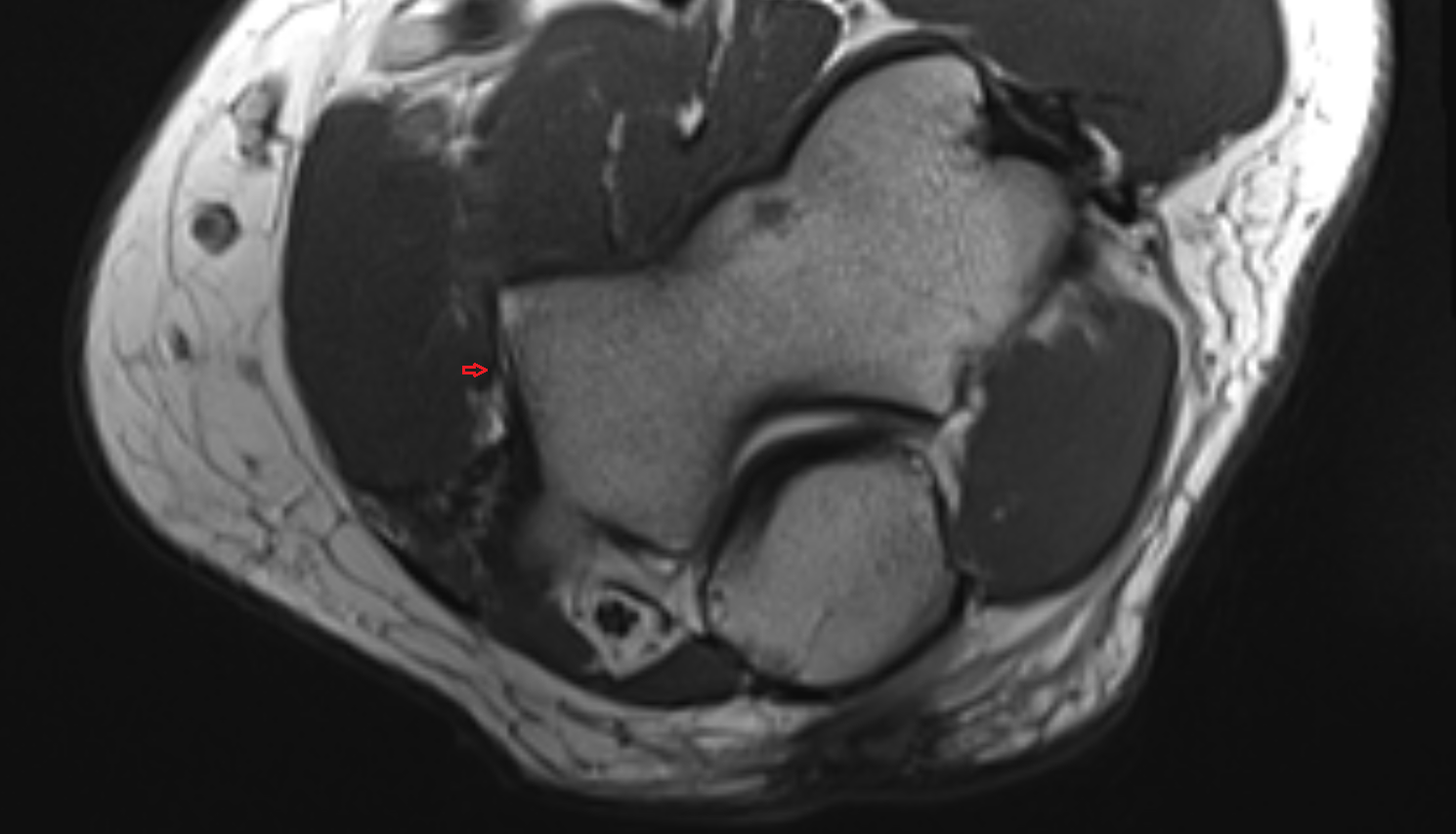

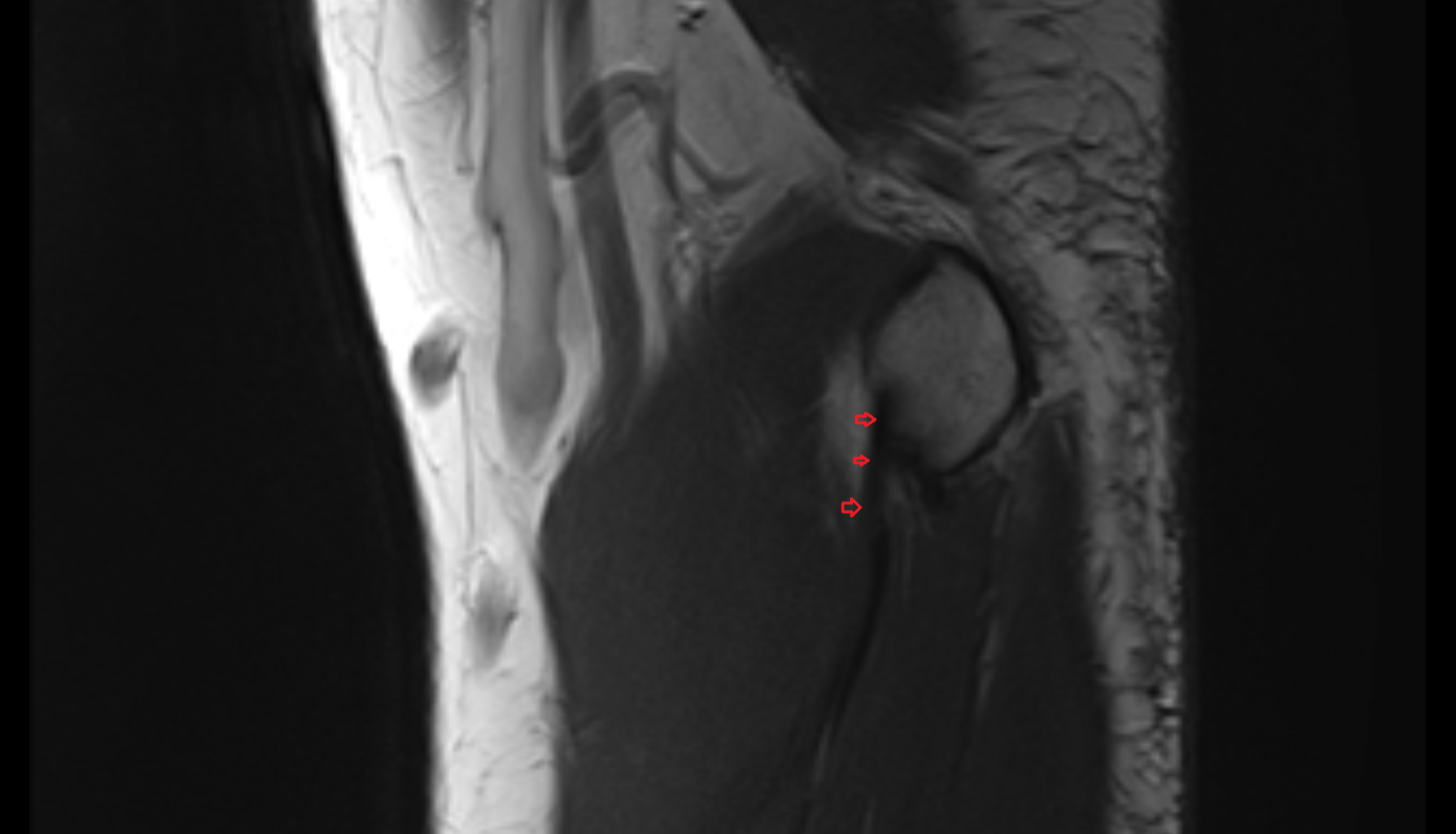

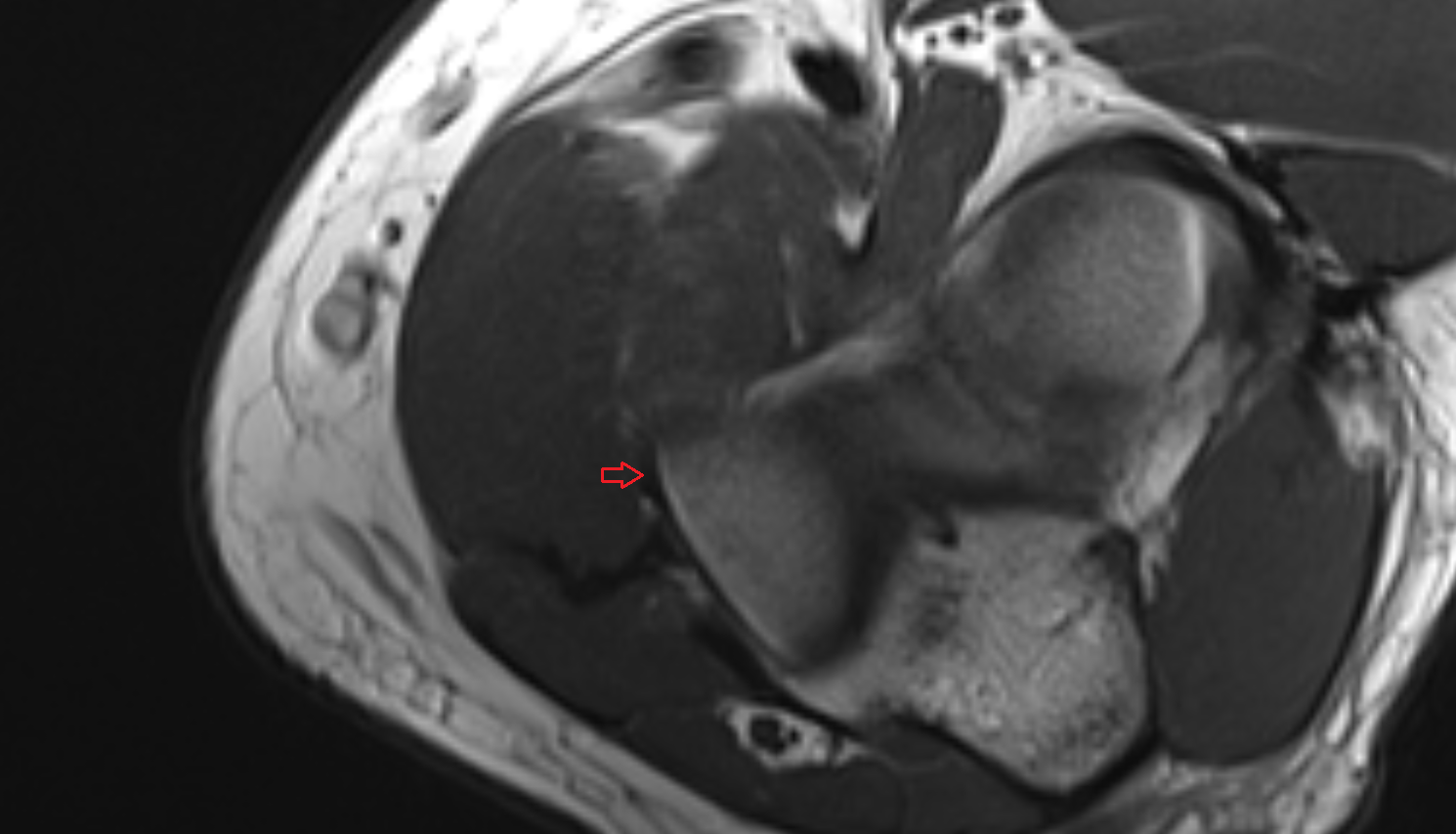

- Anterior bundle: Inserts onto the sublime tubercle of the coronoid process of the ulna

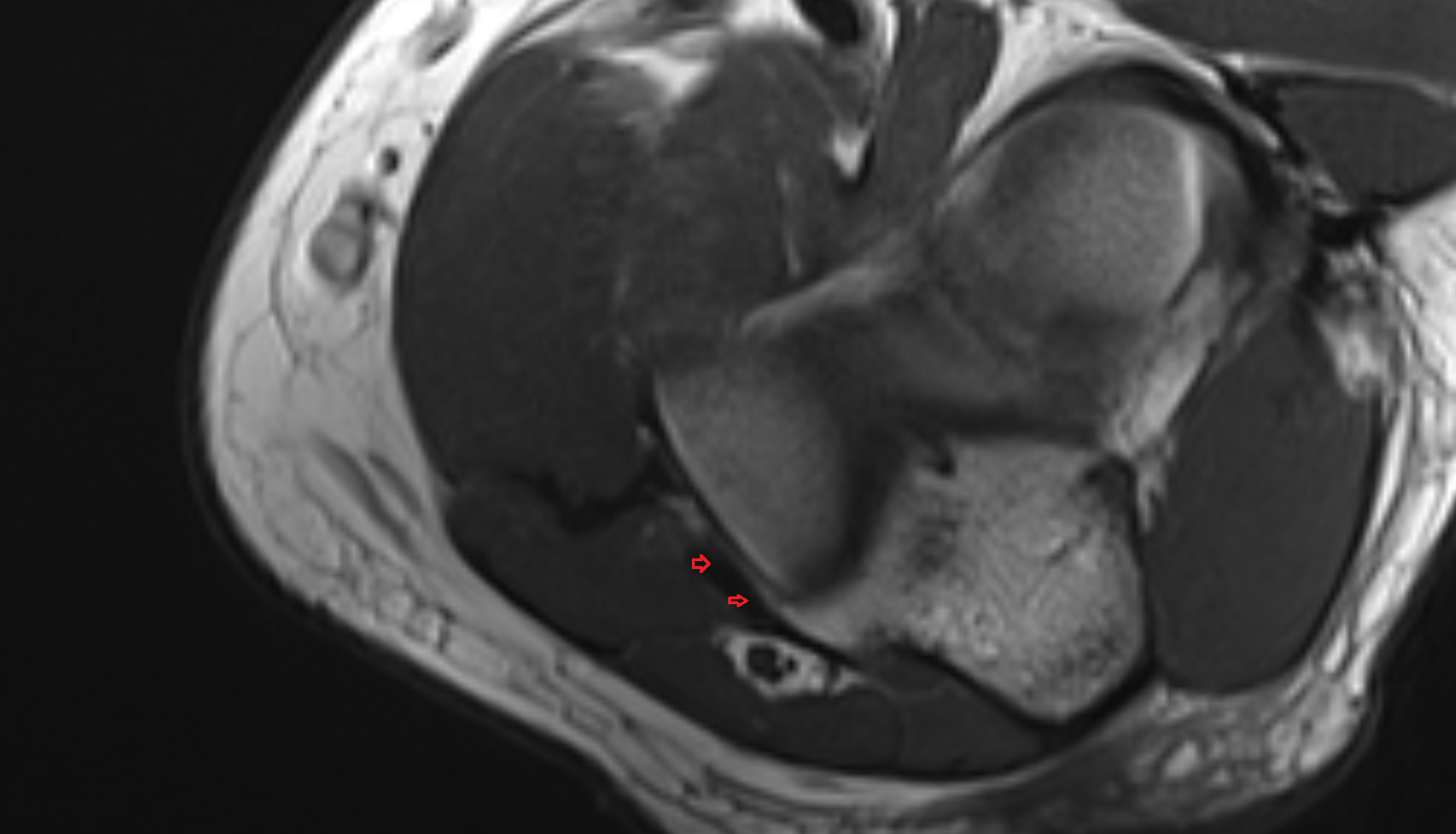

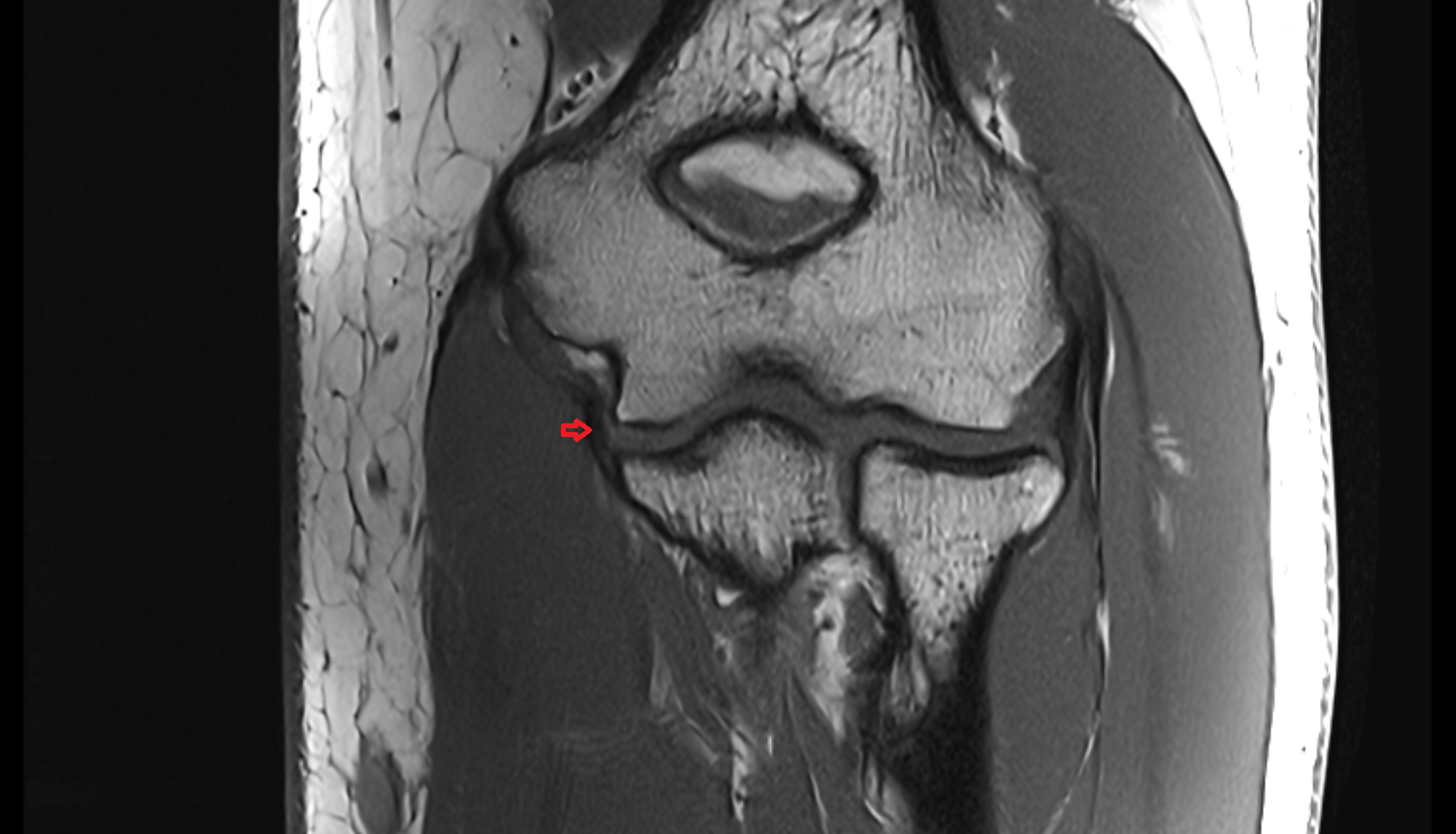

- Posterior bundle: Inserts onto the medial margin of the olecranon

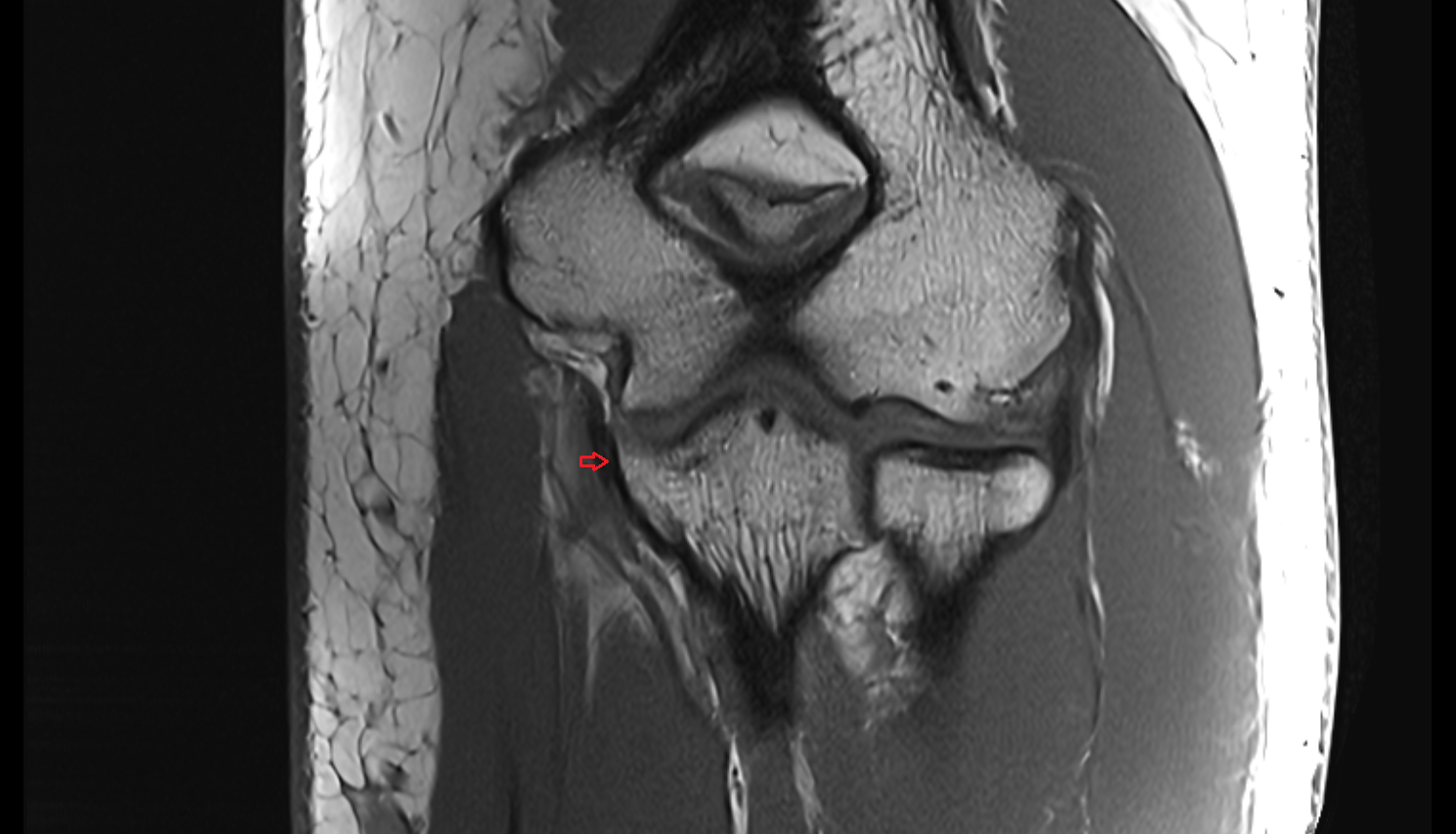

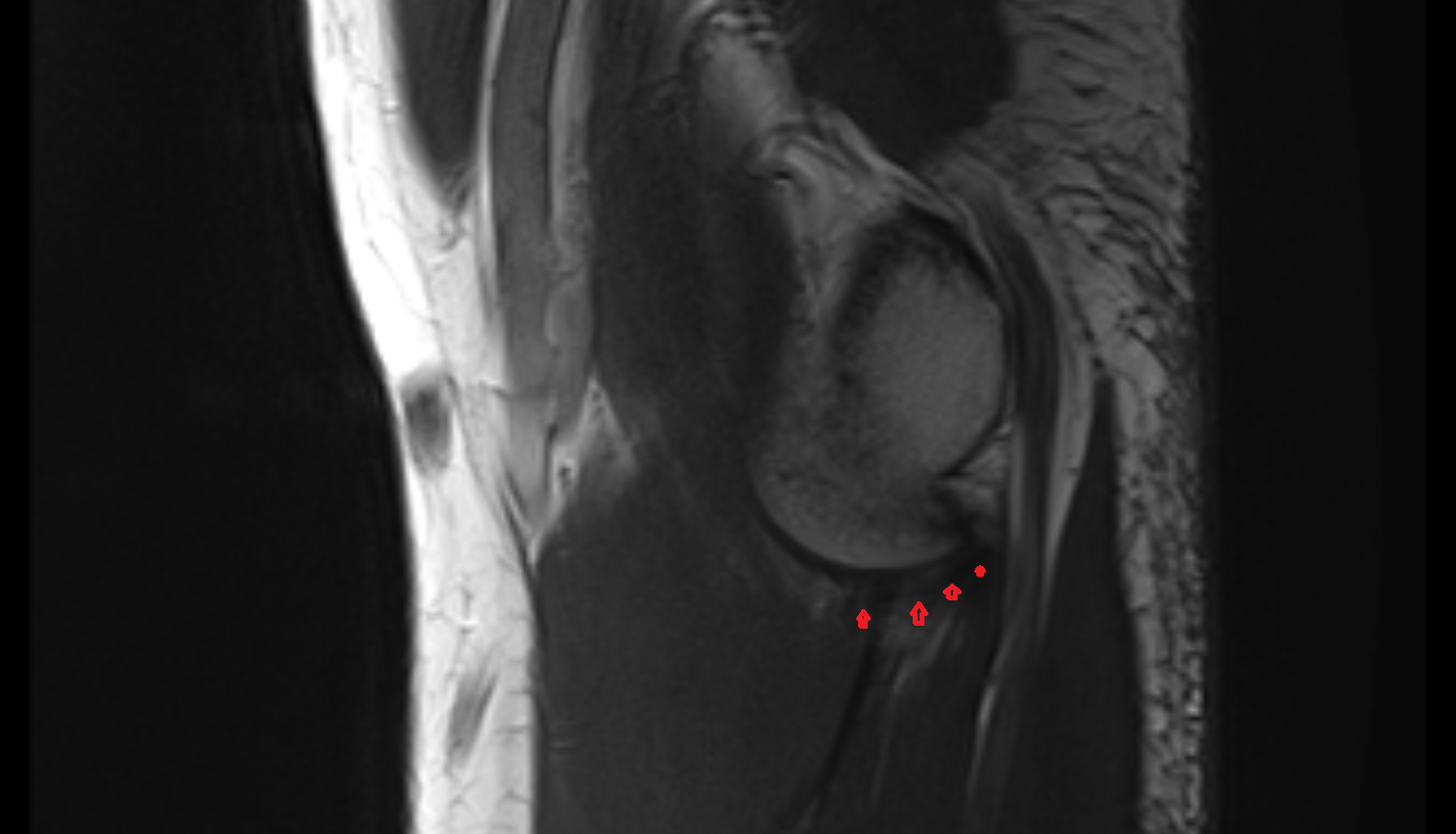

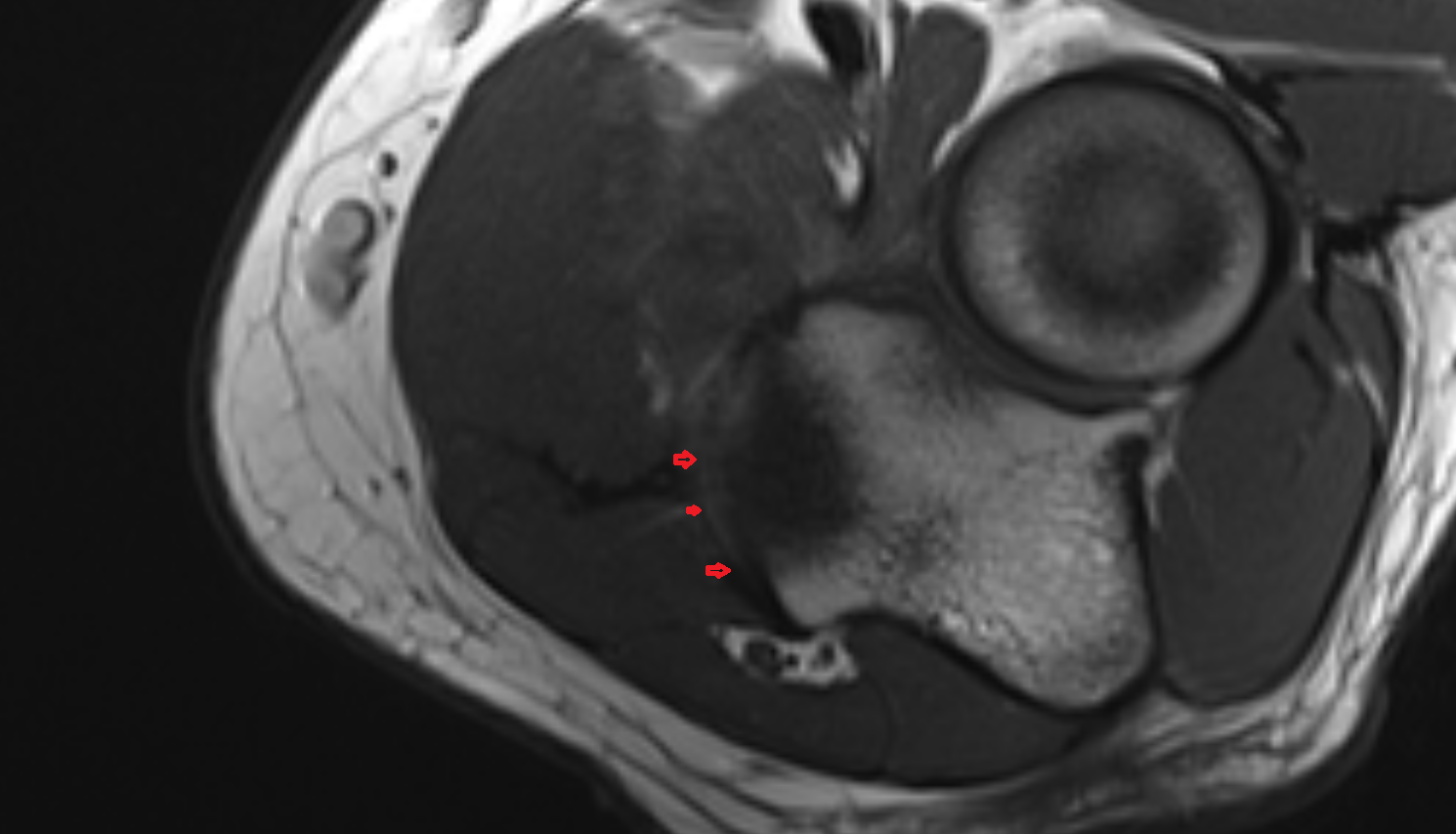

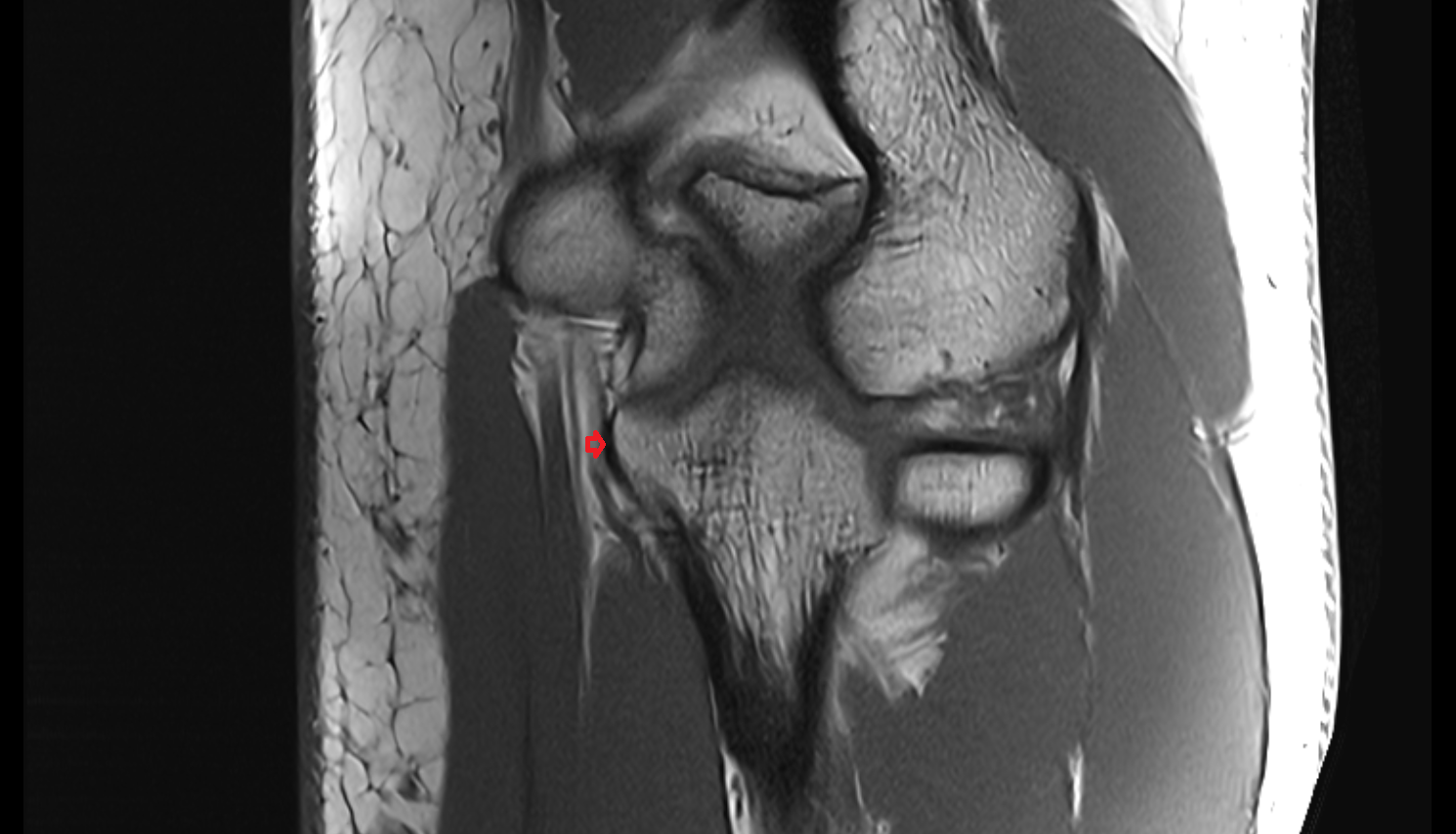

- Transverse bundle: Connects the olecranon and coronoid process (non-articular spanning band)

Relations

Anteriorly: Flexor-pronator muscle group (especially flexor carpi ulnaris and pronator teres)
Posteriorly: Ulnar nerve and posterior bundle of MCL
Laterally: Elbow joint capsule and trochlear articulation
Medially: Subcutaneous tissue and medial intermuscular septum

Function

Provides primary valgus stability to the elbow
Stabilizes the joint throughout flexion and extension
Resists excessive external rotation and distraction forces during throwing
The anterior bundle resists valgus stress in mid-range motion (30°–120° flexion)
The posterior bundle becomes taut beyond 90° of flexion
The transverse bundle acts as a minor reinforcement to joint capsule integrity

Clinical Significance

Valgus instability: Common in overhead athletes (baseball pitchers, javelin throwers) due to repetitive stress
UCL tear: Presents with medial elbow pain, instability, and loss of throwing velocity
Partial tear or strain: Produces pain during valgus loading but minimal instability
Chronic degeneration: May lead to calcification and thickening visible on imaging
Surgical relevance: Reconstruction (Tommy John surgery) restores stability using tendon grafts
Arthrogram and MRI are essential for detecting partial or complete ligament tears

MRI Appearance

T1-weighted images:
- Ligament: low signal (dark), sharply defined linear structure
- Surrounding fat: bright, highlighting ligament contours
- Tear or thickening: poorly defined margins or intermediate signal intensity
T2-weighted images:
- Normal ligament: low-to-intermediate signal, darker than adjacent muscle
- Partial tear: linear or focal bright hyperintense zones within ligament fibers
- Complete tear: discontinuity or retraction with bright fluid signal filling the gap
- Chronic injury: ligament appears thickened with intermediate signal due to fibrosis
STIR:
- Normal: low-to-intermediate signal
- Pathology: bright hyperintense signal within ligament or adjacent soft tissues (edema, inflammation, tear)
- Surrounding muscle edema and effusion often visible in acute injury
Proton Density Fat-Saturated (PD FS):
- Ligament: low to intermediate homogeneous signal
- Partial tear: focal bright intraligamentous signal without fiber disruption
- Complete tear: fluid-bright signal with loss of fiber continuity and retraction
- Best for assessing subtle sprains, partial tears, and post-repair integrity
T1 Fat-Sat Post-Contrast:
- Normal ligament: minimal enhancement
- Inflammatory changes or granulation tissue: diffuse or marginal enhancement
- Post-surgical graft: mild enhancement along graft margins during healing

MRI Arthrogram Appearance

Technique: Intra-articular gadolinium contrast injection distends the joint capsule
Normal: Contrast outlines the joint and stops at the intact ligament fibers
Partial tear: Contrast extends into the superficial or deep fibers of the anterior bundle
Complete tear: Contrast extravasation medially beyond the ulnar insertion site
Associated findings: Medial joint capsule distension, effusion, and flexor-pronator edema
Advantages: Detects subtle undersurface or intraligamentous tears not seen on standard MRI

CT Appearance

Non-Contrast CT:

Ligament not well visualized directly due to similar soft-tissue density
May show calcification, ossification, or avulsion fragments at ligament origin or insertion
Excellent for evaluating bony avulsion injuries or chronic traction changes

Post-Contrast CT (standard):

May show enhancement of adjacent synovium or capsule in inflammation
Useful for assessing associated fractures, loose bodies, or joint effusion

CT Arthrogram Appearance

Normal: Contrast outlines the medial joint margin without extension through the ligament
Partial tear: Contrast penetrates superficial or undersurface fibers of anterior bundle
Complete tear: Contrast extravasates medially beyond ulnar attachment
Advantages: High spatial resolution for detecting small tears and associated bony changes
Utility: Alternative to MR arthrography when MRI is contraindicated
