Medial gastrocnemius tendon

The medial gastrocnemius tendon is the strong fibrous structure formed by the convergence of fibers from the medial head of the gastrocnemius muscle. It plays a crucial role in transmitting muscular force from the calf to the Achilles tendon and contributes to knee flexion and plantar flexion of the foot. It is clinically significant as a common site of strain, partial tears, and involvement in injuries such as “tennis leg.”

Synonyms

  • Tendon of medial head of gastrocnemius

  • Medial gastrocnemius aponeurosis

  • Inner calf tendon

Origin and Insertion

  • Origin (muscle attachment):

    • The medial head of gastrocnemius originates from the posterior aspect of the medial femoral condyle and adjacent popliteal surface of femur, just superior to the medial condyle

  • Course (tendon):

    • Fibers converge into a strong tendon that joins with the lateral gastrocnemius tendon and soleus tendon

    • Forms part of the Achilles tendon in the distal calf

  • Insertion (common tendon):

    • Ultimately inserts into the posterior surface of the calcaneus via the Achilles tendon

Relations

  • Anteriorly: Posterior capsule of the knee joint, semimembranosus tendon, and medial meniscus

  • Posteriorly: Subcutaneous tissue and skin of the calf

  • Medially: Semitendinosus and gracilis tendons

  • Laterally: Lateral head of gastrocnemius tendon and plantaris tendon

  • Inferiorly: Soleus muscle fibers merging with Achilles tendon

Nerve Supply

  • Supplied by the tibial nerve (S1–S2), which innervates the gastrocnemius muscle

Arterial Supply

  • Sural branches of the popliteal artery

  • Additional contributions from posterior tibial artery and peroneal artery branches

Venous Drainage

  • Venous return via sural veins → popliteal vein

Function

  • Enables plantar flexion of the foot at the ankle joint

  • Contributes to flexion of the knee joint

  • Provides propulsive force in gait, running, and jumping

  • Assists in stabilizing the knee joint during weight-bearing

Clinical Significance

  • Common site of injury in tennis leg (strain of medial gastrocnemius)

  • Can be affected by myotendinous junction tears, tendinopathy, or intramuscular hematomas

  • May be involved in posterior knee pain syndromes

  • Important in Achilles tendon pathology, since it forms part of the tendon complex

MRI Appearance

T1-weighted images:

  • Tendon appears as a low-signal linear structure

  • Surrounded by bright fat, improving visualization

  • Chronic degeneration may show focal thickening with slightly higher signal

T2-weighted images:

  • Normal tendon shows low signal

  • Partial tears or degeneration show focal bright signal intensity within tendon fibers

  • Acute strain at myotendinous junction appears bright

STIR (Short Tau Inversion Recovery):

  • Normal tendon: dark, low signal

  • Pathology (strain, tear, inflammation): bright hyperintense signal at myotendinous junction or within tendon

Proton Density Fat-Saturated (PD FS):

  • Normal tendon: low signal

  • Injuries, tendinopathy, or partial tears: bright hyperintense areas clearly highlighted after fat suppression

T1 Fat-Sat Post-Contrast:

  • Normal tendon: minimal to no enhancement

  • Pathological tendon: enhancement at sites of inflammation, partial tears, or neoplastic infiltration

CT Appearance

Non-Contrast CT:

  • Tendon appears as a dense soft tissue structure blending into Achilles tendon

  • Calcifications or ossification may be seen in chronic tendinopathy

  • Hematoma in surrounding tissues may appear as hyperdense collections

Post-Contrast CT:

  • Normal tendon shows no significant enhancement

  • Enhancement may occur in surrounding soft tissues in cases of tendinitis, tear, or infection

  • Contrast highlights associated fluid collections or hematomas

MRI images

Medial gastrocnemius tendon axial cross sectional anatomy 3T MRI radiology anatomy image-img-00000-00000

MRI images

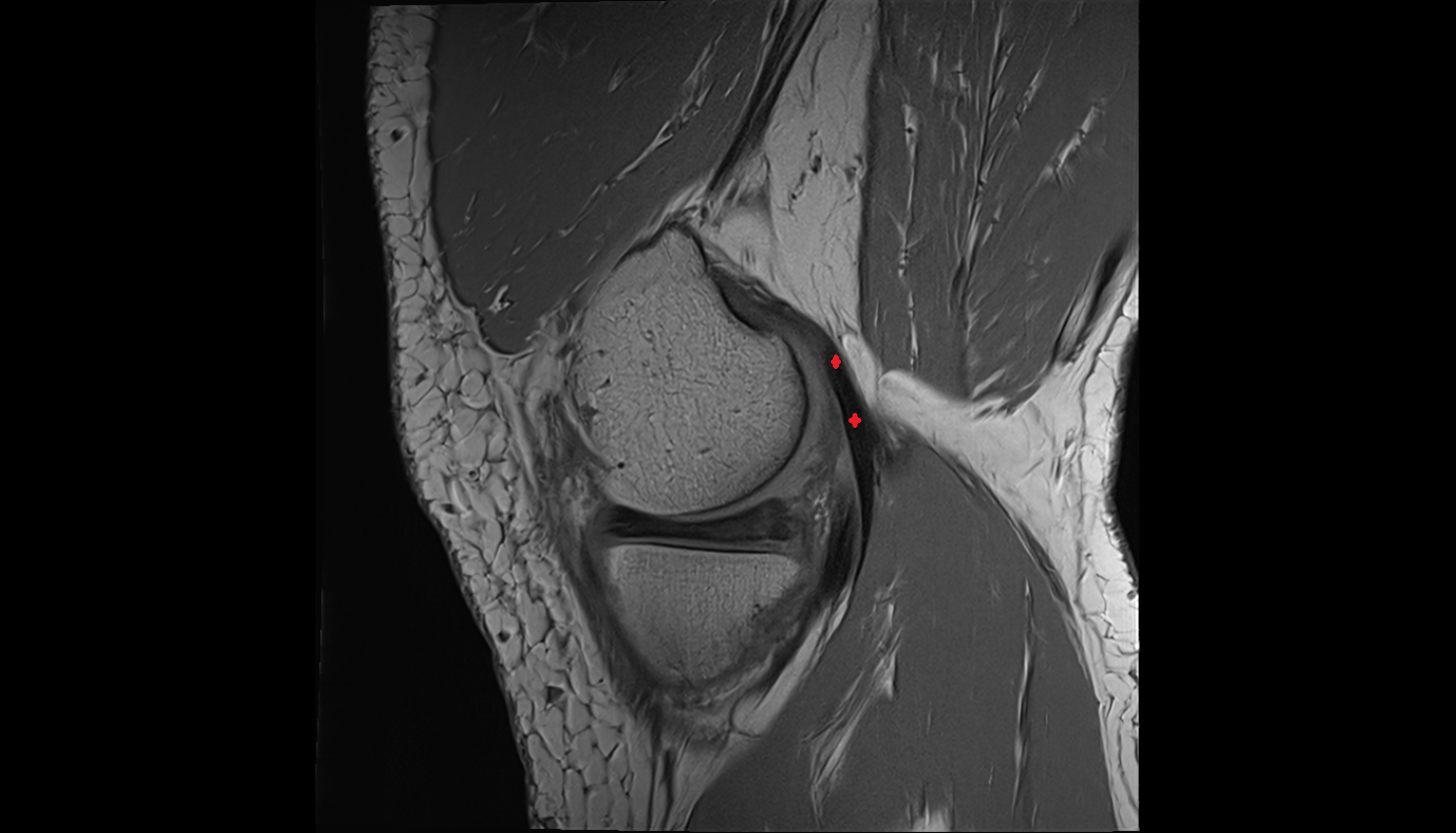

Medial gastrocnemius tendon sag cross sectional anatomy 3T MRI radiology anatomy image-img-00000-00000

CT image

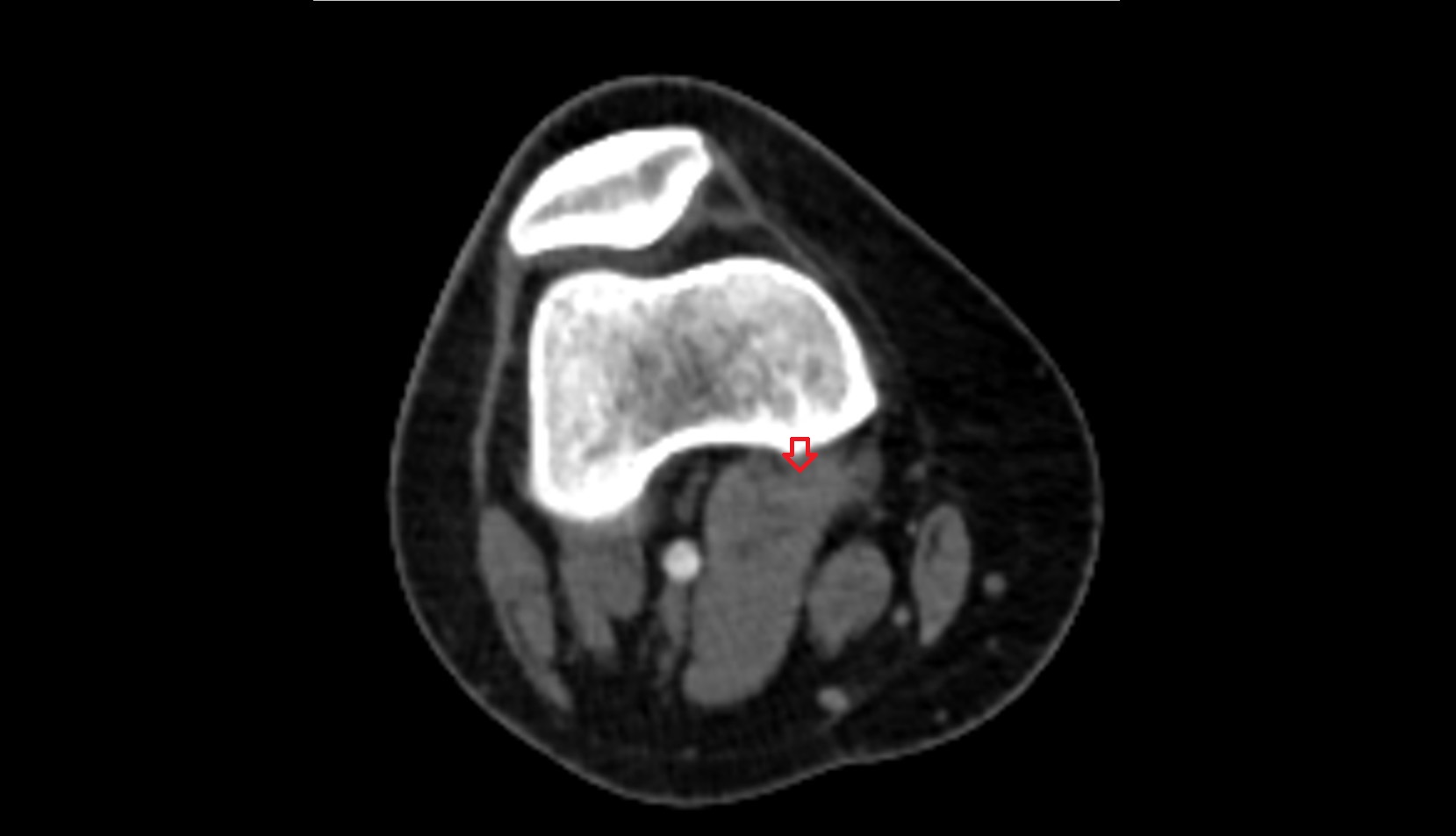

Medial gastrocnemius tendon ct axial image

CT image

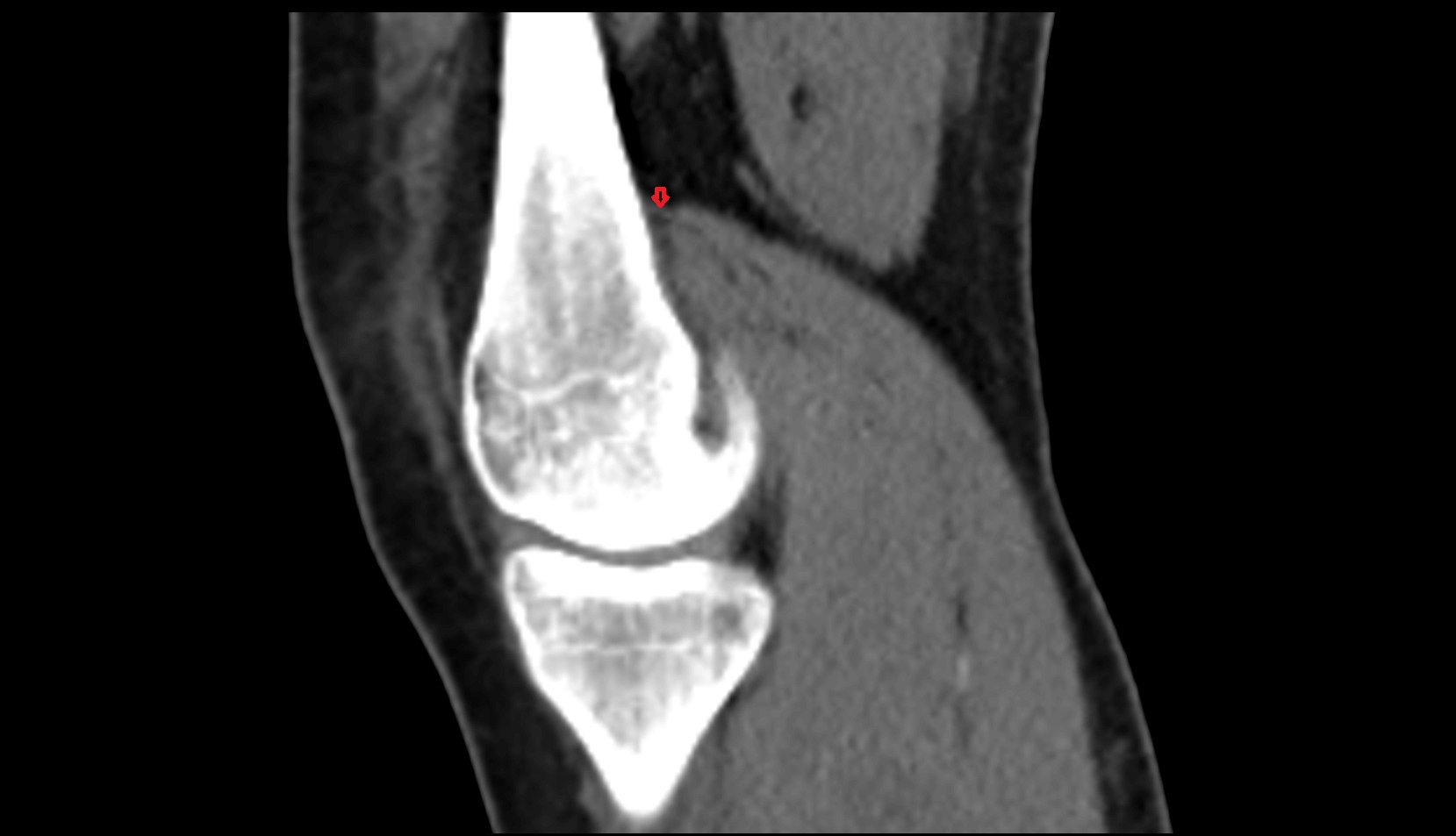

Medial gastrocnemius tendon sag image
