Medial intermuscular septum

The medial intermuscular septum is a strong fascial partition within the arm that separates the anterior (flexor) and posterior (extensor) muscular compartments. It is a continuation of the deep brachial fascia and extends from the humerus to the deep fascia of the arm, serving as an attachment surface for muscles and as a conduit for neurovascular structures.

The septum provides structural integrity, maintains compartmental pressure, and transmits forces between muscles. It also plays a role in defining the boundaries for the brachial neurovascular bundle, especially for the ulnar nerve and superior ulnar collateral vessels, which pass posterior to it.

Synonyms

  • Medial intermuscular partition of the arm

  • Medial brachial septum

Origin, Course, and Insertion

  • Origin: Arises from the deep fascia over the arm’s medial surface.

  • Course:

    • Extends from the medial supracondylar ridge and medial epicondyle of the humerus proximally upward along the shaft.

    • Passes vertically between the anterior and posterior compartments of the arm.

    • Lies deep to the brachial fascia and fuses with the periosteum of the humerus.

  • Insertion:

    • Attaches along the medial border of the humerus, blending with the lateral intermuscular septum superiorly and continuous with the deep fascia of the forearm inferiorly.

Relations

  • Anteriorly: Biceps brachii, coracobrachialis, and brachialis (anterior compartment muscles)

  • Posteriorly: Medial head of the triceps brachii (posterior compartment)

  • Superiorly: Medial supracondylar ridge of the humerus and brachial fascia

  • Inferiorly: Deep fascia near the elbow joint

  • Medially: Ulnar nerve and superior ulnar collateral artery pass posterior to it through a fibrous tunnel near the elbow

  • Laterally: Humeral shaft (where the septum attaches to the periosteum)

Attachments

  • Provides fascial attachment for:

    • Brachialis (anteriorly)

    • Triceps brachii (medial head) (posteriorly)

  • Merges with deep brachial fascia and periosteum of the humerus.

  • Contributes to the formation of the neurovascular plane in the distal arm.

Function

  • Compartmental division: Separates anterior flexor and posterior extensor compartments of the arm.

  • Muscle attachment: Provides firm anchorage for brachialis and triceps brachii.

  • Neurovascular protection: Forms a passage for the ulnar nerve and vessels near the medial epicondyle.

  • Force transmission: Distributes muscular tension along the humeral shaft during contraction.

  • Clinical relevance: Defines compartments relevant for decompression in compartment syndrome and surgical dissection.

Clinical Significance

  • Compartmental boundaries: Important landmark in arm compartment syndrome; dictates surgical fasciotomy planes.

  • Nerve entrapment: Ulnar nerve can be compressed as it pierces the septum near the medial epicondyle (cubital tunnel).

  • Fracture relationships: May adhere to periosteum, influencing displacement in humeral shaft fractures.

  • Surgical relevance: Key fascial plane in triceps-sparing posterior approaches and during neurovascular dissection.

  • Imaging role: MRI and CT can assess septal integrity, scarring, or masses extending between compartments.

MRI Appearance

  • T1-weighted images:

    • Septum appears as a thin, low-signal (dark) linear structure separating muscle compartments.

    • Adjacent muscles: intermediate signal intensity with visible fascicular texture.

    • Fat between septum and muscle appears bright, aiding delineation.

  • T2-weighted images:

    • Septum: low signal intensity (dark), less intense than muscle.

    • Muscle: intermediate-to-low signal, darker than on T1.

    • Pathology: fibrotic thickening or infiltration appears as irregular intermediate-to-bright signal areas.

  • STIR:

    • Normal septum: dark or intermediate due to dense collagen content.

    • Edema or inflammation: bright hyperintense signal adjacent to the septum.

    • Highlights intercompartmental fluid or fascial involvement in trauma or infection.

  • Proton Density Fat-Saturated (PD FS):

    • Normal: septum appears low signal against intermediate muscle.

    • Pathologic: bright periseptal signal in edema, scarring, or hemorrhage.

    • Distinctly separates anterior and posterior compartment structures.

  • T1 Fat-Sat Post-Contrast:

    • Normal: mild homogeneous enhancement due to vascularized fascia.

    • Pathologic: focal or diffuse enhancement with thickening or infiltration in inflammatory or neoplastic conditions.

CT Appearance

Non-Contrast CT:

  • Septum visualized as a thin, soft-tissue density line along the medial aspect of the humerus.

  • Distinguishes muscle compartments by subtle fat planes.

  • High-resolution CT demonstrates septal continuity with periosteum and fascia.

  • Thickening or disruption may be seen in trauma, scarring, or surgical dissection.
    Post-Contrast CT (standard):

  • Septum enhances minimally or not at all (dense fibrous tissue).

  • Inflammatory or neoplastic infiltration causes irregular enhancement and loss of definition from surrounding tissue.

  • Useful in assessing soft-tissue extension, post-traumatic scarring, or mass invasion between compartments.

MRI images

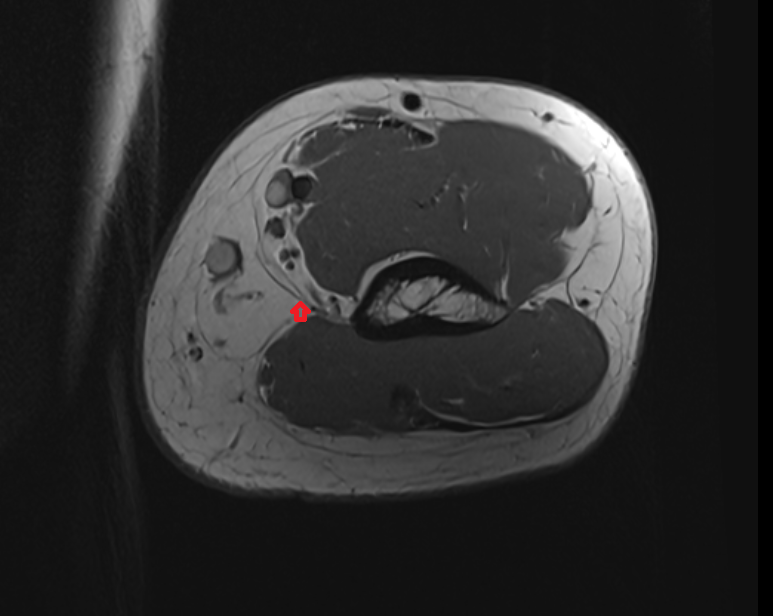

Medial intermuscular septum axial cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000

MRI images

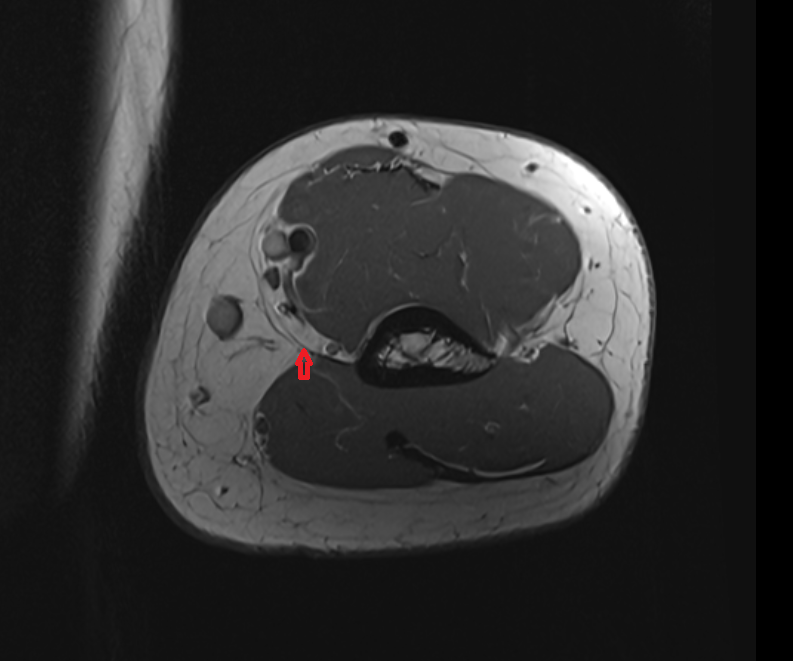

Medial intermuscular septum axial cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000_00001

MRI images

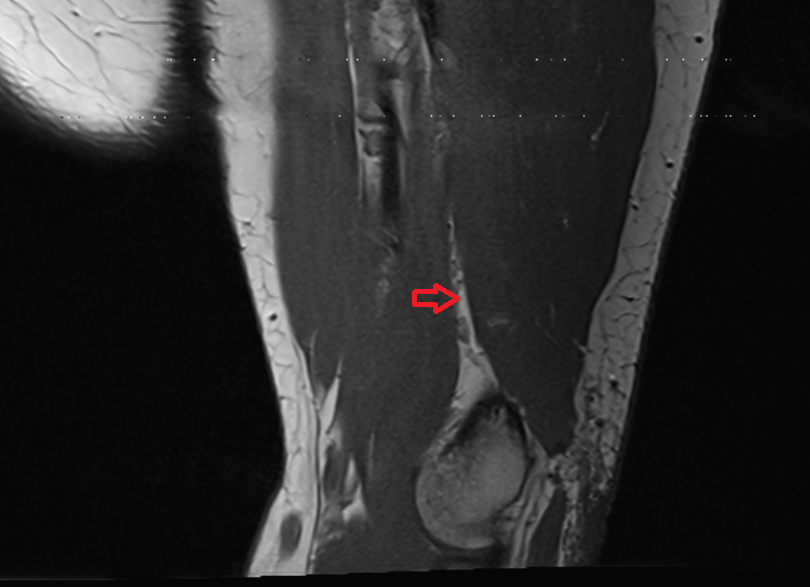

Medial intermuscular septum sag cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000
