Medial tibiofemoral joint space

The medial tibiofemoral joint space is the medial compartment of the knee joint formed between the medial femoral condyle and the medial tibial plateau. It represents a key weight-bearing region of the knee and plays a major role in load transmission, stability, and controlled motion.

It is an important anatomical region in orthopedic anatomy and cross-sectional imaging of the knee.

Synonyms

  • Medial knee joint space

  • Medial femorotibial compartment

Location

  • Situated between the medial femoral condyle and medial tibial plateau

  • Forms the medial compartment of the knee joint

  • Medial to the intercondylar region

  • Lateral to the medial collateral ligament (MCL)

  • Inferior to the medial femoral condyle

  • Superior to the medial tibial plateau

Anatomical components

  • Articular surfaces:

    • Medial femoral condyle cartilage

    • Medial tibial plateau cartilage

  • Interposed structure:

    • Medial meniscus

  • Capsuloligamentous support:

    • Medial collateral ligament (MCL)

    • Joint capsule

  • Synovial lining and joint fluid

Relations

Medially:

  • Medial collateral ligament (MCL)

  • Subcutaneous tissue

Laterally:

  • Intercondylar region

  • Anterior and posterior cruciate ligaments (indirect)

Anteriorly:

  • Anterior horn of the medial meniscus

  • Patellar tendon (indirect relation)

Posteriorly:

  • Posterior horn of the medial meniscus

  • Posterior joint capsule

Superiorly:

  • Medial femoral condyle

Inferiorly:

  • Medial tibial plateau

X-ray appearance

Plain radiographs (AP and weight-bearing views):

  • Joint space: Seen as a radiolucent gap between femur and tibia

  • Cartilage: Not directly visualized, inferred from joint space width

  • Alignment: Parallel articular margins in normal positioning

  • Medial compartment: Compared with lateral for symmetry

CT appearance (Pre-contrast)

Non-contrast CT:

  • Articular surfaces: Well-defined cortical outlines of femoral condyle and tibial plateau

  • Joint space: Visualized as a narrow low-density interval

  • Subchondral bone: Clearly depicted

  • Meniscus: Appears as soft-tissue density between articular surfaces

MRI appearance

T1-weighted images:

  • Bone marrow: High signal in femoral condyle and tibial plateau

  • Articular cartilage: Intermediate-to-low signal thin layer

  • Meniscus: Low-signal triangular structure

  • Joint space: Intermediate signal depending on fluid content

T2-weighted images:

  • Joint fluid: High signal outlining the joint space

  • Articular cartilage: Intermediate signal

  • Meniscus: Low signal

  • Capsule and synovium: Thin structures adjacent to fluid

STIR:

  • Bone marrow: Uniform fat-suppressed signal

  • Joint fluid: Bright high signal

  • Cartilage and meniscus: Well contrasted against suppressed marrow

Proton density fat-saturated (PD FS):

  • Joint fluid: High signal

  • Meniscus: Low-signal triangular structure

  • Articular cartilage: Clearly delineated

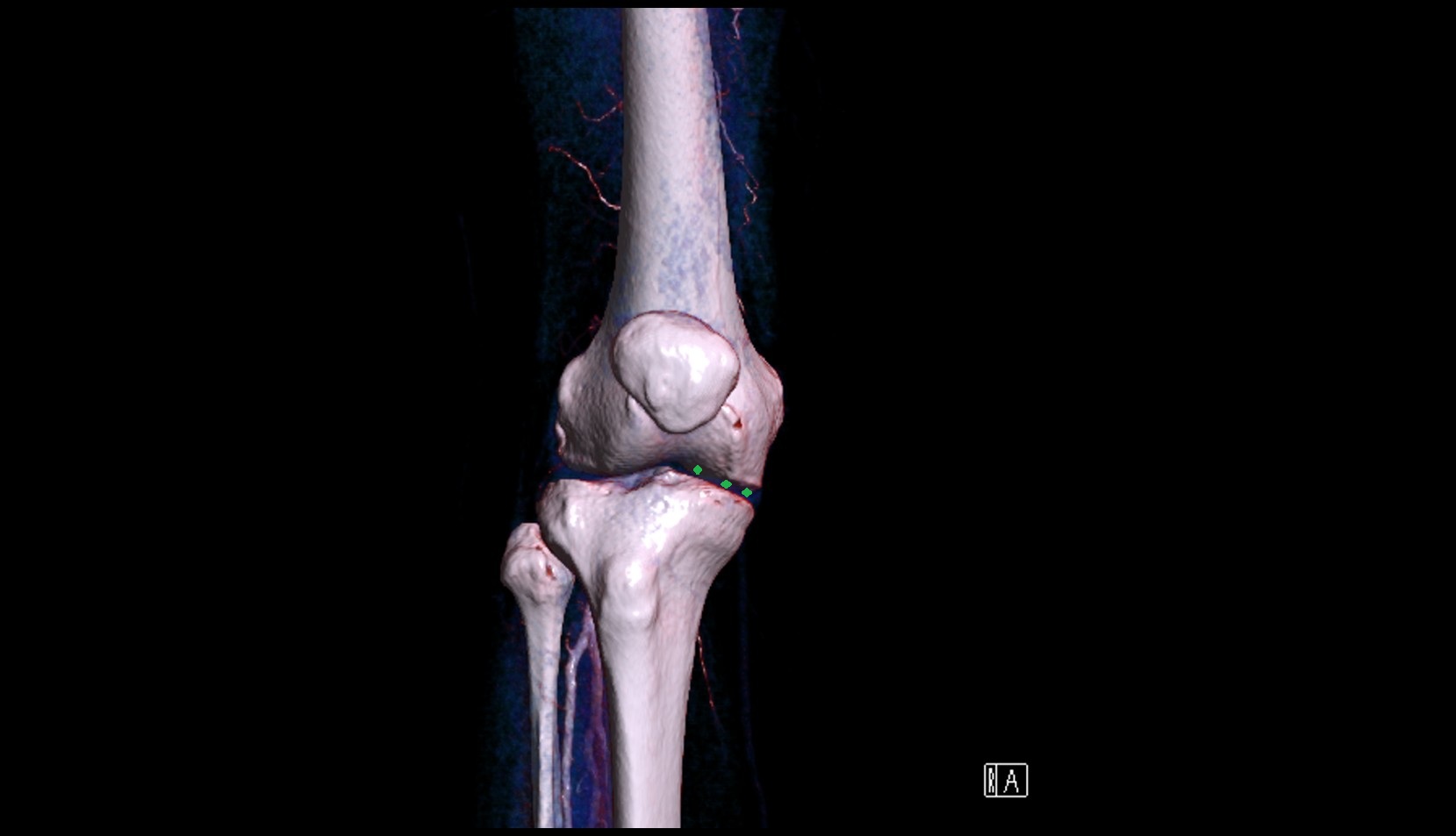

CT VRT 3D image

Medial tibiofemoral joint space

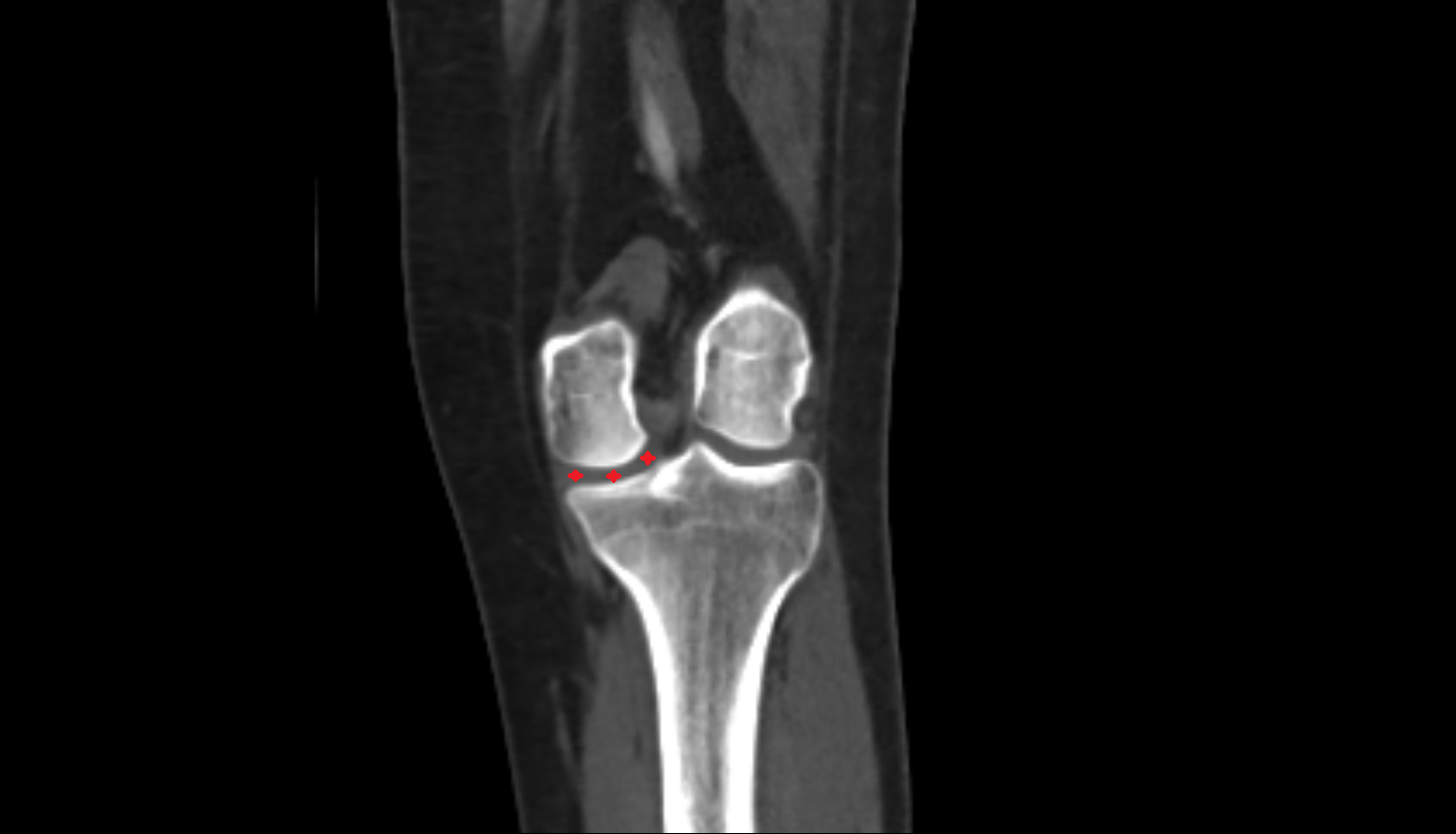

CT image

Medial tibiofemoral joint space

X Ray image

Medial tibiofemoral joint space
