Median Antebrachial Vein: Anatomy, Course, Function, MRV & CTV Imaging

Topic

Median antebrachial vein

The median antebrachial vein (also called the median vein of the forearm) is a superficial vein located in the anterior aspect of the forearm. It drains the superficial venous plexus of the palm and forearm, ascending along the midline to connect with the median cubital, basilic, or cephalic veins near the cubital fossa.

It serves as an important conduit between the superficial palmar venous arch and the superficial veins of the arm, contributing to venous return from the forearm to the upper limb. Its anatomy is variable and often asymmetric, with several branching and termination patterns observed in individuals.

Synonyms

Median vein of the forearm
Intermediate antebrachial vein
Vena mediana antebrachii

Origin, Course, and Termination

Origin: Begins from the superficial palmar venous network in the palm.
Course:
- Ascends in the midline of the anterior forearm, usually superficial to the deep fascia and between the cephalic and basilic veins.
- Lies superficial to the flexor digitorum superficialis and palmaris longus tendons.
Termination:
- Drains into either the median cubital vein, basilic vein, or cephalic vein, depending on the variant.
- In some cases, it divides into median basilic and median cephalic veins in the cubital fossa.

Relations

Anteriorly: Skin and superficial fascia
Posteriorly: Flexor muscles of the forearm (mainly flexor digitorum superficialis and pronator teres)
Medially: Basilic vein and ulnar artery (deep)
Laterally: Cephalic vein and radial artery (deep)
Superiorly: Cubital fossa and median cubital venous network

Variations

Type I (single trunk): Drains directly into the basilic or median cubital vein (most common).
Type II (bifurcated): Divides into median basilic and median cephalic branches.
Type III (absent or rudimentary): Replaced by enlarged superficial veins of the forearm.

Function

Venous drainage: Returns blood from the superficial tissues of the palm and forearm.
Connection: Forms a communication between the palmar venous plexus and the cubital venous system.
Clinical importance: Common site for venipuncture, intravenous access, and arteriovenous fistula mapping.

Clinical Significance

Venipuncture site: Often used for blood sampling or cannulation due to its superficial position.
Phlebitis: Can occur secondary to infection, IV irritation, or trauma.
Venous thrombosis: Rare, but may occur with IV lines or catheterization.
Surgical relevance: Must be preserved or identified during creation of forearm AV fistulas.
Variant anatomy: Knowledge of its termination is critical to avoid confusion during procedures.

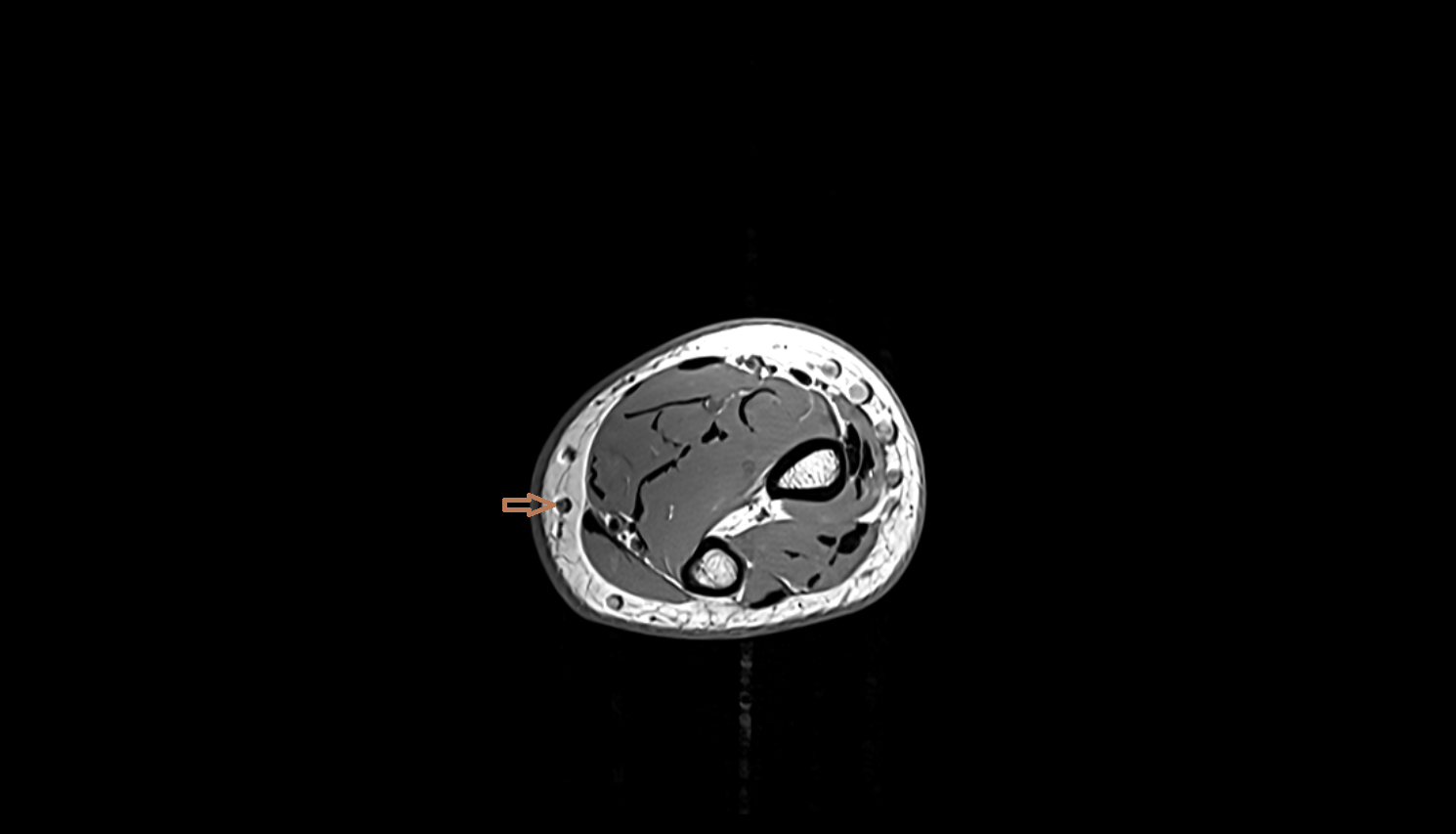

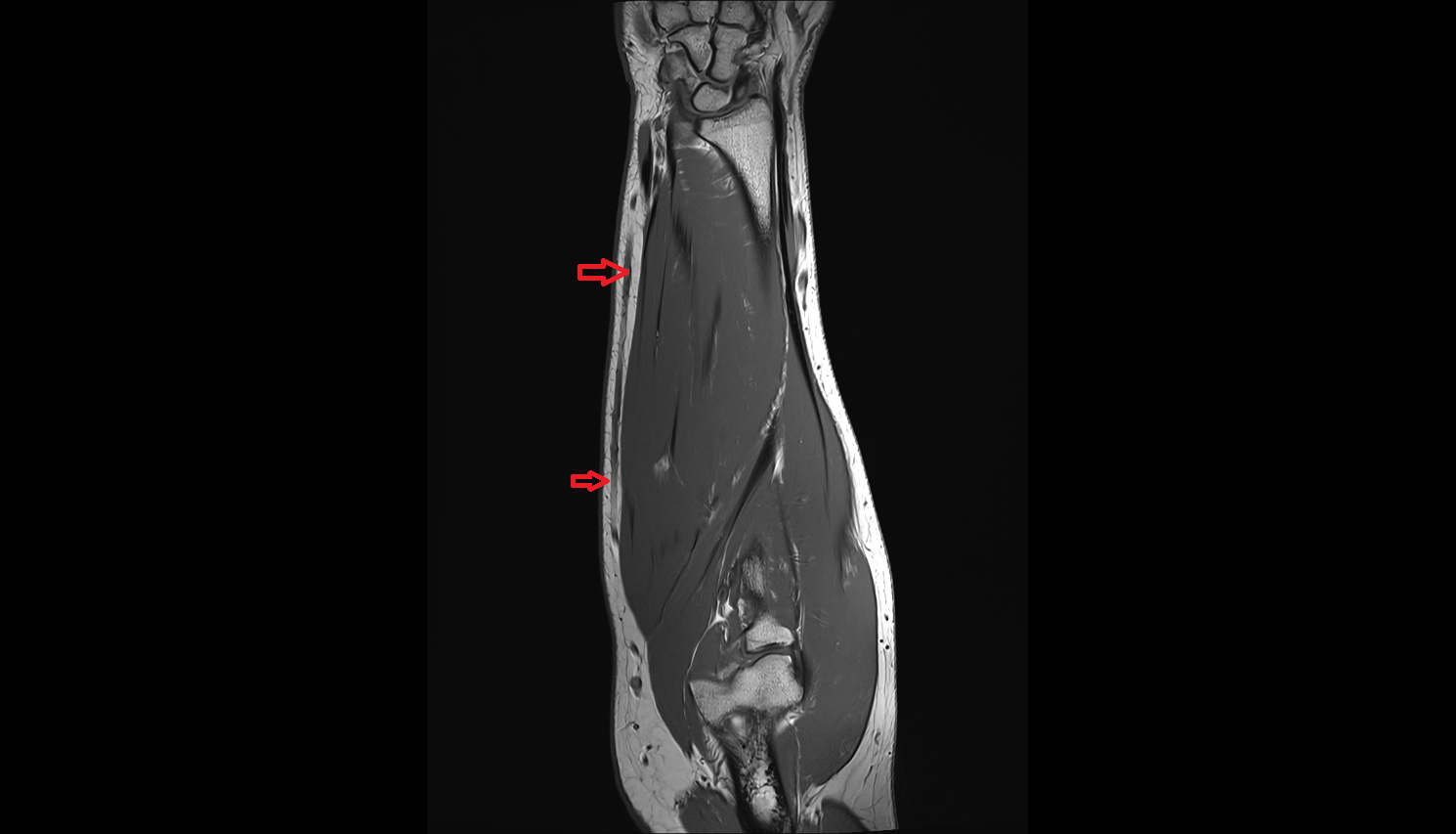

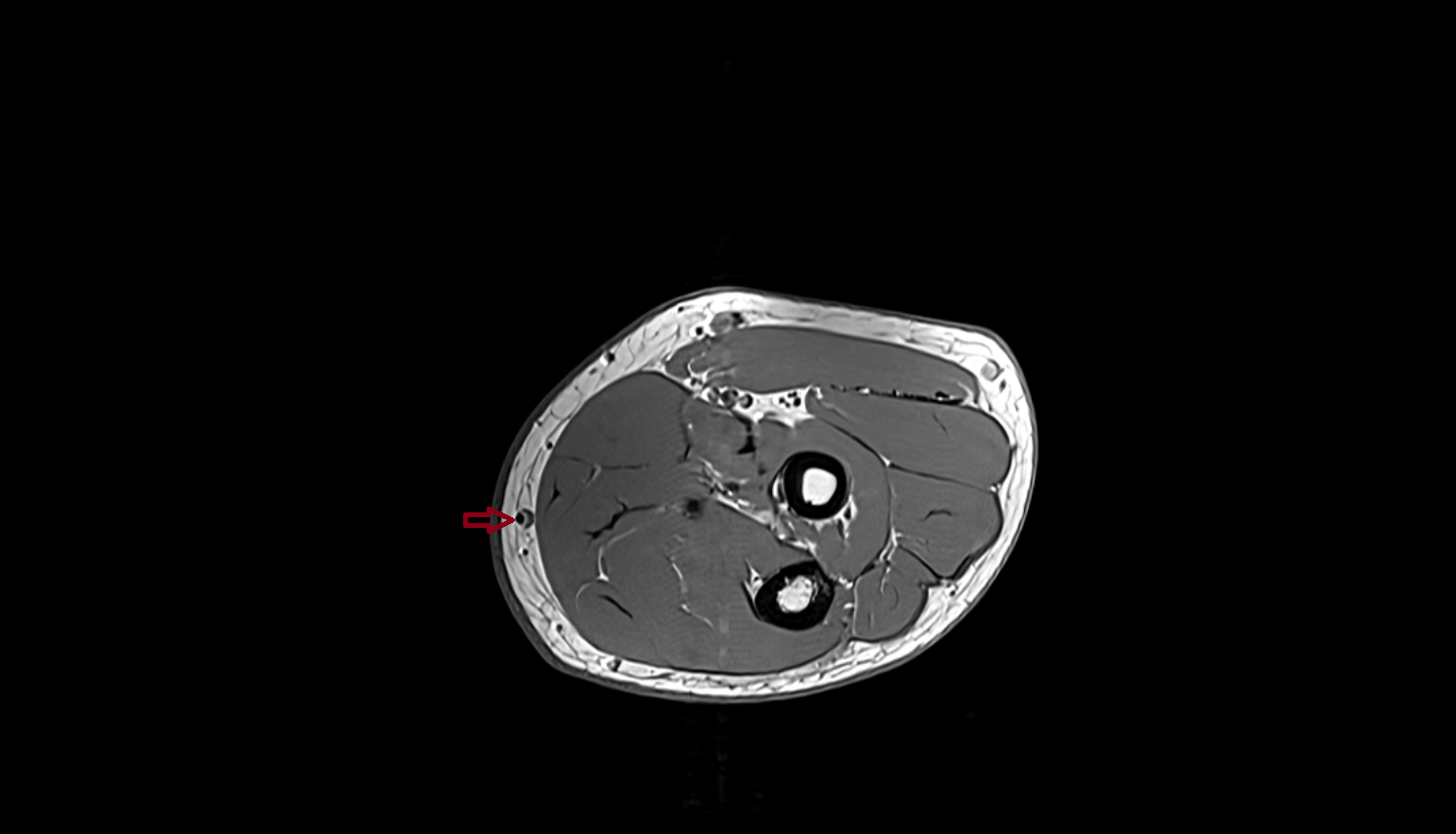

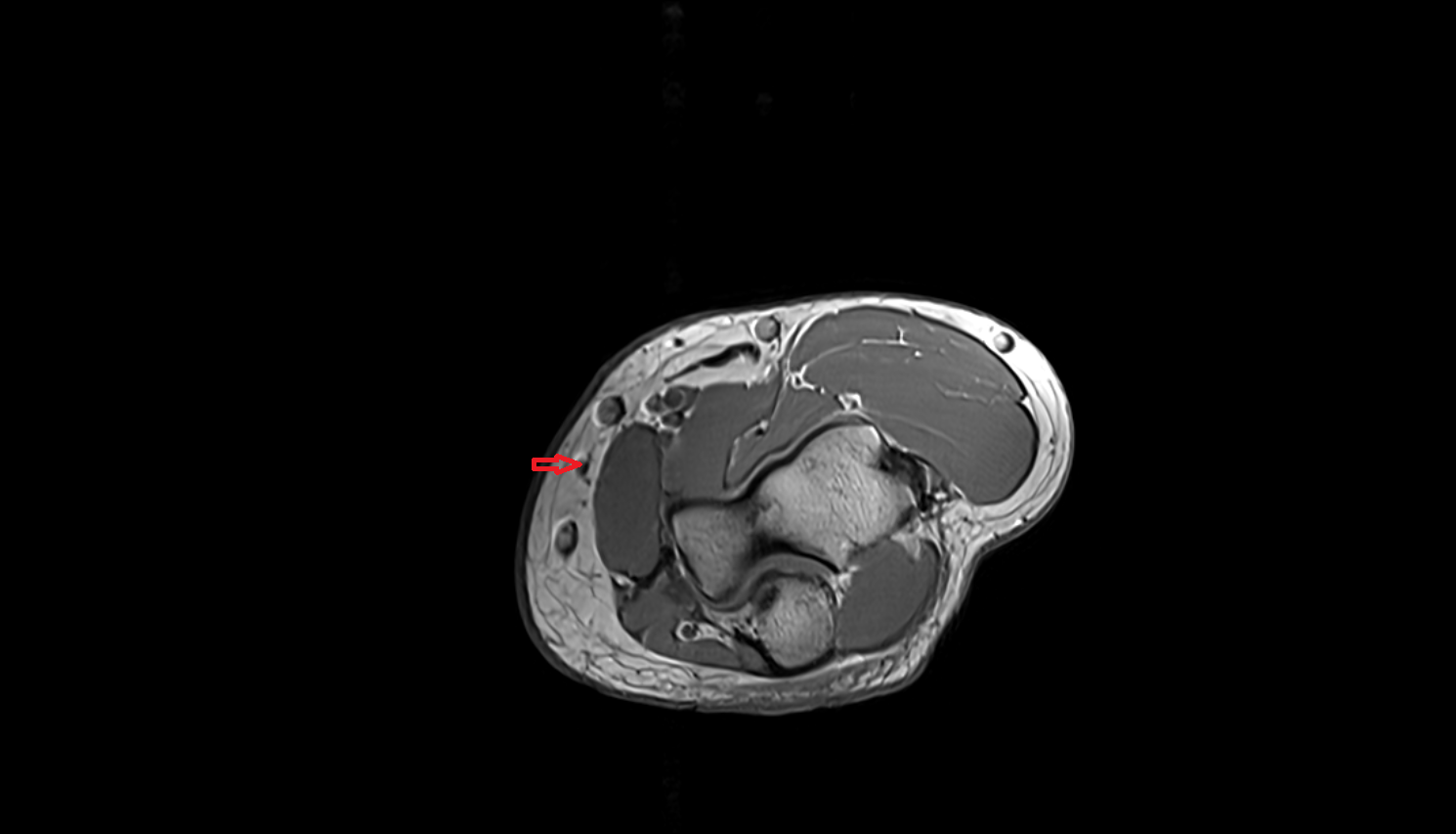

MRI Appearance

T1-weighted images:
- Normal flowing blood: signal void (dark lumen) due to fast flow.
- Slow or stagnant flow: intermediate-to-bright signal depending on velocity and turbulence.
- Vessel wall: thin low-signal rim; surrounding fat: bright.
- Thrombosis: intermediate-to-high intraluminal signal replacing flow void.
T2-weighted images:
- Flowing blood: dark signal (flow void).
- Slow-flowing blood: appears brighter than normal, sometimes mimicking thrombus.
- Acute thrombus: bright or heterogeneous signal depending on oxygenation level.
- Chronic thrombus: organized, low-to-intermediate signal with wall thickening.
STIR:
- Normal vein: intermediate-to-dark signal (flow void or mixed).
- Slow flow or partial thrombosis: bright hyperintense intraluminal signal.
- Surrounding edema or phlebitis: bright perivascular signal.
Proton Density Fat-Saturated (PD FS):
- Normal vein: intermediate-to-dark, uniform lumen signal.
- Slow venous flow: mild bright signal within lumen due to phase dispersion.
- Thrombosis or inflammation: bright luminal or perivenous signal, especially near cubital fossa.
T1 Fat-Sat Post-Contrast:
- Normal vein: homogeneous lumen enhancement.
- Thrombus: non-enhancing intraluminal filling defect.
- Phlebitis: enhancing vessel wall or perivascular tissues.

MRV (Magnetic Resonance Venography) Appearance

Normal: The median antebrachial vein appears as a thin, contrast-enhancing superficial channel in the anterior forearm, draining toward the cubital fossa.
Techniques: Best seen with contrast-enhanced MRV or 3D TOF venography.
Slow flow: May cause incomplete or delayed enhancement on early-phase images.
Pathology:
- Thrombosis: Segmental or continuous filling defect.
- Phlebitis: Irregular wall enhancement.
- Collateral veins: Seen as tortuous, small-caliber vessels in chronic occlusion.

CT Appearance

Non-Contrast CT:

Vein lumen not well visualized unless calcified thrombus is present.
Surrounding fat and fascia help identify the venous path.
Thrombosed veins may appear as soft-tissue density cords without visible lumen.

Post-Contrast CT (standard):

Enhancing tubular structure along anterior forearm fascia.
Differentiated from arteries by lower contrast opacification and later enhancement phase.
Thrombosis: Appears as intraluminal filling defect.
Inflammation: Wall thickening and perivenous fat stranding.

CTV (CT Venography) Appearance

Normal: Median antebrachial vein seen as a superficial, contrast-filled vessel ascending mid-forearm and draining into the median cubital or basilic system.
Technique: Acquired in the venous phase (40–60 sec delay) after contrast injection.
Slow flow: May produce heterogeneous or delayed opacification.
Thrombosis: Intraluminal non-enhancing defect with or without collateral formation.
Phlebitis: Enhancing thickened wall and perivenous inflammatory stranding.
Post-surgical mapping: CTV clearly demonstrates superficial venous continuity and caliber for preoperative planning of vascular access.
