Median cubital vein

The median cubital vein (MCV) is a prominent superficial vein located in the cubital fossa of the upper limb. It serves as a communication channel between the cephalic vein (laterally) and the basilic vein (medially), usually crossing obliquely over the bicipital aponeurosis.

It is the most commonly used vein for venipuncture, intravenous access, and blood sampling due to its superficial location, large caliber, and minimal surrounding structures. Anatomical variations are frequent, with different connection patterns among the cephalic, basilic, and median antebrachial veins.

Synonyms

Median vein of the cubital fossa
Intermediate cubital vein
Superficial median vein of the elbow

Origin, Course, and Termination

Origin: Typically arises from the cephalic vein in the lower part of the cubital fossa.
Course:
- Passes obliquely upward and medially across the cubital fossa, superficial to the bicipital aponeurosis.
- Lies beneath the superficial fascia and above the deep fascia of the forearm.
Termination: Joins the basilic vein in the upper part of the cubital fossa or lower arm.
Valves: Often contains one or two bicuspid valves that regulate venous flow direction.

Relations

Anteriorly: Skin and superficial fascia
Posteriorly: Bicipital aponeurosis separating it from the brachial artery and median nerve
Laterally: Cephalic vein
Medially: Basilic vein
Superiorly: Superficial fascia and skin of the anterior elbow region

Variations

The vein may form an “H” pattern (connected by a transverse median vein), “M” pattern, or double anastomosis pattern between cephalic and basilic veins.
Occasionally, it may receive a branch from the median antebrachial vein of the forearm.

Function

Venous drainage: Drains the superficial venous blood from the forearm and communicates between the cephalic and basilic systems.
Pressure equalization: Balances blood flow between superficial and deep venous channels of the arm.
Clinical importance: Common and safe site for venipuncture, transfusion, and intravenous injections.

Clinical Significance

Venipuncture site: Most accessible and least painful due to distance from major nerves and arteries.
Thrombophlebitis: May occur after repeated venipuncture or infection.
Venous thrombosis: Can cause local pain, swelling, or impaired blood draw.
Anatomical variations: Important to recognize for cannulation, IV line placement, and surgical flap design.
Iatrogenic injury: Deep penetration may damage the underlying brachial artery or median nerve.
Imaging relevance: MRV and CTV are essential for assessing patency, thrombosis, and venous variants.

MRI Appearance

T1-weighted images:
- Normal flow: Lumen appears as a flow void (dark signal) due to fast-moving blood.
- Slow flow: May show intermediate-to-bright intraluminal signal.
- Thrombosis: Homogeneous or heterogeneous intermediate signal within vein.
- Perivenous fat: bright, providing contrast with the vessel wall.
T2-weighted images:
- Normal vein: Flow void (dark) due to rapid venous flow.
- Slow or stagnant flow: Bright intraluminal signal (slow-flow effect).
- Thrombus: Variable signal depending on age — acute thrombus bright, chronic dark or heterogeneous.
- Wall thickening: Intermediate signal intensity with surrounding fat hyperintense.
STIR:
- Normal vein: Intermediate-to-dark flow void appearance.
- Slow venous flow: May appear moderately bright due to partial signal averaging.
- Thrombophlebitis: Bright hyperintense perivenous edema and vessel wall thickening.
Proton Density Fat-Saturated (PD FS):
- Normal lumen: Intermediate-to-dark signal (flow void).
- Slow flow or thrombus: Bright intraluminal signal.
- Inflammation: Perivascular bright hyperintensity due to surrounding edema or cellulitis.
T1 Fat-Sat Post-Contrast:
- Normal vein: Homogeneous enhancement with bright lumen.
- Thrombosed vein: Non-enhancing lumen with enhancing wall (“rim sign”).
- Periphlebitis: Diffuse perivascular enhancement indicating inflammation.

MRV (Magnetic Resonance Venography) Appearance

Normal:
- The median cubital vein appears as a superficial enhancing channel connecting cephalic and basilic veins in the cubital fossa.
- Phase-contrast or TOF MRV sequences demonstrate continuous venous signal with uniform enhancement.
Pathology:
- Thrombosis: Segmental non-visualization or filling defect in the lumen.
- Slow flow: Irregular or patchy enhancement due to delayed venous return.
- Inflammation: Perivenous enhancement and wall thickening.
- Anatomic variants: Duplicate veins or absent connections may be identified.

CT Appearance

Non-Contrast CT:

Vein appears as a soft-tissue density tubular structure in the subcutaneous plane of the cubital fossa.
Intraluminal thrombus may appear as a hyperdense or isodense filling structure compared to surrounding soft tissues.
Adjacent fat planes are preserved unless there is inflammation.

Post-Contrast CT (standard):

Vein enhances homogeneously with contrast in early venous phase.
Thrombosed segment: Non-enhancing or low-attenuation filling defect within enhancing lumen.
Surrounding soft-tissue enhancement may indicate thrombophlebitis.

CTV (CT Venography) Appearance

Normal:
- The median cubital vein appears as a superficial, contrast-filled structure bridging the cephalic and basilic veins in the cubital fossa.
- Best visualized during venous phase scanning using thin-slice reconstructions.
Pathology:
- Thrombosis: Central or eccentric intraluminal filling defect with expanded vein.
- Inflammation: Wall enhancement and perivascular fat stranding.
- Compression or scarring: Focal narrowing with upstream venous dilation.

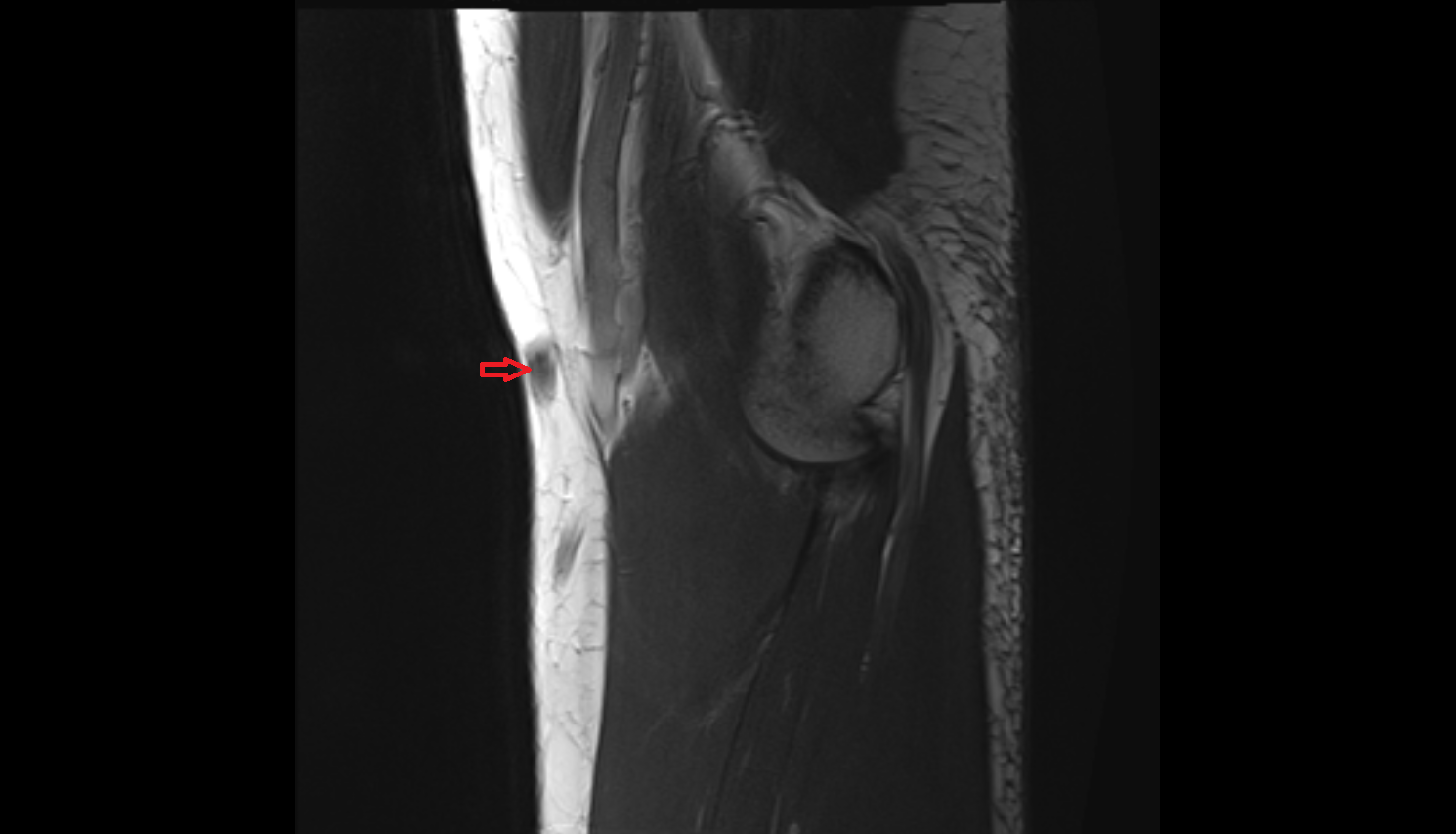

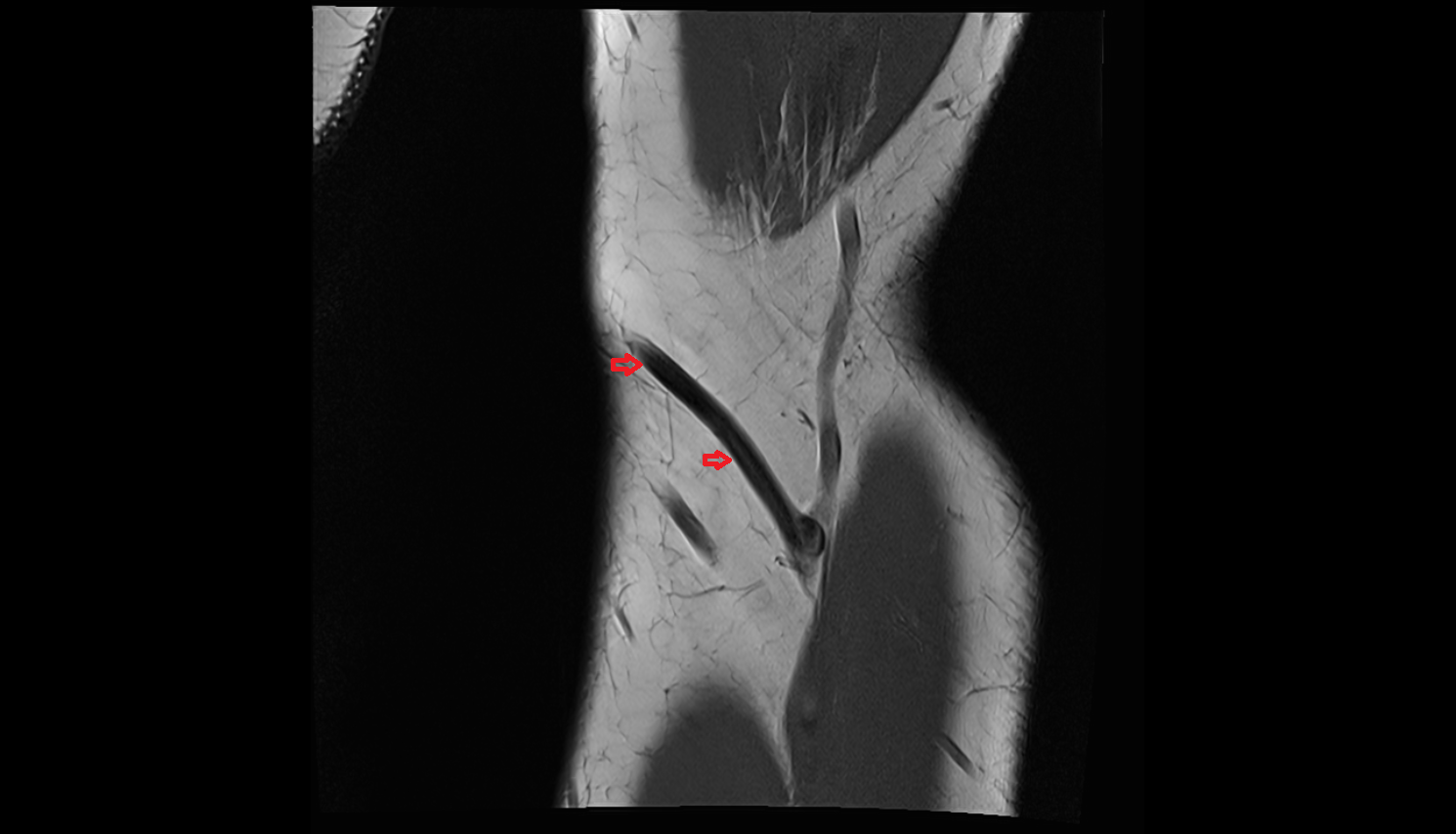

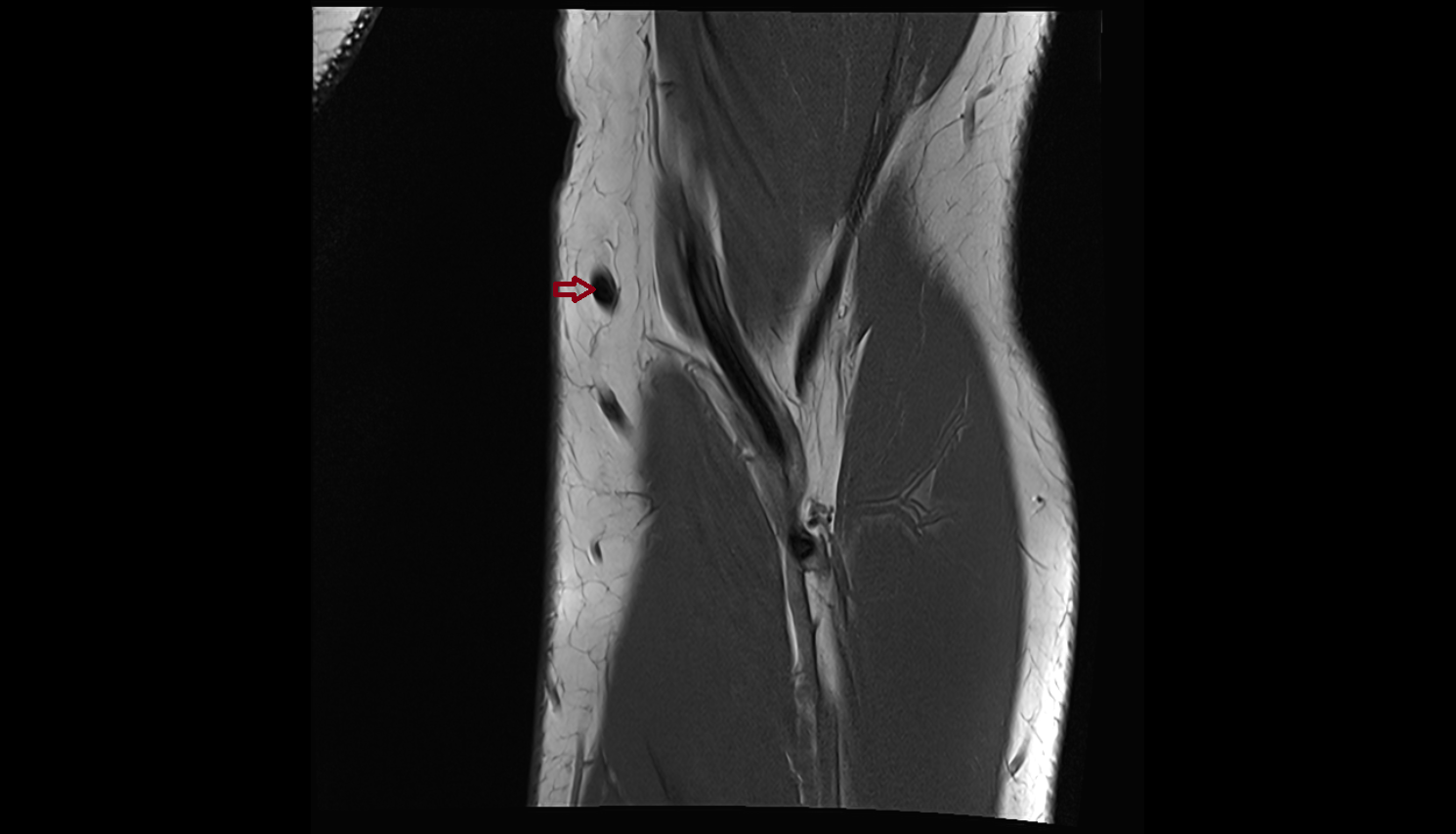

MRI image
