Metatarsophalangeal Joints: Anatomy, Function, Clinical & Imaging

Topic

Metatarsophalangeal joints

The metatarsophalangeal (MTP) joints are synovial articulations between the heads of the metatarsal bones and the bases of the proximal phalanges of the toes. There are five MTP joints in each foot, with the first MTP joint (great toe) being the largest and most clinically significant due to its role in propulsion and weight-bearing.

These joints are of the condyloid (ellipsoidal) type, allowing flexion, extension, abduction, and adduction. They are stabilized by a strong capsule, collateral ligaments, and plantar plates, and supported by surrounding tendons. MTP joints play a crucial role in gait mechanics, balance, and shock absorption during locomotion.

Synonyms

MTP joints
Metatarsal-phalangeal articulations
Toe base joints

Location and Structure

Articulation: Between the head of each metatarsal and the base of the corresponding proximal phalanx.
Type: Synovial condyloid (ellipsoidal) joints.
Capsule: Fibrous capsule enclosing the joint, lined by synovial membrane.
Cartilage: Smooth hyaline cartilage covers both articular surfaces.
Ligaments: Reinforced by plantar and collateral ligaments; the dorsal surface is thin and loose to permit motion.
Range of motion: Greatest in the first MTP joint (flexion ~45°, extension up to 70°).

Relations

Dorsally: Extensor tendons (extensor hallucis longus, extensor digitorum longus/brevis).
Plantar aspect: Flexor tendons (flexor hallucis longus/brevis, flexor digitorum longus/brevis) and plantar plates.
Laterally: Collateral ligaments.
Medially and laterally (1st MTP): Sesamoid bones embedded in tendons of flexor hallucis brevis.
Deep: Heads of metatarsals and plantar interosseous muscles.

Ligamentous Attachments

Capsule: Surrounds the joint, thin dorsally but reinforced on sides and plantar surface.
Collateral ligaments: Thick cords on both sides, preventing lateral displacement.
Plantar (glenoid) plate: Fibrocartilaginous structure supporting the plantar capsule, resists hyperextension, and distributes load.
Deep transverse metatarsal ligament: Connects plantar plates of lateral four MTP joints, maintaining transverse arch stability.

Nerve Supply

Medial and lateral plantar nerves (branches of tibial nerve).
Dorsal digital nerves (from deep fibular and superficial fibular nerves) supply the dorsal capsule and skin.

Function

Weight-bearing: Distributes forces during push-off phase of gait.
Mobility: Enables toe flexion, extension, abduction, and adduction for foot adaptation on uneven surfaces.
Propulsion: First MTP joint contributes significantly to forward thrust during walking and running.
Stabilization: Maintains forefoot alignment and balance during stance.
Shock absorption: Through plantar plates and sesamoid complex at the first MTP joint.

Clinical Significance

Hallux valgus (bunion): Deformity of first MTP joint due to lateral deviation of hallux.
Hallux rigidus: Degenerative arthritis causing stiffness and limited dorsiflexion of the first MTP joint.
Metatarsalgia: Pain under MTP joints from overload or inflammation of plantar plate.
Synovitis and bursitis: Resulting from overuse, inflammatory arthritis, or trauma.
Capsulitis or plantar plate tear: Common cause of forefoot pain in athletes and runners.
Dislocations and fractures: MTP joint injuries due to hyperextension or direct trauma.
Gout and rheumatoid arthritis: Often involve the first MTP joint (podagra).

MRI Appearance

T1-weighted images:
- Cortex: Low signal (dark).
- Bone marrow: Bright, due to fatty marrow in metatarsal heads and phalanges.
- Cartilage: Smooth intermediate-to-low signal layer at articular margins.
- Capsule and ligaments: Low-signal linear structures outlining the joint.
- Pathology: Fractures as low-signal lines; marrow edema appears intermediate-to-bright.
T2-weighted images:
- Cortex: Low signal (black).
- Marrow: Bright, slightly less than on T1 but higher than muscle.
- Cartilage: Intermediate-to-bright; irregularity indicates degeneration or chondral wear.
- Joint fluid: Hyperintense, outlining the capsule.
- Pathology: Effusions, synovitis, and bone contusions appear bright; osteoarthritis shows cartilage thinning.
STIR:
- Normal marrow: Intermediate-to-dark.
- Abnormal marrow: Bright hyperintense signal in edema, infection, or stress reaction.
- Sensitive for early inflammatory or traumatic changes in MTP joints.
Proton Density Fat-Saturated (PD FS):
- Normal marrow and cartilage: Intermediate-to-dark.
- Abnormal regions: Bright hyperintensity representing synovitis, effusion, or ligament injury.
- Ideal for detecting plantar plate tears, capsulitis, and early degenerative changes.
T1 Fat-Sat Post-Contrast:
- Normal joint: Mild uniform enhancement of synovium.
- Inflammatory arthritis: Diffuse synovial enhancement with effusion.
- Capsulitis or plantar plate tear: Peripheral enhancement of capsule or adjacent soft tissue.
- Infection: Patchy marrow enhancement, cortical irregularity, and pericapsular enhancement.

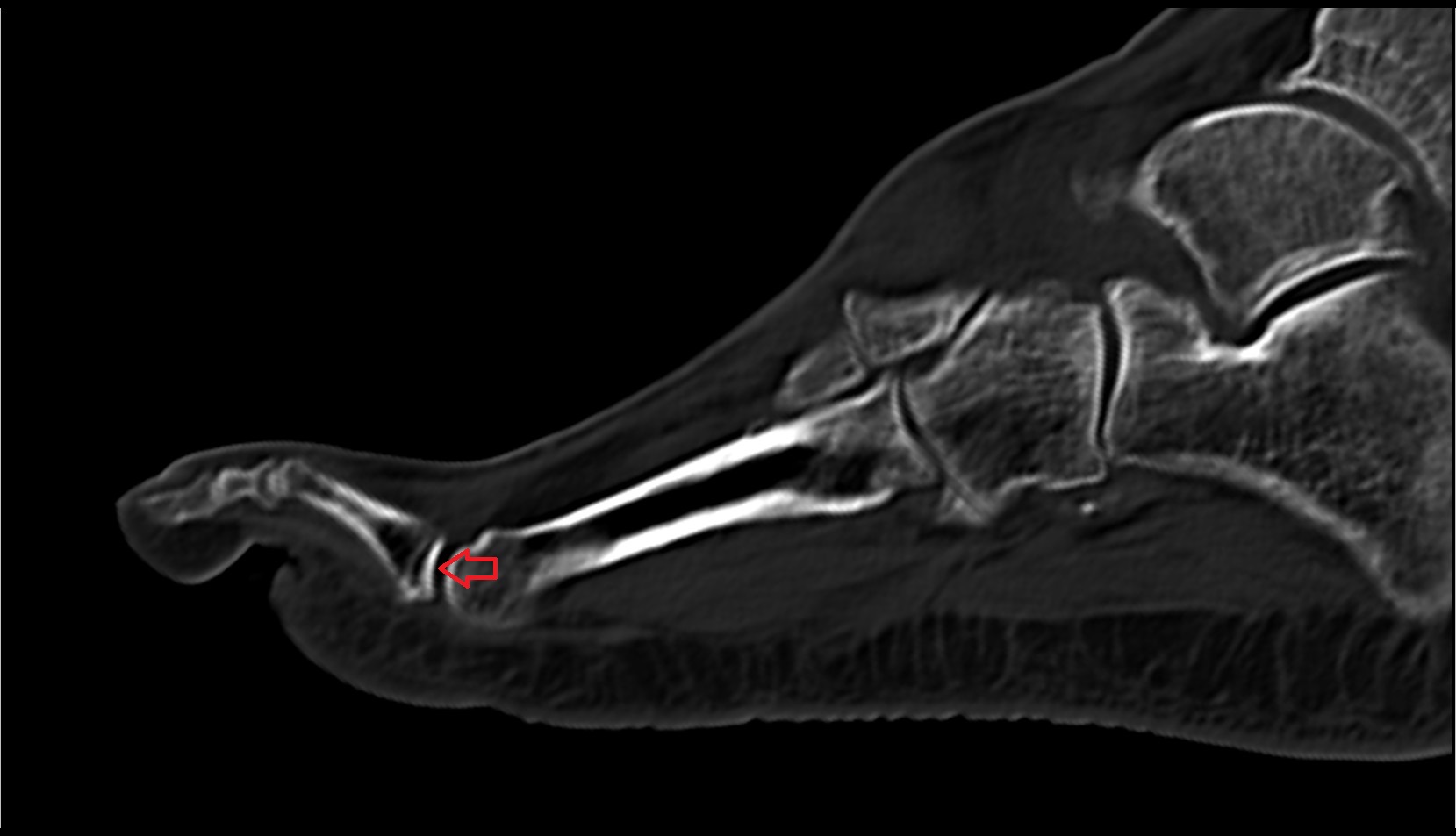

CT Appearance

Non-Contrast CT:

Cortex: High attenuation, well-defined articular margins.
Subchondral bone: Smooth with normal trabecular pattern.
Cartilage: Low-density line over metatarsal heads and phalangeal bases.
Pathology: Identifies fractures, osteophytes, erosions, joint space narrowing, and sesamoid abnormalities.
Useful for: Assessing alignment in hallux valgus, degenerative arthritis, and post-surgical changes.

Post-Contrast CT (standard):

Soft-tissue enhancement: Seen in synovitis, capsulitis, or infection.
Joint capsule and surrounding tissues: May enhance in inflammatory or postoperative conditions.
Excellent for evaluating gouty erosions, chronic arthritis, and complex joint pathology when MRI is contraindicated.

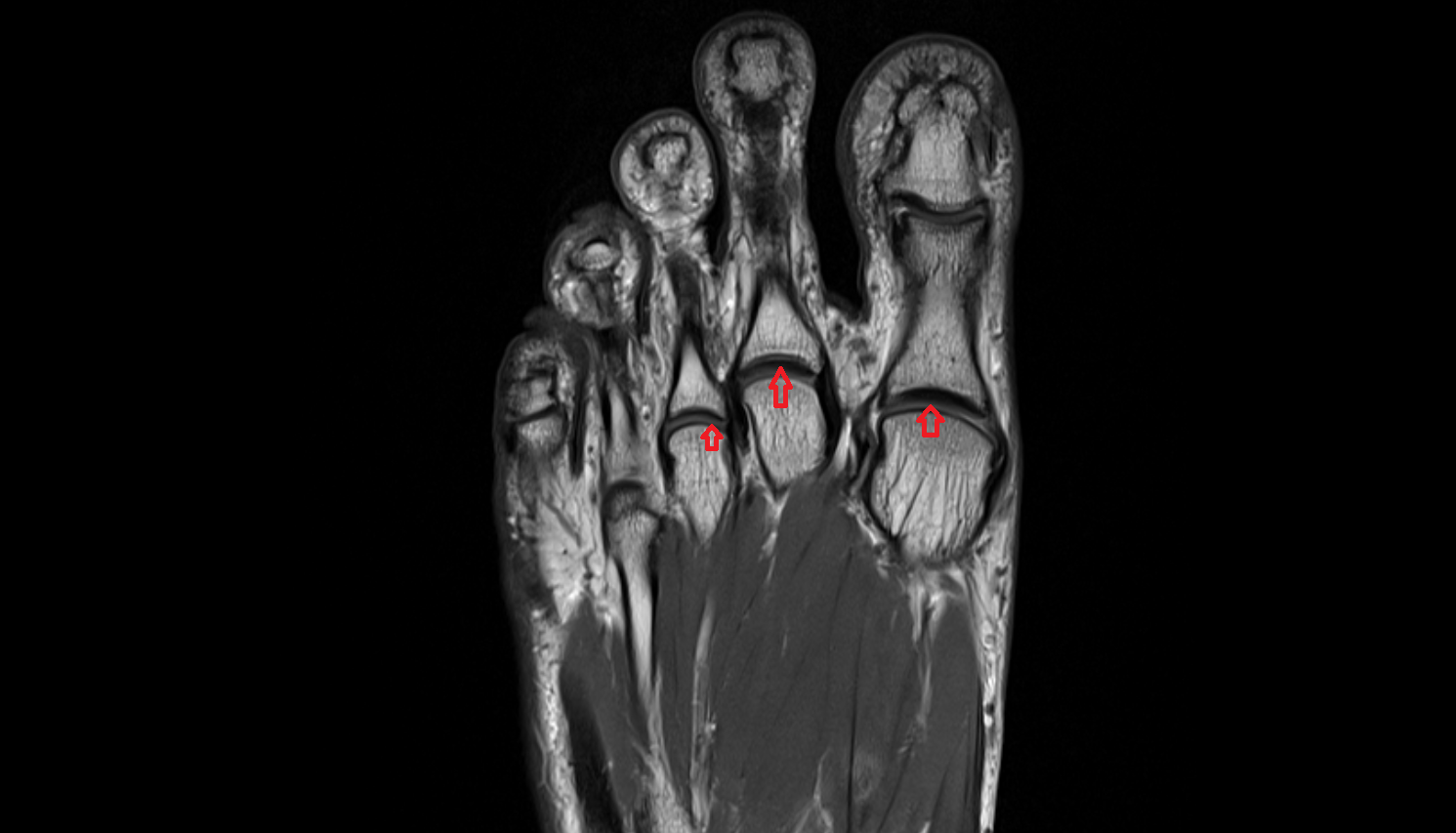

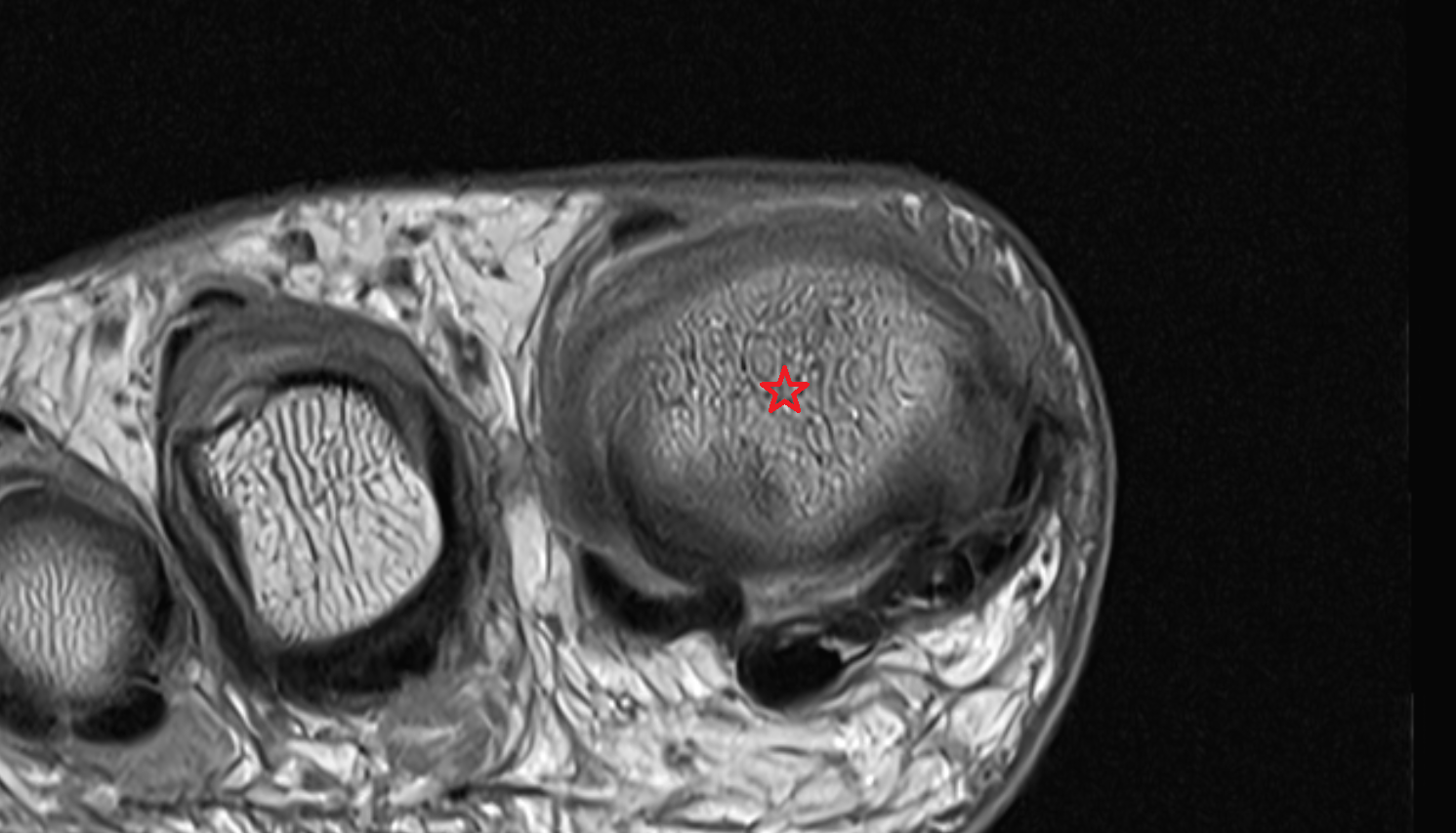

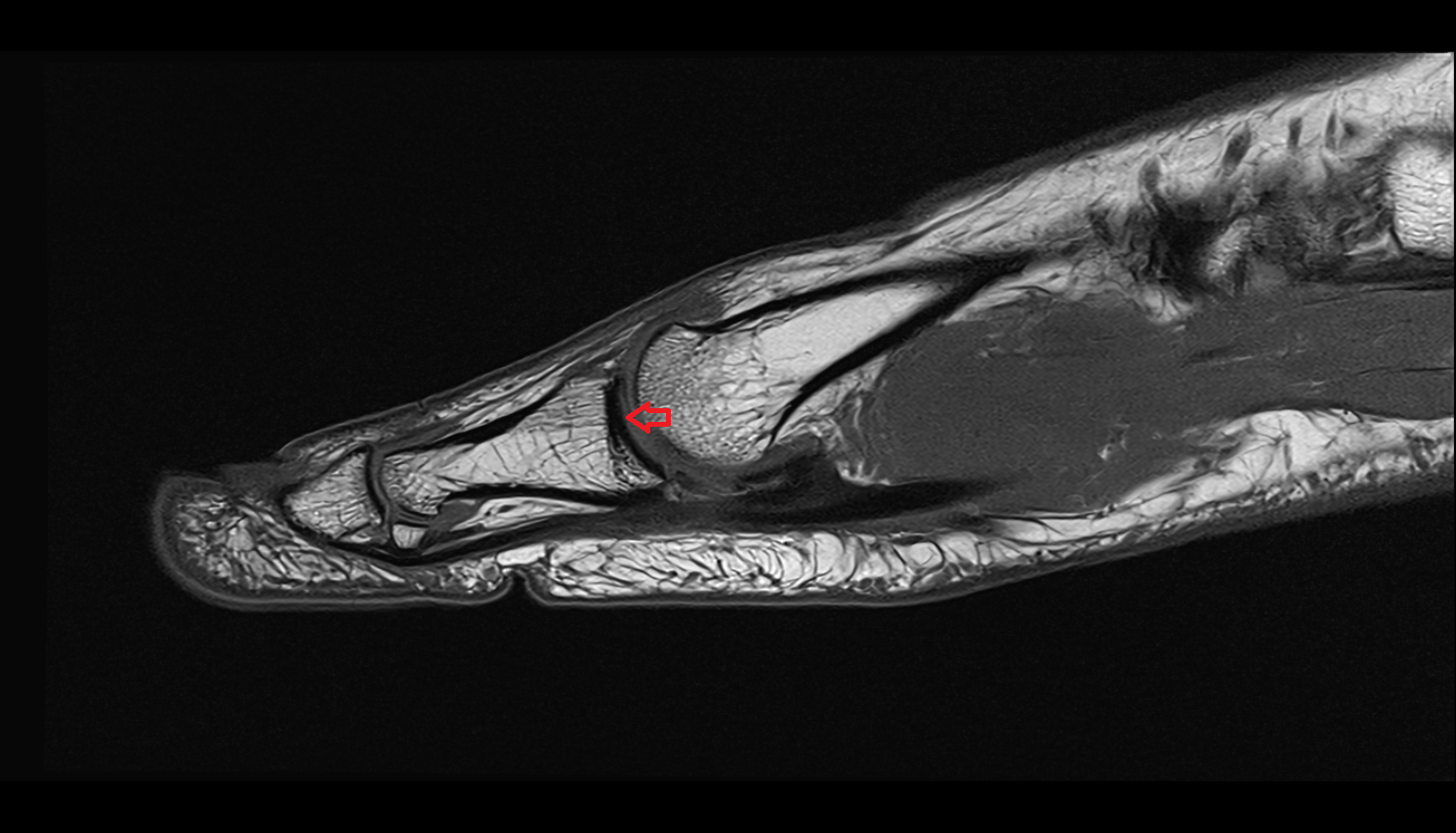

MRI image
