Muscular branches of tibial nerve

The muscular branches of the tibial nerve are motor branches that arise from the tibial nerve as it courses through the popliteal fossa and posterior compartment of the leg. These branches supply all the muscles of the posterior compartment of the leg and intrinsic muscles of the sole of the foot. They are clinically relevant in entrapment neuropathies, traumatic injuries, and in imaging of peripheral neuropathies.

Synonyms

  • Tibial muscular branches

  • Motor branches of tibial nerve

  • Posterior leg motor branches

Origin, Course, Branches, and Insertions

  • Origin:

    • The tibial nerve arises as a terminal branch of the sciatic nerve at the apex of the popliteal fossa.

    • Muscular branches arise from the tibial nerve along its course in the popliteal fossa and posterior leg.

  • Course:

    • The tibial nerve descends vertically through the popliteal fossa, deep to the fascia and superficial to popliteal vessels.

    • It continues into the posterior compartment of the leg, coursing between the superficial and deep muscle groups, and passes posterior to the medial malleolus within the tarsal tunnel.

    • Along this course, it gives off multiple muscular branches to the calf muscles and sole of the foot.

  • Branches and Insertions:

    • In popliteal fossa:

      • Branches to gastrocnemius (both heads) → insert on calcaneus via Achilles tendon

      • Branch to plantaris → inserts on calcaneus near Achilles tendon

      • Branch to soleus → inserts on calcaneus via Achilles tendon

      • Branch to popliteus → inserts on posterior tibia above soleal line

    • In posterior compartment of leg:

      • Branch to tibialis posterior → inserts on navicular and medial cuneiform

      • Branch to flexor digitorum longus → inserts on distal phalanges of lateral four toes

      • Branch to flexor hallucis longus → inserts on distal phalanx of hallux (big toe)

    • In the foot (via medial and lateral plantar nerves):

      • Supply to intrinsic muscles of the sole, including abductor hallucis, flexor digitorum brevis, lumbricals, interossei, and others

Relations

  • In popliteal fossa: Lies superficial to the popliteal vein and artery

  • In posterior leg: Lies between superficial (gastrocnemius, soleus) and deep (tibialis posterior, flexor digitorum longus, flexor hallucis longus) compartments

  • At ankle (tarsal tunnel): Lies posterior to medial malleolus, deep to flexor retinaculum, medial to posterior tibial artery and vein

  • In foot: Divides into medial and lateral plantar nerves, closely related to plantar vessels

Function

  • Provides motor innervation to all muscles of the posterior compartment of the leg (calf muscles)

  • Provides motor innervation to intrinsic muscles of the foot (via medial and lateral plantar branches)

  • Essential for plantarflexion of ankle, flexion of toes, and maintenance of arch stability

MRI Appearance

T1-weighted images:

  • Muscular branches appear as thin linear or oval structures with low-to-intermediate signal intensity

  • Surrounded by bright fat planes for contrast

T2-weighted images:

  • Nerves appear as intermediate to mildly hyperintense signal compared to muscle

  • Edematous or injured nerves appear brighter

STIR (Short Tau Inversion Recovery):

  • Normal nerves: low signal

  • Neuropathy, neuritis, or entrapment: bright hyperintensity

Proton Density Fat-Saturated (PD FS):

  • Nerves show low-to-intermediate signal

  • Pathological changes (inflammation, edema, injury) appear bright

T1 Fat-Sat Post-Contrast:

  • Normal nerves: minimal enhancement

  • Abnormal nerves (tumor, neuritis, inflammatory infiltration): focal or diffuse enhancement

3D T2 SPACE / CISS:

  • Nerves show intermediate to mildly hyperintense signal compared to muscle

  • Surrounded by bright fat, providing excellent contrast for nerve tracing

CT Appearance

Non-Contrast CT:

  • Muscular branches of tibial nerve are not clearly visible individually

  • HRCT shows them as small soft tissue density structures within fat planes of popliteal fossa, posterior leg, and ankle

  • Adjacent fat planes outline their course

Post-Contrast CT:

  • Nerves themselves do not enhance significantly

  • Pathology (tumor infiltration, inflammation) may appear as thickened or enhancing soft tissue along expected course

  • HRCT can demonstrate associated muscle atrophy or fat stranding in neuropathy

MRI image

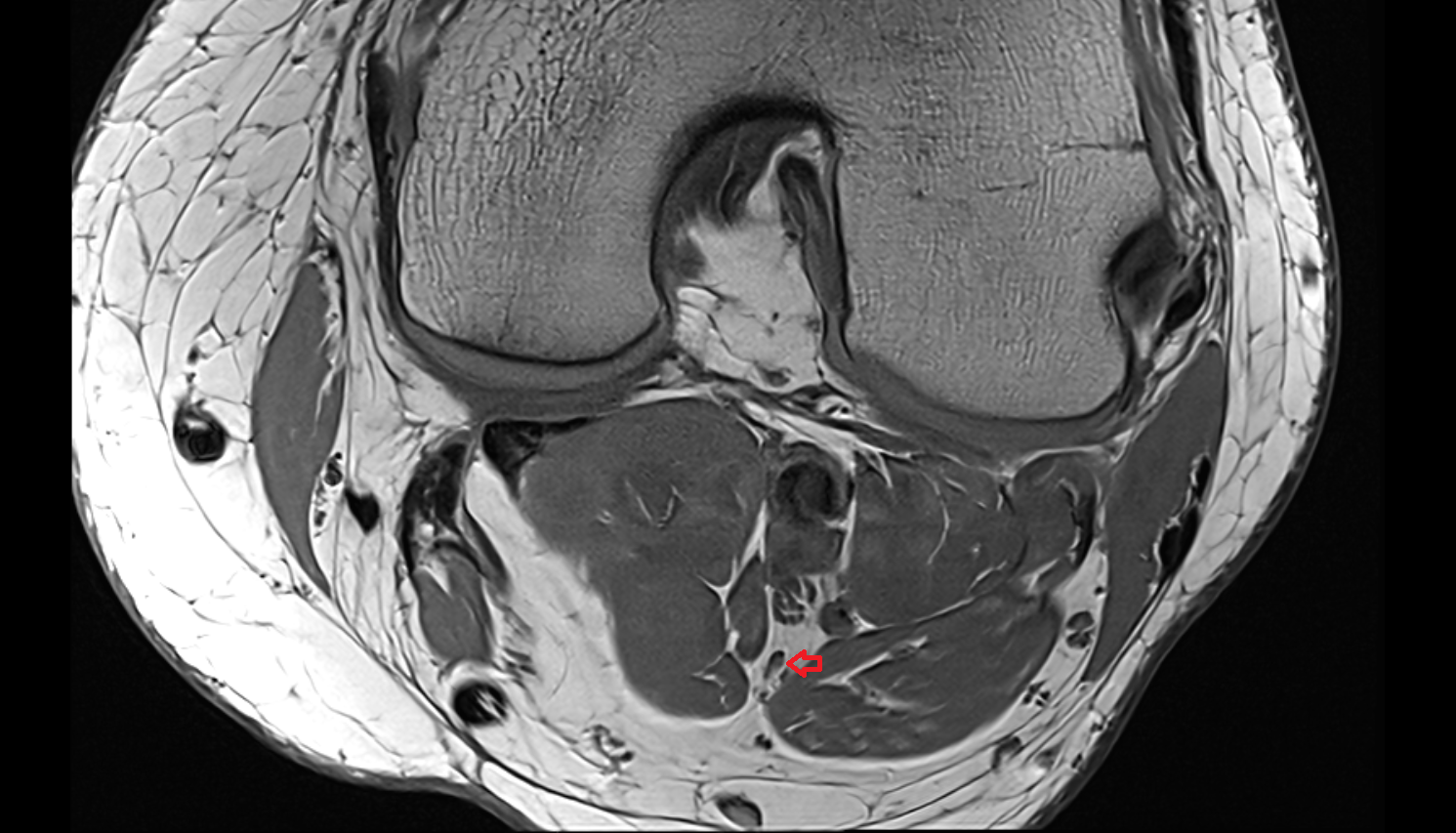

Muscular branches of tibial nerve axial cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000

MRI image

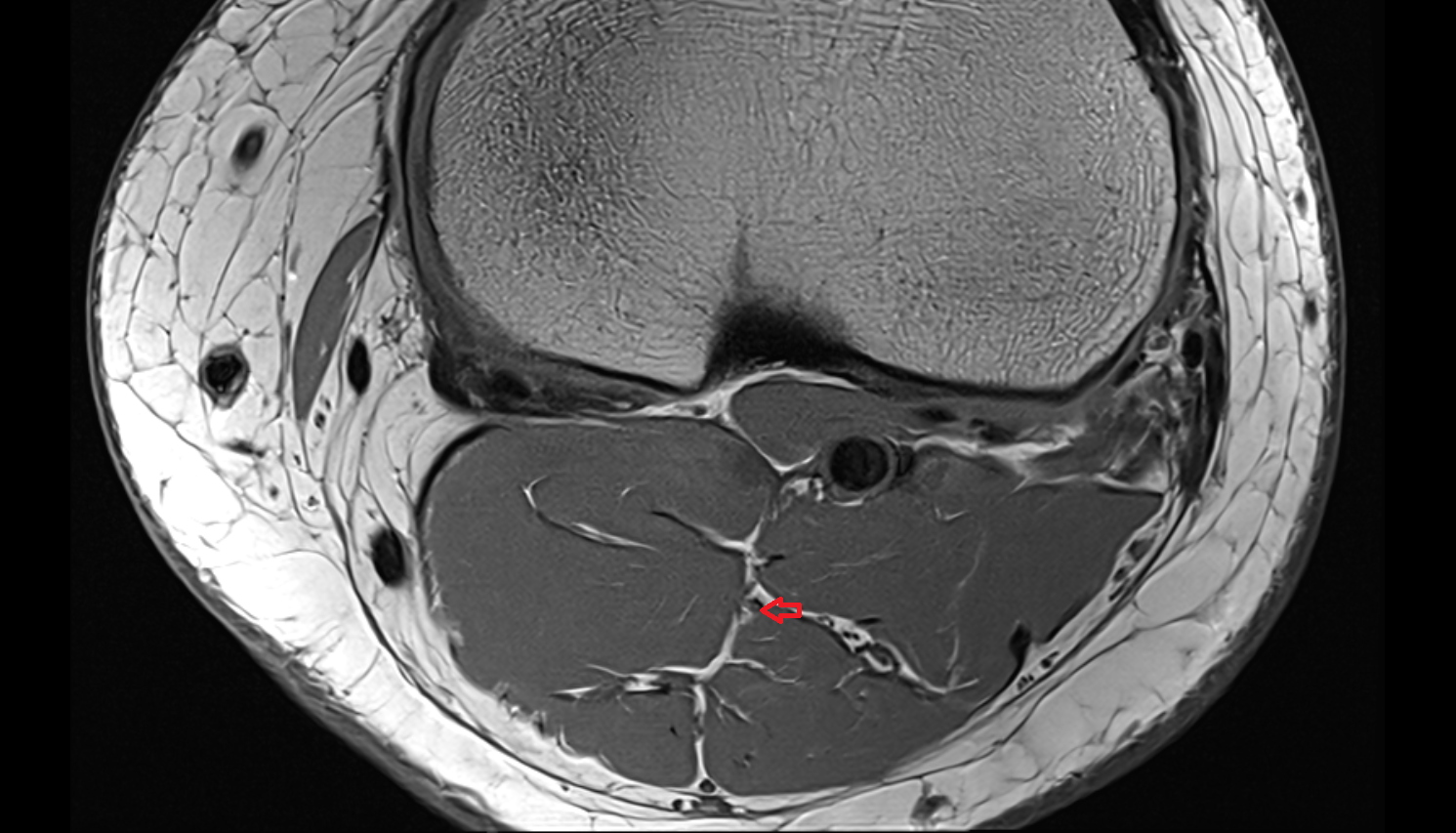

Muscular branches of tibial nerve axial cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000_00001

MRI image

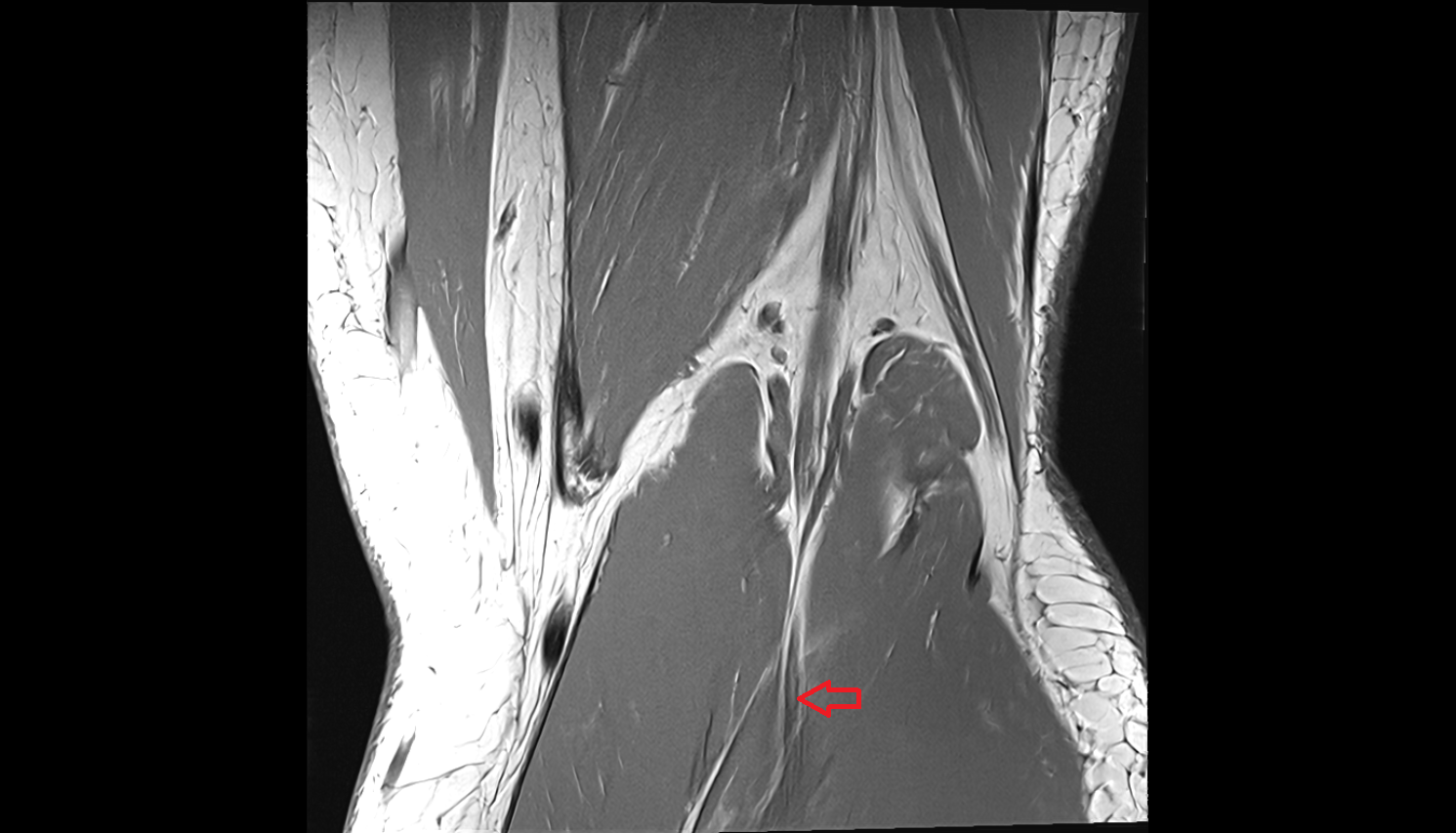

Muscular branches of tibial nerve coronal cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000

MRI image

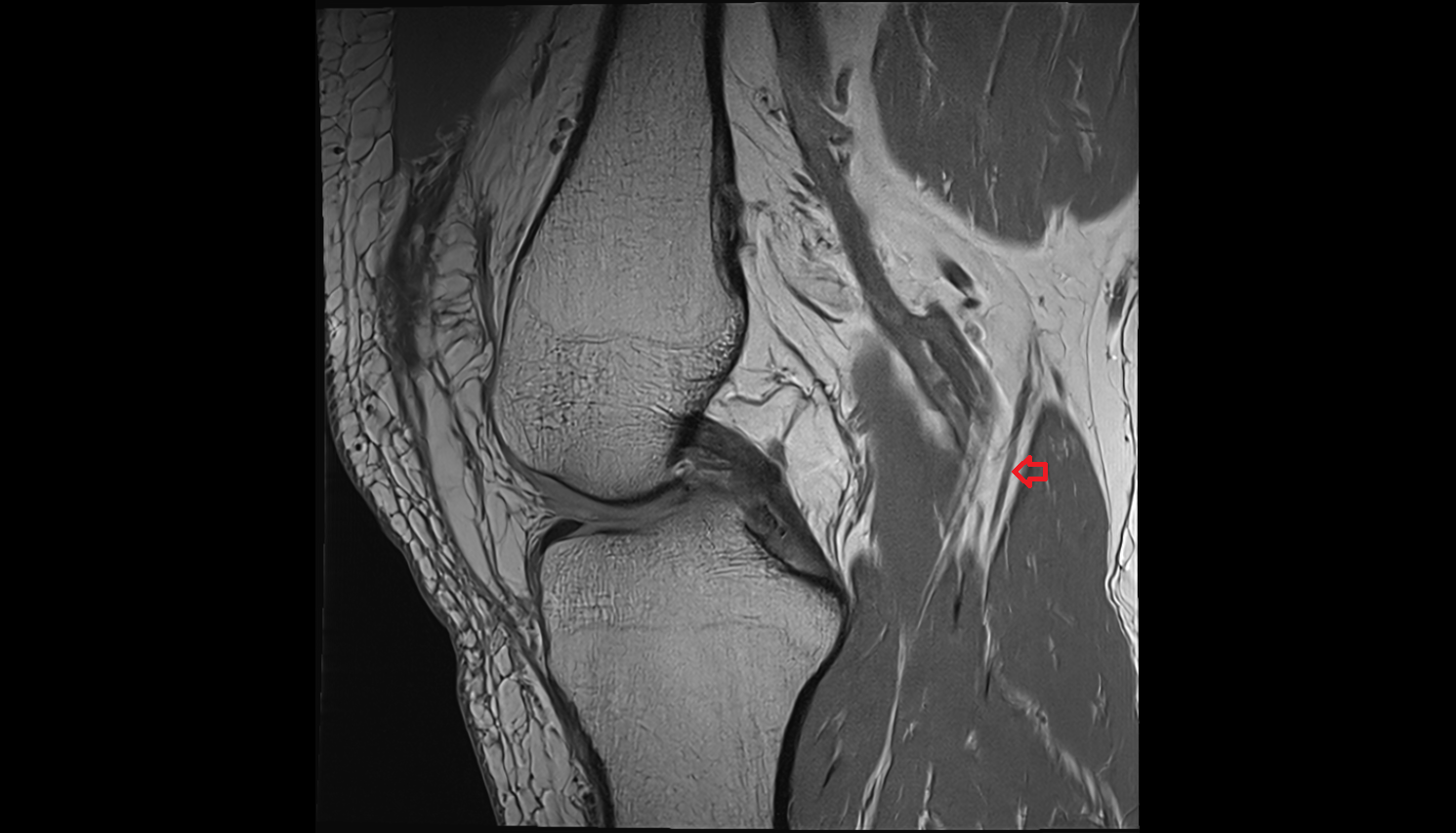

Muscular branches of tibial nerve sagl cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000

CT image

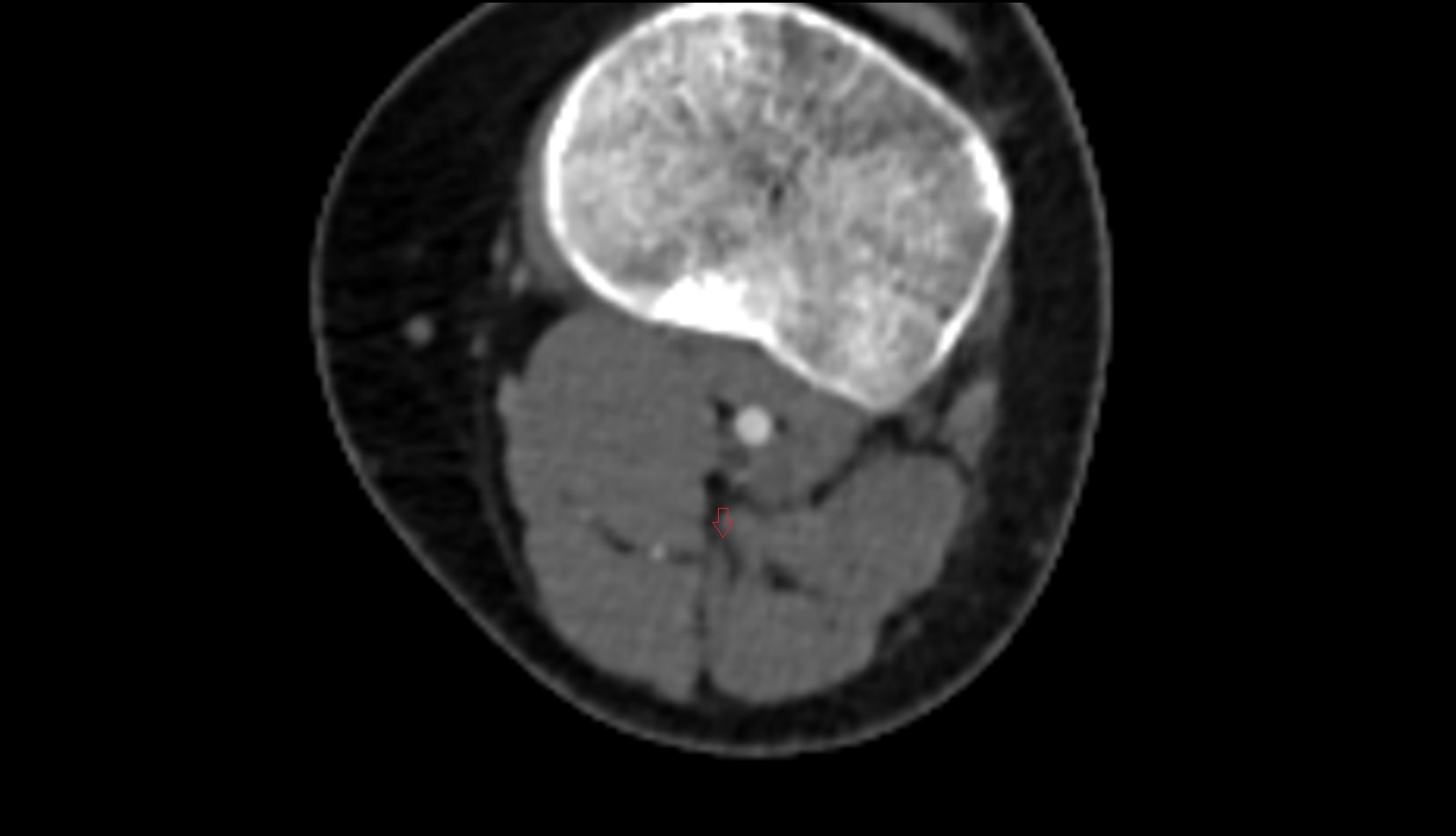

Muscular branches of tibial nerve ct axial
