Nail bed (toe)

The nail bed of the toe is the specialized epithelial and dermal structure beneath the nail plate that anchors and supports toenail growth. It is a vital part of the nail unit, which includes the nail plate, nail matrix, nail folds, nail bed, and hyponychium. The nail bed provides both mechanical support and nutritional supply to the overlying keratinized nail plate through its highly vascular dermis.

The toenail bed lies on the dorsal aspect of the distal phalanx, directly continuous with the nail matrix proximally and the hyponychium distally. It plays an essential role in nail regeneration, protection of the distal toe, and fine tactile function.

Synonyms

  • Nail foundation

  • Nail bed epithelium

  • Subungual tissue

Location and Structure

  • Location: Dorsal surface of the distal phalanx of each toe, covered by the nail plate.

  • Extent: Extends from the distal edge of the nail matrix to the hyponychium.

  • Layers:

    • Nail plate: Hard keratin layer resting atop the nail bed.

    • Nail bed epithelium: Stratified squamous epithelium attached to the nail plate via interdigitating ridges.

    • Dermis (vascular nail bed): Highly vascular connective tissue layer providing nutrition to nail matrix and plate.

    • Periosteum: Lies deep to the nail bed, covering the distal phalanx.

  • Thickness: Approximately 0.5–1 mm, varying among toes.

Relations

  • Superficially: Nail plate

  • Deeply: Dorsal surface of distal phalanx (periosteum)

  • Proximally: Nail matrix (produces nail plate keratin)

  • Distally: Hyponychium (junction between nail bed and skin under free nail edge)

  • Laterally: Nail folds and paronychium (lateral nail grooves)

Attachments

  • Firmly adheres to the periosteum of the distal phalanx through fine fibrous septa.

  • Continuous proximally with the matrix epithelium and distally with epidermis of the toe pulp.

  • Supplied by the subungual vascular network and innervated by fine digital sensory branches.

Nerve Supply

  • Digital branches of plantar nerves (medial and lateral plantar nerves from tibial nerve).

  • Dorsal digital nerves from the deep fibular nerve contribute sensory fibers to dorsal nail fold and bed.

Function

  • Anchorage: Secures nail plate to underlying tissue.

  • Support: Provides mechanical support and smooth surface for nail adherence.

  • Protection: Shields dorsal distal phalanx from trauma and pressure.

  • Regeneration: Contains epithelial cells essential for regrowth after injury.

  • Sensory role: Richly innervated for fine touch and pressure sensation.

Clinical Significance

  • Subungual hematoma: Blood accumulation beneath nail bed after trauma.

  • Nail bed lacerations: Often associated with distal phalanx fractures, require meticulous repair.

  • Onycholysis: Separation of nail plate from bed due to trauma, infection, or systemic disease.

  • Infection (paronychia, onychomycosis): Affects nail bed and surrounding folds.

  • Tumors: Subungual exostosis, glomus tumor, or melanoma can originate within nail bed.

  • Nail deformities: Result from chronic pressure, trauma, or matrix damage.

  • Imaging relevance: MRI and CT are crucial for evaluating nail bed integrity, tumors, and underlying bone changes.

MRI Appearance

  • T1-weighted images:

    • Nail plate: Low signal (dark) due to dense keratin.

    • Nail bed and matrix: Intermediate to bright signal (vascular and fatty components).

    • Distal phalanx cortex: Low signal; marrow shows bright fatty signal.

    • Pathology: Subungual hematoma appears as intermediate-to-low signal; tumors show intermediate-to-bright intensity.

  • T2-weighted images:

    • Nail plate: Low signal (dark).

    • Nail bed: Bright signal relative to nail plate due to vascularity and moisture.

    • Marrow: Bright fatty signal, slightly darker than on T1.

    • Pathology: Glomus tumors appear as very bright foci, while hematomas show mixed signal depending on age.

  • STIR:

    • Normal nail bed: Intermediate-to-dark signal.

    • Inflammation or edema: Bright hyperintense signal within bed or subungual tissues.

    • Excellent for detecting infection, abscess, or early tumor infiltration.

  • Proton Density Fat-Saturated (PD FS):

    • Normal bed: Intermediate-to-dark, homogeneous signal.

    • Abnormal: Bright hyperintense regions in inflammation, trauma, or tumor.

    • Useful for evaluating subungual collections or matrix involvement.

  • T1 Fat-Sat Post-Contrast:

    • Normal nail bed: Mild, uniform enhancement.

    • Inflammation or infection: Strong, diffuse enhancement.

    • Tumors (glomus, melanoma): Intense, well-defined enhancement.

    • Chronic scarring: Low or minimal enhancement.

CT Appearance

Non-Contrast CT:

  • Nail plate: Thin hyperdense layer on dorsal distal phalanx.

  • Nail bed: Soft-tissue density between plate and bone.

  • Underlying bone: High attenuation; may show cortical irregularity or fracture from nail bed trauma.

  • Pathology: Detects calcifications, subungual exostosis, and cortical erosion from tumors or infection.

Post-Contrast CT (standard):

  • Nail bed: Shows mild uniform enhancement in normal conditions.

  • Infection or inflammation: Focal or diffuse enhancement with surrounding soft-tissue swelling.

  • Tumors: Enhancing soft-tissue masses beneath nail plate; bone invasion may be visible.

  • Utility: Excellent for surgical mapping of subungual exostosis, glomus tumors, and post-traumatic nail bed injuries.

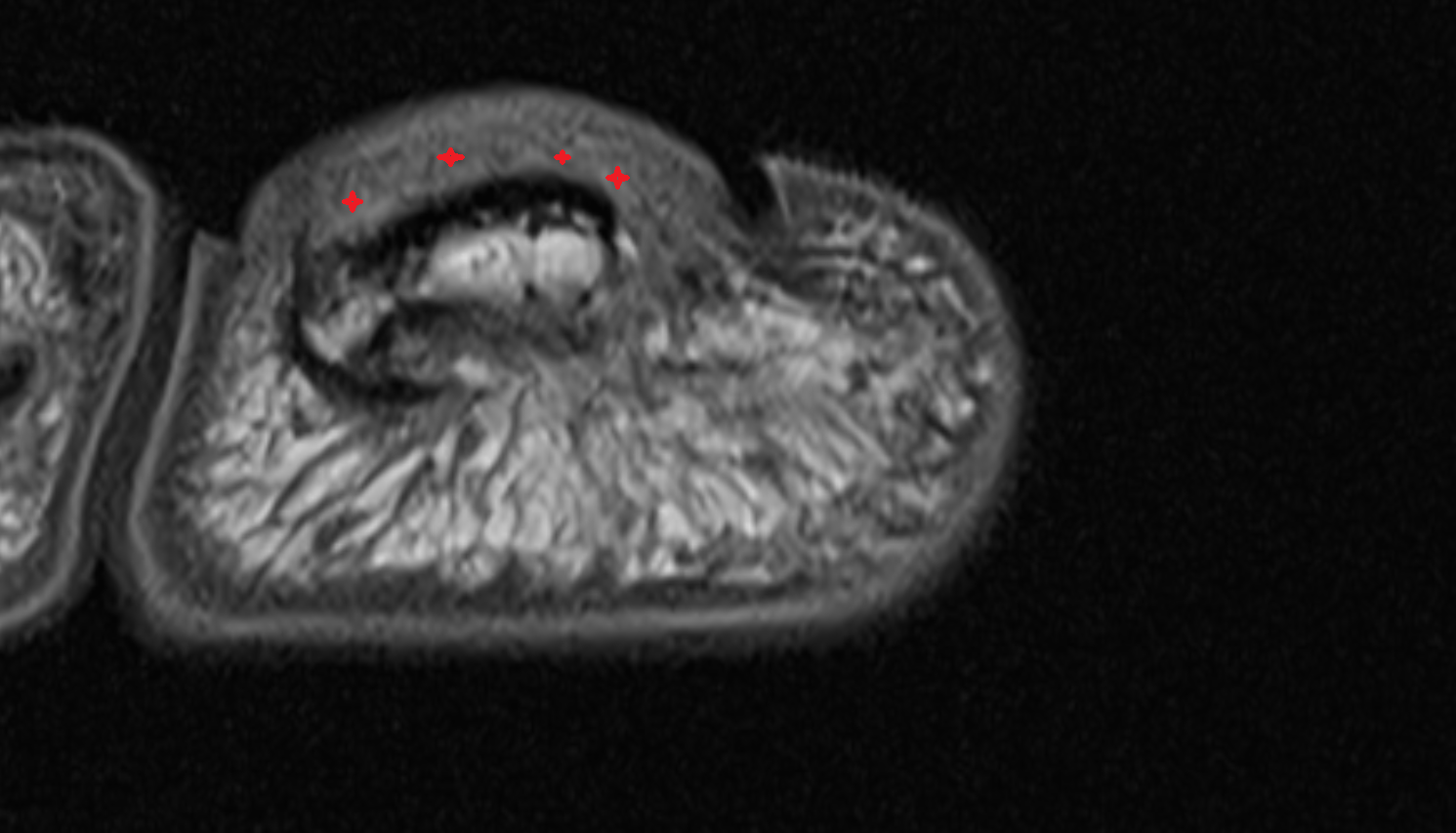

MRI image

Nail bed of toe axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

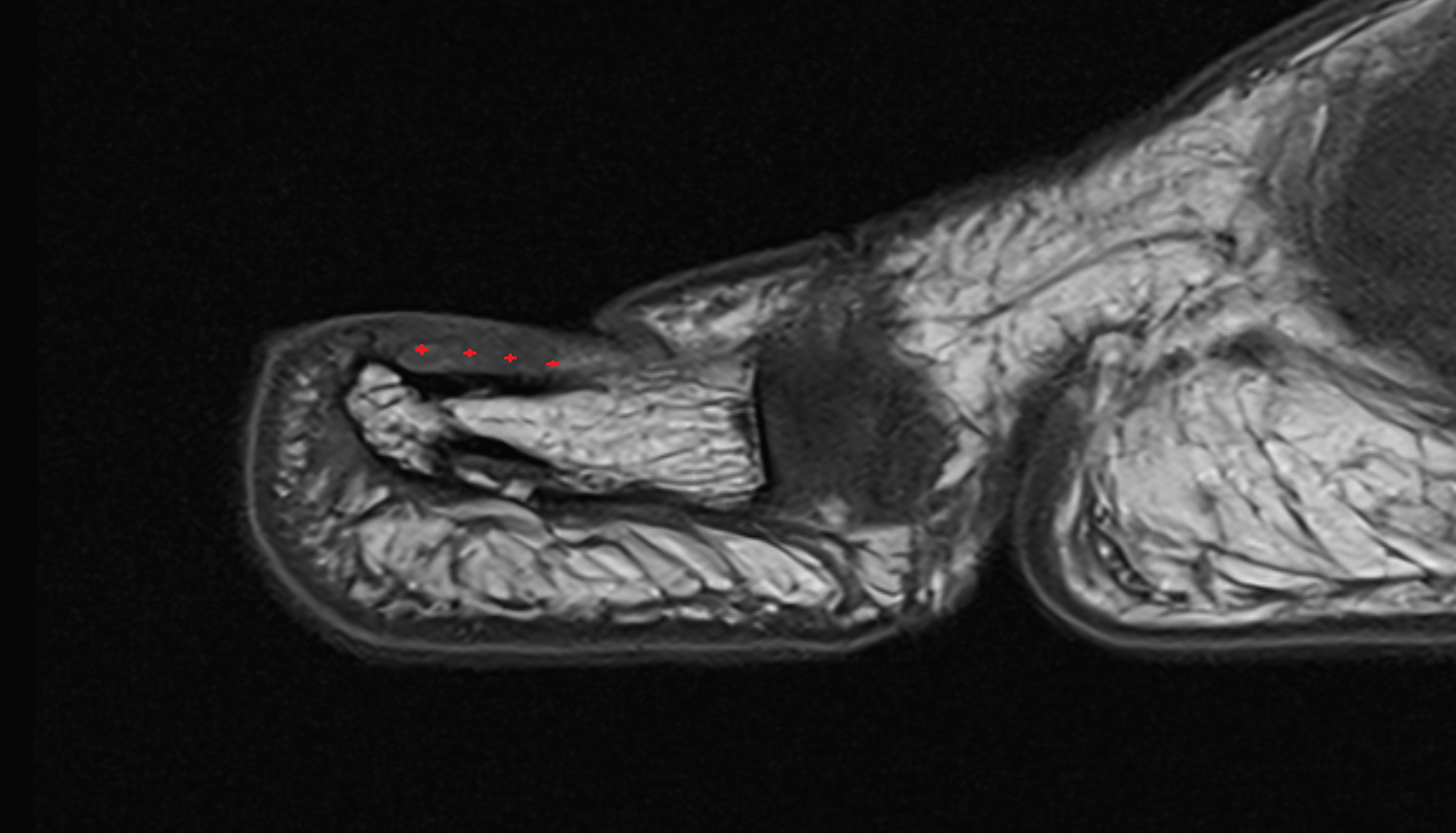

MRI image

Nail bed of toe sag cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

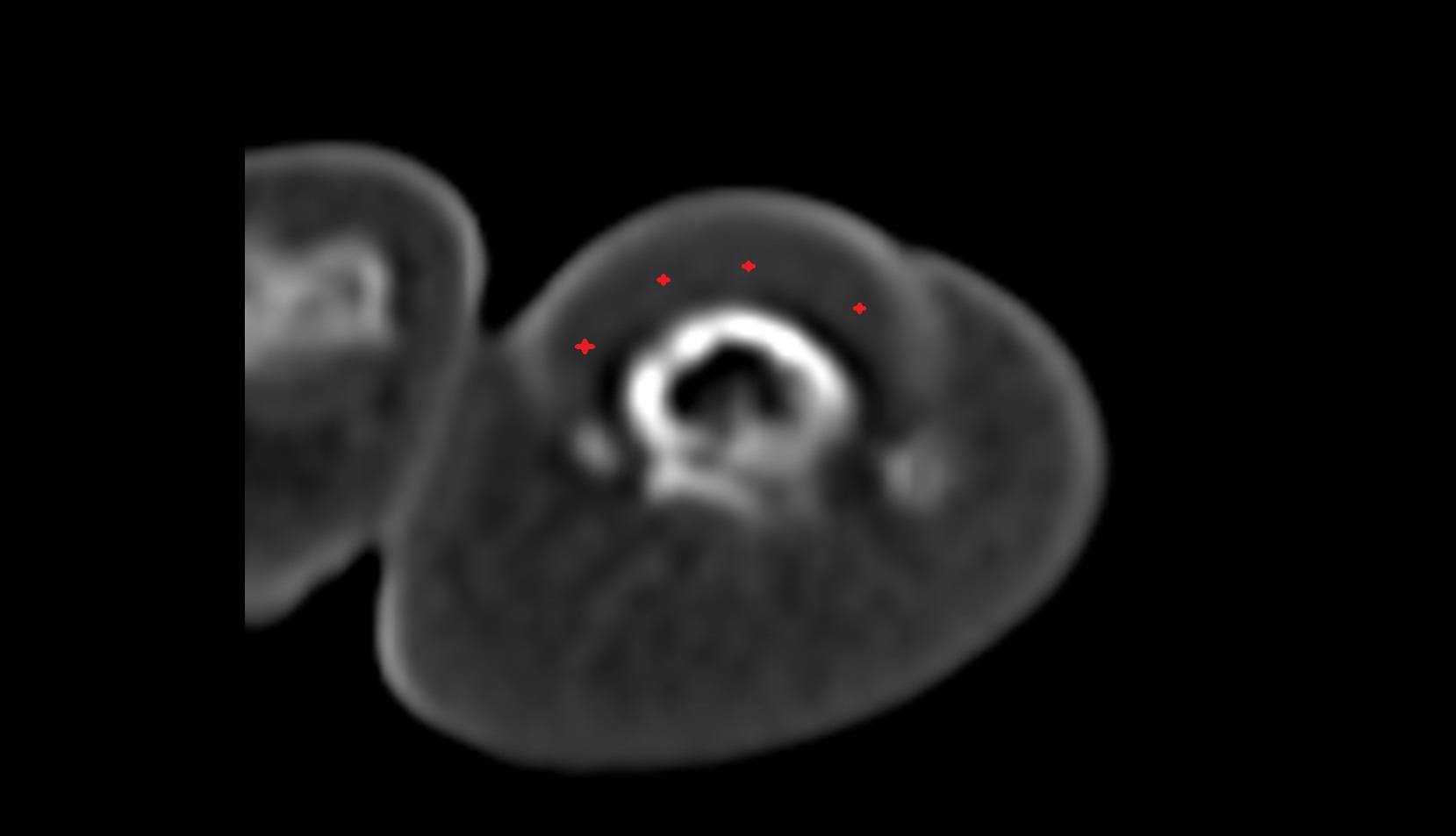

CT image

Nail bed ct axial image
