Nail root (toe)

The nail root (radix unguis) is the proximal, germinative portion of the nail plate located beneath the proximal nail fold and embedded within the eponychium. It is the primary growth zone of the toenail and produces the keratinized cells that form the nail plate. The root anchors the nail to the underlying nail bed and contributes to its continuous distal growth.

The nail root is hidden under soft tissue and not visible externally. It lies over the dorsal surface of the distal phalanx and extends proximally under the proximal nail fold. The underlying matrix epithelium is highly vascular and mitotically active, responsible for most of the nail’s thickness and regeneration following trauma or surgery.

Synonyms

  • Radix unguis

  • Germinal matrix

  • Nail matrix root

Location and Structure

  • Location: Proximal part of the nail apparatus, beneath the proximal nail fold and eponychium

  • Structure: Composed of the germinative (matrix) cells that form the bulk of the nail plate

  • Shape: Slightly convex and tapering, conforming to the dorsal curvature of the distal phalanx

  • Surface: Smooth, glistening epithelial tissue continuous with the nail bed

  • Extent: Extends from the posterior nail wall to the visible white crescent (lunula)

Relations

  • Anteriorly: Nail plate and lunula

  • Posteriorly: Proximal nail fold and eponychium

  • Inferiorly: Dorsal surface of the distal phalanx (nail bed)

  • Laterally: Lateral nail folds

  • Superiorly: Skin of the dorsal toe tip

Attachments

  • Deep attachment: Firmly adherent to the periosteum of the distal phalanx through connective tissue fibers

  • Superficial attachment: Continuous with the proximal nail fold and nail bed epithelium

  • Lateral attachments: Continuous with lateral nail folds providing stability

  • Cuticular continuity: Proximal portion covered by the eponychium, which seals the nail root

Nerve Supply

  • Dorsal digital branches of the deep fibular (peroneal) nerve

  • Plantar digital branches of the medial and lateral plantar nerves

  • Rich sensory innervation contributes to tactile sensitivity and pain perception

Function

  • Nail growth: Produces keratinized cells that form the nail plate, enabling continuous nail regeneration

  • Protection: Shields the distal phalanx and toe pad from trauma and external injury

  • Tactile enhancement: Aids fine sensory feedback by counterpressure against the toe pulp

  • Regeneration: Germinative matrix enables regrowth after partial or complete nail loss

Clinical Significance

  • Matrix injuries: Trauma can cause permanent nail deformities or dystrophy

  • Infections: Paronychia or onychomycosis may originate at or involve the nail root

  • Surgical relevance: Matrix must be preserved during nail avulsion or excision to prevent abnormal regrowth

  • Tumors: Subungual exostosis, glomus tumors, and melanoma may involve the nail root region

  • Inflammatory conditions: Psoriasis and lichen planus can cause pitting or ridging due to matrix inflammation

  • Imaging importance: MRI and CT help identify soft-tissue lesions, matrix injury, and underlying bone pathology

MRI Appearance

  • T1-weighted images:

    • Nail plate: Intermediate-to-low signal intensity

    • Nail root/matrix: Intermediate-to-bright due to keratin and vascular tissue

    • Distal phalanx cortex: Low signal (dark)

    • Marrow beneath: Bright, fatty signal

    • Pathology: Masses (glomus tumor, exostosis) appear intermediate-to-low; marrow edema appears bright-intermediate

  • T2-weighted images:

    • Nail plate: Low signal (dark compact keratin)

    • Nail root: Intermediate-to-bright, reflecting matrix cellularity and fluid content

    • Underlying bone marrow: Bright, slightly higher than on T1

    • Inflammation or edema: Bright hyperintense regions around nail fold or bed

    • Onychomycosis or infection: Hyperintense soft-tissue signal, possible fluid tracking under nail plate

  • STIR:

    • Normal matrix and soft tissues: Intermediate-to-dark signal

    • Inflammation, edema, or abscess: Bright hyperintense signal with soft-tissue thickening

    • Excellent for early detection of infection, subungual masses, or osteitis

  • Proton Density Fat-Saturated (PD FS):

    • Normal root and bed: Intermediate-to-dark signal

    • Inflamed tissue: Bright hyperintensity within nail fold or matrix

    • Helpful in detecting subtle soft-tissue infiltration, paronychia, or post-traumatic edema

  • T1 Fat-Sat Post-Contrast:

    • Normal nail root: Mild homogeneous enhancement due to vascularity

    • Infection or tumor: Intense focal or nodular enhancement

    • Glomus tumor: Classically shows avid enhancement and low signal on T1

    • Onychomycosis: Peripheral enhancement with subungual debris signal

CT Appearance

Non-Contrast CT:

  • Nail plate: Thin, dense keratinized layer overlying distal phalanx

  • Nail root: Soft-tissue density beneath proximal nail fold

  • Underlying bone: Smooth cortical surface of distal phalanx

  • Pathology: Detects subungual calcifications, exostoses, fractures, or cortical erosions from chronic infection

Post-Contrast CT (standard):

  • Nail root and bed: Enhance mildly and uniformly

  • Inflammation or tumor: Focal soft-tissue enhancement and thickening

  • Subungual abscess: Low-attenuation collection with peripheral enhancement

  • Bone involvement: Enhanced marrow or periosteal reaction in osteomyelitis

MRI image

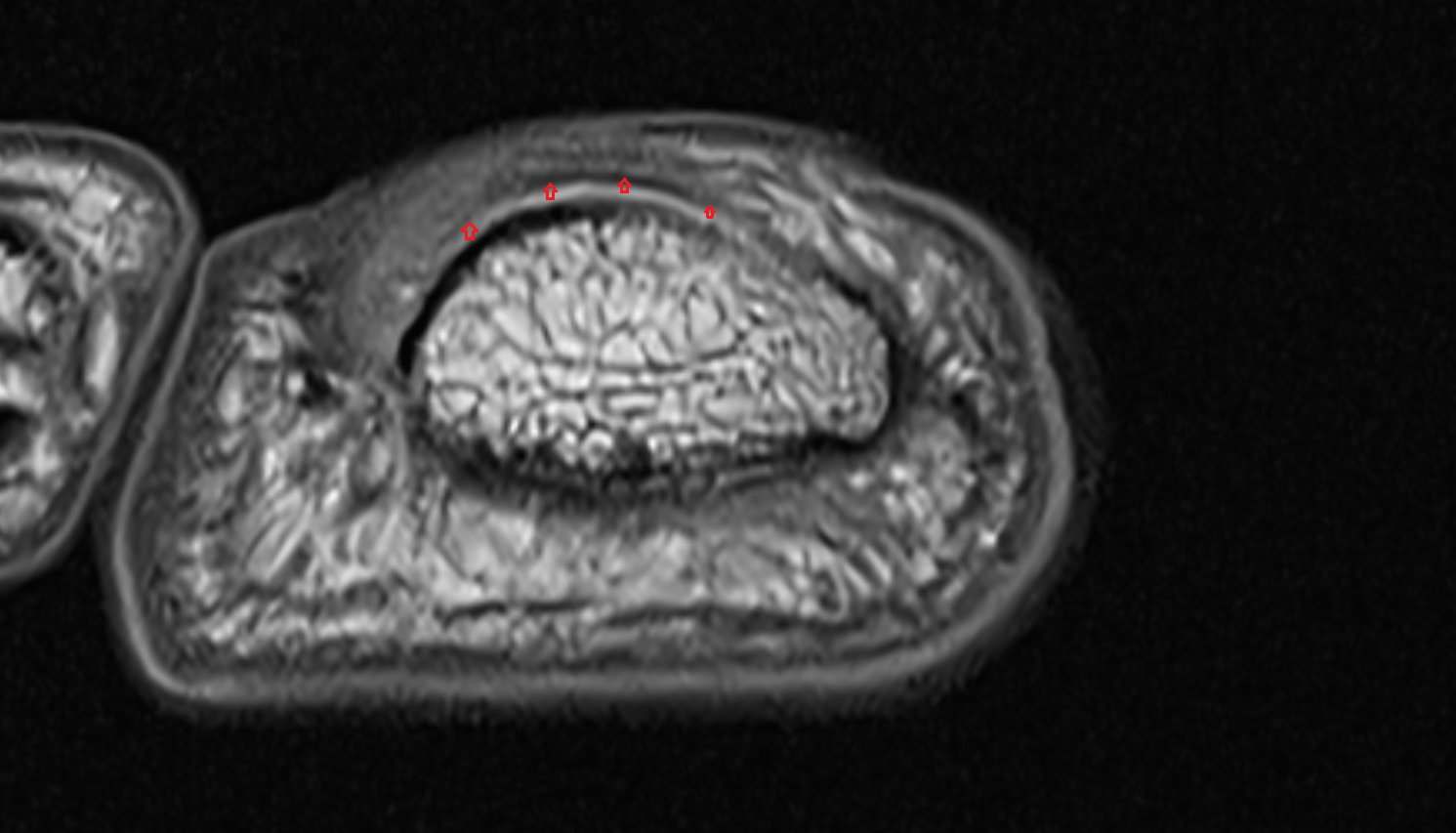

Nail root of toe axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI image

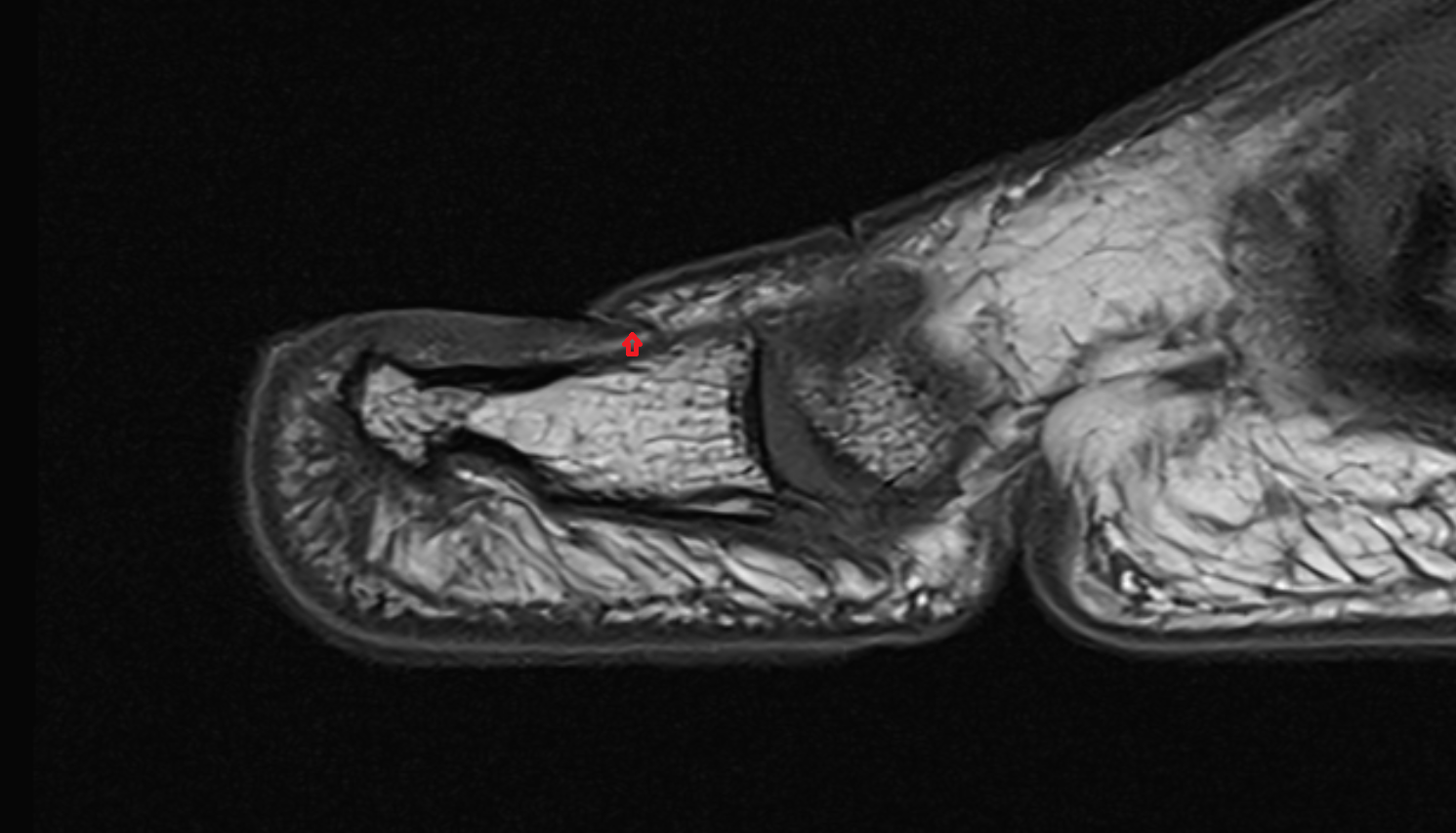

Nail root of toe sag cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001

CT image

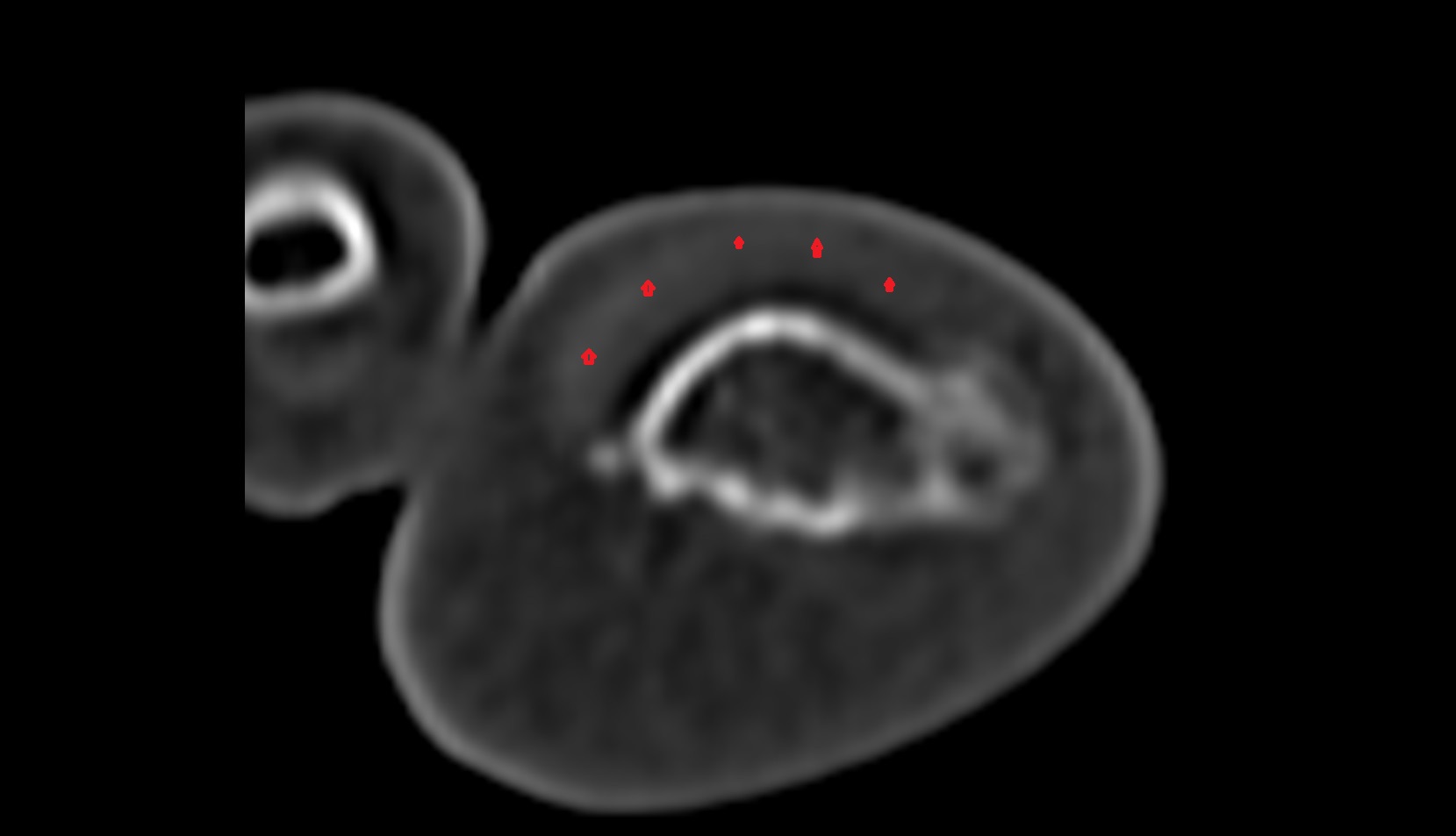

Nail root ct axial image

CT image

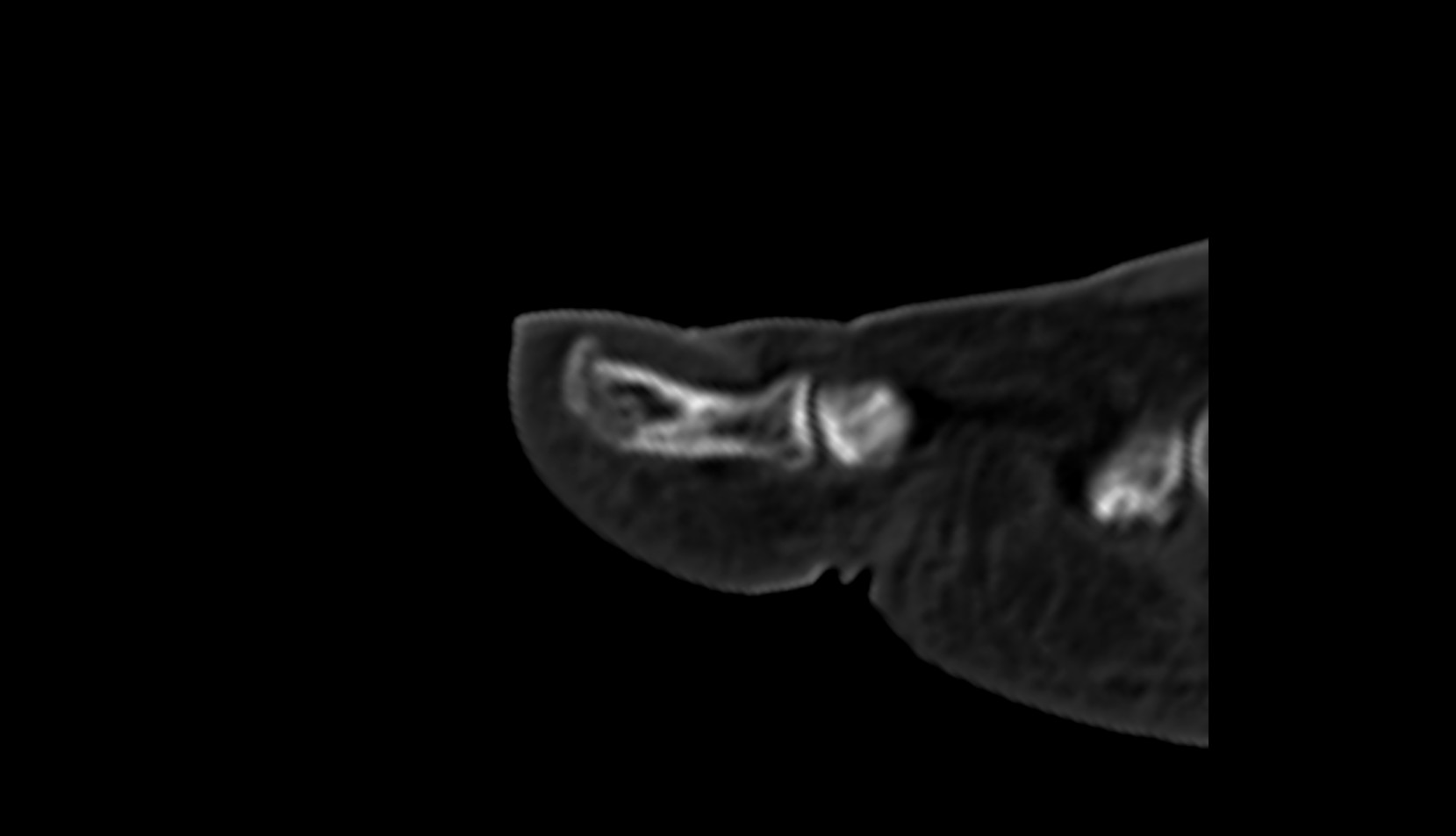

Nail root ct sag
