Navicular Perforator Veins: Anatomy, Relations, Function, and MRI & CT Imaging

Topic

Navicular perforator veins

The navicular perforator veins are small but significant communicating veins located around the navicular bone of the midfoot. They connect the superficial dorsal venous network of the foot with the deep plantar venous system, providing an important route for venous return from the medial aspect of the foot.

These perforators are part of the valveless venous network of the foot that maintains pressure balance between superficial and deep systems. They are clinically relevant in venous disorders, trauma, and post-surgical or post-inflammatory edema. The navicular perforators also contribute to temperature regulation and venous return during standing and gait.

Synonyms

Medial foot perforating veins
Navicular communicating veins
Dorsoplantar perforator veins of the navicular region

Location and Course

Origin: Begin from the medial dorsal venous network near the dorsal surface of the navicular bone.
Course: Pass obliquely through the subcutaneous tissue and deep fascia, perforating toward the deep plantar venous plexus and medial plantar veins.
Termination: Drain into the deep venous system of the midfoot, particularly the medial plantar or tarsal veins.

Relations

Superficially: Medial skin and subcutaneous veins of the dorsum of the foot
Deeply: Navicular bone and tendon of tibialis posterior
Anteriorly: Dorsalis pedis artery and medial tarsal branches
Posteriorly: Medial malleolar region veins
Medially: Medial plantar venous plexus
Laterally: Intermediate tarsal veins

Function

Venous communication: Connects superficial dorsal veins to deep plantar veins for efficient venous return.
Pressure regulation: Equalizes venous pressure between the two venous systems.
Thermoregulation: Assists in heat exchange and vascular response during prolonged standing or walking.
Clinical relevance: Plays a role in venous congestion, edema, and varicose changes in chronic venous insufficiency.

Clinical Significance

Venous reflux: Incompetent perforator valves may cause localized venous hypertension and edema around the medial foot.
Varicosities: Dilation or incompetence may be seen in chronic venous insufficiency.
Post-traumatic changes: Injury or inflammation can lead to thrombosis or altered drainage.
Surgical relevance: Must be considered during medial foot or ankle incisions to avoid postoperative venous congestion.
Imaging role: MRI and CT help evaluate patency, thrombosis, or slow-flow phenomena in navicular region veins.

MRI Appearance

T1-weighted images:
- Normal veins: low-to-intermediate signal intensity.
- Slow-flowing blood appears bright due to T1 shortening effects.
- Thrombosed veins: appear intermediate to bright, occasionally with loss of flow void.
T2-weighted images:
- Flowing blood: usually signal void (dark).
- Slow or stagnant flow appears bright, mimicking edema or cystic changes.
- Perivenous inflammation: mild surrounding hyperintensity.
STIR (Short Tau Inversion Recovery):
- Normal veins: typically dark due to fast flow suppression.
- Slow-flow or stagnant veins appear bright, similar to fluid-filled structures.
- Useful for detecting perivenous edema or thrombophlebitis.
Proton Density Fat-Saturated (PD FS):
- Normal veins: low to intermediate signal.
- Slow-flow or partial thrombosis shows bright hyperintense signal due to slow blood movement.
- Adjacent soft-tissue edema or inflammation appears hyperintense.
T1 Fat-Sat Post-Contrast:
- Normal veins: show homogeneous enhancement after contrast.
- Thrombosed veins: may show non-enhancing central filling defect with peripheral enhancement.

CT Appearance

Non-Contrast CT:

Veins are not well visualized without contrast.
Indirect signs: perivenous fat stranding or edema in cases of thrombosis or inflammation.

Post-Contrast CT (Venous Phase):

Navicular perforator veins appear as enhancing thin tubular structures between the dorsal and plantar venous networks.
Thrombosis: seen as non-enhancing tubular defects or partially opacified structures.

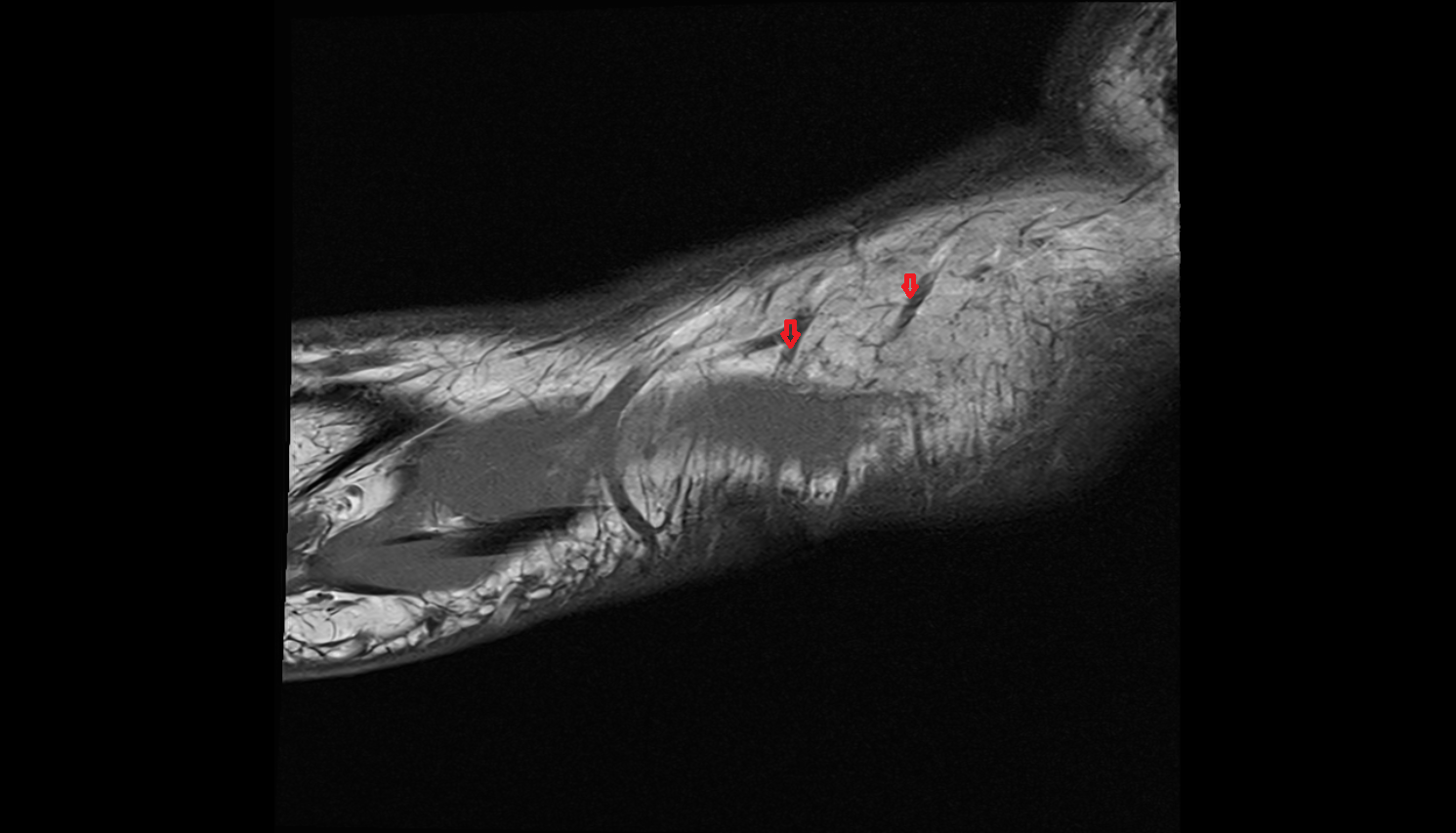

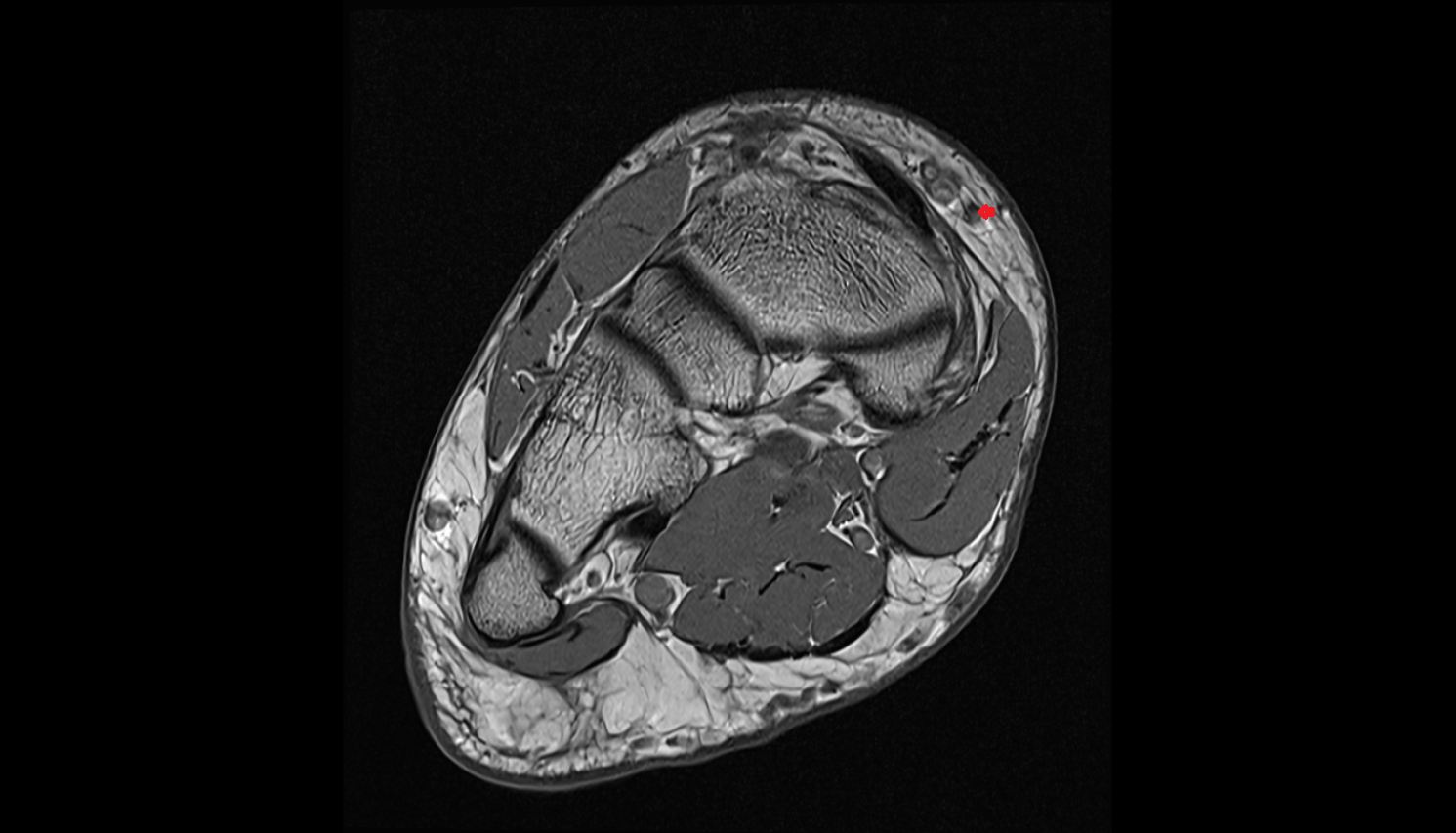

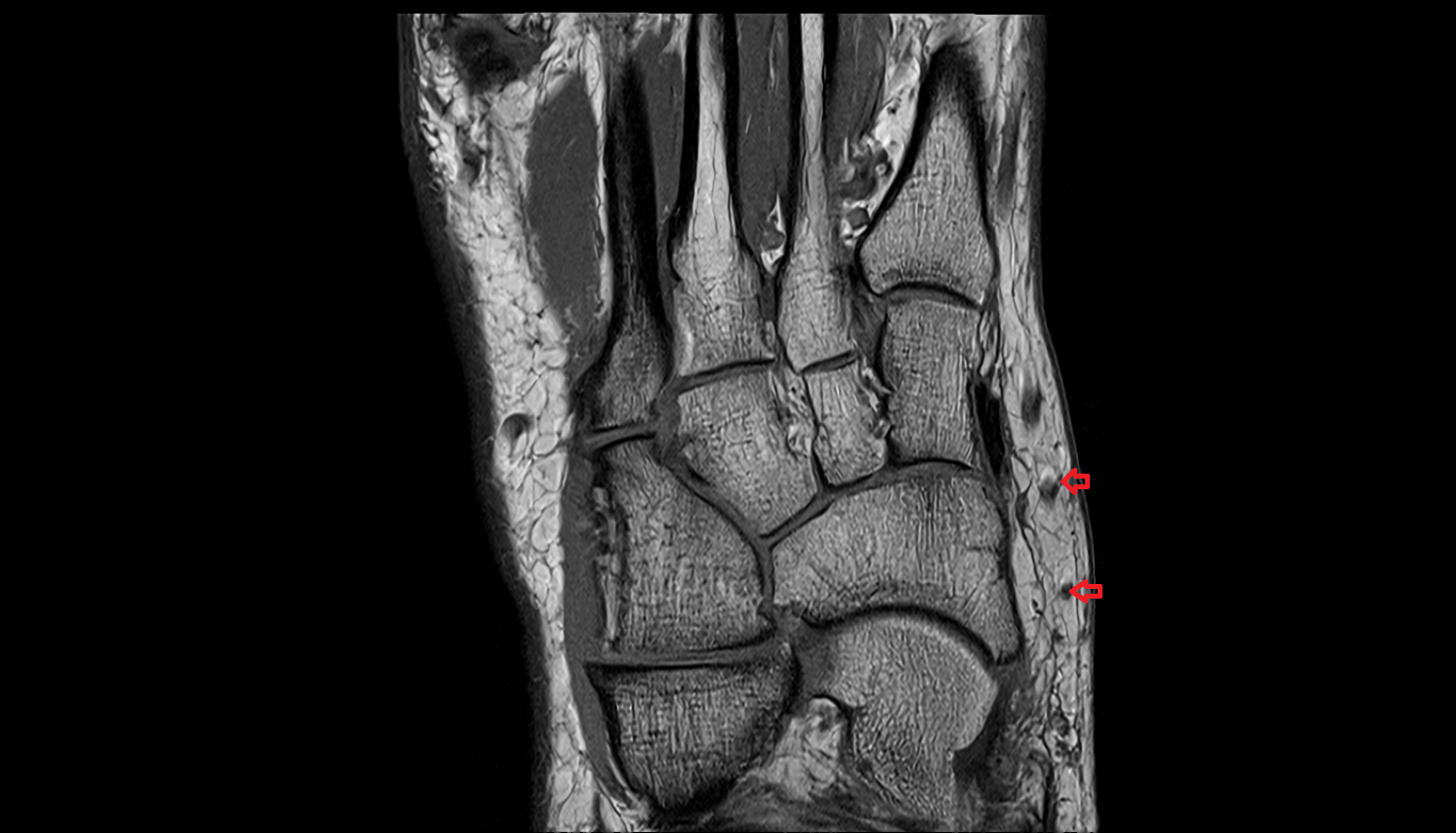

MRI image
