Noncoronary aortic sinus

The noncoronary aortic sinus is one of the three aortic sinuses (sinuses of Valsalva) located just above the cusps of the aortic valve in the ascending aorta. Unlike the right and left coronary sinuses, it does not give rise to a coronary artery, hence the term “noncoronary.”

Positioned posteriorly and rightward, adjacent to the interatrial septum and right atrium, it contributes to the formation of the aortic root. The sinus acts as a reservoir during systole, promoting smooth valve closure and optimizing coronary flow dynamics in the adjacent sinuses.

Clinically, the noncoronary sinus is significant as a landmark in cardiac imaging and surgery, a potential site for sinus of Valsalva aneurysm, and a reference point during transcatheter aortic valve replacement (TAVR) and electrophysiology procedures.

Synonyms

  • Noncoronary sinus of Valsalva

  • Posterior aortic sinus

  • Noncoronary cusp sinus

Function

  • Contributes to the aortic root geometry, ensuring effective valve closure

  • Acts as a flow reservoir, helping maintain laminar aortic outflow

  • Serves as an anatomical landmark for cardiac surgeons and interventional cardiologists

  • Clinically relevant in aneurysms, dissection, and electrophysiology procedures involving the interatrial septum

MRI Appearance

T1-weighted images:

  • Blood-filled lumen appears hyperintense with contrast and as a flow void on non-contrast

  • Noncoronary sinus wall is hypointense, adjacent to right atrium and interatrial septum

T2 Cine (Cardiac-gated SSFP):

  • Clearly shows dynamic motion of the aortic valve cusps

  • Noncoronary sinus visualized as a bulging outpouching posterior to the valve plane

  • Useful for evaluating valve motion, sinus dilation, or aneurysm

STIR (Short Tau Inversion Recovery):

  • Suppresses fat to enhance detection of edema or inflammatory changes in sinus wall

  • Helpful in aortitis or post-surgical changes

T1 Post-Contrast (Gadolinium-enhanced):

  • Aortic lumen and sinus enhance brightly

  • Wall abnormalities (e.g., aneurysm, thrombus, inflammation) appear as filling defects or asymmetric enhancement

MRI Non-Contrast Cardiac-Gated 3D Coronary Imaging:

  • Depicts aortic root and noncoronary sinus morphology without contrast

  • Provides 3D reconstruction of valve anatomy, sinus geometry, and root pathology

  • Useful in patients where gadolinium is contraindicated

CT Appearance

CT Coronary Angiography (CCTA):

  • Gold standard for visualizing the aortic root and sinuses of Valsalva

  • Noncoronary sinus appears as a posterior bulge without a coronary artery origin

  • Excellent for detecting aneurysm, dilation, thrombus, or dissection

  • 3D volume-rendered reconstructions aid in TAVR planning and surgical repair

CT images

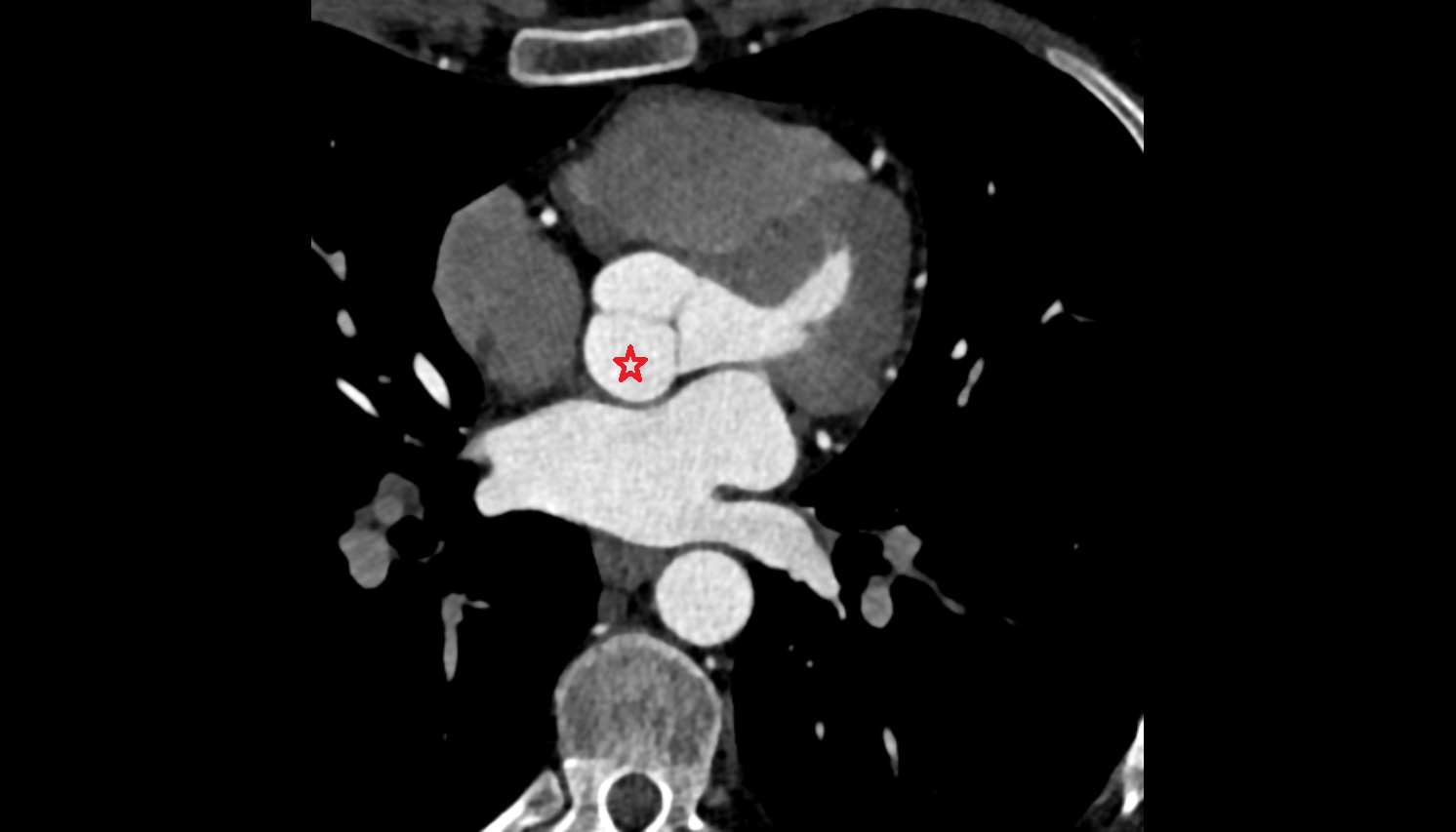

Noncoronary aortic sinus CT axial image -img-00000-00000

MRI images

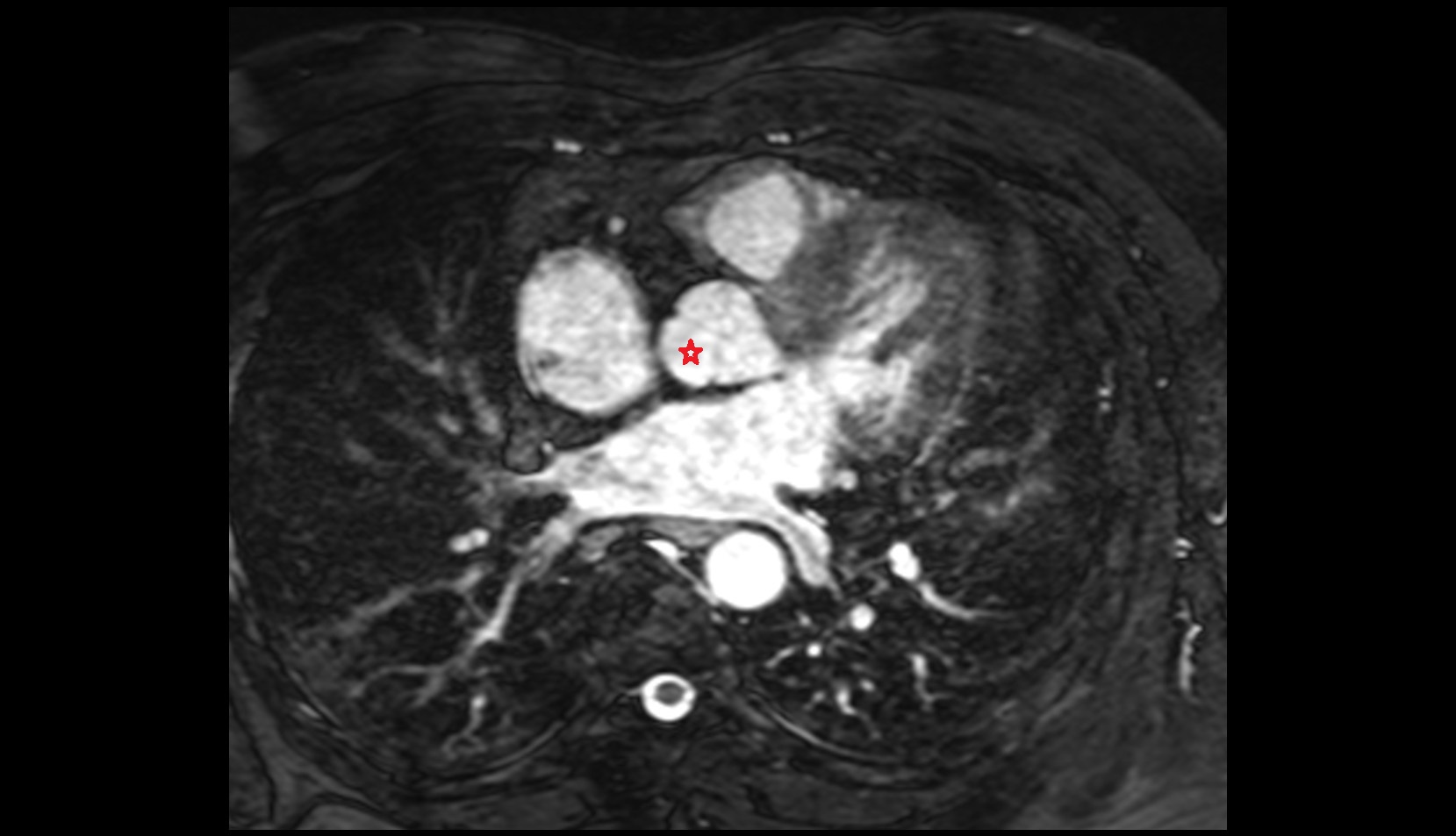

Noncoronary aortic sinus MRI axial image
