Occipital emissary vein

The occipital emissary vein is a small but clinically significant vascular channel that passes through the occipital bone, connecting the intracranial venous sinuses with the extracranial venous system. It most commonly traverses the parietal or mastoid emissary foramina near the occipital bone and serves as an important route for venous drainage between the posterior fossa dural sinuses (typically the sigmoid sinus) and the veins of the scalp, particularly the occipital vein. Its presence, size, and course can vary, and it can act as a collateral pathway for venous drainage, especially in cases of internal jugular vein obstruction. Accurate identification is essential in preoperative planning to avoid complications such as excessive bleeding during cranial surgery.

Synonyms

  • Emissary vein of the occipital bone

  • Vena emissaria occipitalis

  • Occipital bone emissary vein

Function

  • Connects the intracranial sigmoid sinus with the extracranial occipital vein

  • Acts as a collateral venous drainage pathway, especially if jugular venous flow is impaired

  • Allows for bidirectional blood flow depending on pressure gradients

  • Provides a route for potential spread of infection from scalp to intracranial compartment (though rare)

MRI Appearance

  • T1-Weighted (T1) MRI:

    • Appears as a flow void (dark linear or tubular structure) traversing the occipital bone.

    • May be subtle or not visible if small; larger veins may show a serpiginous low-signal channel.

  • T2-Weighted (T2) MRI:

    • Also typically presents as a flow void (dark signal) due to rapid blood flow.

    • The adjacent bone and soft tissue are of higher signal, helping delineate the vein.

  • Phase Contrast 3D (PC 3D) MRI:

    • Demonstrates the vein as a flow-sensitive structure, often highlighted by flow-related signal.

    • Useful for visualizing flow direction and volume.

  • Post-Contrast T1 (Gadolinium-enhanced):

    • Shows enhancement of the vein, appearing as a tubular enhancing structure connecting the sigmoid sinus to extracranial vessels.

    • Enhancement confirms vascular nature and helps distinguish from nonvascular channels.

CT Appearance

  • Non-contrast CT:

    • Occipital emissary vein is not directly visualized; may see a small bony channel (emissary foramen) within the occipital bone.

    • The vein itself is usually not well defined without contrast.

  • CT Venography (CTV):

    • Clearly delineates the enhancing venous channel traversing the occipital bone.

    • Occipital emissary vein appears as a thin, enhancing structure connecting the sigmoid sinus with extracranial occipital veins.

MRI images

Occipital emissary vein MRI 3T axial image

MRI images

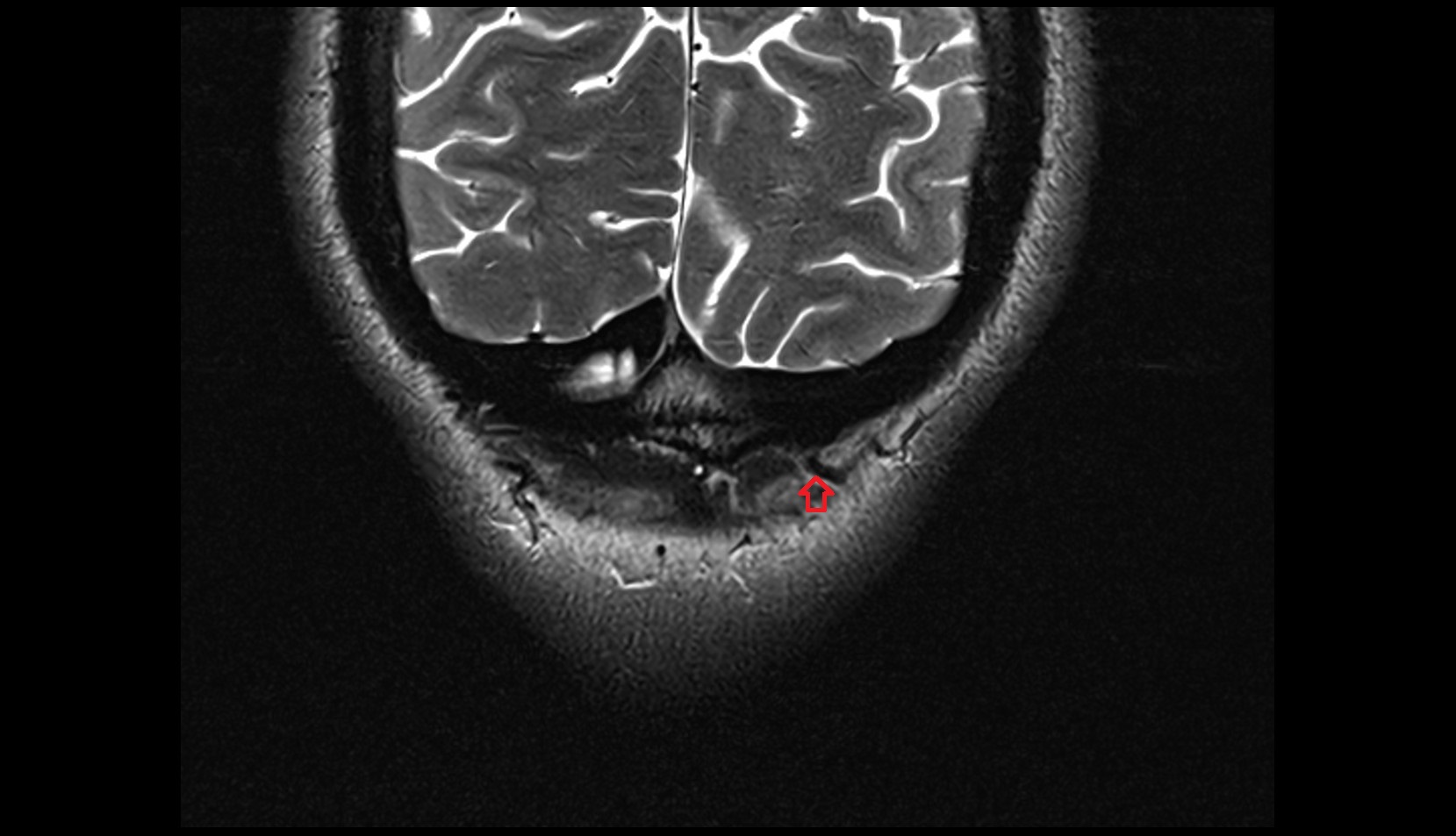

Occipital emissary vein MRI 3T coronal image
