Opening of inferior vena cava

The opening of the inferior vena cava (IVC orifice) is the site where the IVC enters the right atrium of the heart. It lies in the inferior part of the right atrium, between the opening of the coronary sinus and the tricuspid valve. The orifice is partially guarded by a small, variable endocardial fold known as the Eustachian valve (valve of the IVC), which is typically rudimentary in adults but may be more prominent in fetal circulation.

The IVC opening serves as the main conduit for systemic venous return from the lower half of the body, including blood from the abdomen, pelvis, and lower limbs. It is of clinical importance in conditions such as thrombosis, tumor extension (e.g., renal cell carcinoma, hepatocellular carcinoma), atrial masses, congenital anomalies, and catheter-based interventions.

Synonyms

  • IVC orifice

  • Ostium venae cavae inferioris

  • Opening of IVC into right atrium

Function

  • Allows systemic venous return from the lower half of the body to enter the right atrium

  • Ensures unidirectional blood flow via the action of the right atrium and Eustachian valve

  • Acts as a landmark for cardiac imaging, catheterization, and electrophysiological studies

  • Provides venous inflow for cardiac preload and circulation

MRI Appearance

T1-weighted images:

  • Opening appears as a dark lumen (flow void) entering the inferior aspect of the right atrium

  • Adjacent atrial myocardium appears intermediate signal, aiding localization

T2 TRUFISP (cardiac-gated):

  • Depicts the IVC opening as a bright, well-defined flow channel entering the right atrium

  • Cine evaluation shows dynamic venous inflow into the atrium

  • Useful for detecting obstruction, stenosis, or abnormal flow dynamics

STIR (Short Tau Inversion Recovery):

  • Suppresses surrounding fat, improving visualization of perivascular edema, inflammation, or masses

  • Orifice itself remains a flow void unless obstructed

T1 Post-Contrast (Gadolinium-enhanced MRI):

  • IVC and its opening into the atrium enhance brightly and homogeneously

  • Filling defects may indicate thrombus, tumor extension, or mass lesions

  • Essential for MR venography of IVC–RA junction

MRA (Magnetic Resonance Angiography):

  • Contrast-enhanced MRA depicts the IVC inflow into the right atrium in 3D

  • Detects stenosis, thrombus, tumor invasion, or anomalies

  • Useful in pre-surgical mapping and interventional planning

CT Appearance

Contrast-Enhanced CT (CT Venography):

  • The IVC opening is seen as a contrast-filled channel entering the right atrium

  • Clearly demonstrates anatomical relationship with tricuspid valve and coronary sinus

  • Detects thrombus, tumor invasion (renal or hepatic), congenital anomalies, or obstruction

  • Multiplanar and 3D reconstructions provide excellent preoperative planning

CT images

Opening of inferior vena cava anatomy CT AXIAL image -img-00000-00000

CT images

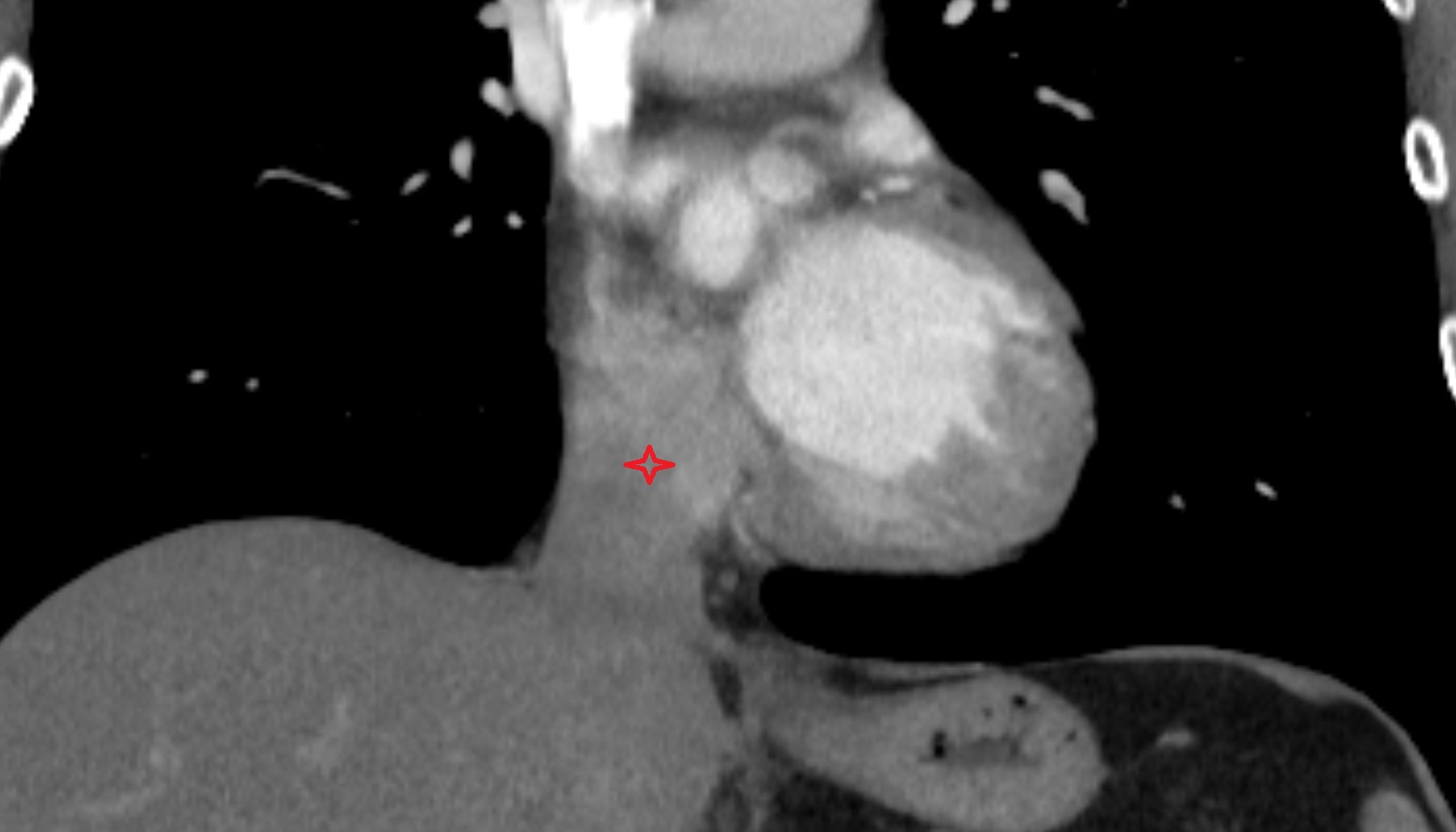

Opening of inferior vena cava anatomy CT CORONAL image -img-00000-00000

MRI image

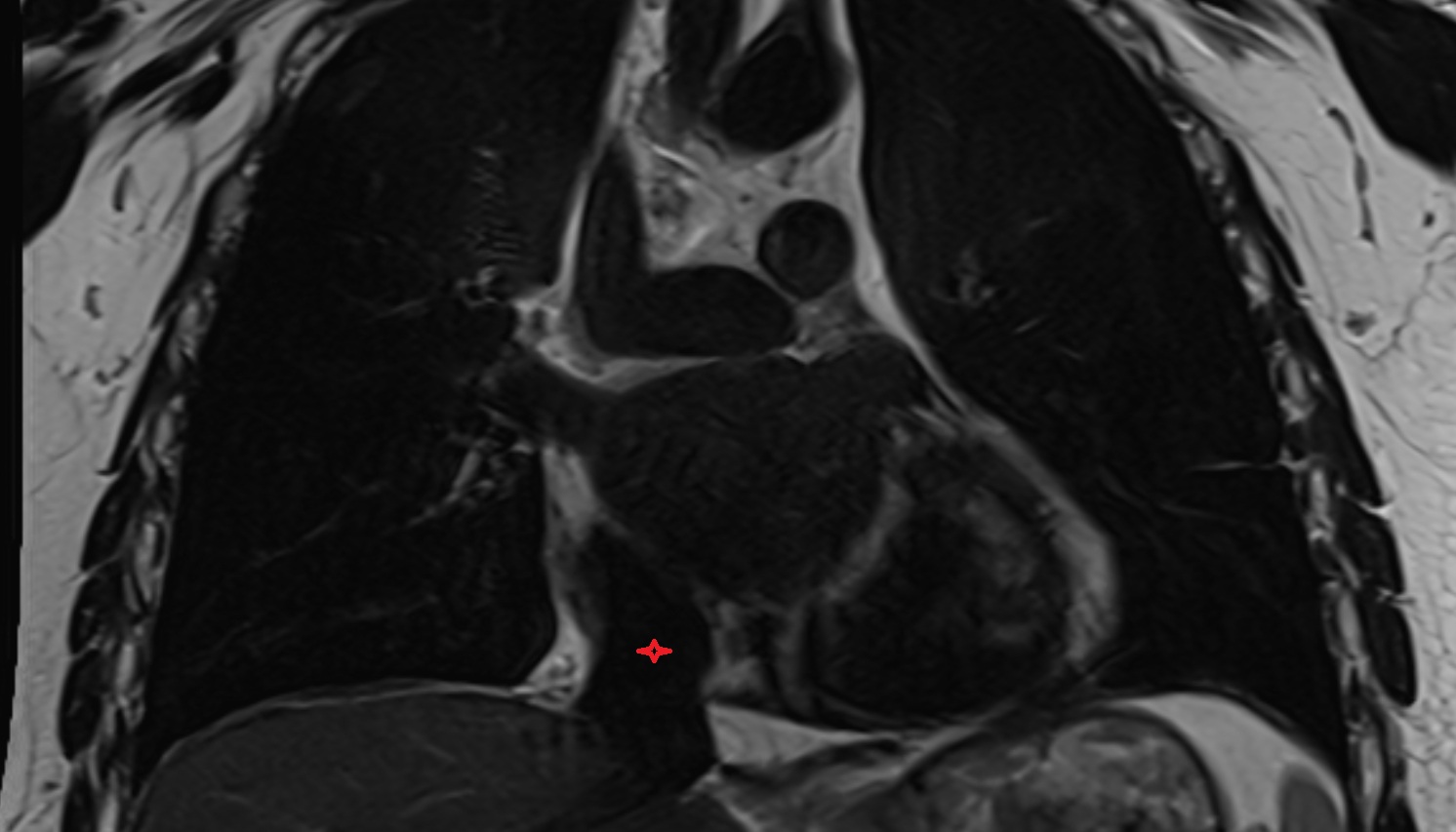

Opening of inferior vena cava anatomy MRI CORONAL image -img-00000-00000
