Opening of superior vena cava

The opening of the superior vena cava (SVC ostium) is the site where the superior vena cava enters the right atrium of the heart. It is located at the upper posterior part of the right atrium, opposite the lower border of the third costal cartilage, slightly above the opening of the inferior vena cava.

The opening is directed inferomedially and is guarded by no true valve, although a rudimentary fold (the Eustachian valve remnant) may occasionally be present. It serves as the termination point of systemic venous return from the upper body, delivering blood from the head, neck, upper limbs, and thorax into the right atrium.

The SVC opening is of great importance in cardiac catheterization, device implantation, electrophysiology procedures, and evaluation of venous return disorders such as SVC syndrome or right atrial masses.

Synonyms

  • Ostium of the superior vena cava

  • SVC orifice

  • Right atrial opening of SVC

Function

  • Serves as the entry point of the superior vena cava into the right atrium

  • Allows unidirectional venous return from the upper body

  • Landmark for cardiac imaging and interventional procedures

  • Important for evaluating flow dynamics and venous obstruction

MRI Appearance

T1-weighted images:

  • Appears as a dark lumen (signal void) entering the right atrium

  • Junction visualized as an interface between bright atrial blood pool and hypointense SVC wall

T2 TRUFISP (cardiac-gated):

  • Demonstrates the junction as a bright, well-defined vascular channel entering the right atrium

  • Dynamic imaging shows venous flow and atrial filling

  • Useful for detecting stenosis, obstruction, or abnormal flow patterns

STIR (Short Tau Inversion Recovery):

  • Fat suppression improves contrast between the opening and surrounding atrial tissue

  • Perivascular edema or pathology appears hyperintense

T1 Post-Contrast (Gadolinium-enhanced MRI):

  • Contrast opacifies the SVC and its atrial entry brightly

  • Helps evaluate filling defects (thrombus, tumor), narrowing, or anomalous drainage

MRA (Magnetic Resonance Angiography):

  • Depicts the SVC-right atrium junction in high resolution

  • Essential for mapping stenosis, anomalies, or collateral venous channels

CT Appearance

Contrast-Enhanced CT (CT Venography):

  • Opening seen as a contrast-filled channel entering the right atrium

  • Identifies stenosis, thrombosis, compression, or right atrial masses at the ostium

  • Multiplanar and 3D reconstructions provide detailed evaluation for interventional planning

CT images

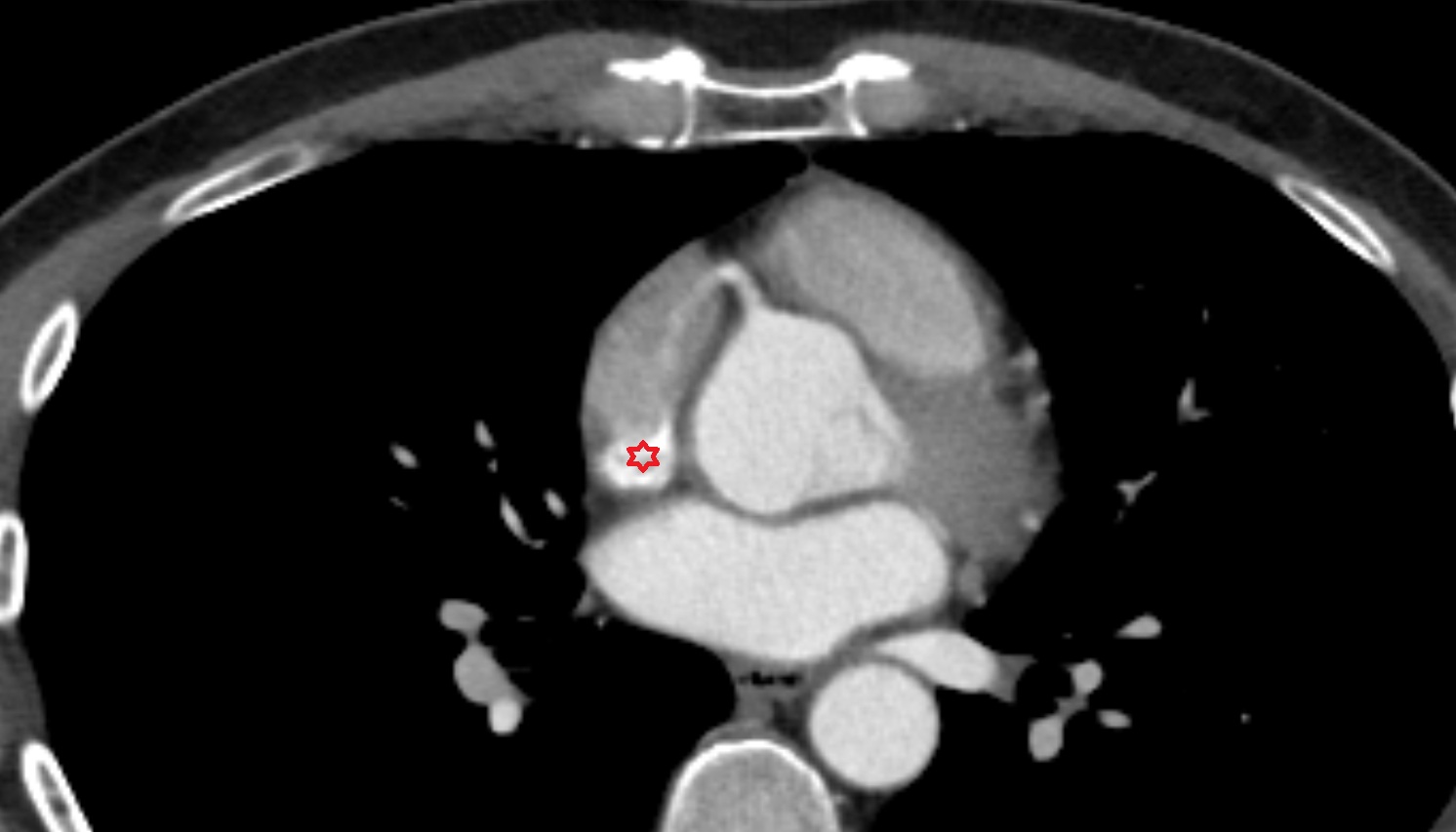

Opening of superior vena cava anatomy CT AXIAL image -img-00000-00000

CT images

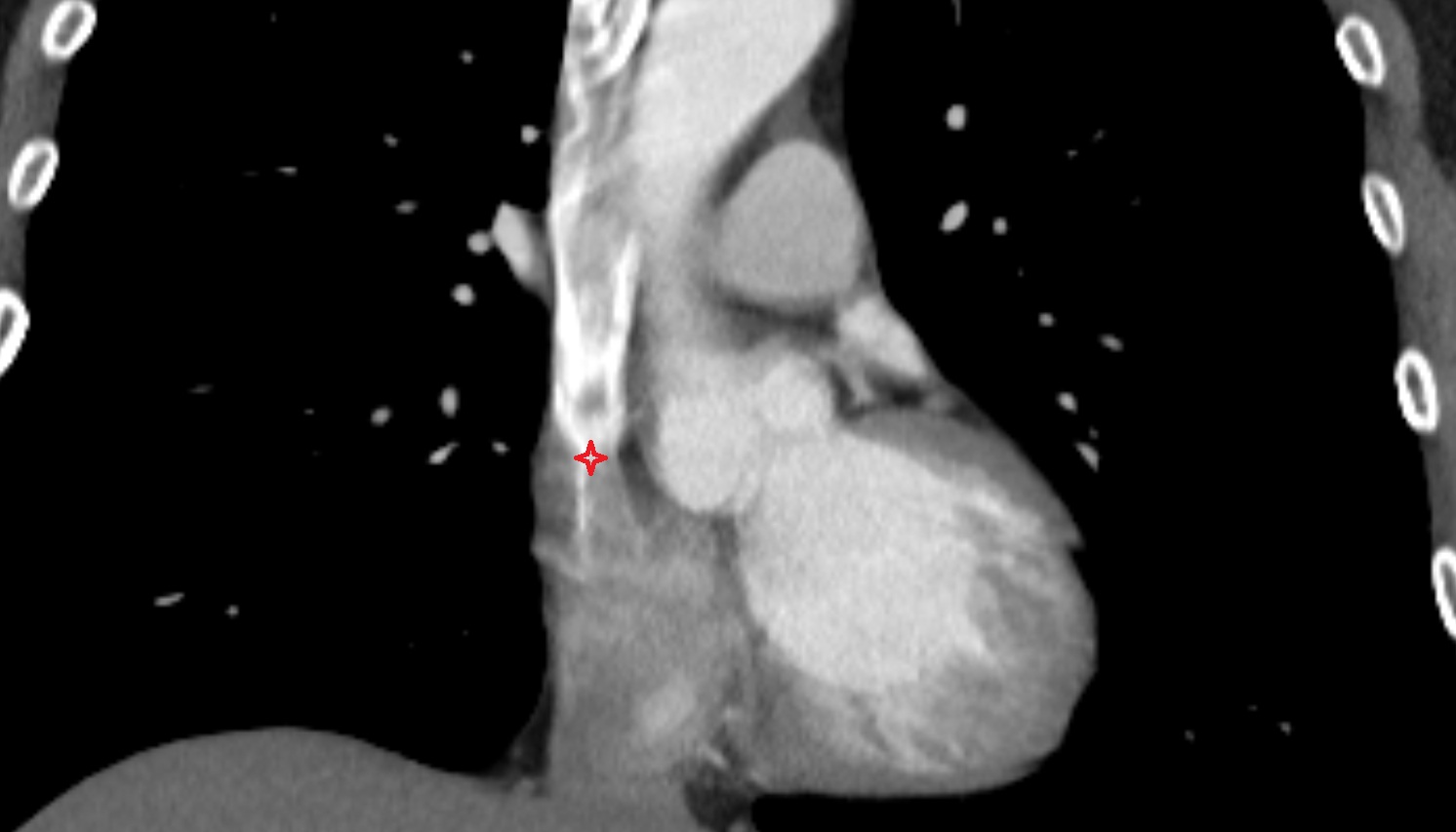

Opening of superior vena cava anatomy CT CORONAL image -img-00000-00000

MRI image

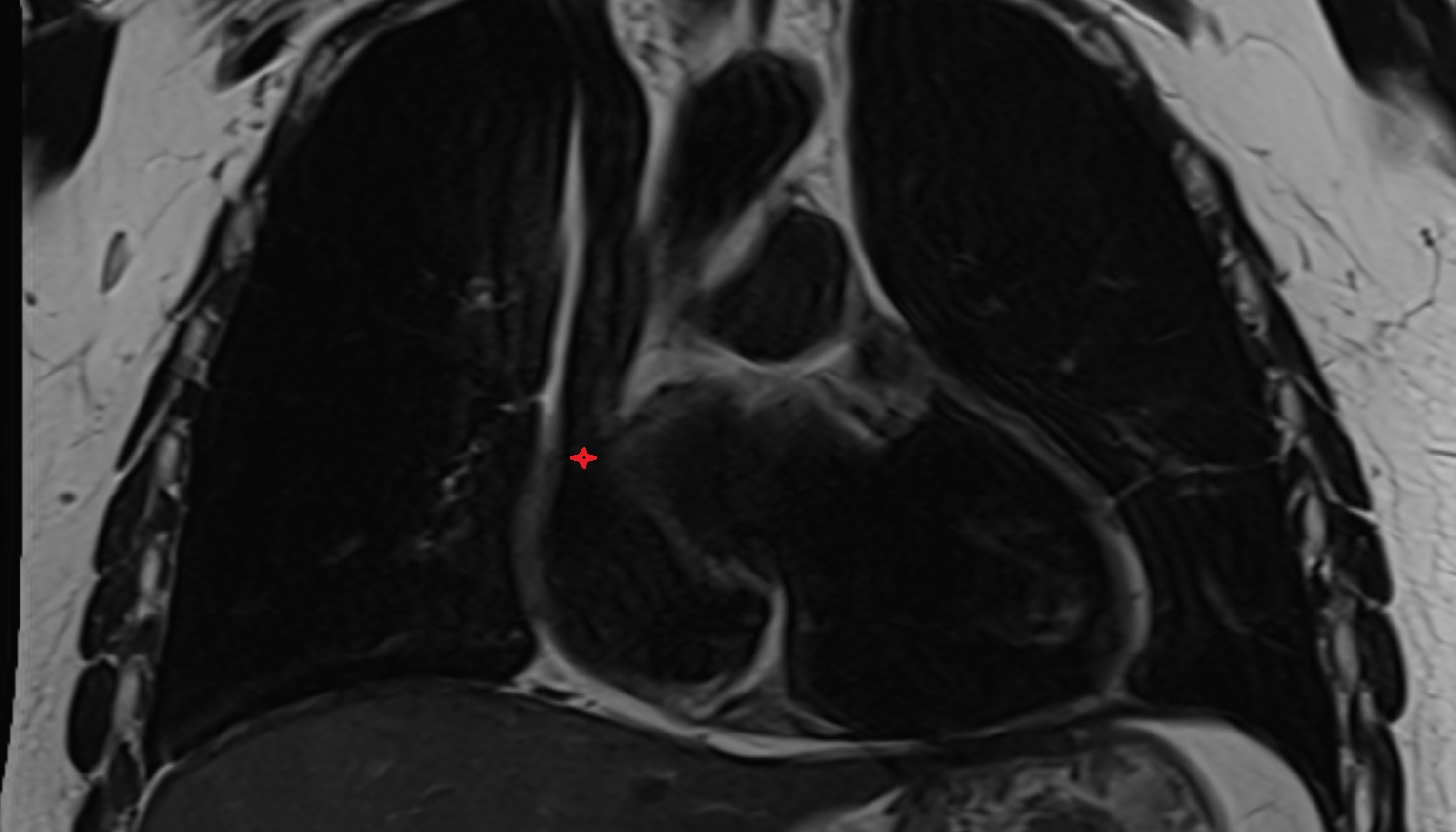

Opening of superior vena cava anatomy MRI CORONAL image -img-00000-00000
