Ophthalmic nerve

The ophthalmic nerve (V1) is the first division of the trigeminal nerve (CN V) and is purely sensory, supplying the orbit, cornea, forehead, scalp, upper eyelid, and parts of the nasal cavity. It travels from the trigeminal ganglion through the lateral wall of the cavernous sinus and exits the skull via the superior orbital fissure to enter the orbit.

It divides into three major branches—nasociliary, frontal, and lacrimal nerves—which further supply the ocular surface, lacrimal gland, sinonasal mucosa, and cutaneous regions of the forehead. The ophthalmic nerve is clinically crucial because it mediates the afferent limb of the corneal reflex and is frequently involved in trigeminal neuralgia, herpes zoster ophthalmicus, orbital fractures, and cavernous sinus pathology.

Synonyms

  • CN V1

  • First division of the trigeminal nerve

  • Ophthalmic division

Origin, Course, and Termination

Origin:

  • Arises from the trigeminal (semilunar) ganglion in Meckel’s cave.

Course:

  • Passes forward in the lateral wall of the cavernous sinus, superior to the maxillary nerve (V2).

  • Courses toward the superior orbital fissure, dividing into frontal, lacrimal, and nasociliary branches before or within the fissure.

  • Enters the orbit and runs anteriorly along the orbital roof.

Termination:

  • Ends as multiple terminal sensory branches supplying the forehead, cornea, upper eyelid, and nasal dorsum.

Major Branches

  • Frontal nerve: divides into supraorbital and supratrochlear branches.

  • Nasociliary nerve: gives short ciliary, long ciliary, infratrochlear, and ethmoidal branches.

  • Lacrimal nerve: supplies lacrimal gland and lateral upper eyelid.

Relations

  • In cavernous sinus: Lateral wall, superior to CN III, IV, and VI; medial to the internal carotid artery.

  • In superior orbital fissure: Runs with superior ophthalmic vein and cranial nerves III, IV, and VI.

  • In orbit: Courses along the orbital roof, deep to periorbita, and superficial to levator palpebrae superioris (frontal branch).

  • Anteriorly: Relates to forehead skin, conjunctiva, and nasal dorsum through terminal cutaneous branches.

Function

  • Sensory:

    • Cornea (corneal reflex afferent)

    • Conjunctiva

    • Upper eyelid skin

    • Forehead and scalp to vertex

    • Dorsum of the nose

    • Mucosa of anterior nasal cavity and ethmoid sinuses

  • Clinical neurophysiology: Primary sensory branch for ocular surface and major contributor to pain pathways in herpes zoster ophthalmicus and migraine.

Clinical Significance

  • Trigeminal neuralgia: Ophthalmic division may be affected, producing severe forehead/orbital pain.

  • Herpes zoster ophthalmicus: Reactivation along V1, often involving cornea and increasing risk of vision loss.

  • Cavernous sinus disease: V1 is highly vulnerable to tumors, thrombosis, aneurysms, and inflammatory disorders.

  • Orbital trauma: Superior orbital fissure fractures may stretch or compress V1 branches.

  • Post-surgical sensory deficits: Occur after orbital decompression, sinus surgery, or frontal craniotomy.

  • Imaging importance: Central for evaluating neuropathy, mass effect, nerve sheath tumors, and inflammatory processes.

MRI Appearance

T1-weighted images:

  • Normal ophthalmic nerve:

    • Appears as a thin, low-to-intermediate signal linear structure along cavernous sinus and orbit.

    • Surrounded by bright orbital fat in the intraconal/extraconal compartments, improving contrast.

  • Pathology:

    • Nerve enlargement: intermediate signal with fusiform thickening (schwannoma, perineural spread).

    • Inflammatory changes: slightly hyperintense nerve compared to normal.

    • Cavernous sinus tumors: displacement or encasement of V1.

T2-weighted images:

  • Normal nerve:

    • Intermediate-to-dark signal, darker than orbital fat, slightly brighter than muscle.

  • Pathology:

    • Nerve edema or inflammation: hyperintense signal.

    • Demyelination: increased T2 signal along nerve course.

    • Mass lesions: bright heterogeneous signal (schwannoma) or hyperintense perineural spread.

FLAIR:

  • Intracranial V1 segment:

    • Isointense to gray matter, well visualized in cavernous sinus.

  • Pathology:

    • Hyperintense perineural or cavernous sinus changes in inflammatory or neoplastic disease.

    • Abnormal enhancement or edema tracking along nerve sheath.

T1 Fat-Saturated Post-Contrast:

  • Normal nerve: Very thin enhancement or minimal enhancement due to vascularized epineurium.

  • Pathologic enhancement:

    • Strong uniform enhancement: perineural tumor spread, meningioma en plaque, inflammatory neuritis.

    • Fusiform enhancing mass: nerve sheath tumor such as schwannoma.

    • Cavernous sinus involvement: thickening and avid enhancement around V1 pathway.

CT Appearance

Non-Contrast CT:

  • Normal ophthalmic nerve:

    • Not directly visible; seen as a tiny soft-tissue density in the superior orbital fissure and orbit.

    • Orbital fat provides contrast but nerve detail is limited.

MRI image

Ophthalmic nerve-img-00000-00000

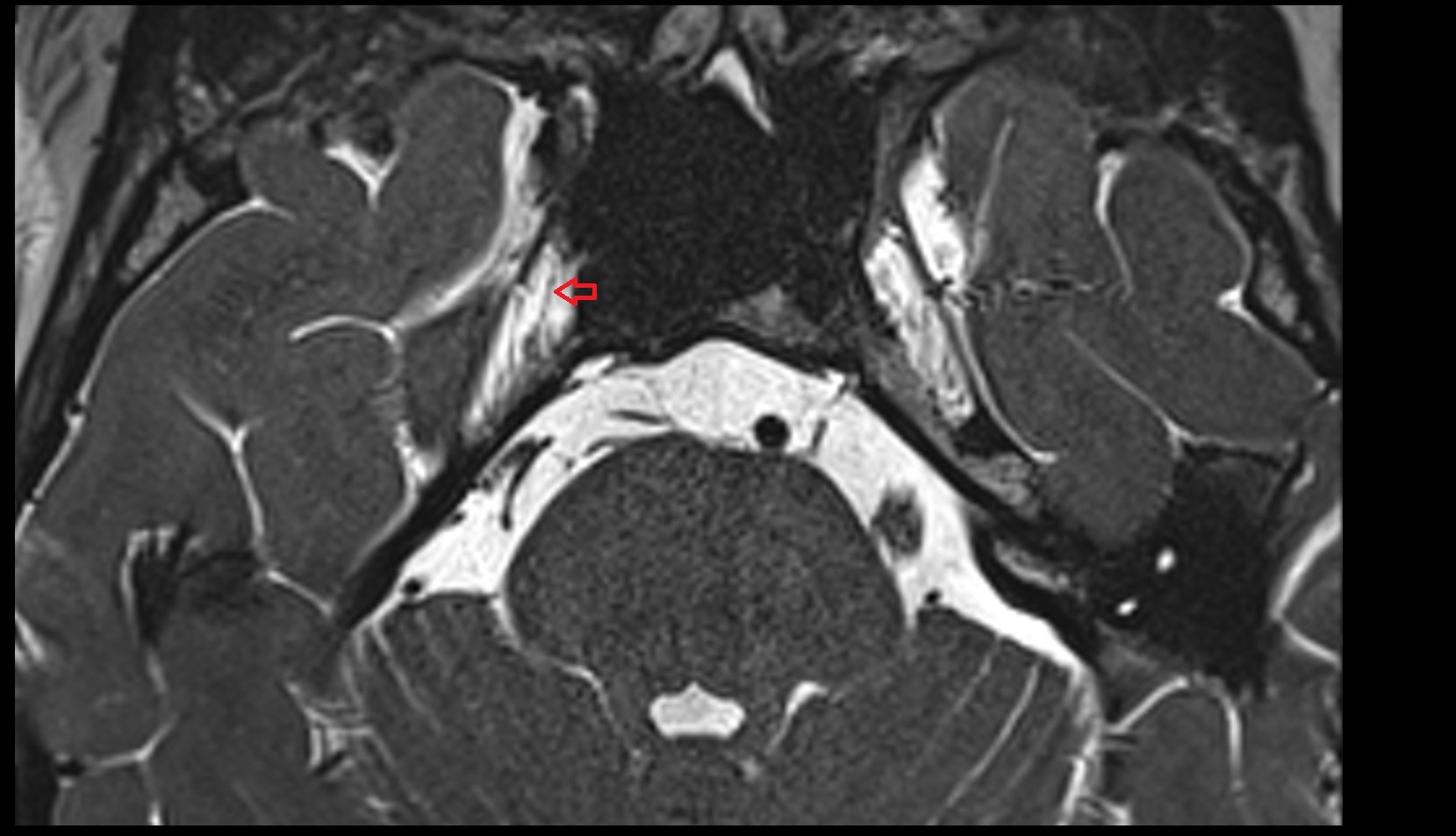

MRI image

Ophthalmic nerve axial
