Palatine process of maxilla

The palatine process of the maxilla is a horizontal bony projection from the maxillary body that forms the anterior three-quarters of the hard palate. It extends medially from each maxilla and fuses at the midline palatine suture, creating a continuous bony platform separating the nasal cavity above from the oral cavity below. The palatine process is thin, flat, and rectangular, with a superior surface forming the floor of the nasal cavity and an inferior surface forming the roof of the oral cavity. It contains incisive canals anteriorly for neurovascular passage and articulates posteriorly with the horizontal plate of the palatine bone. This structure provides structural support for the maxilla, teeth, and nasal cavity and is a critical landmark in craniofacial growth and surgical planning.

Synonyms

  • Maxillary palatine process

  • Anterior hard palate

  • Horizontal plate of maxilla

Function

  • Forms the anterior three-quarters of the hard palate, separating oral and nasal cavities

  • Provides attachment for palatal mucosa and muscles

  • Supports maxillary dentition

  • Contributes to midface stability and occlusion

  • Acts as a skeletal landmark in craniofacial surgery and orthodontics

MRI Appearance
T1-weighted images:

  • Appears as a thin, low-signal intensity bony structure forming the anterior hard palate

  • Surrounded by hyperintense palatal and submucosal fat, providing contrast

  • The palatal mucosa appears intermediate signal; fractures or lesions disrupt continuity

T2-weighted images:

  • Bone remains hypointense, while surrounding soft tissue and mucosa are hyperintense

  • Useful for detecting edema, inflammation, or cystic lesions in the palatal region

STIR (Short Tau Inversion Recovery):

  • Suppresses fat signal, enhancing visibility of bone marrow edema or soft tissue pathology

  • Normal palatine process remains hypointense; fractures, cysts, or tumors appear hyperintense

CT Appearance

  • Appears as a dense, well-corticated bony plate forming the anterior hard palate

  • The nasal cavity above and oral cavity below appear air-filled (hypodense), providing clear contrast

  • Midline palatine suture and incisive canals are well visualized

  • CT is ideal for evaluating congenital anomalies (e.g., cleft palate), fractures, or pre-surgical planning

MRI images

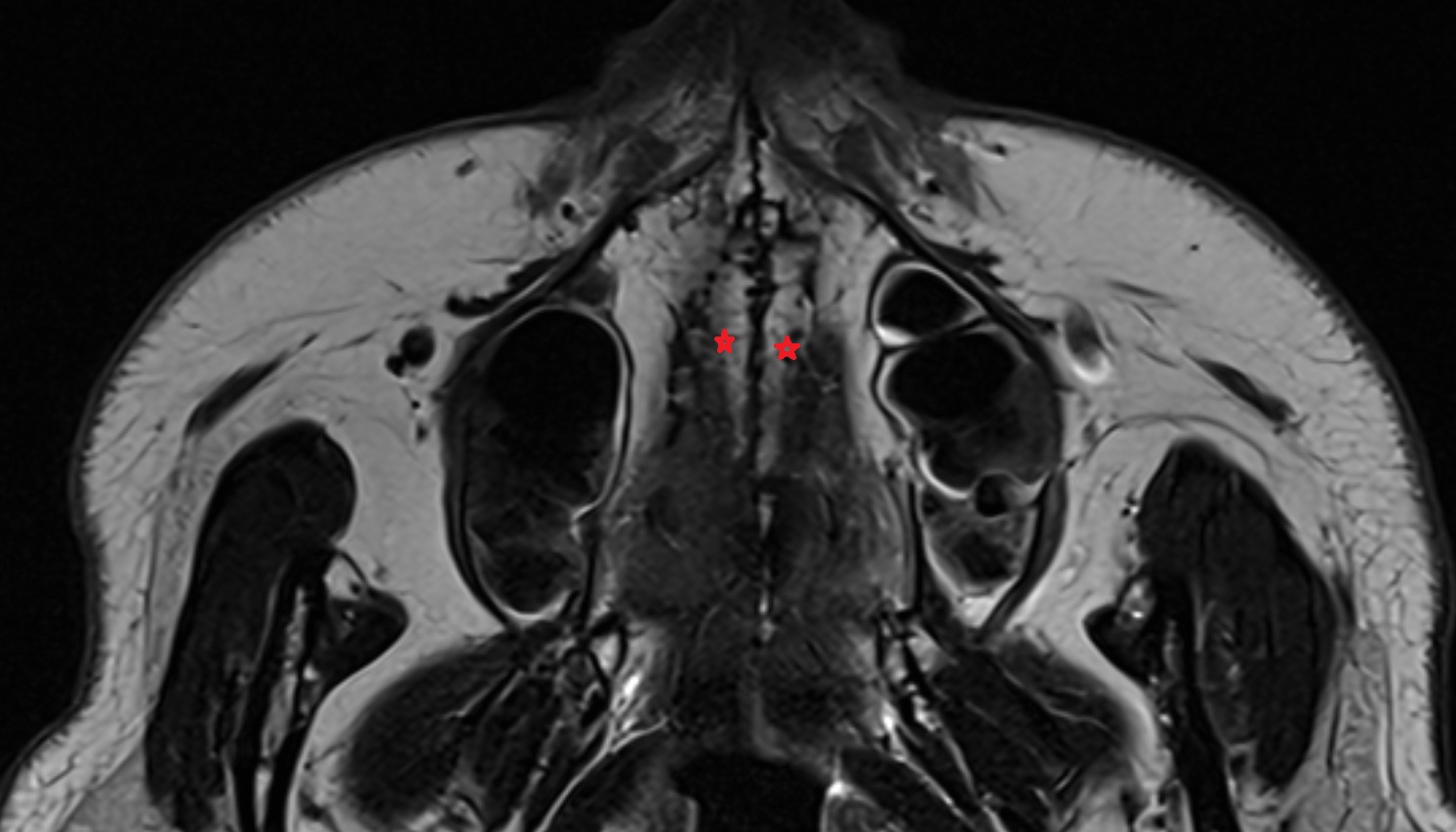

Palatine process of maxilla mri axial image -img-00000-00000
