Plantar aponeurosis

The plantar aponeurosis, also known as the plantar fascia, is a thick, fibrous connective tissue located in the sole of the foot. It functions as a protective, supportive, and load-bearing structure, maintaining the longitudinal arch of the foot and assisting in gait propulsion.

The aponeurosis acts like a tensioned cable that stores elastic energy during stance and releases it during push-off, enhancing walking and running efficiency. It is clinically significant due to its involvement in plantar fasciitis, tears, and calcaneal spur formation.

Synonyms

  • Plantar fascia

  • Plantar fascia aponeurosis

  • Central plantar fascia

Origin, Course, and Insertion

  • Origin: Medial process of the calcaneal tuberosity

  • Course: Extends distally from the heel, fans forward in the sole of the foot, and divides into digital slips near the heads of the metatarsals

  • Insertion: Divides into five digital bands that insert into the fibrous flexor sheaths and proximal phalanges of the toes

Parts of the Plantar Aponeurosis

  1. Central part (largest):

    • Thick and strong; arises from the medial process of the calcaneal tuberosity

    • Extends forward to divide into five digital bands

    • Each band sends superficial and deep layers around flexor tendons

  2. Medial part:

    • Thin; covers the abductor hallucis muscle

    • Blends with the flexor retinaculum medially

  3. Lateral part:

    • Thinner than central; covers abductor digiti minimi

    • Blends with the fascia of the foot dorsolaterally and lateral intermuscular septum

Relations

  • Superficial: Skin and superficial fascia of the sole

  • Deep: Flexor digitorum brevis, abductor hallucis, abductor digiti minimi

  • Medially: Medial plantar septum and muscles of the medial compartment

  • Laterally: Lateral plantar septum and muscles of the lateral compartment

Arterial Supply

  • Medial and lateral plantar arteries, branches of the posterior tibial artery

  • Small perforating branches supply the fascial tissue and overlying skin

Function

  • Arch support: Maintains longitudinal arch of the foot

  • Load transmission: Distributes body weight during stance and gait

  • Shock absorption: Acts as a mechanical spring, storing and releasing energy

  • Protection: Shields underlying tendons, vessels, and nerves in the sole

  • Propulsion: Tightens during toe-off phase to aid forward motion (windlass mechanism)

Clinical Significance

  • Plantar fasciitis: Most common pathology; inflammation or degeneration at calcaneal origin due to overuse or biomechanical stress

  • Partial tears: May occur following acute overload or chronic degeneration

  • Calcaneal spur formation: Chronic traction on calcaneal origin leads to bony spur

  • Fibromatosis (Ledderhose disease): Nodular thickening of central aponeurosis

  • Imaging relevance: MRI is gold standard for detecting fasciitis, tears, and fibromatosis; CT aids in identifying calcaneal spurs and chronic changes

MRI Appearance

  • T1-weighted images:

    • Normal plantar aponeurosis: low-to-intermediate signal intensity (dark)

    • Adjacent fat and muscle: bright on T1

    • Plantar fasciitis: thickened fascia (>4 mm) with intermediate-to-high signal at calcaneal origin

    • Chronic disease may show fibrosis and irregular contour

  • T2-weighted images:

    • Normal fascia: low signal, slightly darker than T1

    • Fasciitis: bright hyperintense signal at the calcaneal insertion and perifascial soft tissues

    • Partial tear: focal hyperintense gap or disruption

    • Chronic thickening remains dark with subtle perifascial signal

  • STIR:

    • Normal fascia: dark

    • Pathology: bright hyperintense signal indicating edema or inflammation

    • Surrounding fat stranding and marrow edema in calcaneus may be present

  • Proton Density Fat-Saturated (PD FS):

    • Normal: uniform low signal

    • Fasciitis: focal or diffuse hyperintense signal with thickened fascia

    • Tear: discrete hyperintense defect with retracted margins

    • Ideal for subtle inflammatory or degenerative changes

  • T1 Fat-Sat Post-Contrast:

    • Normal: minimal enhancement

    • Active fasciitis: enhancement at calcaneal attachment and perifascial tissues

    • Fibromatosis: nodular or linear enhancement patterns along central band

CT Appearance

Non-Contrast CT:

  • Normal fascia: thin, linear soft-tissue density along plantar surface

  • Fasciitis: thickened, indistinct fascia near calcaneal origin

  • Calcaneal spur: bony outgrowth from medial calcaneal tuberosity

  • Fibromatosis: localized soft-tissue thickening along fascia

Post-Contrast CT (standard):

  • Enhancement of perifascial tissues or nodular lesions in inflammation or fibromatosis

  • Helps evaluate chronic traction enthesopathy and structural changes in adjacent soft tissue and bone

MRI images

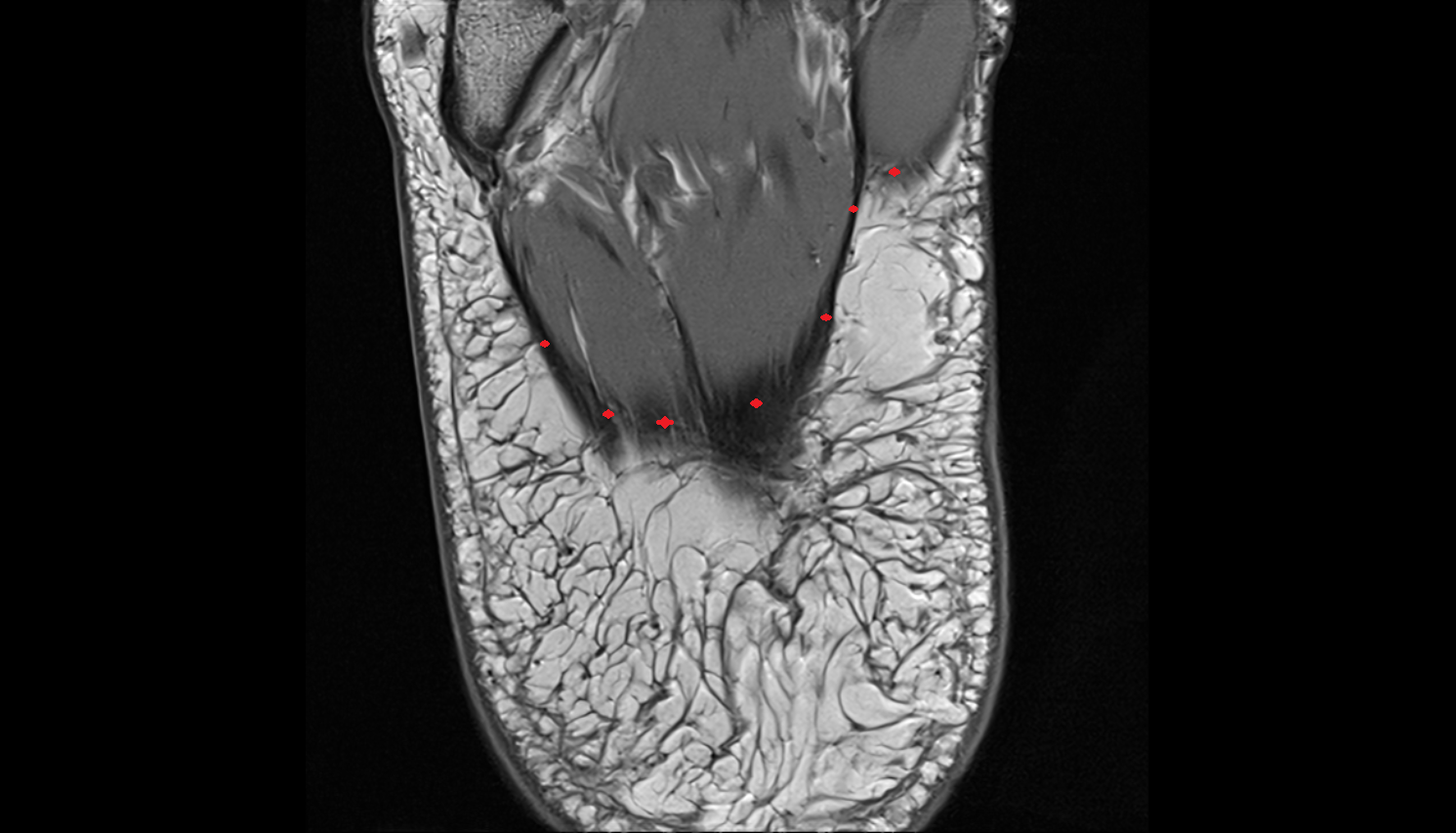

Plantar Aponeurosis AXIAL cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

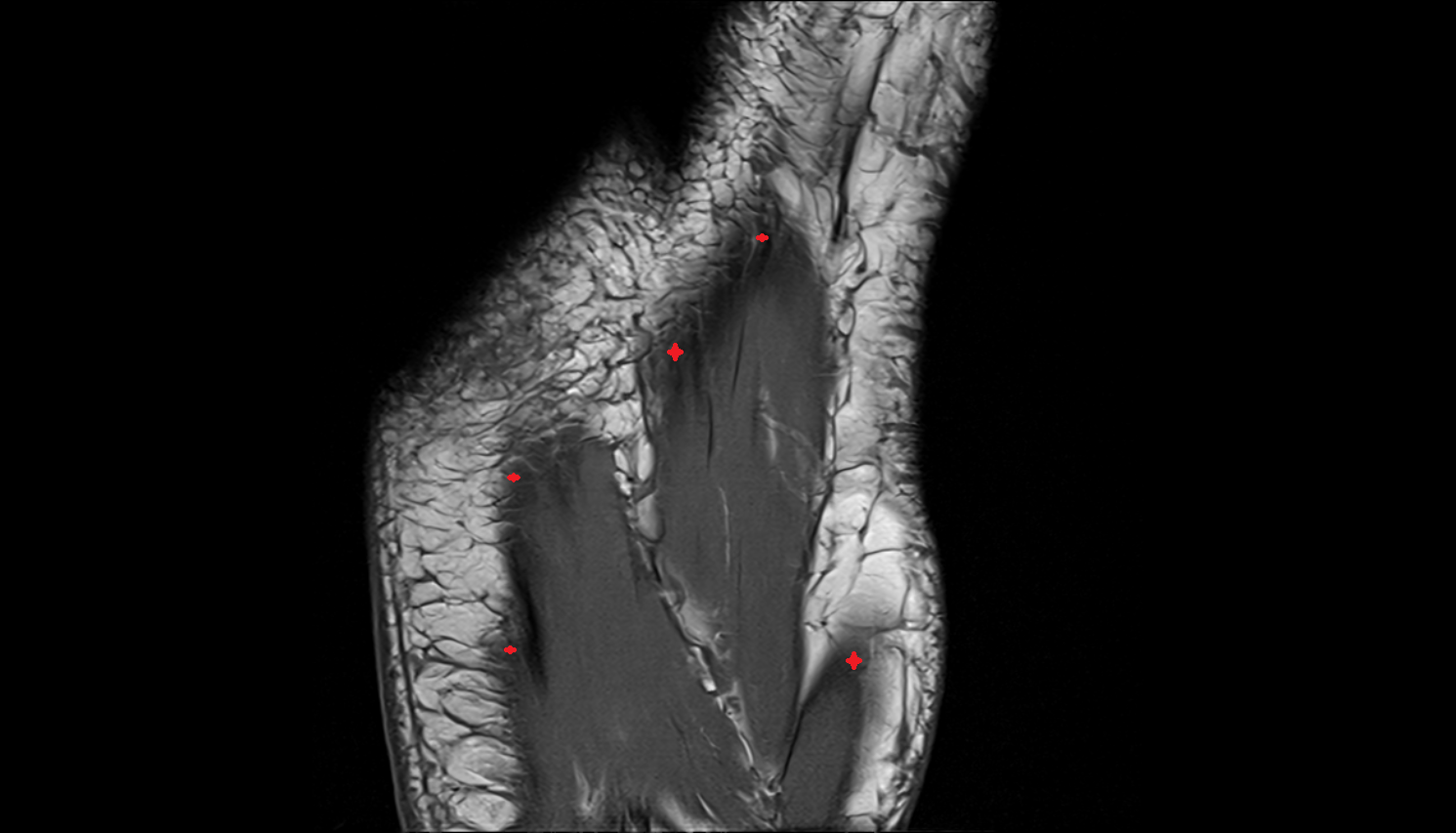

Plantar Aponeurosis AXIAL cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001

MRI images

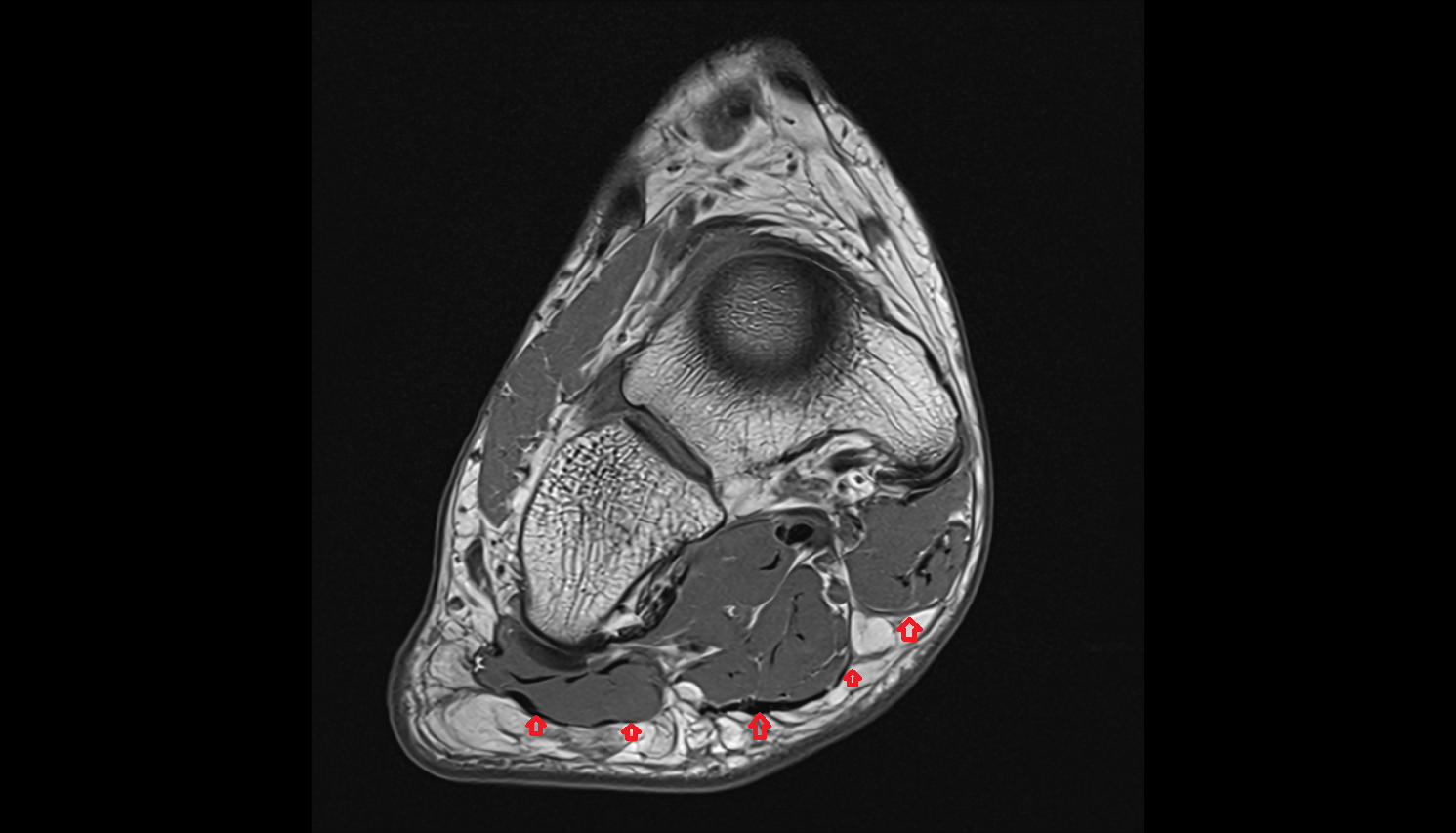

Plantar Aponeurosis AXIAL cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00002

MRI images

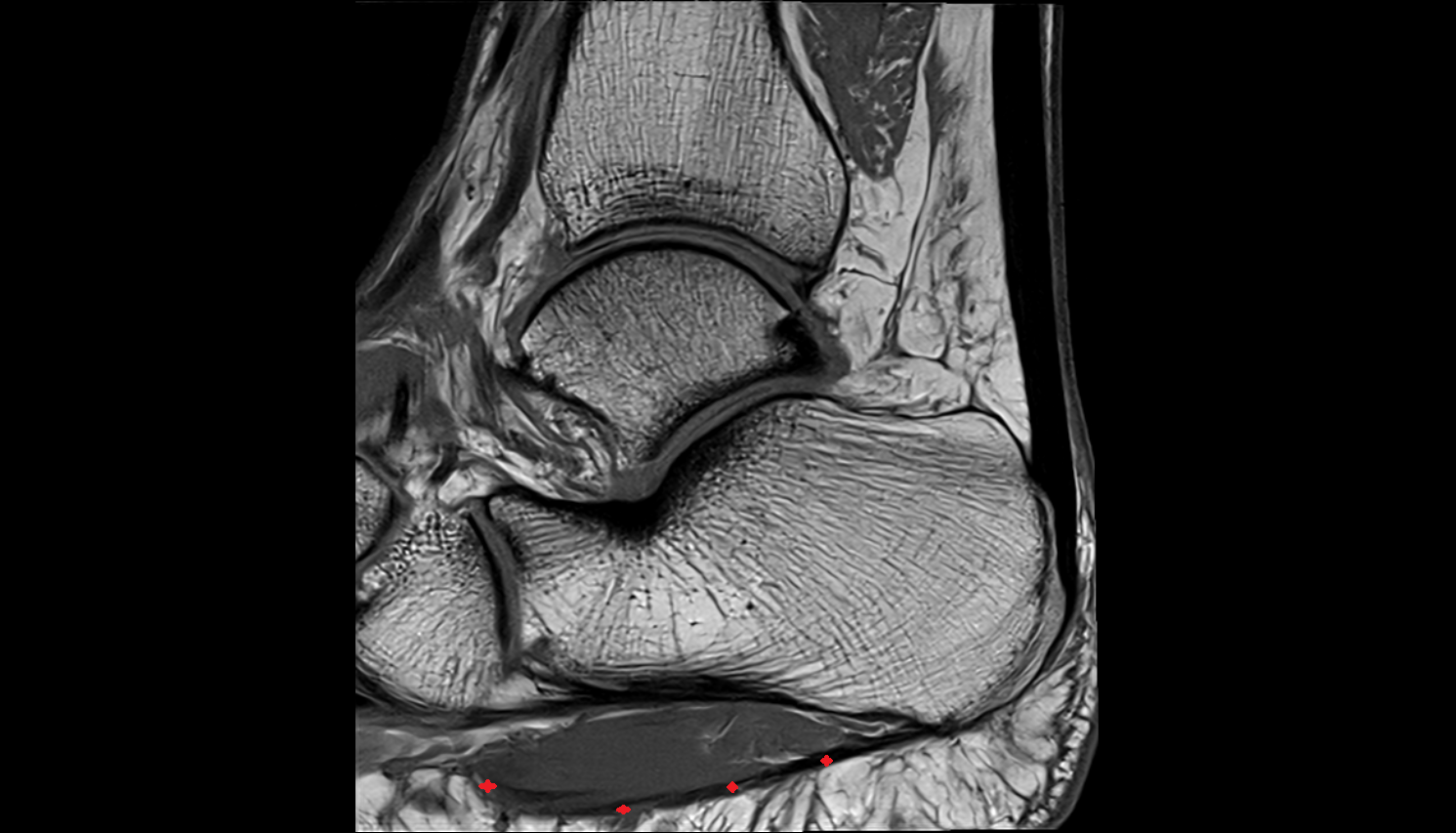

Plantar Aponeurosis sag cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000
