Plantar venous arch

The plantar venous arch is a paired venous structure located in the sole of the foot, responsible for draining the plantar aspect and channeling venous return into the deep veins of the leg. It consists of the deep plantar venous arch and the superficial plantar venous network, which run parallel to the corresponding plantar arteries.

The deep plantar venous arch lies alongside the deep plantar arterial arch, beneath the plantar muscles and fascia, while the superficial venous arch lies closer to the skin in the subcutaneous tissue. The veins of the arch play a vital role in venous return during standing and locomotion, assisted by the musculovenous pump and plantar venous plexus.

Synonyms

Deep plantar venous arch
Plantar deep venous network
Venous arch of the sole

Formation and Course

The deep plantar venous arch is formed by the union of venae comitantes of the plantar metatarsal veins.
It lies deep to the oblique head of the adductor hallucis and in close association with the deep plantar arterial arch.
The arch gives rise to the medial and lateral plantar veins, which accompany their corresponding arteries.
These veins unite posteriorly near the medial malleolus to form the posterior tibial veins.
The superficial plantar venous arch drains into the medial marginal vein, continuing into the great saphenous vein.

Relations

Superiorly: Adductor hallucis (oblique head), interosseous muscles, and plantar metatarsal vessels
Inferiorly: Plantar aponeurosis and superficial fascia
Medially: Medial plantar veins and great saphenous tributaries
Laterally: Lateral plantar veins and communicating veins to the dorsal venous arch

Venous Drainage

Drains blood from the plantar digital and metatarsal veins into the medial and lateral plantar veins
Communicates with the dorsal venous arch via perforating veins, ensuring bidirectional venous flow
Ultimately drains into the posterior tibial veins, which contribute to the popliteal venous system

Function

Venous return: Channels deoxygenated blood from the plantar surface of the foot toward the deep veins of the leg
Pressure regulation: Functions as part of the plantar venous pump, aiding venous return during walking
Communication: Provides interconnection between deep and superficial venous systems
Arch support: Lies within the concavity of the foot arch, protected by fascia and musculature

Clinical Significance

Venous insufficiency: Chronic reflux or valve incompetence can involve plantar veins, leading to edema and discomfort
Thrombosis: Deep plantar venous thrombosis may cause plantar pain, swelling, or extension into posterior tibial veins
Varicosities: Superficial plantar venous arch can develop varicose dilation due to prolonged standing or valvular incompetence
Trauma and surgery: Awareness of plantar venous anatomy is essential to prevent iatrogenic injury during reconstructive foot procedures
Imaging relevance: MRI and CT venography are crucial in evaluating venous obstruction, thrombosis, or variant anatomy

MRI Appearance

T1-weighted images:
- Normal venous lumen: low signal intensity (dark) due to flowing blood
- Venous walls: thin and smooth, low signal rim
- Slow or stagnant flow: may appear intermediate to mildly hyperintense within lumen, mimicking thrombus
- Surrounding fat: bright signal aiding delineation
T2-weighted images:
- Flowing blood: signal void (dark) due to flow-related dephasing
- Slow flow or venous stasis: intermediate-to-bright signal within venous lumen
- Thrombus: bright T2 hyperintense when acute; chronic thrombus becomes heterogeneous or dark due to fibrosis
- Venous walls remain low signal and sharply defined
STIR:
- Normal veins: intermediate-to-dark signal (flow void maintained)
- Pathology: hyperintense signal in case of venous edema, thrombosis, or perivenular inflammation
- Edematous soft tissues in plantar fascia appear bright
Proton Density Fat-Saturated (PD FS):
- Normal veins: intermediate-to-dark signal with smooth tubular morphology
- Slow flow or thrombus: increased brightness or absence of signal void
- Sensitive for detecting subtle perivenous inflammation or thrombosis
T1 Fat-Sat Post-Contrast:
- Normal veins: uniform enhancement following contrast due to venous filling
- Thrombosed segments: non-enhancing filling defects
- Perivenous inflammation: rim enhancement around affected vein

CT Appearance

Non-Contrast CT:

Veins appear as soft-tissue density tubular structures beneath plantar muscles
Not well delineated without contrast
Chronic venous calcifications or post-thrombotic changes may appear as small dense foci

Post-Contrast CT (CT Venography):

Veins enhance uniformly during venous phase
Thrombus: filling defect within enhancing vein
Useful for mapping deep venous anatomy and communicating channels between plantar and dorsal systems
Surrounding edema or inflammation may show subtle soft-tissue enhancement

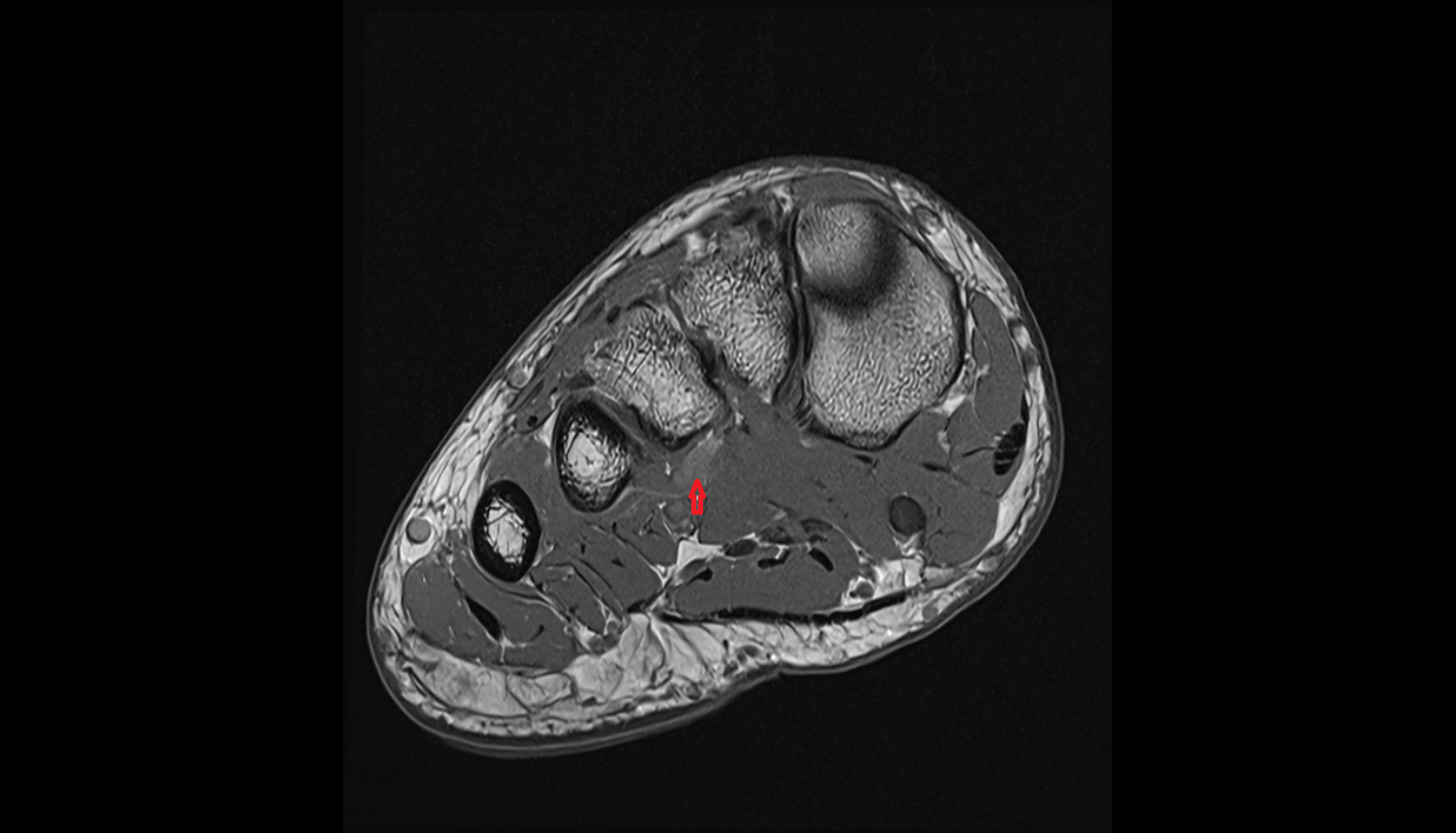

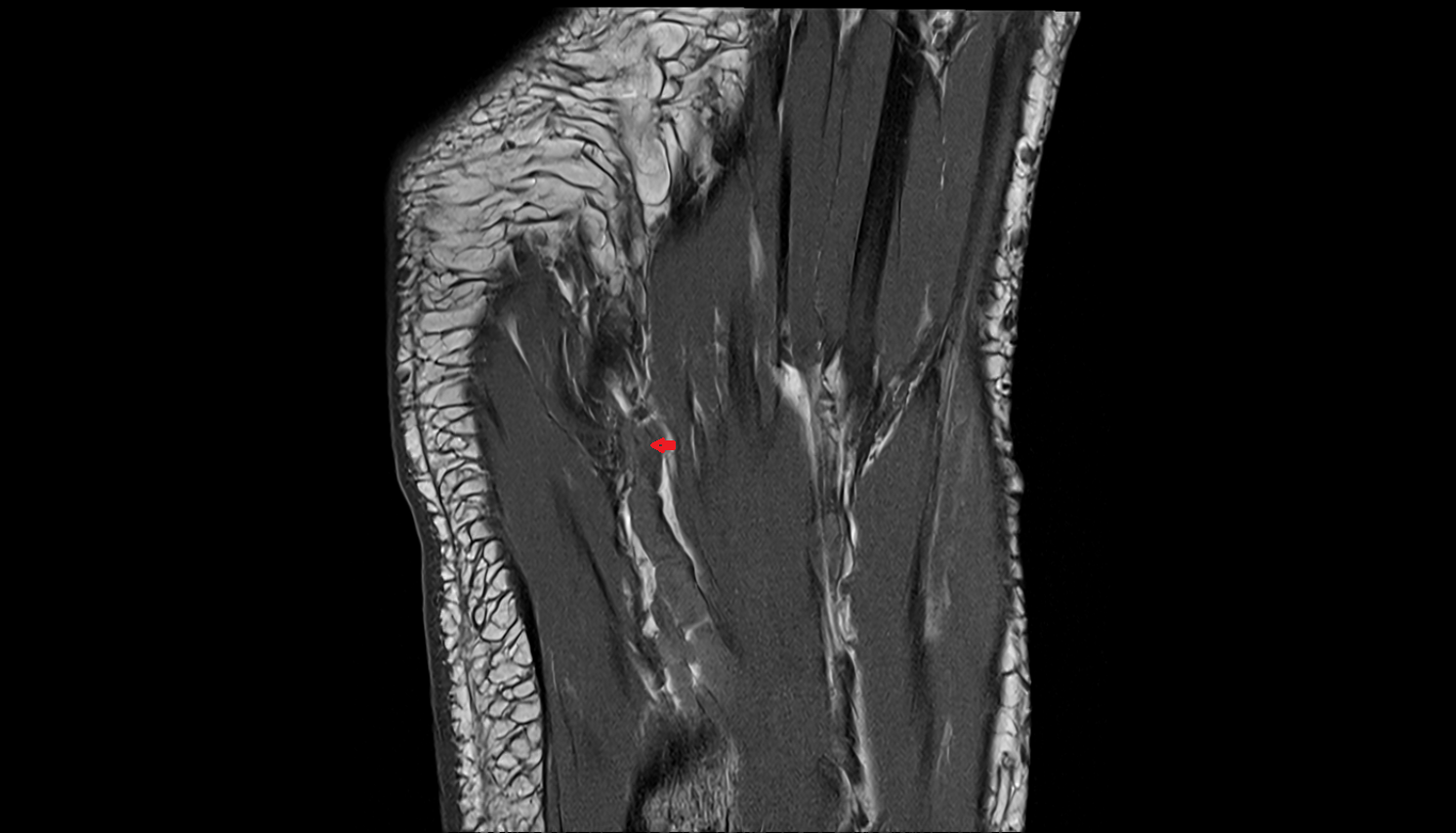

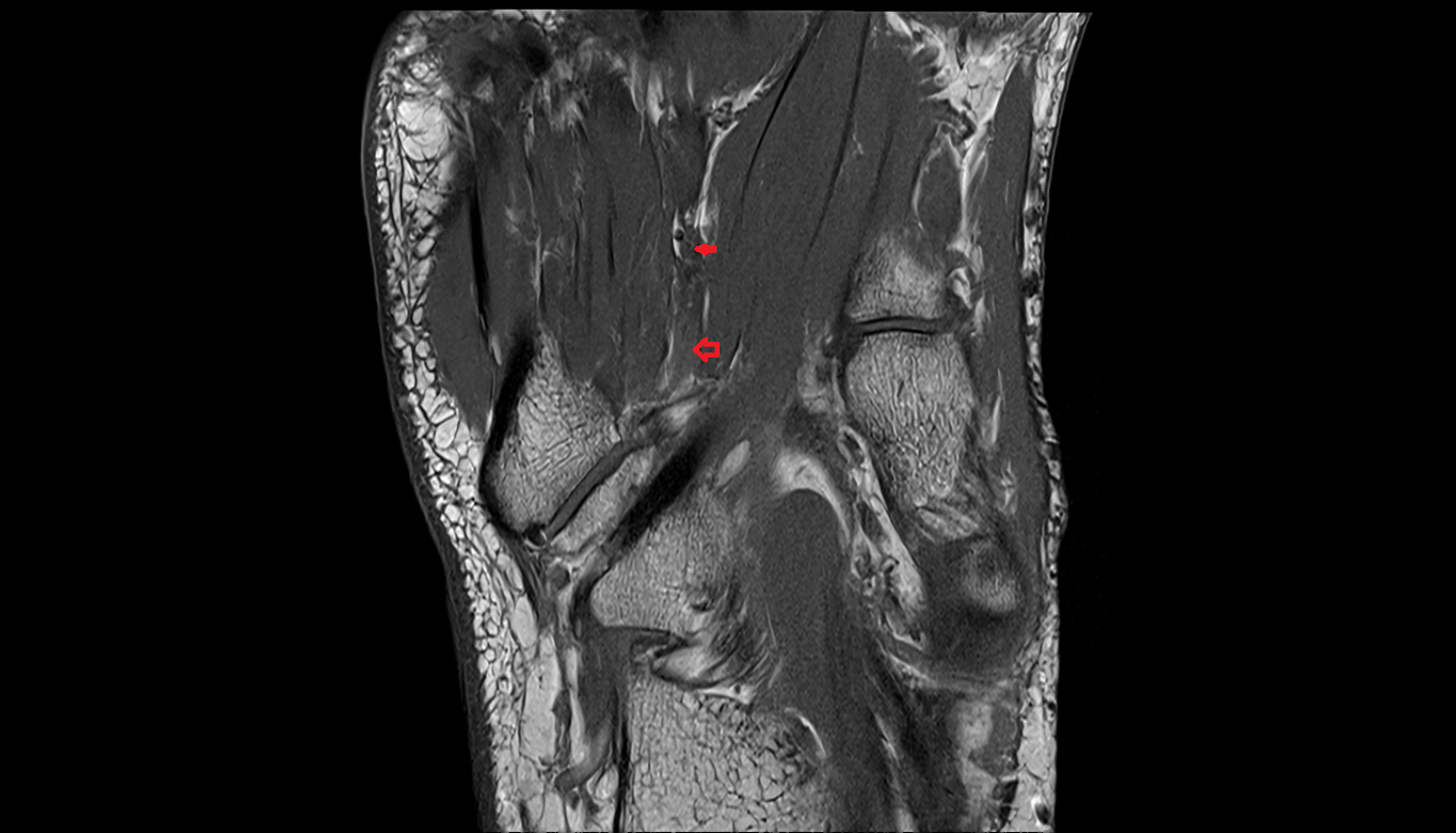

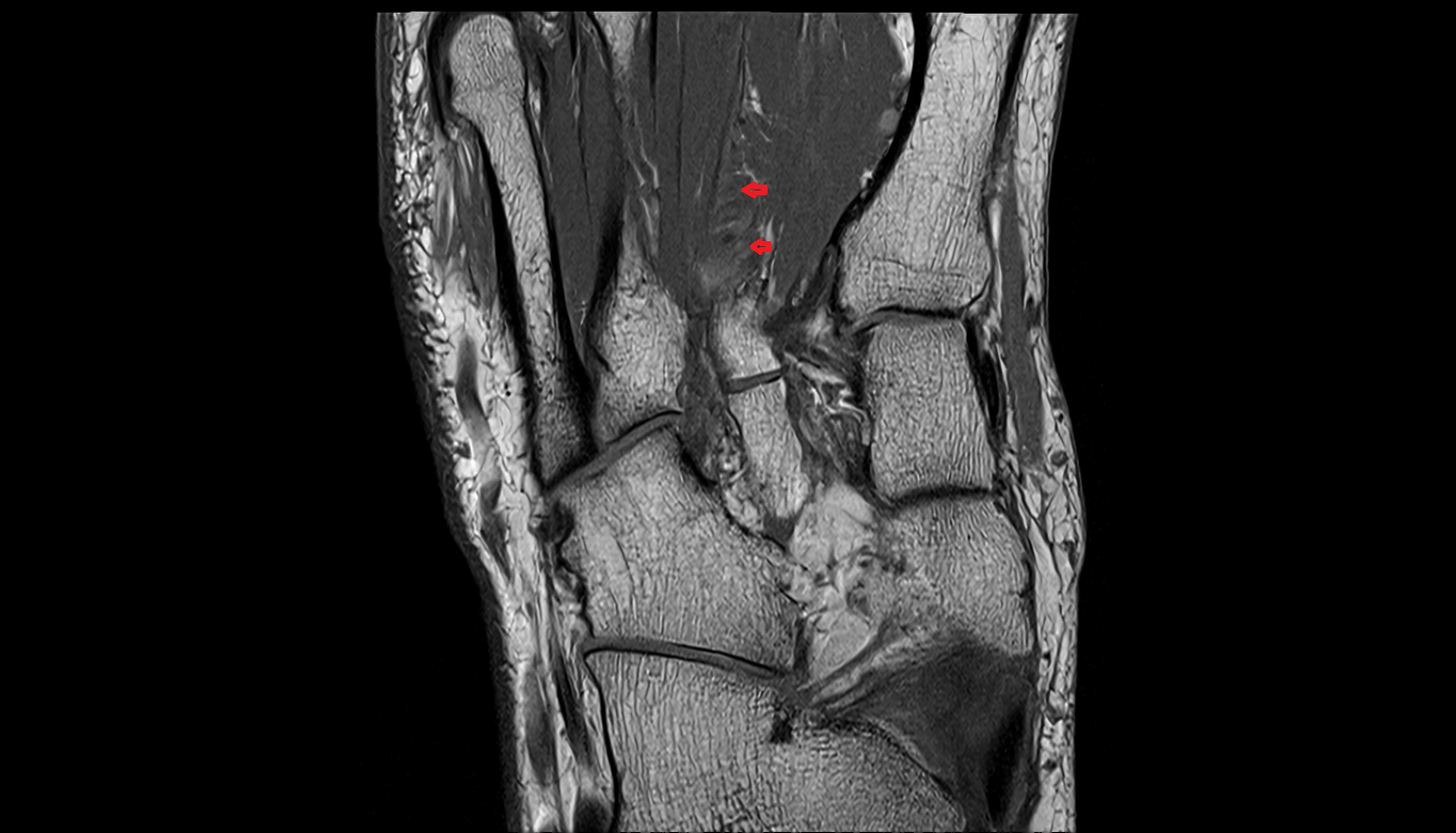

MRI image
