Pons (basilar portion)

The basilar portion of the pons (also called the basis pontis) is the ventral, anterior component of the pons forming the prominent rounded surface of the brainstem. It contains dense longitudinal motor pathways and transverse pontine fibers that serve as a critical relay between the cerebral cortex, brainstem, and cerebellum.

This region is fundamental for voluntary motor control and coordination and is a key site involved in vascular, metabolic, demyelinating, and degenerative brainstem disorders.

Synonyms

  • Basis pontis

  • Ventral pons

  • Basilar pons

Location

  • Occupies the anterior (ventral) half of the pons

  • Forms the convex ventral surface of the brainstem

  • Extends from the pontomedullary junction inferiorly to the pontomesencephalic junction superiorly

  • Situated anterior to the pontine tegmentum

  • Posterior to the clivus and prepontine cistern

  • Traversed by the basilar artery along its ventral midline

Anatomical components

  • Longitudinal fiber systems:

    • Corticospinal tracts

    • Corticobulbar tracts

  • Transverse pontine fibers:

    • Originate from pontine nuclei

    • Cross the midline and form the middle cerebellar peduncles

  • Pontine nuclei:

    • Relay motor information from cerebral cortex to cerebellum

Relations

Anteriorly:

  • Prepontine cistern

  • Basilar artery and perforating pontine branches

Posteriorly:

  • Pontine tegmentum

  • Fourth ventricle (indirectly)

Laterally:

  • Middle cerebellar peduncles

  • Cerebellopontine angles

Superiorly:

  • Midbrain (pontomesencephalic junction)

Inferiorly:

  • Medulla oblongata (pontomedullary junction)

Nerves originating in relation to the basilar portion

  • Trigeminal nerve (CN V):

    • Emerges from the anterolateral surface of the mid-pons

  • Abducens nerve (CN VI):

    • Fibers course through the pons and exit near the midline at the pontomedullary junction

  • Facial nerve (CN VII):

    • Fibers loop dorsally and exit laterally at the pontomedullary junction

  • Vestibulocochlear nerve (CN VIII):

    • Emerges at the cerebellopontine angle, closely related to pontine structures

Function

  • Motor signal transmission: Conveys corticospinal and corticobulbar impulses from cortex to spinal cord and cranial nerve nuclei

  • Cerebellar relay: Pontine nuclei transmit cortical motor commands to the cerebellum

  • Movement coordination: Integrates cortical planning with cerebellar modulation

  • Postural and motor tone control: Supports smooth execution of voluntary movements

MRI appearance

T1-weighted images:

  • Normal basilar portion: Homogeneous intermediate signal intensity

  • Fiber-rich regions: Slightly lower signal compared with tegmentum

T2-weighted images:

  • Normal basilar portion: Low-to-intermediate signal intensity, often slightly hypointense relative to the pontine tegmentum due to dense longitudinal fibers

  • Normal texture: Mildly striated appearance from intersecting longitudinal and transverse fibers

FLAIR:

  • Normal: Relatively homogeneous signal with preserved brainstem architecturel

Diffusion-weighted imaging (DWI):

  • Normal: No diffusion restriction

Post-contrast T1-weighted images:

  • Normal: Minimal or no enhancement

CT appearance

Non-contrast CT:

  • Normal basilar pons: Iso- to slightly hyperdense relative to cerebellum

Post-contrast CT:

  • Normal: Minimal enhancement

MRI images

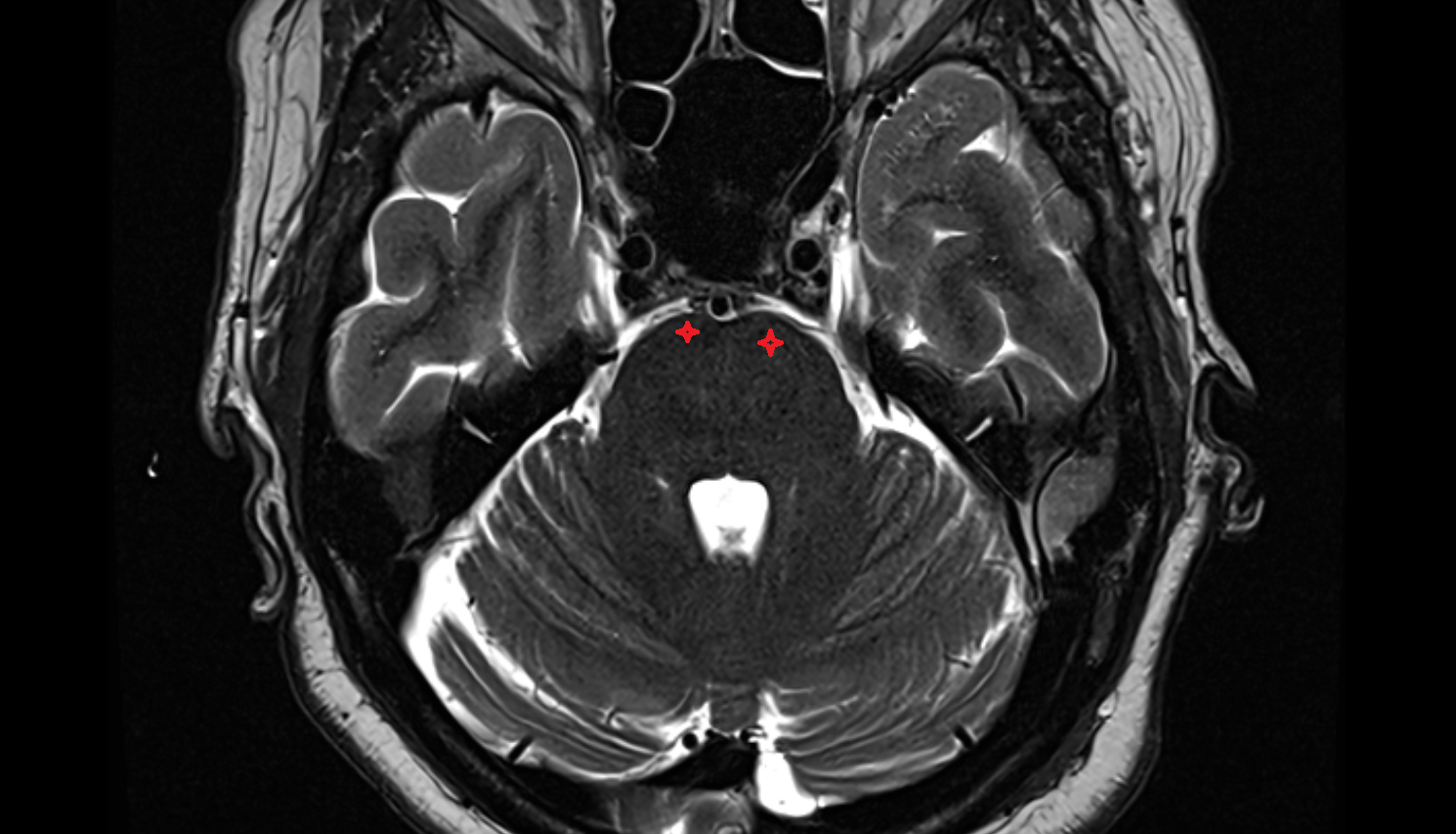

MRI Basilar portion of the pons axial anatomy image -img-00000-00000

MRI images

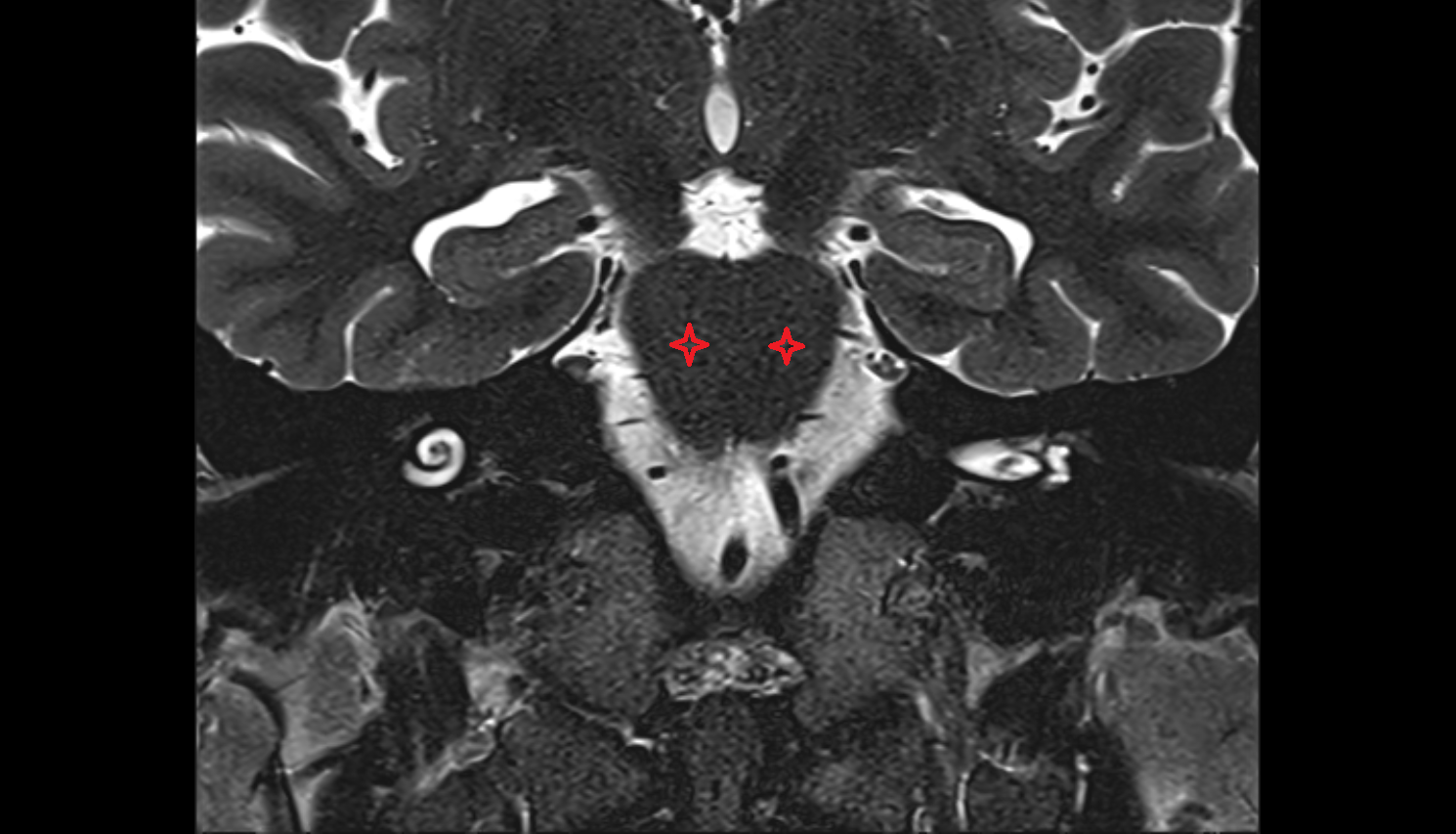

MRI Basilar portion of the pons coronal anatomy image -img-00000-00000

MRI images

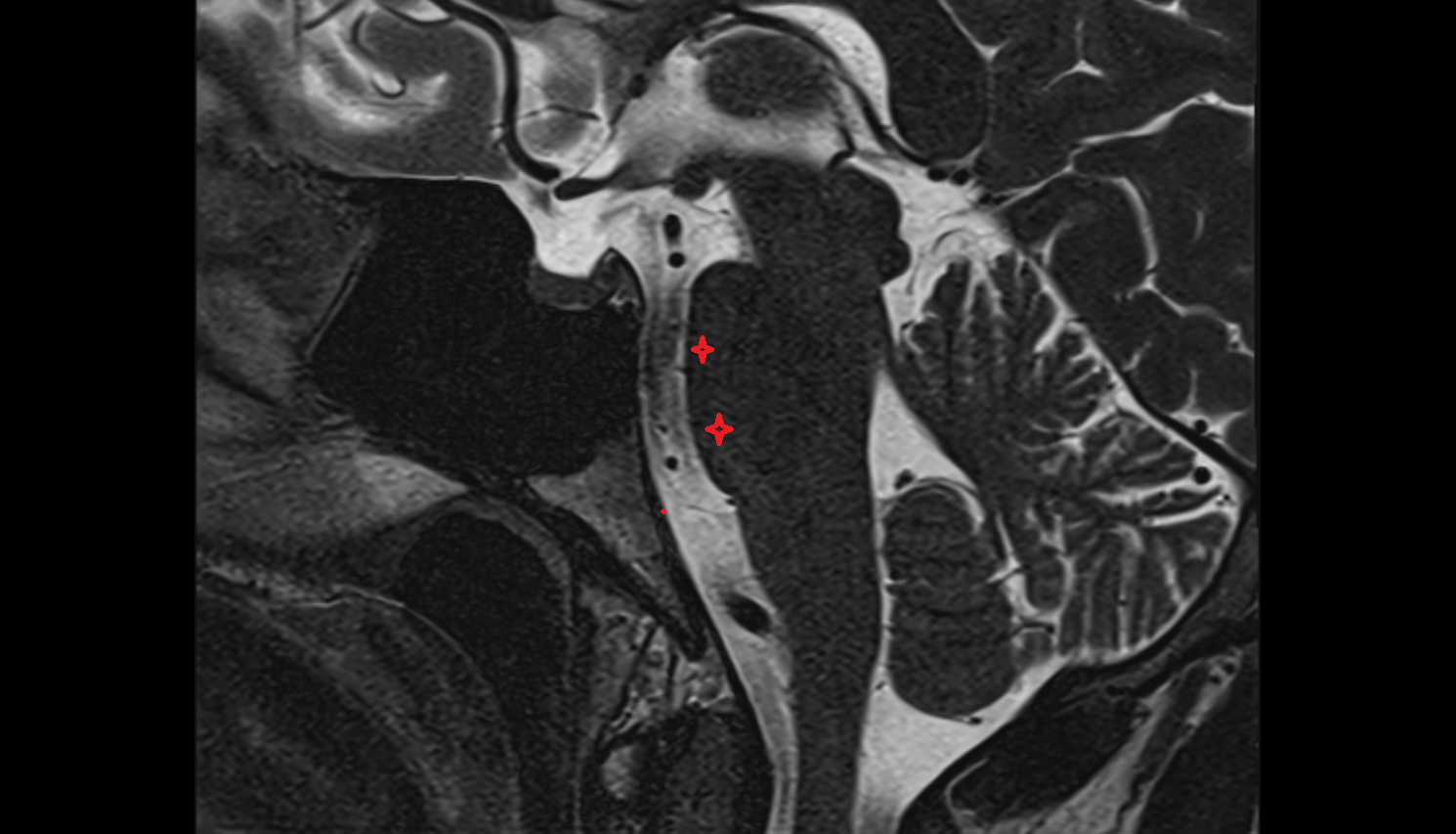

MRI Basilar portion of the pons sag anatomy image -img-00000-00000
