Radial collateral ligament

he radial collateral ligament (RCL) is a key lateral stabilizing ligament of the elbow joint, forming part of the lateral collateral ligament complex. It extends from the lateral epicondyle of the humerus to blend with the annular ligament of the radius, reinforcing the lateral side of the elbow capsule.

The RCL provides varus stability, resists posterolateral rotatory instability, and maintains proper alignment between the humerus and radius during elbow flexion and extension. It is distinct from the lateral ulnar collateral ligament (LUCL) but functionally related, working together to stabilize the lateral elbow joint against external stress.

Synonyms

  • Lateral collateral ligament of the elbow

  • Radial humeral ligament

  • Lateral radial ligament

Origin, Course, and Insertion

  • Origin: Lateral epicondyle of the humerus, just inferior to the common extensor tendon.

  • Course: Fibers run obliquely downward and forward, blending with the annular ligament surrounding the radial head.

  • Insertion: Deep surface of the annular ligament and lateral margin of the radial notch of the ulna.

Relations

  • Superiorly: Common extensor tendon and lateral epicondyle

  • Inferiorly: Annular ligament and head of the radius

  • Anteriorly: Capsule of the elbow joint

  • Posteriorly: Lateral ulnar collateral ligament and supinator muscle

  • Medially: Capitulum and radial head articulation

  • Laterally: Subcutaneous tissue and overlying extensor carpi radialis brevis

Function

  • Varus stability: Prevents excessive medial displacement of the radius relative to the humerus.

  • Posterolateral support: Works with LUCL and annular ligament to resist posterolateral rotatory instability.

  • Dynamic coordination: Provides tension throughout the flexion–extension arc.

  • Joint congruency: Ensures smooth articulation between the capitulum and radial head.

Clinical Significance

  • Ligament injury: Partial or complete RCL tears occur from varus stress or posterolateral rotatory instability (PLRI), often during falls on outstretched hands.

  • Associated injuries: May accompany LUCL tears, radial head fractures, or lateral epicondylitis.

  • Symptoms: Lateral elbow pain, instability, mechanical clicking, and weakness during pronation-supination.

  • Surgical relevance: RCL reconstruction or repair is indicated in chronic instability; often assessed arthroscopically.

  • Imaging importance: MRI and CT arthrography are essential for detecting partial tears, avulsions, and capsular disruptions.

MRI Appearance

  • T1-weighted images:

    • Ligament: low signal (dark), well-defined linear band between the lateral epicondyle and annular ligament.

    • Fat planes: bright, delineating ligament margins.

    • Acute tear: focal discontinuity or intermediate signal gap with adjacent soft-tissue swelling.

    • Chronic tear: ligament thinning or wavy contour with surrounding fibrosis (intermediate signal).

  • T2-weighted images:

    • Normal: dark low-signal band surrounded by intermediate signal of muscle and fat.

    • Partial tear: bright hyperintense focus within ligament substance.

    • Complete tear: disruption or non-visualization, with fluid-filled gap replacing ligament.

    • Periligamentous edema: hyperintense signal in adjacent soft tissue or capsule.

  • STIR:

    • Normal ligament: low-to-intermediate signal.

    • Pathology: bright hyperintensity along ligament course indicating edema, tear, or inflammation.

  • Proton Density Fat-Saturated (PD FS):

    • Normal ligament: low signal (dark linear band).

    • Partial tear: focal bright intraligamentous signal.

    • Complete tear: absence or discontinuity with adjacent fluid or hematoma.

    • Excellent for detecting subtle or occult tears.

  • T1 Fat-Sat Post-Contrast:

    • Normal ligament: minimal to no enhancement.

    • Acute tear or synovitis: periligamentous enhancement due to vascular granulation tissue.

    • Chronic scarring: faint or peripheral enhancement around fibrotic ligament.

MRI Arthrogram Appearance

  • Intra-articular contrast outlines the joint capsule and ligaments clearly.

  • Partial tear: Contrast insinuates along the ligament fibers or within small splits.

  • Complete tear: Contrast extravasates into adjacent soft tissues or lateral recesses.

  • Annular ligament continuity: Contrast may highlight annular involvement or adjacent capsular disruption.

  • Arthrography enhances detection of microtears, PLRI, and capsular detachment not visible on routine MRI.

CT Appearance

Non-Contrast CT:

  • Ligament appears as a thin soft-tissue density lateral to the radial head.

  • Bony landmarks (lateral epicondyle, radial head) well visualized.

  • Indirect signs of injury: small avulsion fragments, cortical irregularity, or soft-tissue swelling.

  • Chronic injuries: calcification or thickening of the ligament insertion.

Post-Contrast CT (standard):

  • Ligament itself enhances minimally.

  • Adjacent inflammatory or vascular granulation tissue enhances mildly.

  • Useful in postoperative or post-traumatic evaluation of bone–ligament relationships.

CT Arthrogram Appearance

  • Contrast outlines the joint capsule and lateral ligament complex.

  • Partial tear: Contrast extends along the ligament fiber plane without full-thickness leak.

  • Complete tear: Contrast leakage into pericapsular tissues lateral to the annular ligament.

  • Associated findings: Fluid tracking around radial head or lateral recess indicates capsular incompetence.

  • CT arthrography provides excellent spatial detail for bony avulsion, capsular injury, and small tears when MRI is limited.

MRI image

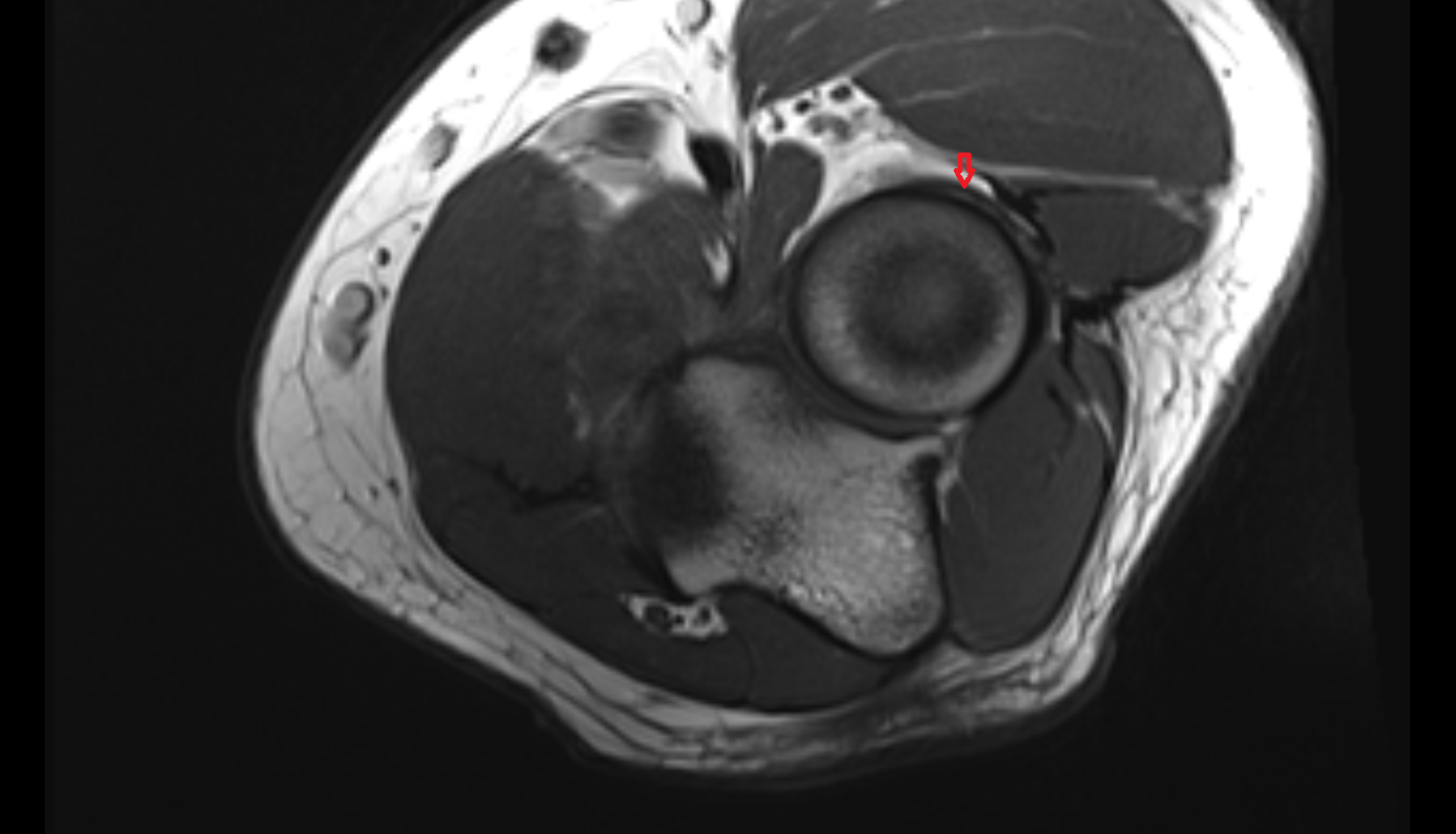

Radial collateral ligament axial cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000

MRI image

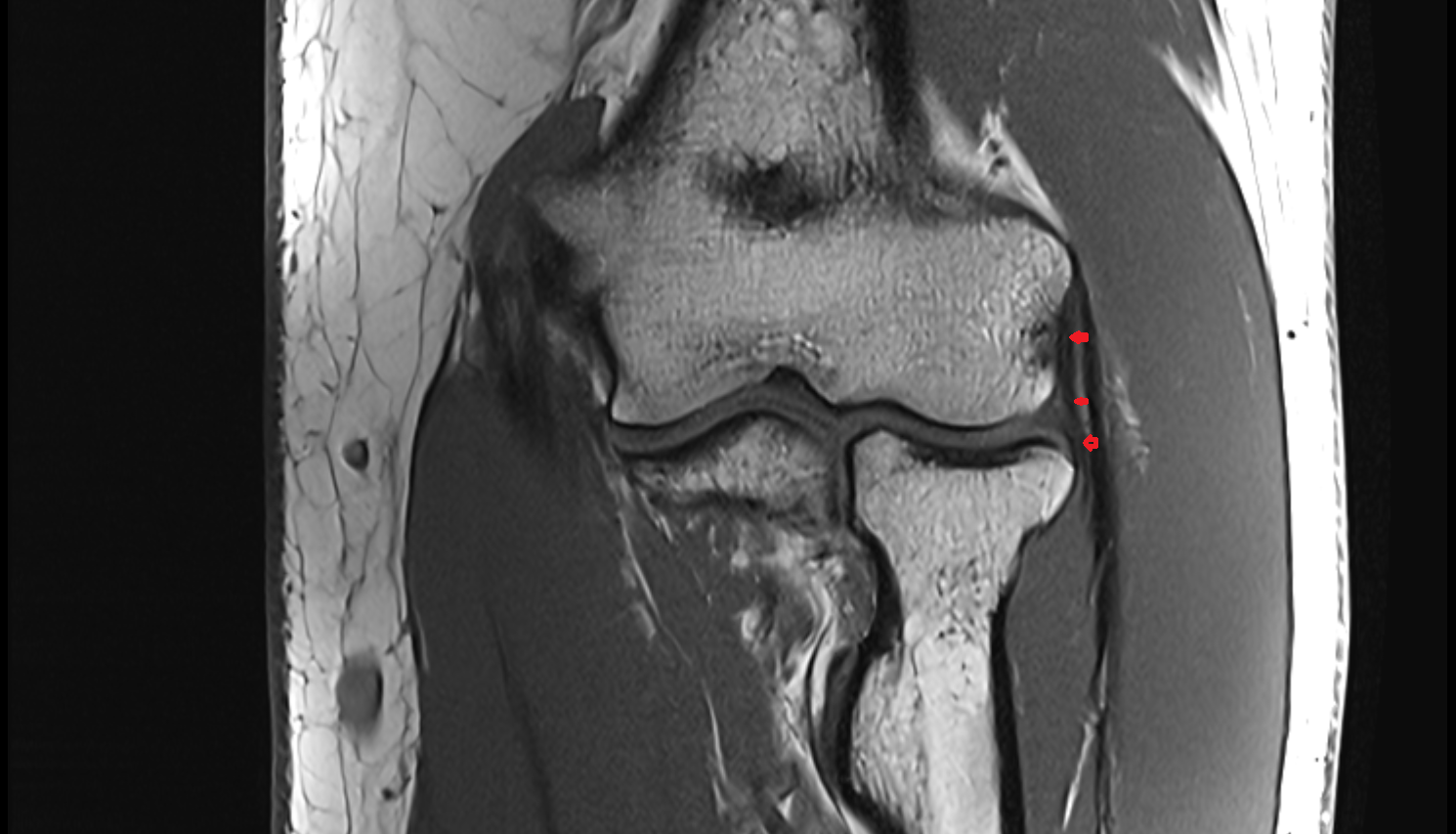

Radial collateral ligament coronal cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000

MRI image

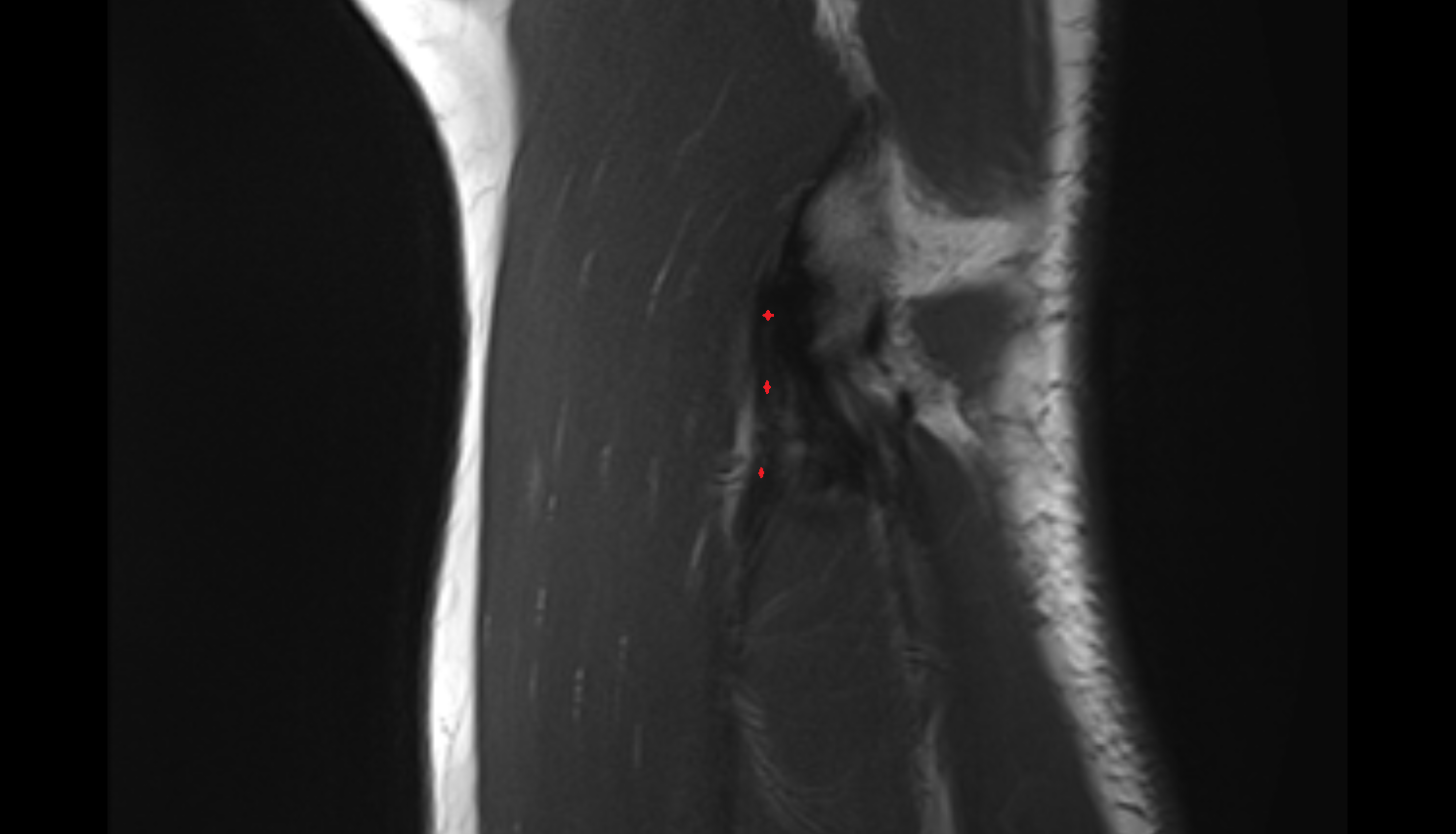

Radial collateral ligament sag cross sectional anatomy 3T MRI AI enhanced radiology image -img-00000-00000

CT image

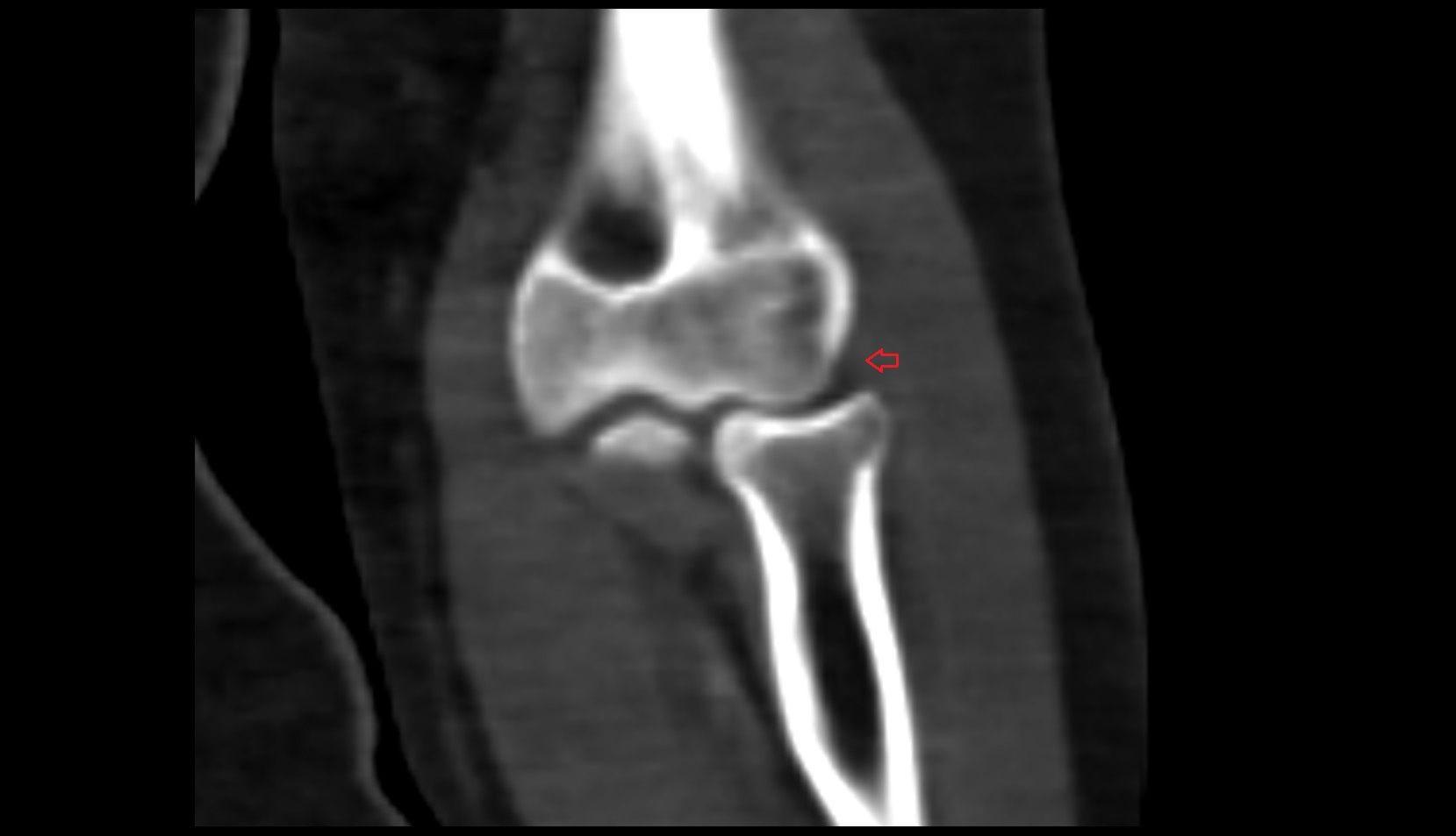

Radial Collateral Ligament ct image
