Radial collateral ligament of wrist

The radial collateral ligament (RCL) of the wrist is a strong, cord-like lateral stabilizing structure that supports the radiocarpal joint on its radial (lateral) aspect. It extends from the tip of the radial styloid process to the scaphoid and trapezium bones, reinforcing the capsule and limiting excessive ulnar deviation of the hand.

The ligament consists of both dorsal and palmar fibers that blend with the surrounding joint capsule and other wrist ligaments, contributing to the complex stability of the wrist. The RCL works in concert with the ulnar collateral ligament and palmar radiocarpal ligaments to maintain joint alignment during hand motion.

Synonyms

  • Lateral collateral ligament of the wrist

  • Radial styloid ligament

  • Radial carpal collateral ligament

Origin, Course, and Insertion

  • Origin: Apex of the radial styloid process of the radius.

  • Course: Runs obliquely downward and medially from the radius across the lateral aspect of the wrist joint.

  • Insertion: Attaches to the lateral surface of the scaphoid bone and blends partially with fibers inserting into the trapezium and the scaphotrapezial joint capsule.

Dorsal and Palmar Components

  • Dorsal portion: Thinner and flatter, reinforces the dorsolateral aspect of the capsule, connecting the radial styloid to the dorsal scaphoid ridge; assists in resisting ulnar deviation and extension.

  • Palmar portion: Thicker and stronger, blending with the palmar radiocarpal ligament complex and inserting into the palmar surface of the scaphoid and trapezium; resists ulnar deviation and hyperextension.

Relations

  • Superficially: Tendons of the abductor pollicis longus and extensor pollicis brevis, and the radial artery

  • Deeply: Capsule of the radiocarpal joint and the scaphoid

  • Anteriorly: Palmar radiocarpal ligament complex and trapezium

  • Posteriorly: Dorsal radiocarpal ligament and radial styloid process

  • Laterally: Subcutaneous tissue over the radial styloid and the anatomic snuffbox

Function

  • Stabilization: Provides lateral stability to the wrist joint, preventing excessive ulnar deviation.

  • Support of capsule: Strengthens the lateral radiocarpal capsule.

  • Load transmission: Assists in distributing forces across the radiocarpal articulation during wrist movement.

  • Joint coordination: Works synergistically with dorsal and palmar radiocarpal ligaments for smooth wrist motion.

  • Injury prevention: Resists stress from valgus or abduction forces applied to the wrist.

Clinical Significance

  • Sprain or partial tear: Often due to forced ulnar deviation or wrist extension injury (e.g., falls, racquet sports).

  • Complete rupture: May accompany fractures of the radial styloid or scaphoid.

  • Degeneration: Chronic strain can lead to thickening, fibrosis, or calcification seen in overuse injuries.

  • Pain syndrome: Lateral wrist pain near radial styloid, especially during ulnar deviation or gripping.

  • Instability: RCL injury may contribute to scapholunate instability and carpal malalignment.

  • Surgical relevance: Important in ligament repair, wrist stabilization procedures, and arthroscopic evaluation.

MRI Appearance

  • T1-weighted images:

    • Normal RCL: low signal intensity (dark), cord-like band along the radial side of the wrist.

    • Surrounded by bright periligamentous fat, improving contrast.

    • Disruption or partial tear: discontinuity or focal intermediate signal.

    • Thickening with intermediate signal may indicate fibrosis or chronic sprain.

  • T2-weighted images:

    • Normal ligament: low signal against intermediate muscle and bright joint fluid.

    • Partial tear: focal bright hyperintensity within the ligament.

    • Complete tear: absence of normal low-signal band with fluid signal gap.

    • Adjacent joint capsule may show subtle high signal in acute sprain.

  • STIR:

    • Normal ligament: dark linear structure.

    • Pathologic: bright periligamentous edema or fluid along radial capsule in acute injury.

    • Helpful for detecting associated bone bruising of radial styloid or scaphoid.

  • Proton Density Fat-Saturated (PD FS):

    • Normal: low-to-intermediate signal, sharply defined band.

    • Partial tear: focal high-signal intraligamentous changes.

    • Complete rupture: fluid-filled gap replacing the ligament.

    • Excellent for showing subtle ligament sprains and pericapsular edema.

  • T1 Fat-Sat Post-Contrast:

    • Normal ligament: minimal enhancement.

    • Inflammation or healing sprain: periligamentous enhancement.

    • Chronic scarring: low-signal thickened band with faint peripheral enhancement.

CT Appearance

Non-Contrast CT:

  • Ligament itself not distinctly visualized but seen as a thin soft-tissue density adjacent to radial styloid.

  • Indirect signs: small avulsion fragments, radial styloid cortical irregularity, or calcific thickening in chronic strain.

  • Useful for assessing associated bony injury, such as scaphoid fracture or styloid avulsion.

CT Arthrography Appearance

  • Normal ligament: seen as a thin, non-enhancing low-density band along the radial aspect of the radiocarpal joint, separating contrast-filled joint spaces.

  • Partial tear: focal contrast insinuation into the ligament substance without full discontinuity.

  • Complete tear: contrast extravasation from the joint space into periligamentous soft tissues or along the radial capsule.

  • Chronic degeneration: irregular contour, thickened margins, or partial calcification with minimal contrast leakage.

  • Particularly valuable in scapholunate instability evaluation, where the RCL integrity affects carpal alignment.

MRI images

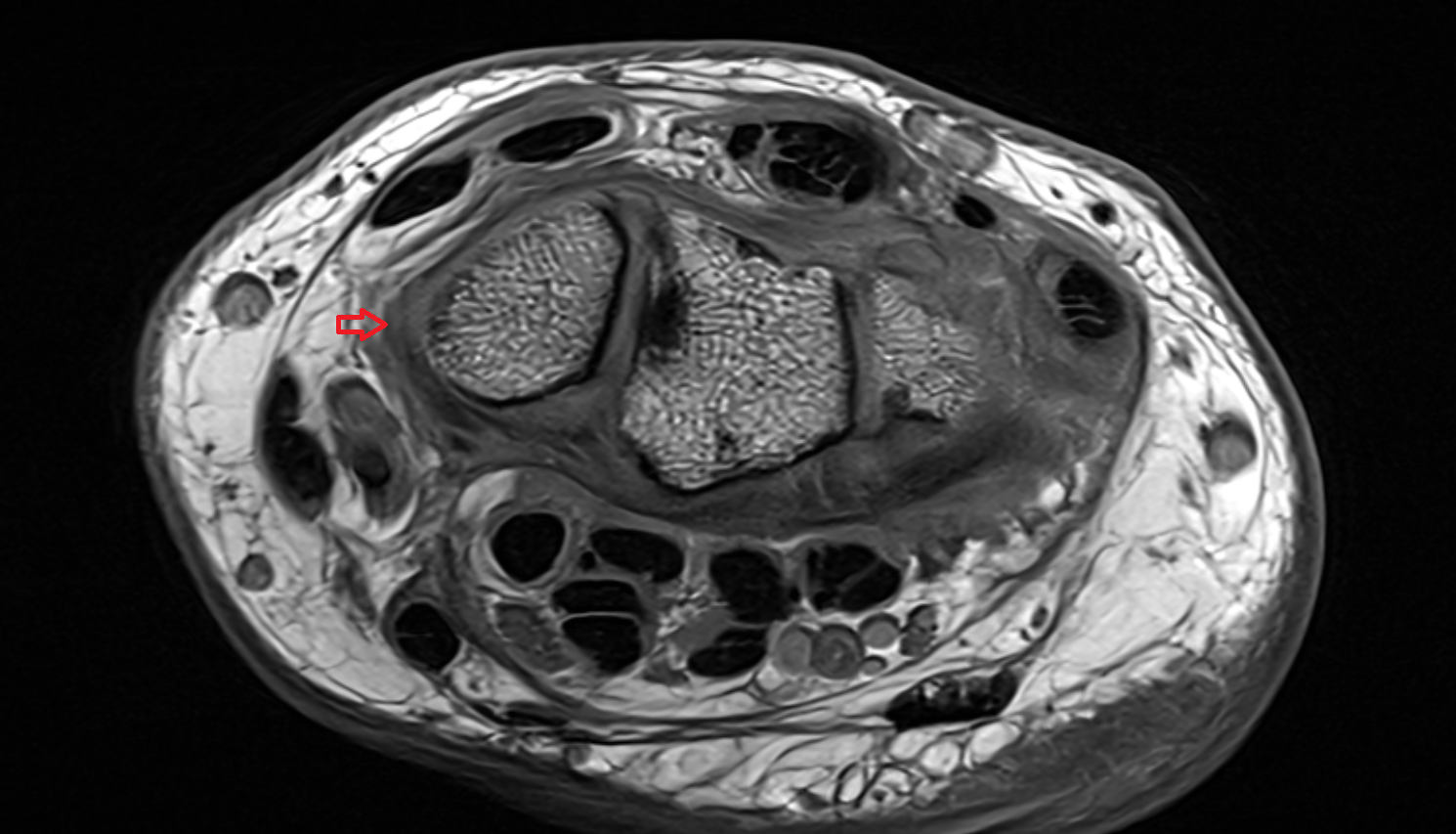

Radial collateral ligament of wrist mri coronal image axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

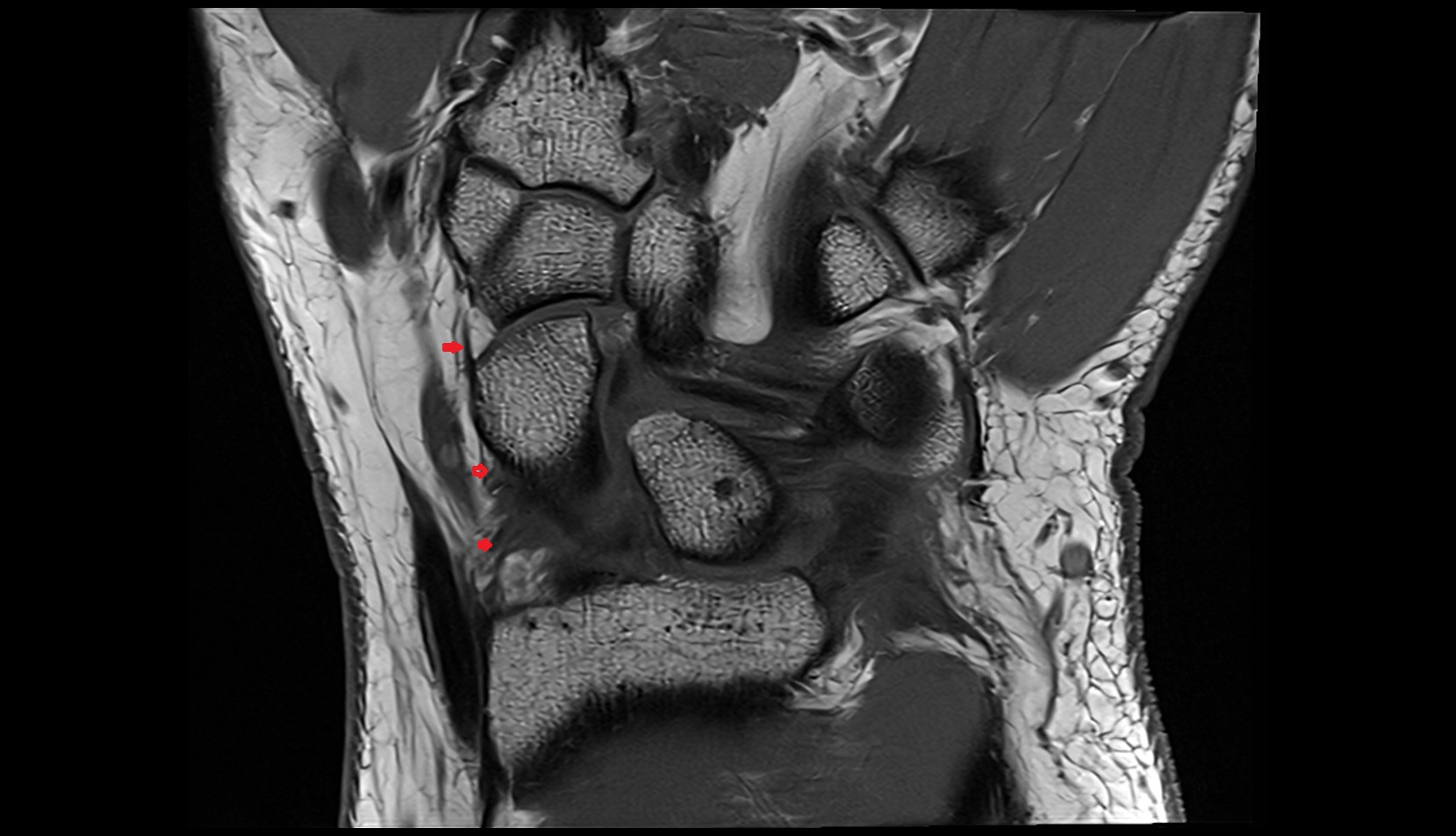

Radial collateral ligament of wrist coronal

MRI images

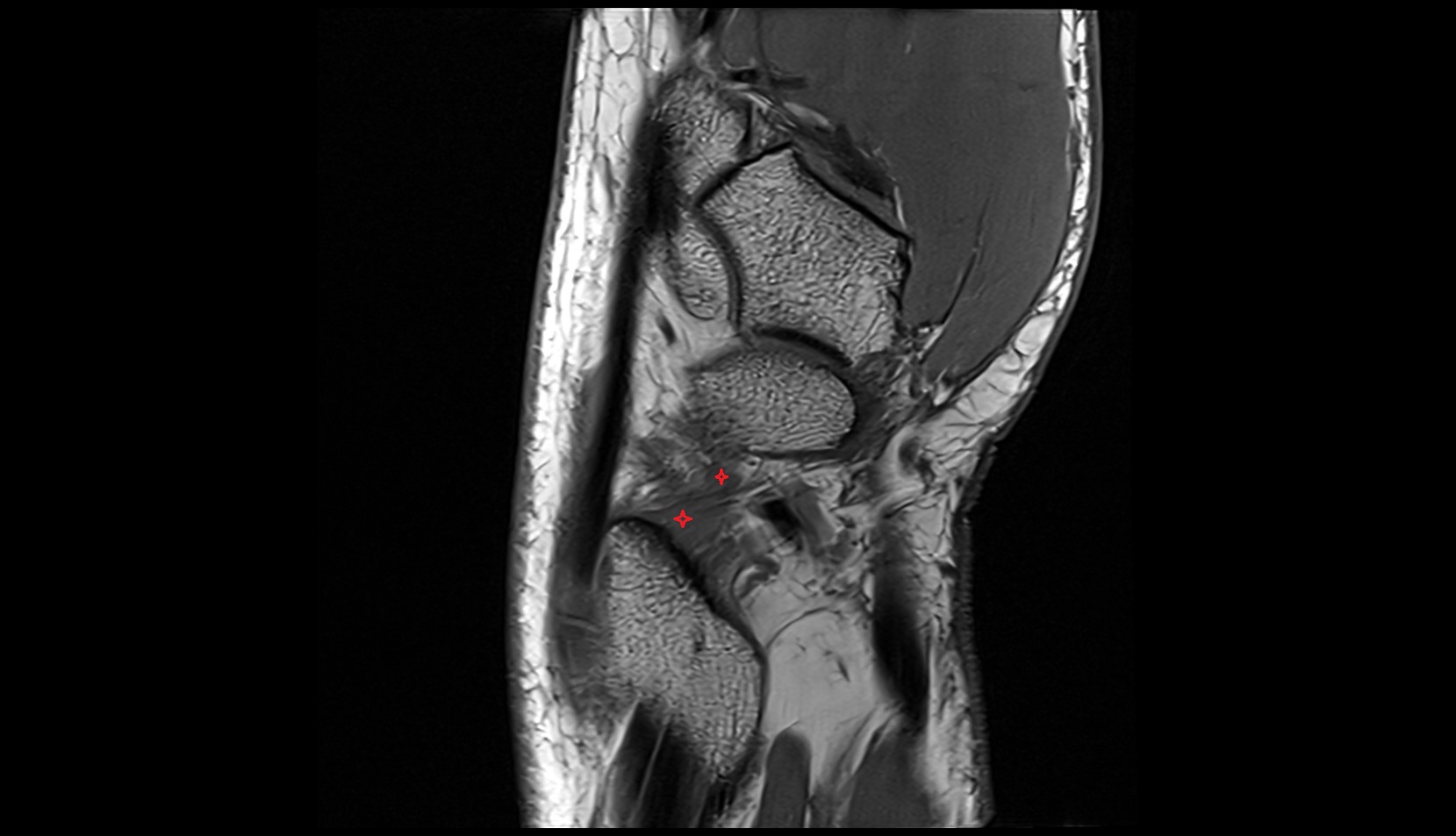

Radial collateral ligament of wrist sagittal mri image
