Right brachiocephalic vein

The right brachiocephalic vein, also known as the right innominate vein, is a large central thoracic vein formed by the confluence of the right internal jugular vein and the right subclavian vein at the level of the right sternoclavicular joint. It courses obliquely downward and medially, posterior to the right sternoclavicular joint and first costal cartilage, to join the left brachiocephalic vein, forming the superior vena cava (SVC).

The right brachiocephalic vein is shorter (approximately 2–3 cm) and more vertical than the left, due to its proximity to the SVC. It lies anterior to the brachiocephalic artery and posterior to the thymus and sternum.

Clinically, it is important as a major route for central venous access, pacemaker leads, dialysis catheters, and chemotherapy ports, and it can be involved in SVC syndrome, thrombosis, extrinsic compression, and congenital venous anomalies.

Synonyms

  • Right innominate vein

  • Vena brachiocephalica dextra

Function

  • Returns deoxygenated blood from the right head, neck, and upper limb to the SVC

  • Serves as a conduit for central venous catheters and pacing leads

  • Provides collateral venous drainage pathways during SVC obstruction

  • Landmark for thoracic imaging and surgical approaches

Tributaries

  • Right internal jugular vein

  • Right subclavian vein

  • Right vertebral vein

  • Right internal thoracic vein

  • Right inferior thyroid vein

  • First right posterior intercostal vein

MRI Appearance

T1-weighted images:

  • Appears as a signal void (black lumen) due to flowing venous blood

  • Surrounded by mediastinal fat and thymic remnants (in younger patients)

T2-weighted images:

  • Lumen remains a signal void

  • Thrombus may appear intermediate-to-high signal depending on clot age

STIR:

  • Suppresses fat signal, highlighting the venous lumen course

  • Useful in detecting perivascular edema, inflammation, or tumor infiltration

T1 Post-Gadolinium (MR Venography):

  • Enhances brightly and homogeneously, delineating confluence with SVC

  • Filling defects correspond to thrombosis, stenosis, or intraluminal mass

  • Useful in SVC syndrome mapping and venous catheter evaluation

MRI Non-Contrast Cardiac-Gated 3D Imaging:

  • Demonstrates the short vertical course of the right brachiocephalic vein joining the left vein to form the SVC

  • Helpful in patients with renal insufficiency or contrast contraindications

CT Appearance

CT Post-Contrast (CT Venography):

  • Vein enhances brightly, showing its course behind the right sternoclavicular joint into the SVC

  • Multiplanar and 3D reconstructions demonstrate tributaries and anatomic relationships

  • Detects thrombosis, catheter-related complications, extrinsic compression (e.g., mediastinal masses, thyroid enlargement), and collateral venous pathways

  • Crucial for staging thoracic malignancies and planning interventional procedures

CT image

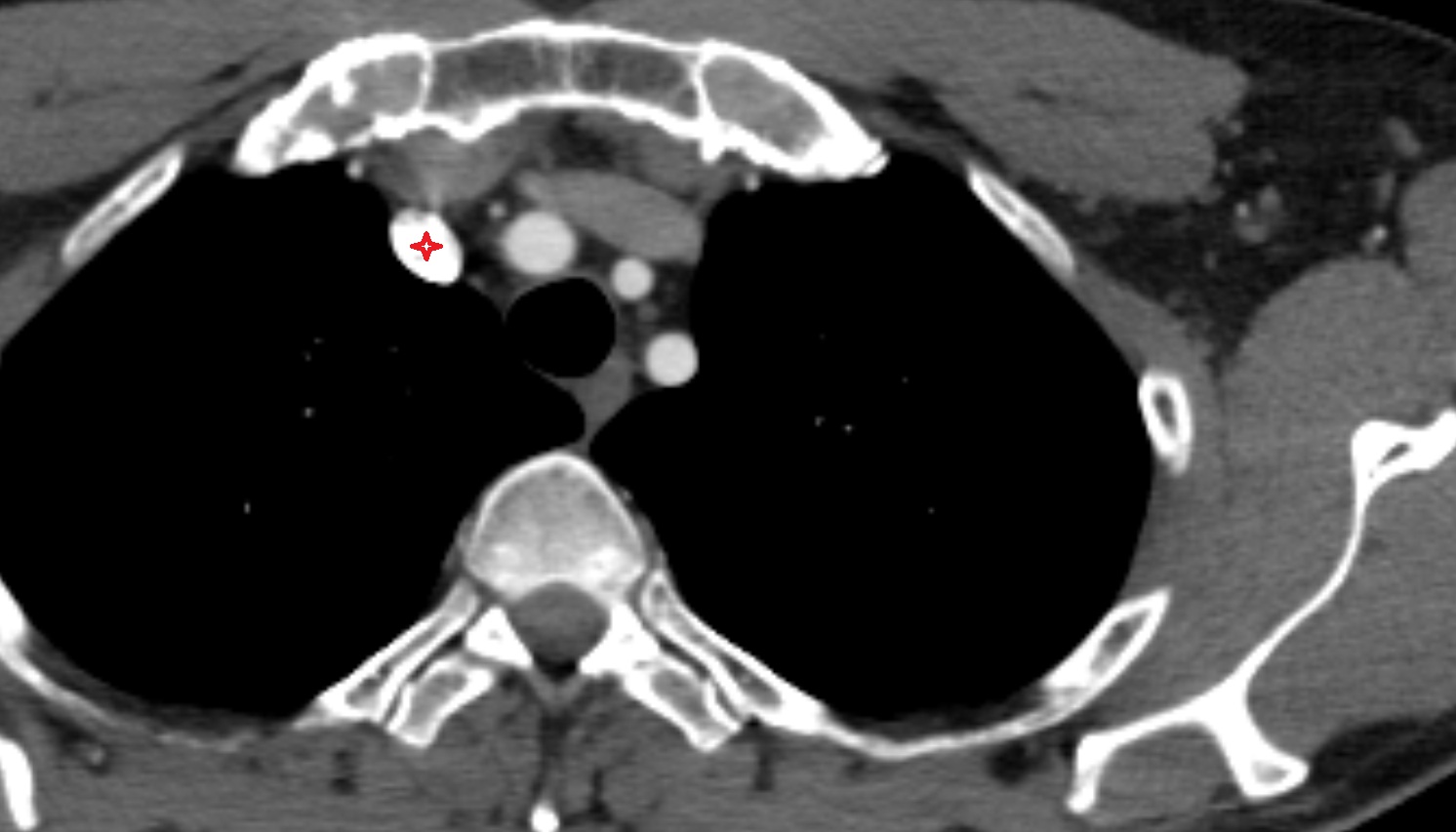

Right brachiocephalic vein anatomy CT axial image -img-00000-00000

CT image

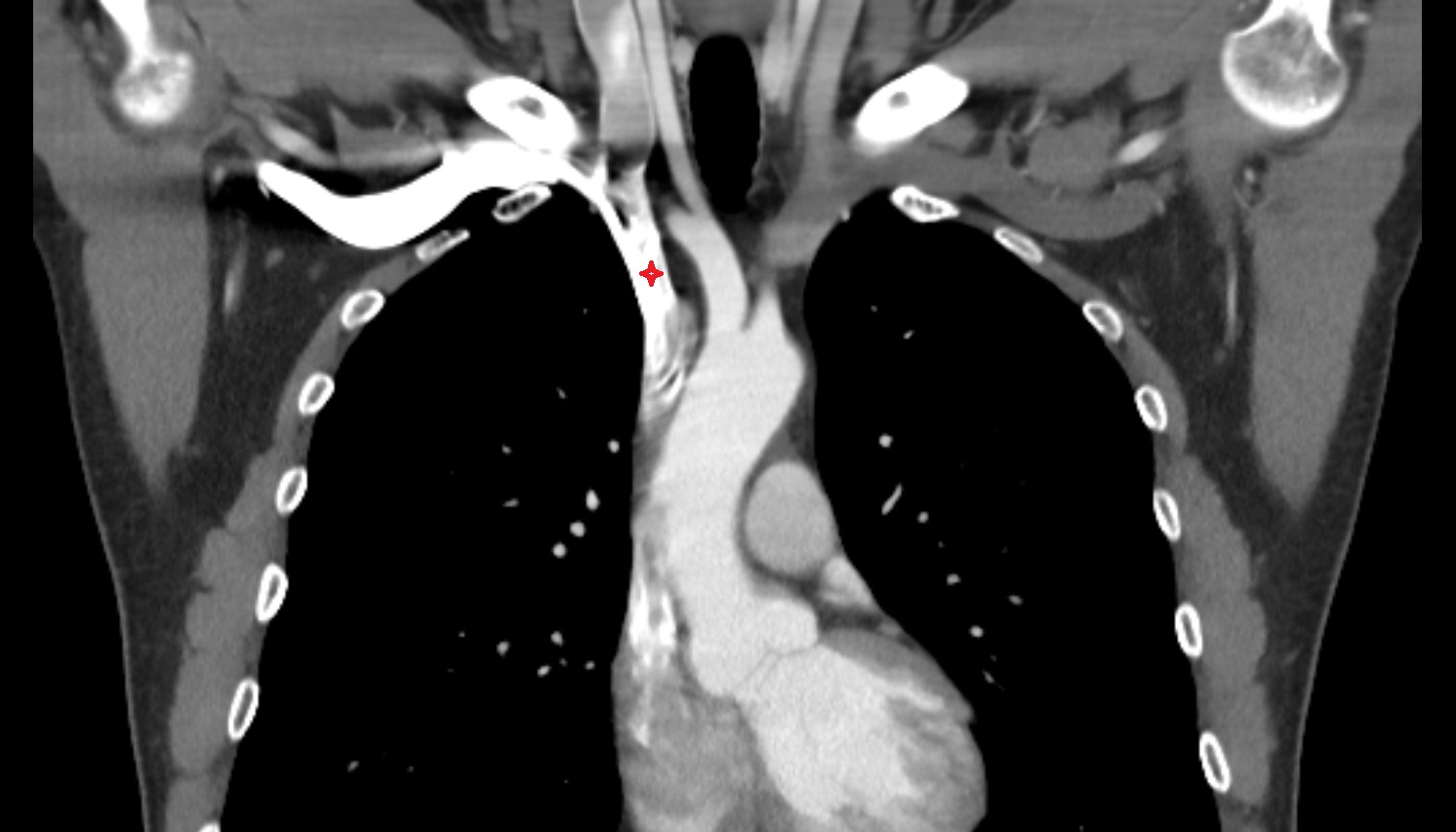

Right brachiocephalic vein anatomy ct coronal image -img-00000-00000
