Right renal vein

The right renal vein (RRV) is a large venous trunk that drains deoxygenated blood from the right kidney into the inferior vena cava (IVC). It is usually shorter and wider than the left renal vein, measuring approximately 2–3 cm in length.

It emerges from the renal hilum anterior to the renal artery, courses almost horizontally, and empties into the IVC at the level of L1–L2 vertebral bodies. Because the IVC lies closer to the right kidney, the RRV has a much shorter course compared to the left renal vein.

The RRV typically receives tributaries from the anterior and posterior divisions of the renal hilum, along with smaller veins such as the right adrenal vein, right gonadal vein (testicular or ovarian), and capsular veins.

Relations

  • Anterior: Duodenum (2nd part), head of pancreas

  • Posterior: Right renal artery

  • Superior: Right adrenal gland and adrenal vein

  • Inferior: Right gonadal vessels
    These relations are important in surgical approaches and cross-sectional imaging interpretation.

Variants

  • Multiple right renal veins: Common, with two or more veins draining separately into IVC

  • Retroaortic or circumaortic course: Less frequent than on the left, but reported

  • Direct drainage of segmental veins into IVC without forming a single trunk
    These variants are particularly significant in renal transplantation, nephrectomy, and venous interventions.

Function

  • Main venous outflow of the right kidney into the IVC

  • Drains associated tributaries including right adrenal vein, right gonadal vein, and capsular veins

  • Plays a role in renal hemodynamics and pressure regulation

MRI Appearance

T1-weighted images:

  • RRV lumen appears as a flow void (black signal)

  • Surrounded by hyperintense perivascular fat, aiding delineation

T2-weighted images:

  • Lumen is seen as a signal void

  • Intraluminal thrombus appears intermediate-to-high signal depending on clot age

STIR:

  • Suppresses fat, accentuating the vessel against abdominal fat planes

  • Highlights perivascular edema or inflammatory change

T1 Fat-Saturated (Pre-contrast):

  • Lumen usually shows intermediate signal, contrasting well against suppressed fat background

T1 Fat-Saturated Post-Contrast (Gadolinium):

  • Vein enhances brightly and homogeneously in venous phase

  • Detects thrombosis, extrinsic compression, or collateral veins

MRV (Magnetic Resonance Venography):

  • Maps the RRV origin, tributaries, and drainage into IVC

  • Identifies variants, thrombosis, or extrinsic compression

  • Essential in renal transplant donor evaluation and venous obstruction studies

CT Appearance

CT Pre-Contrast:

  • RRV visible as a soft-tissue density tubular structure anterior to renal artery

  • Can identify calcified thrombus if present

CT Post-Contrast:

  • Enhances with venous phase contrast, appearing as a bright vessel draining into IVC

  • Demonstrates tributary veins, compression, or pathology (e.g., renal vein thrombosis)

CTV (CT Venography):

  • Gold standard for non-invasive mapping of RRV and its variants

  • Provides 3D reconstructions showing the drainage into IVC, tributaries, and anomalies

  • Critical in renal surgery, transplantation, and venous stent planning

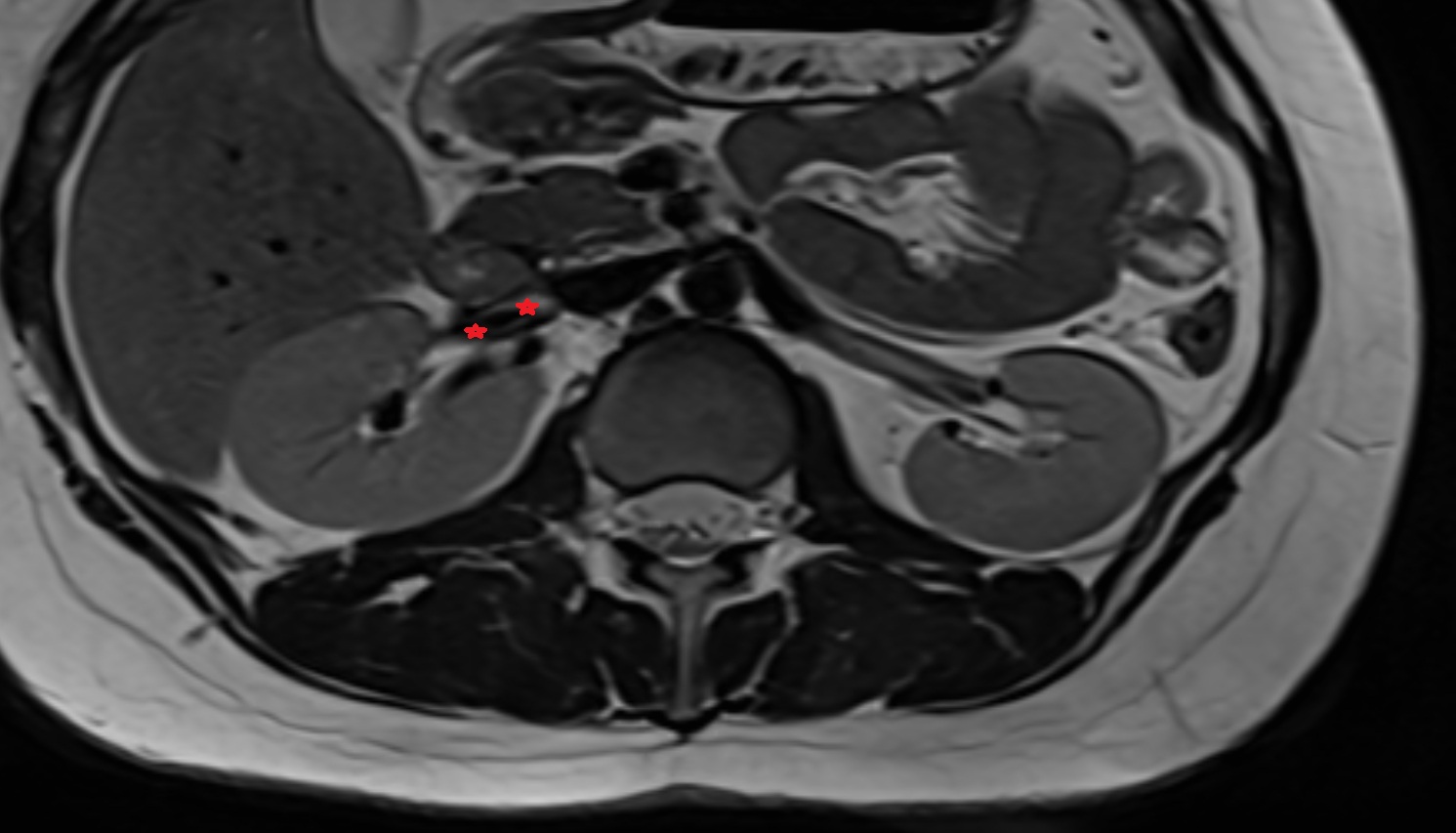

MRI image

Right renal vein MRI AXIAL image anatomy image -img-00000-00000

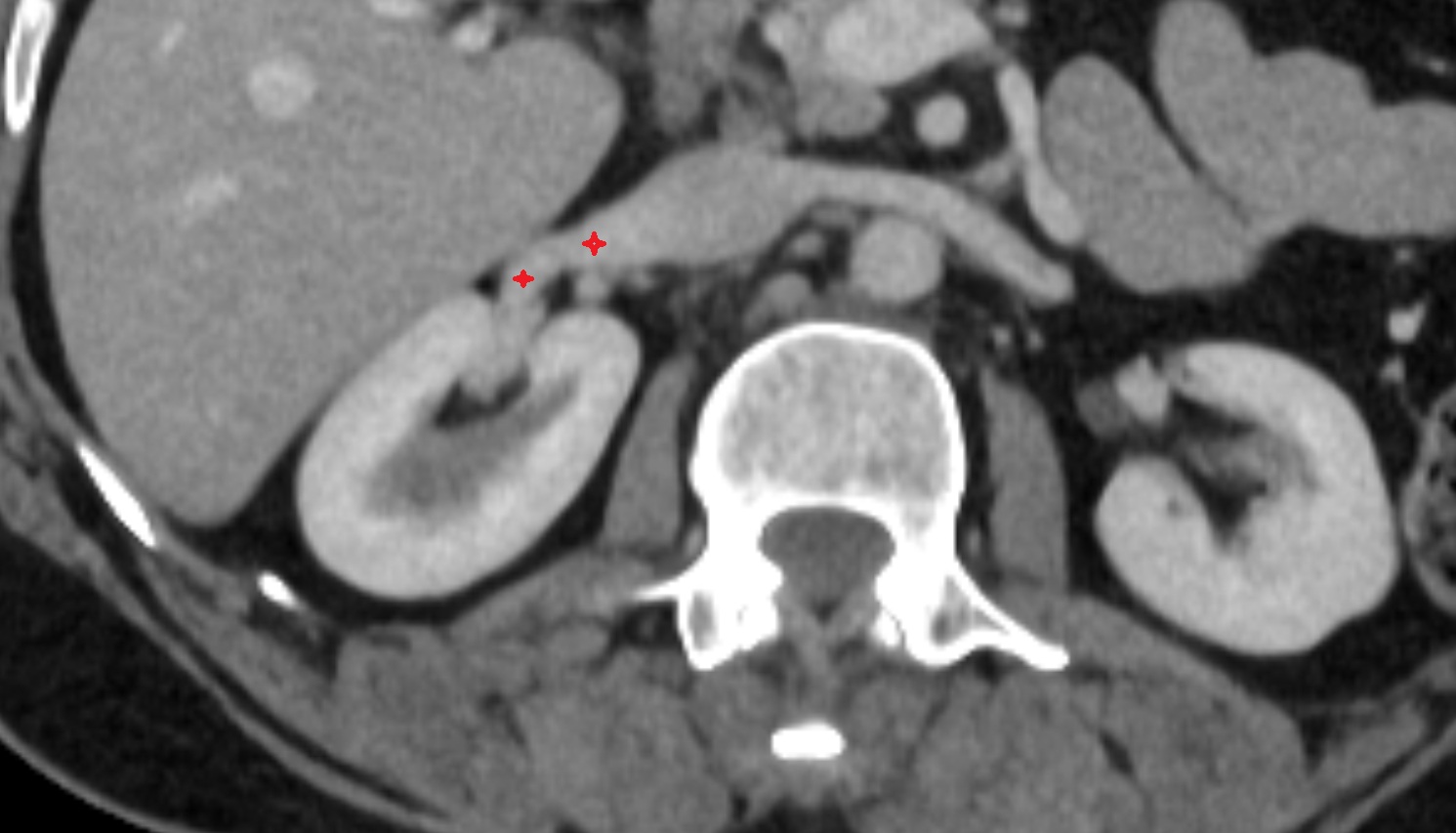

CT image

Right renal vein CT AXIAL image anatomy image -img-00000-00000
