Semicircular Canals

The semicircular canals are three thin, curved, bony tubes located within the inner ear, forming part of the vestibular system responsible for maintaining balance and spatial orientation. Arranged at right angles to each other (anterior, posterior, and lateral canals), they detect rotational movements of the head through fluid displacement within their lumens, transmitting signals to the brain for equilibrium and coordinated motion. The semicircular canals are housed within the dense petrous portion of the temporal bone and are essential in diagnosing vestibular disorders via advanced imaging modalities.

Synonyms

  • Semicircular ducts (referring to the membranous structure within the bony canals)

  • Vestibular canals

  • Bony semicircular canals

  • Labyrinthine canals

Function

  • Detect rotational or angular acceleration of the head (dynamic equilibrium)

  • Contribute to vestibulo-ocular reflexes, stabilizing vision during head movement

  • Provide input to the brain regarding balance and spatial orientation

  • Each canal is oriented in a different plane, allowing detection of movement in all three-dimensional axes

MRI Appearance

  • 3D T2-weighted Imaging:

    • Semicircular canals appear as well-defined, fluid-filled, low-signal (dark) spaces encased by a thin, high-signal (bright) bony outline.

    • The lumen of the canal shows high signal intensity due to the presence of endolymph.

    • The bony labyrinth, including semicircular canals, is sharply demarcated from adjacent structures.

  • T1-weighted Imaging:

    • Semicircular canals are less conspicuous; the fluid within appears low signal (dark), and the surrounding bone appears even darker.

    • The overall contrast is lower than on T2; however, AI-enhanced T1 may provide improved differentiation from neighboring vascular or neural structures.

    • Useful in assessing lesions with abnormal enhancement post-contrast.

CT Appearance

  • Semicircular canals are visualized as thin, curvilinear, bony structures forming three distinct arcs within the petrous temporal bone.

  • The dense bone appears hyperdense (white), outlining the semicircular canals.

  • The lumen is not directly visualized unless there is abnormal bone loss or dehiscence.

  • High-resolution temporal bone CT provides exquisite detail of bony margins, essential for diagnosing canal dehiscence, fractures, or congenital anomalies.

  • CT is superior for evaluating osseous integrity, while MRI is better for soft tissue and membranous detail.

MRI images

semicircular canals MRI 3T axial image

MRI images

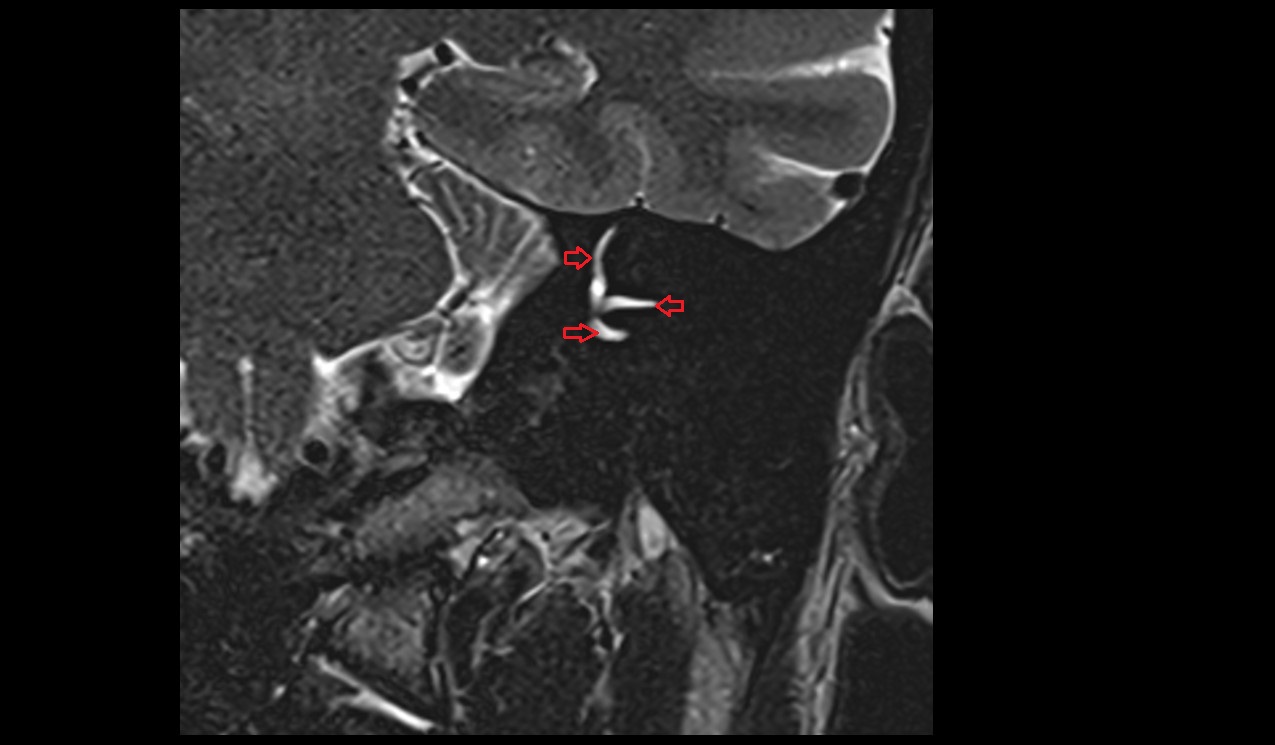

semicircular canals MRI 3T coronal image

MRI images

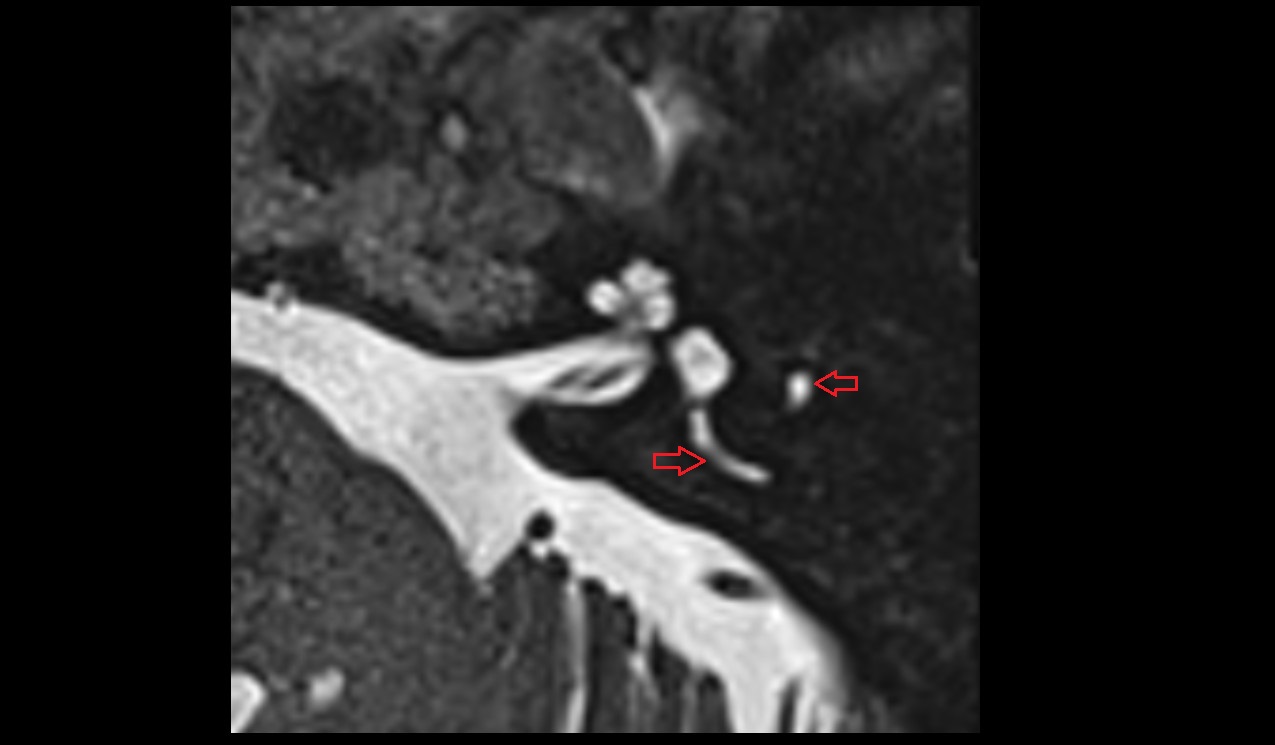

semicircular canals MRI 3T image

CT image

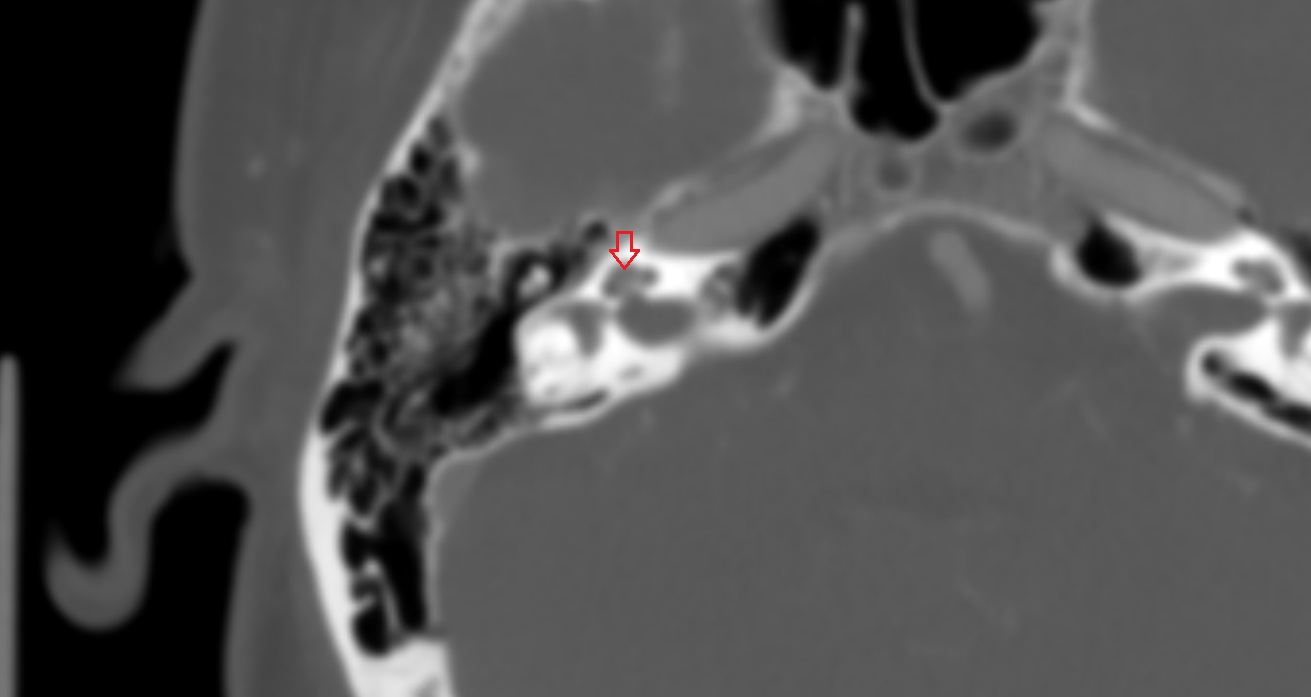

Semicircular Canals CT axial anatomy image -img-00001-00001
