Sphenoparietal sinus

The sphenoparietal sinus is a small dural venous sinus located along the lesser wing of the sphenoid, draining venous blood from the superficial middle cerebral vein and adjacent dura. It courses medially along the sphenoid ridge before emptying into the cavernous sinus.

Although historically described as a distinct sinus, modern anatomical and radiologic studies show that it is a venous channel formed by a confluence of small meningeal and cerebral veins rather than a large, uniform sinus. Its variability is clinically significant in skull base surgery, cavernous sinus approaches, and venous drainage mapping.

Synonyms

  • Spheno-parietal sinus

  • Sinus of the sphenoid ridge

  • Sphenoid ridge venous channel

Location and Structure

  • Position: Runs along the posterior surface of the lesser wing of the sphenoid, forming part of the anterior portion of the middle cranial fossa dural venous drainage.

  • Structure: Small, thin-walled venous sinus formed by the merging of meningeal veins and the superficial middle cerebral vein (in some cases).

  • Variability: May be diminutive, duplicated, or absent, with alternative drainage into the cavernous sinus or pterygoid plexus.

Course

  • Begins near the junction of parietal and sphenoid bones, receiving tributaries from dura and superficial middle cerebral region.

  • Runs medially along the sphenoid ridge, closely applied to the lesser wing.

  • Terminates by draining into the cavernous sinus, usually at its superolateral margin.

Relations

  • Superiorly: Inferior surface of frontal lobe

  • Inferiorly: Lesser wing of sphenoid and roof of orbit

  • Medially: Cavernous sinus

  • Laterally: Middle cranial fossa dura and superficial middle cerebral vein

  • Anteriorly: Sphenoidal ridge and orbital roof

  • Posteriorly: Middle cranial fossa venous channels

Function

  • Venous drainage: Drains superficial middle cerebral veins, meningeal veins, and small dural channels toward the cavernous sinus.

  • Collateral pathway: Provides accessory venous drainage when primary cerebral venous routes are compromised.

  • Pressure regulation: Supports venous pressure equalization within anterior cranial fossa.

Clinical Significance

  • Surgical landmark: Important in skull base and pterional craniotomy; inadvertent injury may cause venous bleeding.

  • Tumor involvement: Meningiomas along sphenoid ridge may incorporate or compress this venous channel.

  • Thrombosis: Rare but may appear as filling defect on contrast imaging, potentially leading to venous congestion.

  • Anatomical variation: Critical to interpret accurately on imaging to avoid misdiagnosing small sinuses, emissary veins, or enlarged meningeal veins.

  • Cavernous sinus disease: Acts as a potential route of spread for infection or tumor into cavernous sinus.

MRI Appearance

T1-weighted images:

  • Normal sinus: Low intraluminal signal (flow void)

  • Venous walls: Thin and may be indistinct

  • Thrombosis:

    • Subacute stage may show intermediate-to-high signal due to methemoglobin

    • Enlargement of the sinus with loss of normal flow void

T2-weighted images:

  • Normal: Low signal flow void representing fast venous flow

  • Thrombus:

    • Variable signal; often heterogeneous bright signal in partial thrombosis

    • Perisinus dural thickening may appear intermediate-to-bright

FLAIR:

  • Normal sinus: Dark (flow void)

  • Thrombosis or slow flow: Intermediate-to-bright signal

  • Adjacent brain edema from venous congestion appears hyperintense

T1 Fat-Sat Post-Contrast:

  • Normal:

    • Lumen enhances brightly and uniformly with contrast

    • Thin linear enhancement of the dural margins

  • Abnormal:

    • Filling defects indicating thrombus

    • Dural enhancement in infection or inflammation

    • Mass effect from adjacent tumors (meningioma, metastasis) causing displacement

CT Appearance

Non-Contrast CT:

  • Normal sphenoparietal sinus is difficult to visualize, seen only as a small linear low-attenuation venous channel along the sphenoid ridge

  • Calcifications from adjacent sphenoid ridge meningioma may obscure margins

  • Acute thrombosis may appear as hyperdense sinus

Post-Contrast CT:

  • Normal: Enhanced contrast-filled venous channel along the sphenoid ridge draining into cavernous sinus

  • Abnormal:

    • Non-enhancing filling defects in thrombosis

    • Dural-based enhancing mass (meningioma) compressing or invading the sinus

    • Asymmetric enhancement due to altered venous flow or stenosis

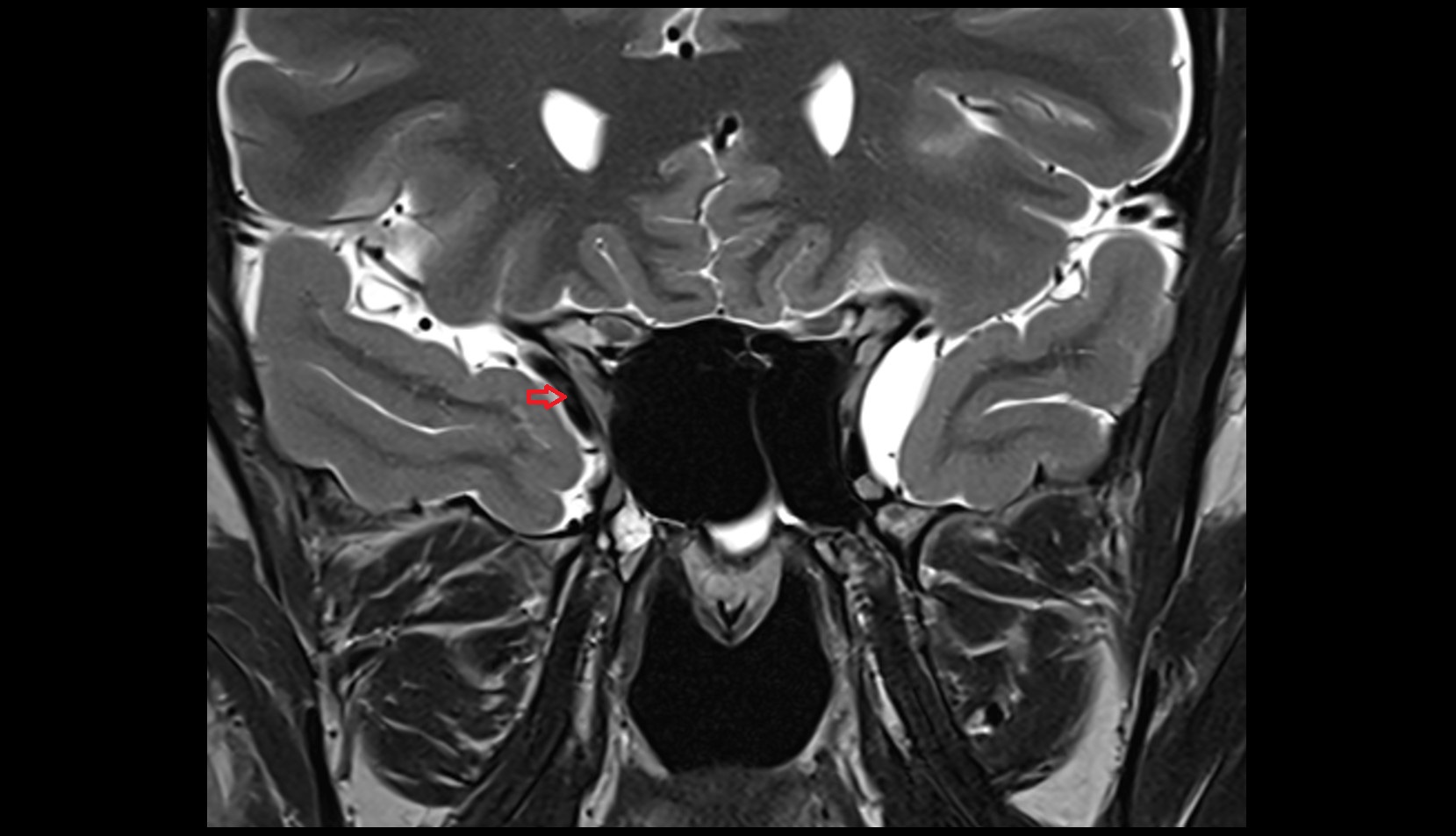

MRI images

Sphenoparietal sinus
