Spinous process of vertebra

The spinous process is a posteriorly projecting bony prominence arising from the junction of the two laminae of a vertebra. It forms the most palpable posterior element of the vertebra and serves as a critical site for muscle and ligament attachment, including the trapezius, rhomboids, erector spinae, and interspinous and supraspinous ligaments.

Spinous processes vary depending on spinal level: cervical spinous processes are bifid and short, thoracic are long and downward-sloping, and lumbar are broad, thick, and horizontal, reflecting their load-bearing and mechanical function. The spinous process contributes to posterior spinal stability, acts as a lever for muscle action, and serves as an important surgical landmark.

Function

  • Provides attachment sites for muscles and ligaments controlling spinal motion

  • Acts as a lever for paraspinal muscle action, aiding posture and movement

  • Contributes to posterior spinal stability

  • Serves as a palpable landmark for clinical examination and spinal surgery

Synonyms

  • Vertebral spinous process

  • Posterior vertebral projection

  • Spinal process

MRI Appearance

T1-weighted images:

  • Cortical bone of the spinous process appears low signal (hypointense)

  • Internal marrow shows intermediate to high signal intensity depending on fat content

  • Pathological changes such as fractures, marrow infiltration, or tumors alter marrow signal and cortical definition

T2-weighted images:

  • Cortical bone remains low signal (hypointense)

  • Marrow shows intermediate signal, while edema or lesions may increase T2 signal

  • Useful for detecting fractures, marrow pathology, or degenerative changes

STIR (Short Tau Inversion Recovery):

  • Cortical bone remains low signal

  • Marrow edema or acute injury appears hyperintense, highlighting acute fractures, inflammation, or infection

T1 Post-Contrast (Gadolinium-enhanced):

  • Normal spinous process marrow may show mild homogeneous enhancement of vascularized periosteum

  • Pathological marrow (tumor, infection, inflammation) demonstrates focal or diffuse enhancement, distinguishing abnormal marrow from normal fatty marrow

CT Appearance:

  • The spinous process is seen as hyperdense cortical bone with slightly lower-density trabecular marrow

  • Axial, sagittal, and coronal reconstructions show spinous process orientation, length, and integrity

  • Excellent for detecting fractures, lytic or sclerotic lesions, and congenital variants

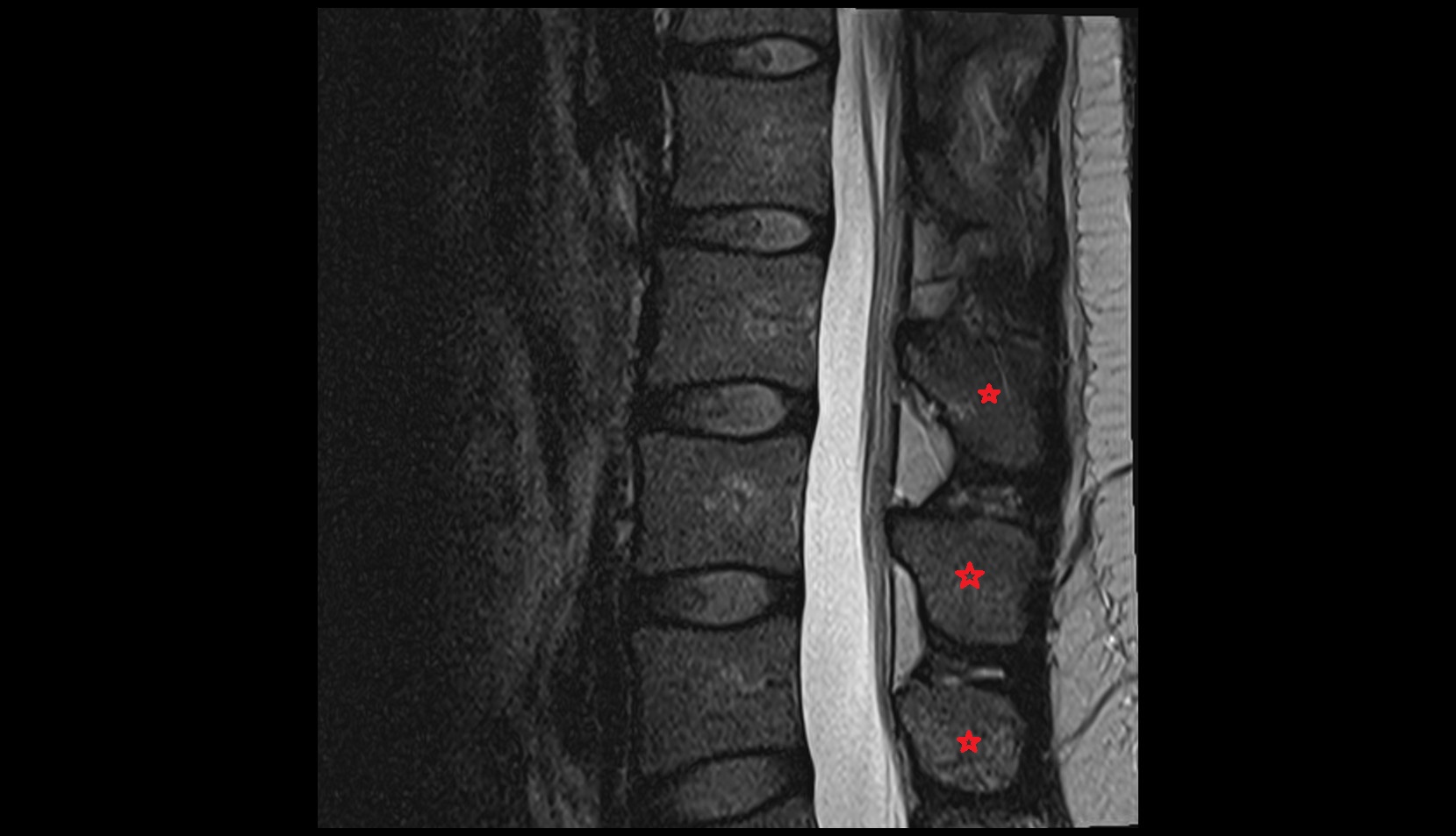

MRI images

Spinous process of vertebra mri sag image

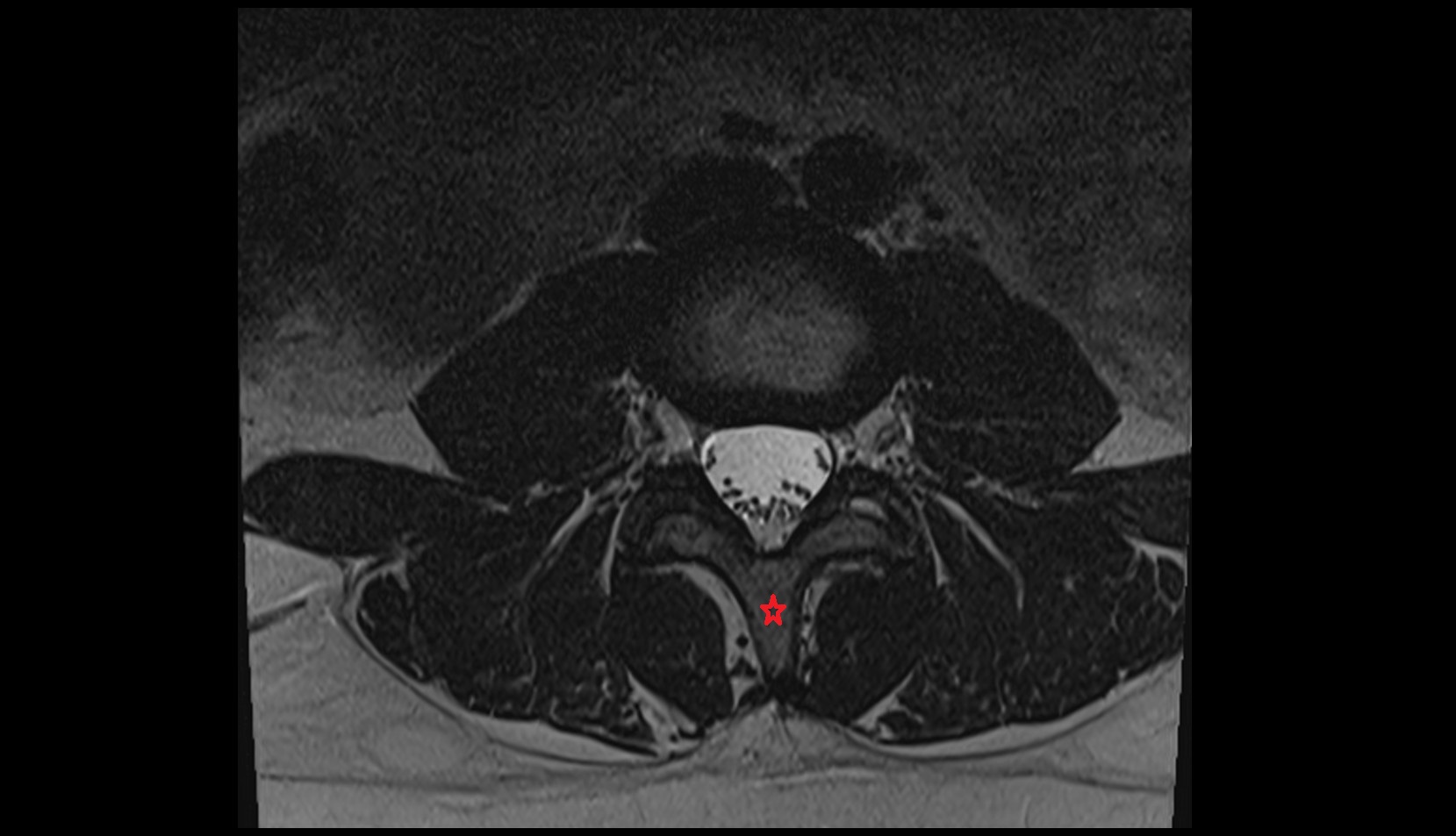

MRI images

Spinous process of vertebra mri axial image

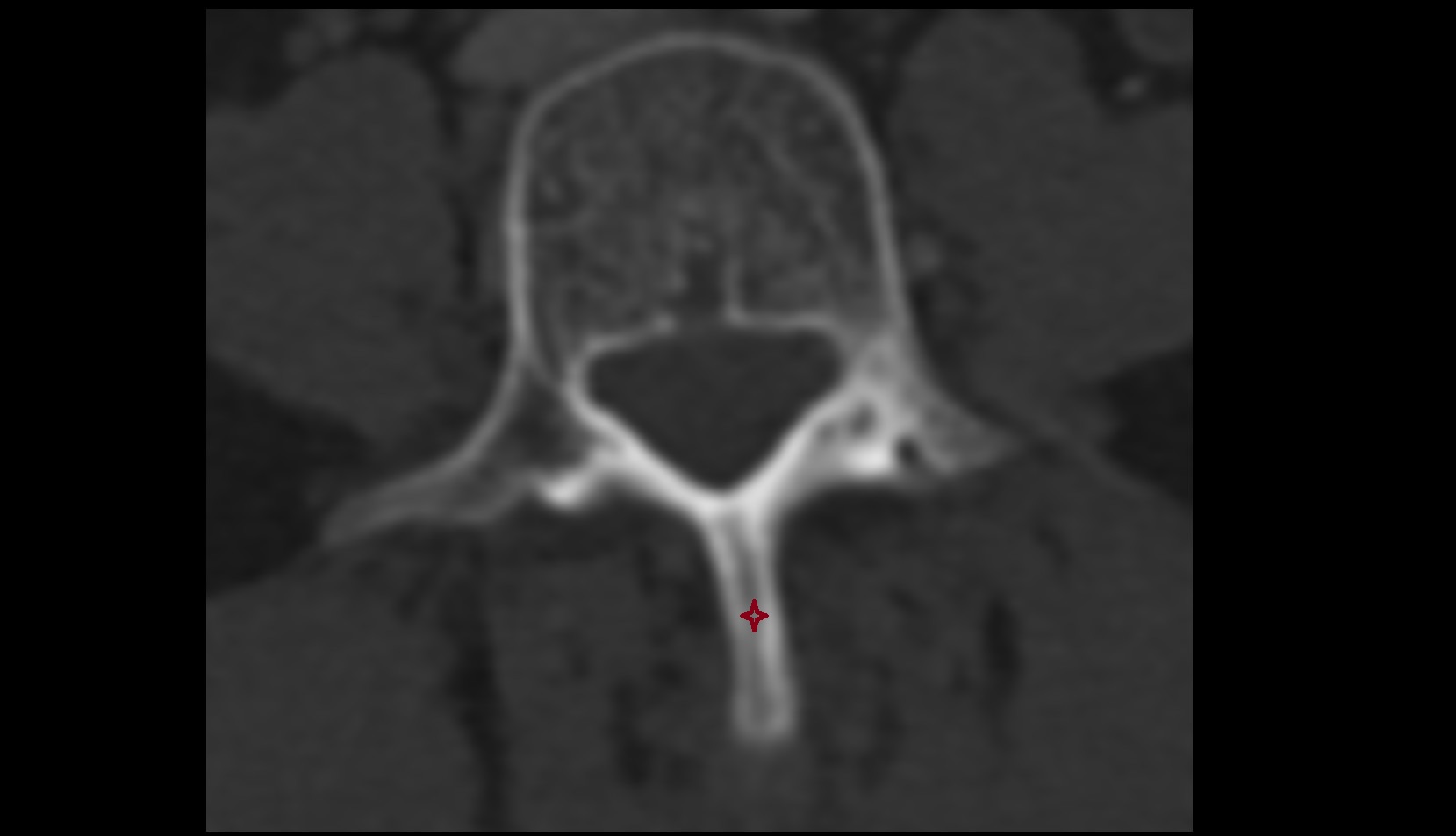

CT image

spinous process of vertebrae ct axial image

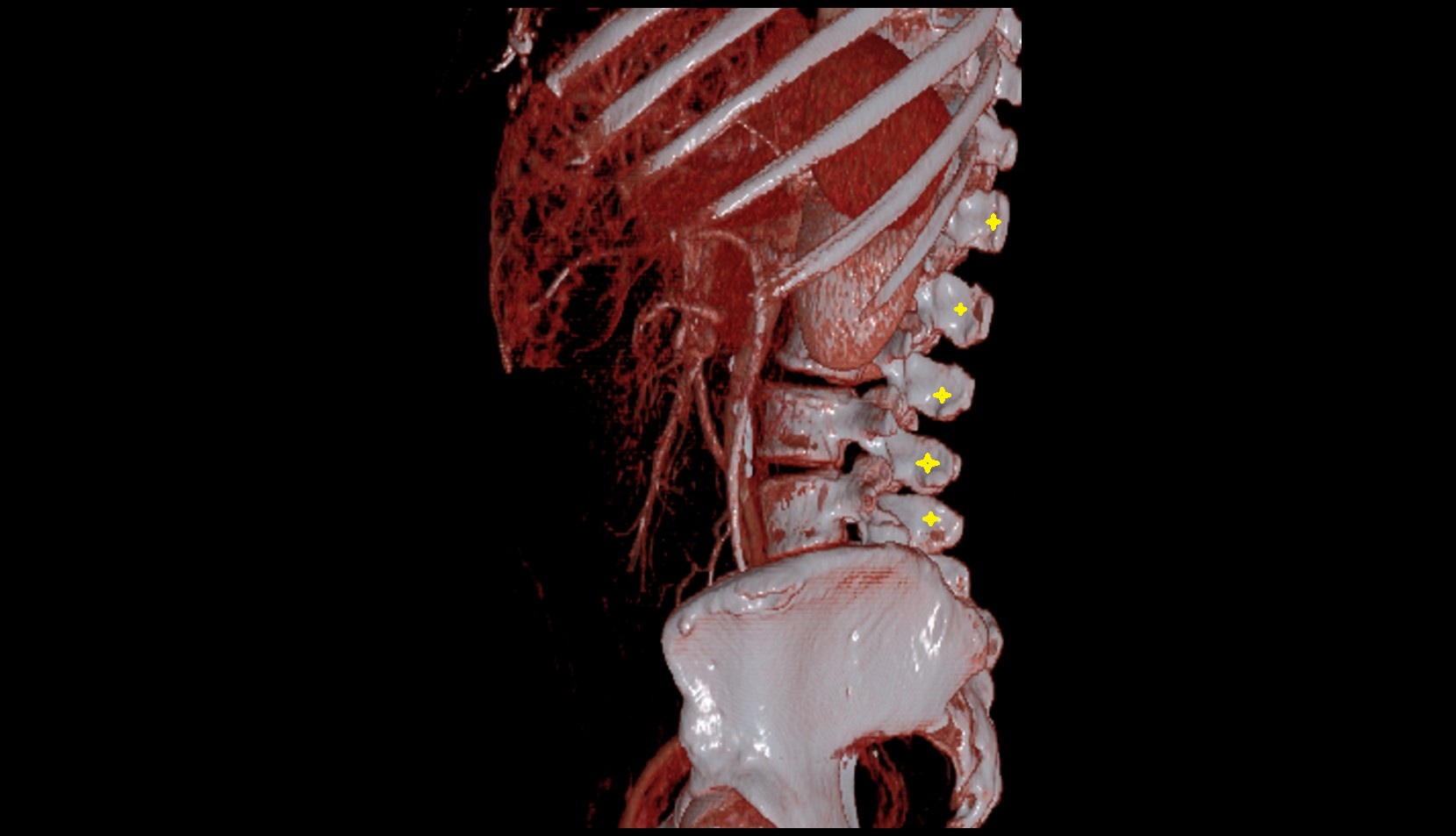

CT 3D VRT image

spinous process of vertebrae ct 3d image

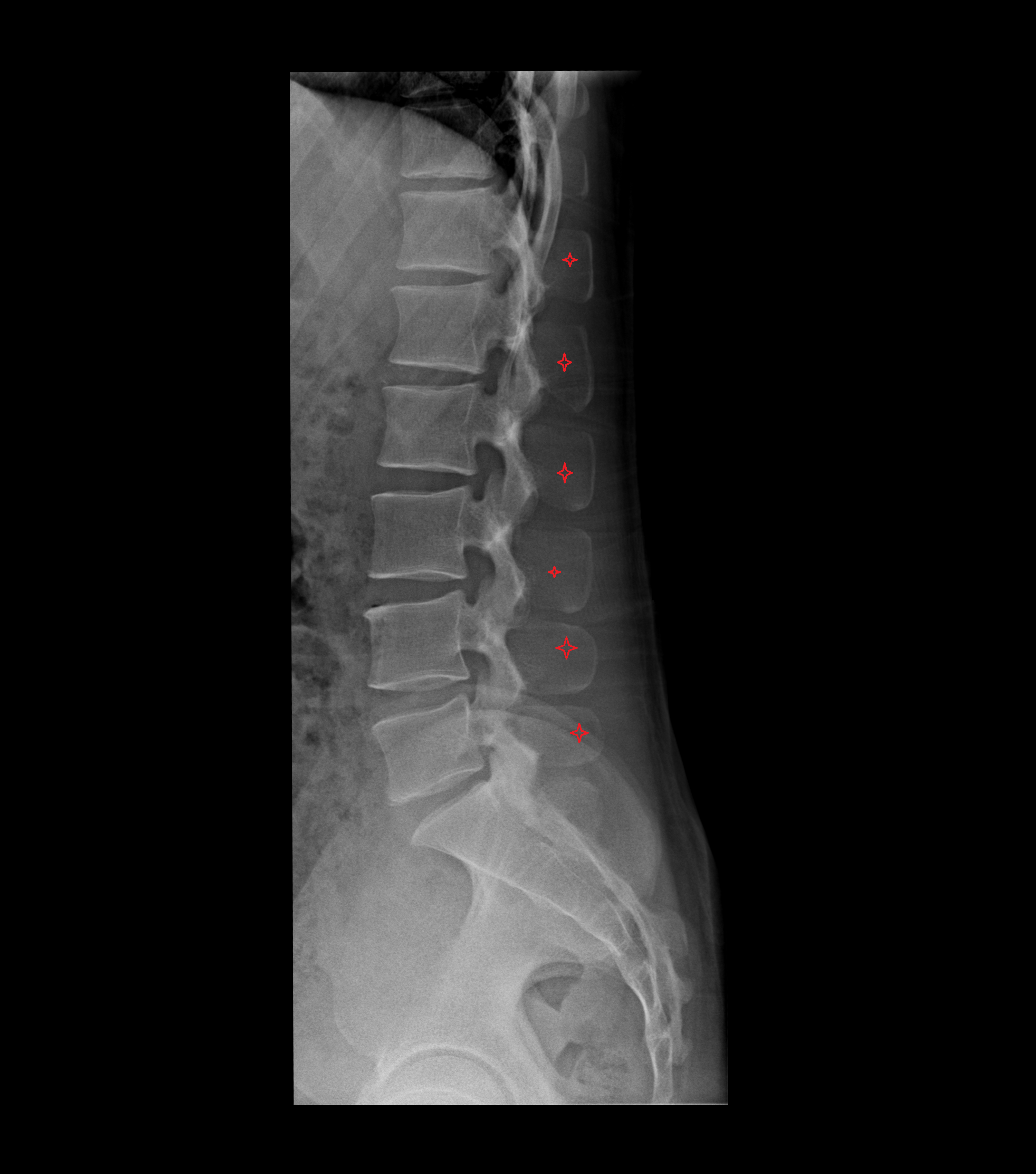

X Ray image

x ray Spinous process
