Spiral glenohumeral ligament

The spiral glenohumeral ligament is a fibrous capsular structure of the shoulder joint formed by the blending and rotational arrangement of the superior, middle, and inferior glenohumeral ligaments (SGHL, MGHL, IGHL) as they spiral around the anterior aspect of the joint capsule. It is not a distinct isolated ligament but rather a functional and morphological concept, describing how these ligamentous fibers twist and blend to provide dynamic stability to the glenohumeral joint.

This spiral configuration contributes to capsular tensioning during abduction and external rotation, acting as a restraint against anterior and inferior translation of the humeral head. It plays a critical role in maintaining shoulder stability, particularly in the mid-range of motion.

Synonyms

  • Spiral fold of the glenohumeral capsule

  • Spiral portion of the glenohumeral ligament complex

  • Capsular spiral ligament of the shoulder

Location and Structure

  • The spiral glenohumeral ligament is located on the anterior and inferior aspect of the glenohumeral capsule, between the glenoid rim and the anatomical neck of the humerus.

  • It represents the continuous capsuloligamentous fibers from the superior glenohumeral ligament downward to the inferior glenohumeral ligament.

  • These fibers are arranged in a helical or spiral fashion, tightening as the shoulder abducts and externally rotates.

  • The structure is most pronounced anteriorly, near the subscapularis recess and rotator interval.

Attachments

  • Glenoid attachment: Anterior margin of the glenoid labrum and adjacent glenoid neck, typically between the 2 o’clock and 6 o’clock positions (right shoulder orientation).

  • Humeral attachment: Anatomical neck of the humerus, blending with the fibers of the subscapularis tendon and joint capsule.

  • Associated structures: Merges superiorly with the SGHL and coracohumeral ligament, and inferiorly with the IGHL anterior band.

Relations

  • Anteriorly: Subscapularis tendon and muscle

  • Posteriorly: Humeral head and joint cavity

  • Superiorly: Coracohumeral ligament and SGHL

  • Inferiorly: Inferior glenohumeral ligament (anterior band)

  • Medially: Glenoid rim and labrum

  • Laterally: Capsule blending with humeral neck

Function

  • Stabilization: Provides anterior and inferior restraint during abduction and external rotation of the arm

  • Capsular tensioning: Acts as a dynamic stabilizer by tightening progressively as the arm moves into throwing positions

  • Joint congruency: Helps maintain humeral head centering within the glenoid cavity

  • Prevention of instability: Supports the anterior capsule and prevents excessive translation that could lead to subluxation or dislocation

Clinical Significance

  • Shoulder instability: Injury or attenuation of the spiral glenohumeral ligament complex contributes to anterior instability and recurrent dislocations

  • Capsular laxity: Overstretching from repetitive overhead activity may lead to multidirectional instability

  • Bankart lesions: The spiral fibers may be disrupted or avulsed from the glenoid rim in anteroinferior labral tears

  • Surgical relevance: Recognition of the spiral fiber pattern is important during arthroscopic capsular plication and repair procedures

  • Imaging relevance: Assessed on high-resolution shoulder MRI for evaluation of anterior capsulolabral complex integrity

MRI Appearance

  • T1-weighted images:

    • Ligament appears as a low-signal (dark) band blending with the anterior joint capsule.

    • Adjacent fat planes (rotator interval and subcoracoid fat) appear bright, outlining the ligament.

    • Chronic thickening or fibrosis: slightly intermediate signal within the capsular region.

  • T2-weighted images:

    • Normal ligament: dark linear structure with sharp margins.

    • Surrounding capsule: intermediate-to-dark.

    • Tears or inflammation: appear as bright hyperintense zones or discontinuities in the anterior capsule.

    • Joint effusion or synovitis: bright fluid signal outlining the ligament, improving visualization.

  • STIR:

    • Normal ligament: intermediate-to-dark.

    • Capsular edema, partial tear, or synovitis: bright hyperintensity surrounding the ligament.

    • Helps differentiate subtle capsular thickening from pericapsular inflammation.

  • Proton Density Fat-Saturated (PD FS):

    • Ligament: dark, well-defined band along anterior glenoid.

    • Pathology: bright signal in partial tears or capsular edema.

    • Ideal for detecting subtle capsulolabral disruptions and early inflammatory changes.

  • T1 Fat-Sat Post-Contrast:

    • Normal: minimal or no enhancement.

    • Inflamed capsule or ligamentous injury: shows focal or diffuse enhancement along the anterior glenoid margin.

    • Postoperative or post-traumatic capsular thickening: heterogeneous enhancement.

CT Appearance

Non-Contrast CT:

  • The ligament itself is not distinctly visualized due to its soft-tissue density.

  • Indirect signs: thickening or stranding in the anterior capsule or fat obliteration in the subscapular recess.

  • Bony anatomy (glenoid rim and humeral head) well defined for context.

Post-Contrast CT (standard):

  • Enhanced capsule may outline ligament margins.

  • Chronic injury: thickened, irregular soft-tissue band along the anterior glenoid.

  • Useful for detecting associated bony lesions, such as glenoid rim fractures or Hill-Sachs defects, which accompany ligamentous disruption.

MRI images

Spiral Glenohumeral Ligament mri axial mri image 1

MRI images

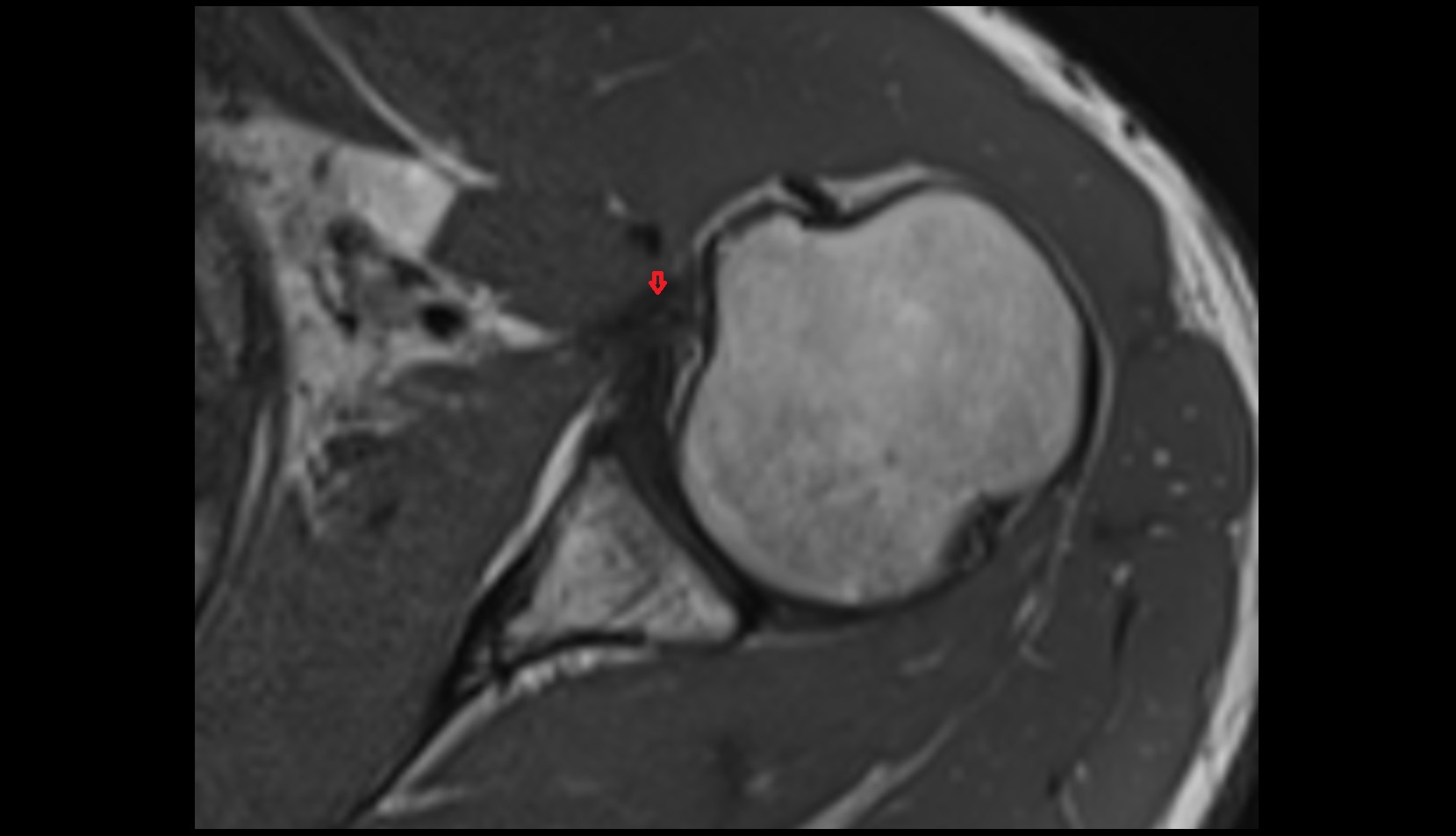

Spiral Glenohumeral Ligament mri axial mri image 2

MRI images

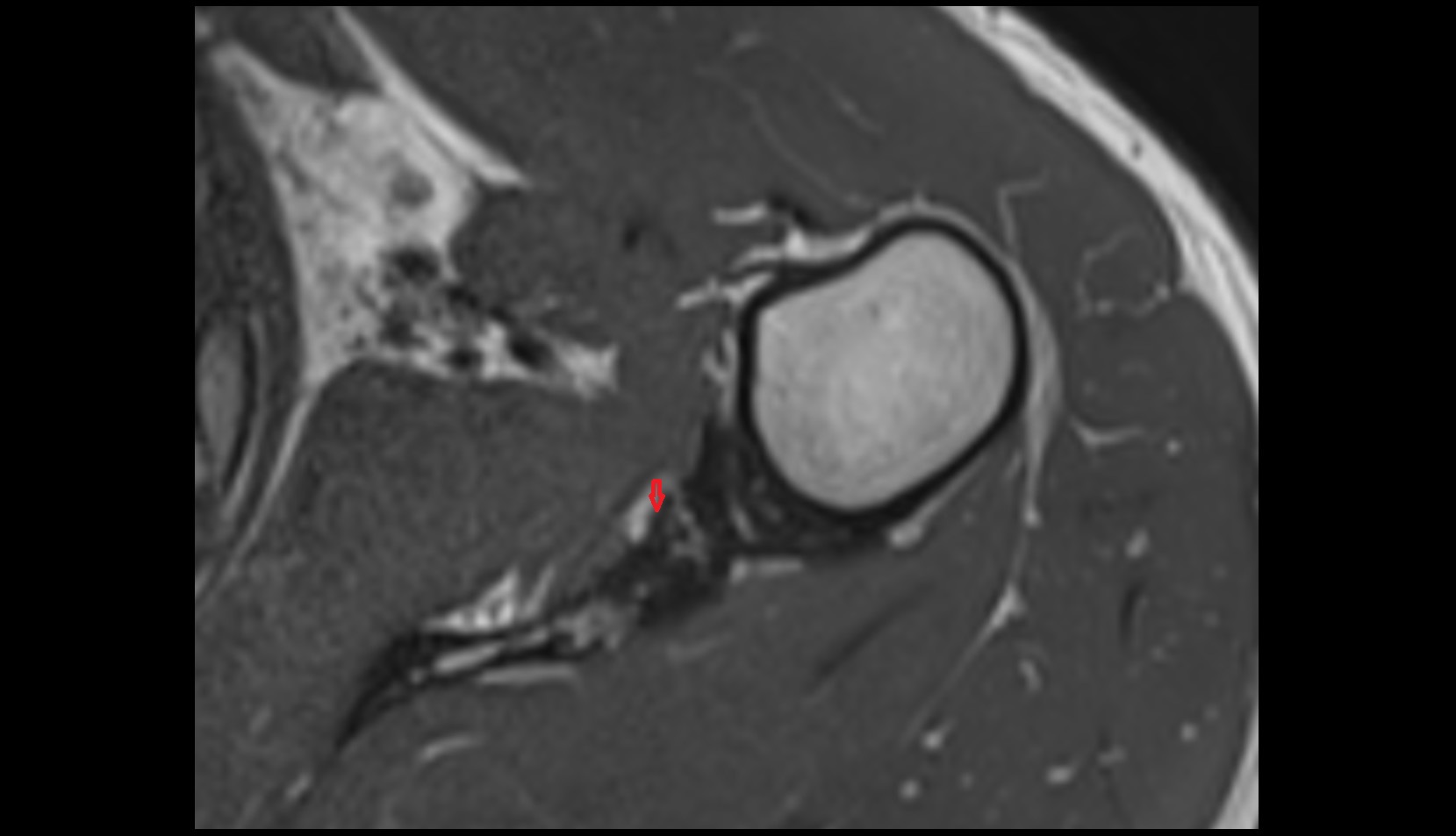

Spiral Glenohumeral Ligament mri axial mri image 3
