Superior articular process of vertebra

The superior articular process (SAP) is a bony projection arising from the junction of the pedicle and lamina of a vertebra. Each vertebra has two SAPs, one on each side, which articulate with the inferior articular processes of the vertebra above to form the zygapophyseal (facet) joints, contributing to spinal stability and controlled motion. The SAP provides attachment for ligaments and muscles, including the capsular ligament of the facet joint, and helps guide and limit vertebral movements such as flexion, extension, rotation, and lateral bending.

The orientation of the SAP varies along the spine: in the cervical spine, SAPs are posterior and slightly superior, facilitating rotation; in thoracic vertebrae, they are posterolateral, limiting flexion; in lumbar vertebrae, SAPs are medially angled, resisting rotation while allowing flexion-extension.

Function

  • Forms zygapophyseal joints with inferior articular processes of the vertebra above

  • Guides and restricts vertebral movements (flexion, extension, rotation, lateral bending)

  • Provides attachment for facet joint capsule and supporting ligaments

  • Contributes to posterior spinal stability and load transmission

  • Maintains alignment of the vertebral column

Synonyms

  • Superior articular facet process

  • Vertebral superior facet

  • SAP of vertebra

MRI Appearance

T1-weighted images:

  • SAP appears as low to intermediate signal intensity (hypointense to isointense) cortical bone

  • Internal cancellous bone shows intermediate signal, surrounded by fatty marrow hyperintense signal

  • Facet joint space is seen as low signal gap; degenerative changes may show joint narrowing or osteophytes

T2-weighted images:

  • Cortical SAP is hypointense

  • Cancellous bone shows intermediate signal

  • Facet joint fluid, if present due to degeneration or effusion, appears hyperintense

  • Useful for identifying facet joint arthropathy, edema, or stress fractures

STIR (Short Tau Inversion Recovery):

  • Cortical SAP remains low signal

  • Bone marrow edema, inflammation, or acute injury appears hyperintense, aiding detection of stress reactions, fractures, or inflammatory changes

T1 Post-Contrast (Gadolinium-enhanced):

  • Normal SAP shows minimal enhancement along the outer cortical surface or facet capsule

  • Pathological changes such as inflammatory arthropathy, infection, or neoplasm may show marked enhancement

CT Appearance:

  • SAP appears as a hyperdense cortical bony projection from the junction of the pedicle and lamina

  • Cancellous bone shows slightly lower density

  • Facet joint space is well delineated, and osteophytes, sclerosis, or congenital anomalies are easily visualized

  • Axial and sagittal reconstructions clearly show the orientation, articulation, and integrity of the SAP

MRI images

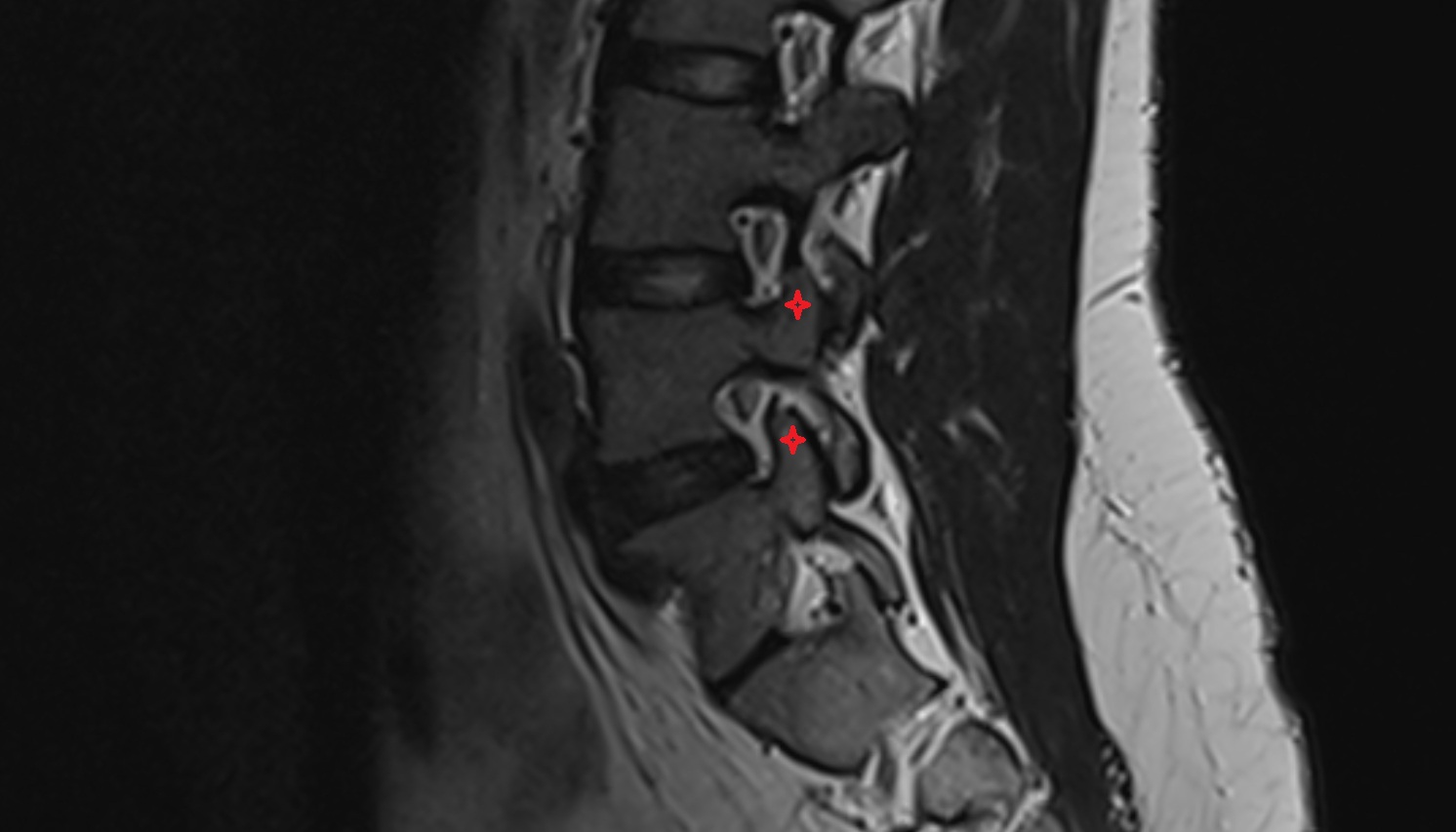

Superior articular process of vertebra mri sag image -img-00000-00000

MRI images

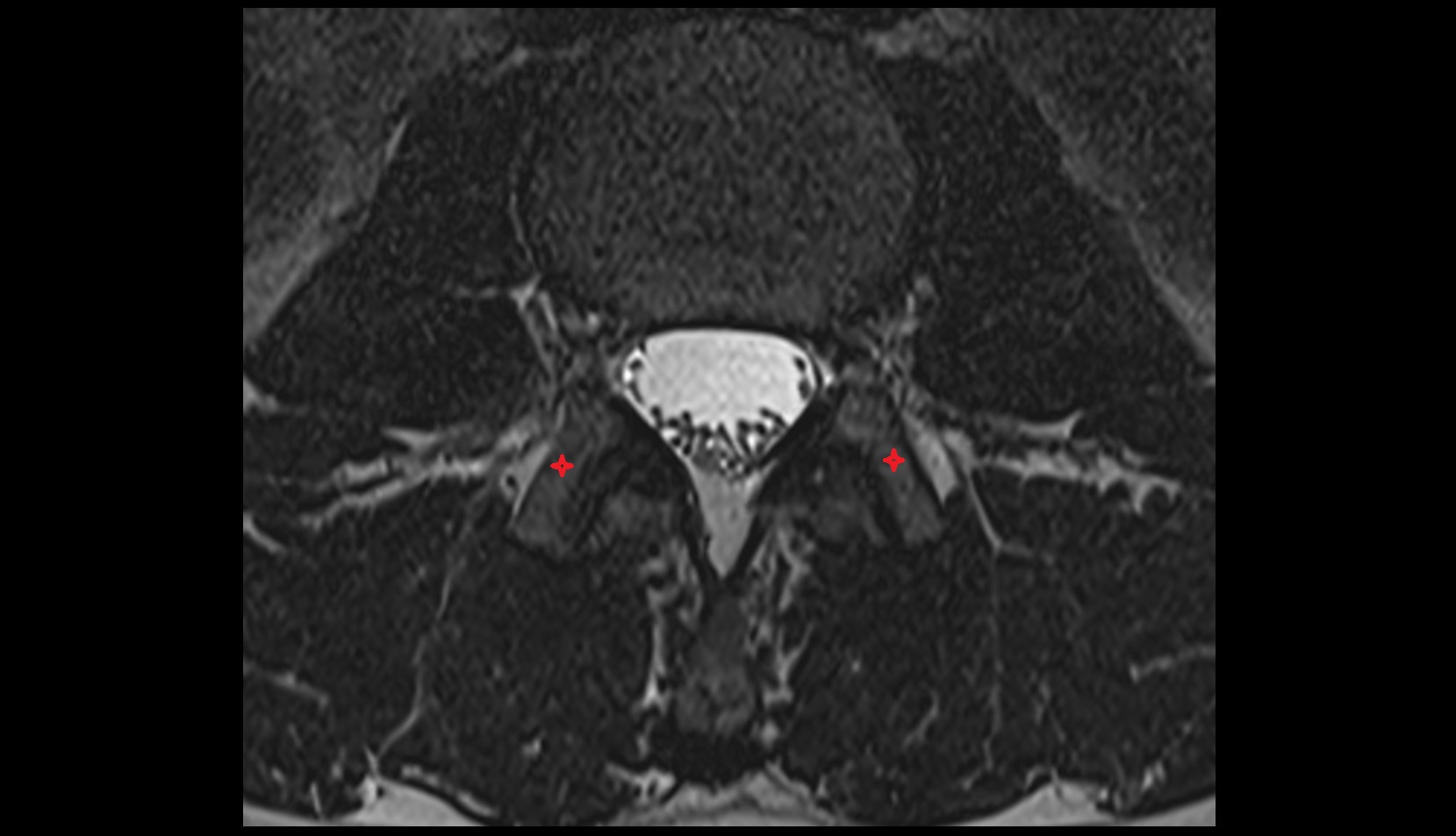

Superior articular process of vertebra mri axial image

CT image

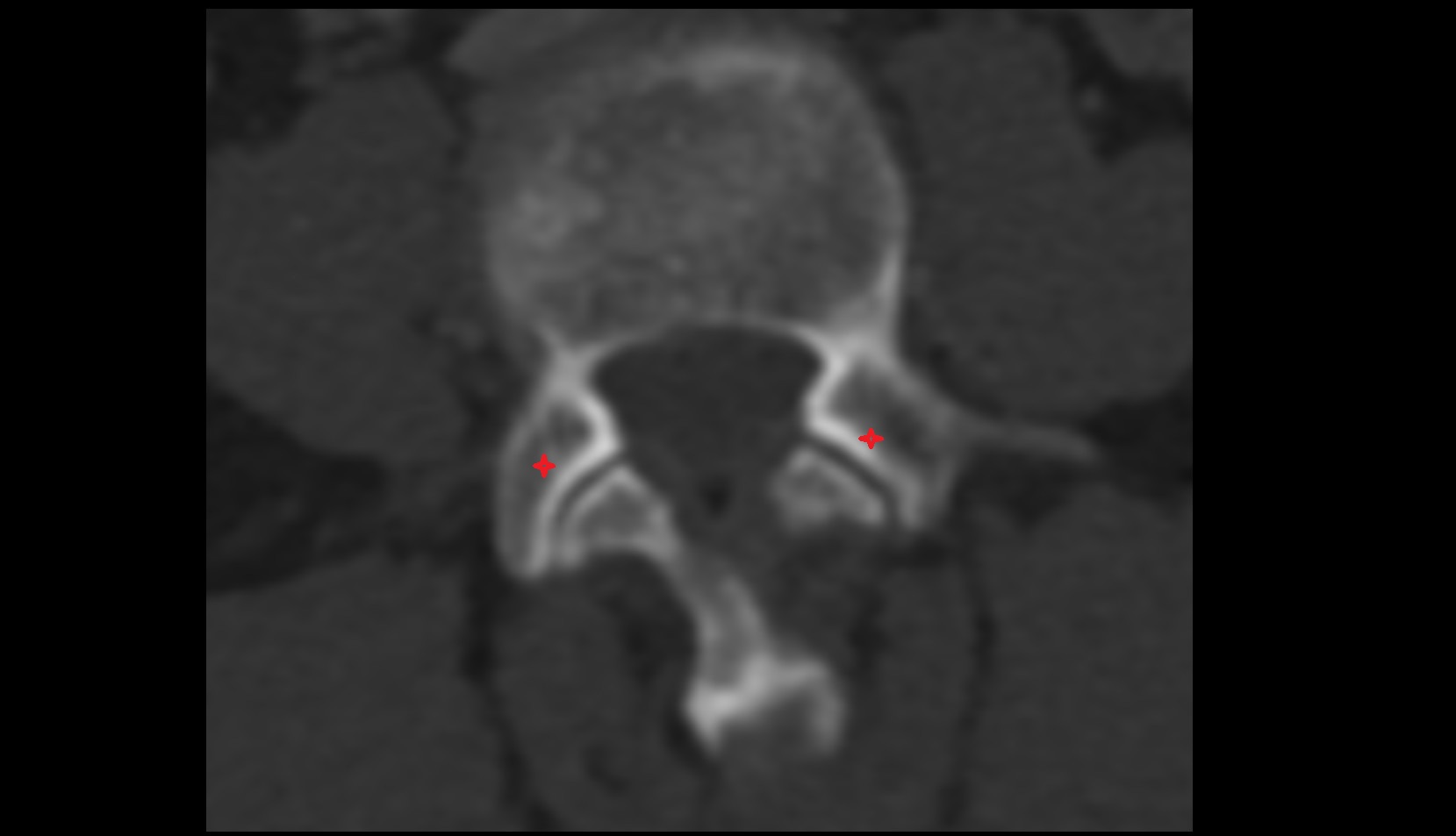

Superior articular processes of vertebrae ct axial image

CT images

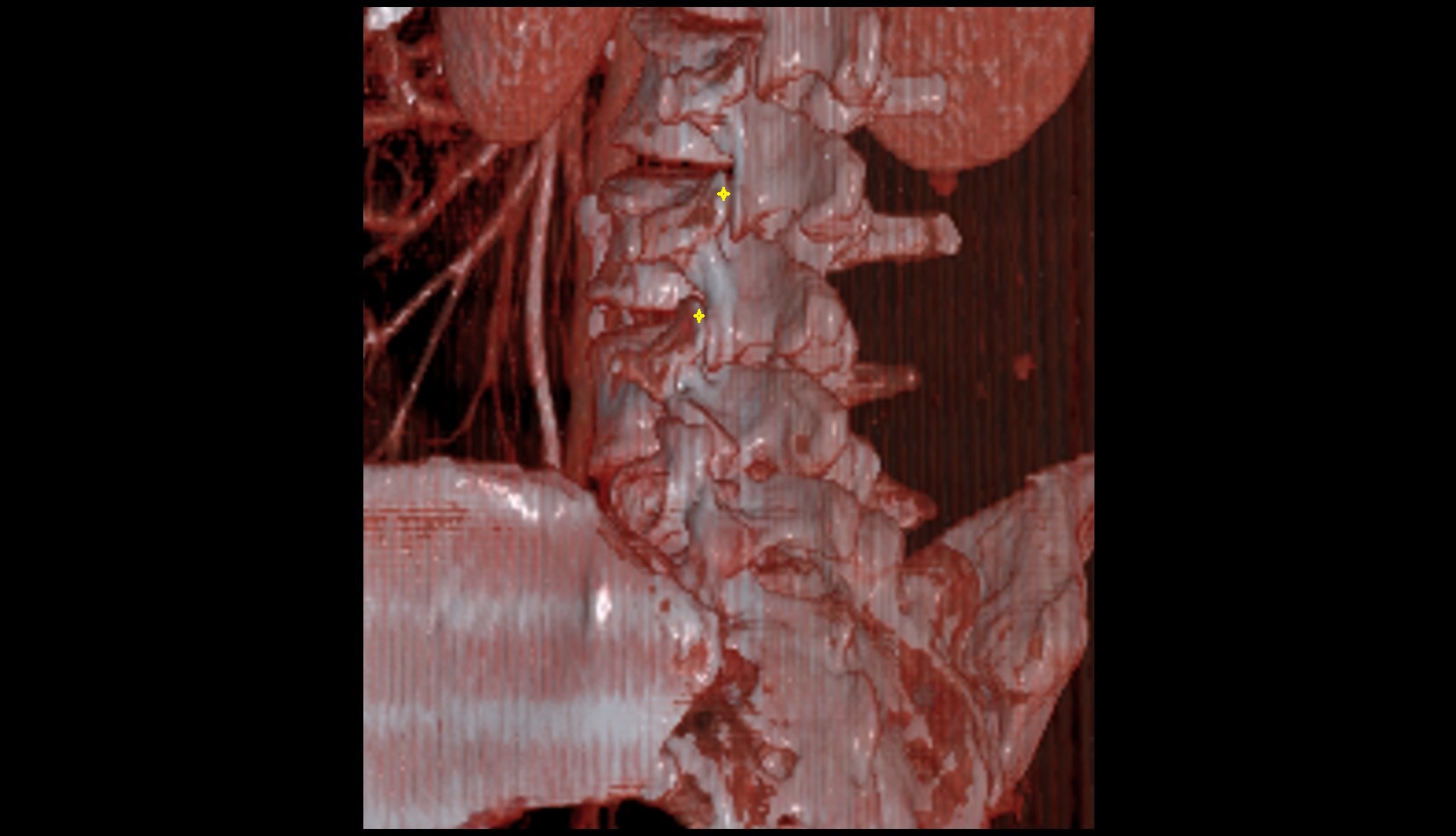

Superior articular processes of vertebrae ct 3D image
