Superior bulb of internal jugular vein

The superior bulb of the internal jugular vein is a focal dilation found at the upper end of the internal jugular vein, just below the jugular foramen at the base of the skull. It serves as a crucial anatomical and radiological landmark in the neck, often evaluated in head and neck imaging due to its proximity to cranial nerves and vascular structures. The superior bulb facilitates venous drainage from the brain and is essential in differentiating normal anatomy from pathology on cross-sectional imaging.

Synonyms

  • Jugular bulb

  • Upper bulb of internal jugular vein

  • Superior jugular bulb

Function

  • Acts as a reservoir or expansion of the internal jugular vein, accommodating variable blood flow from the brain.

  • Facilitates the rapid drainage of venous blood from the dural venous sinuses, especially the sigmoid sinus, into the internal jugular vein.

  • Important in regulating intracranial venous pressure.

  • Serves as a reference point for surgical and interventional procedures near the skull base.

MRI Appearance

  • T1-weighted images:

    • The superior bulb appears as a flow void (dark signal) due to rapid venous blood flow.

    • In cases of slow flow or thrombosis, it may appear hyperintense (brighter signal).

  • T2-weighted images:

    • Also typically seen as a flow void (dark signal) with normal flow.

    • Hyperintensity may be seen with slow or stagnant blood, or if pathology is present.

  • STIR (Short Tau Inversion Recovery):

    • Usually demonstrates the jugular bulb as a flow void.

    • Surrounding tissues are suppressed, highlighting edema or abnormal soft tissue if present.

  • PC 3D (Phase-Contrast 3D):

    • Provides high-resolution vascular imaging.

    • The superior bulb is well-visualized with demonstration of blood flow direction and velocity.

    • Used to assess venous anomalies, stenosis, or patency.

CT Appearance

  • The superior bulb is seen as a rounded or ovoid low-attenuation structure at the jugular foramen.

  • It may show thin enhancing walls post-contrast due to venous blood.

  • Easily differentiated from adjacent bone and soft tissue structures.

  • Asymmetry or enlargement can be identified, which may be physiological or indicate pathology.

CTA (CT Angiography) Appearance

  • Enhances brightly with contrast, confirming vascular nature.

  • Allows assessment of the size, shape, and relationship with adjacent structures (e.g., carotid artery, cranial nerves).

MRI images

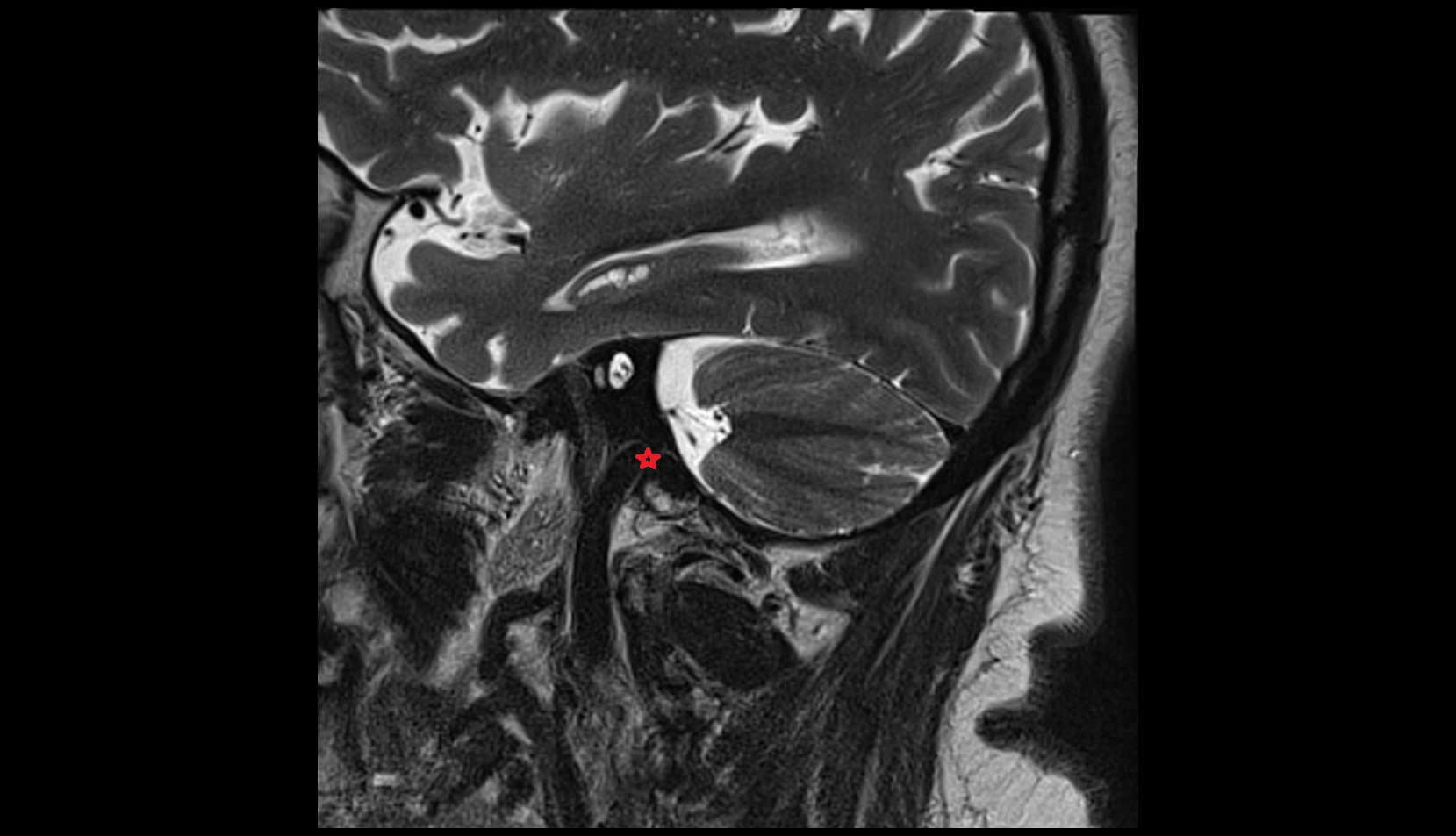

Superior bulb of internal jugular vein

MRI image

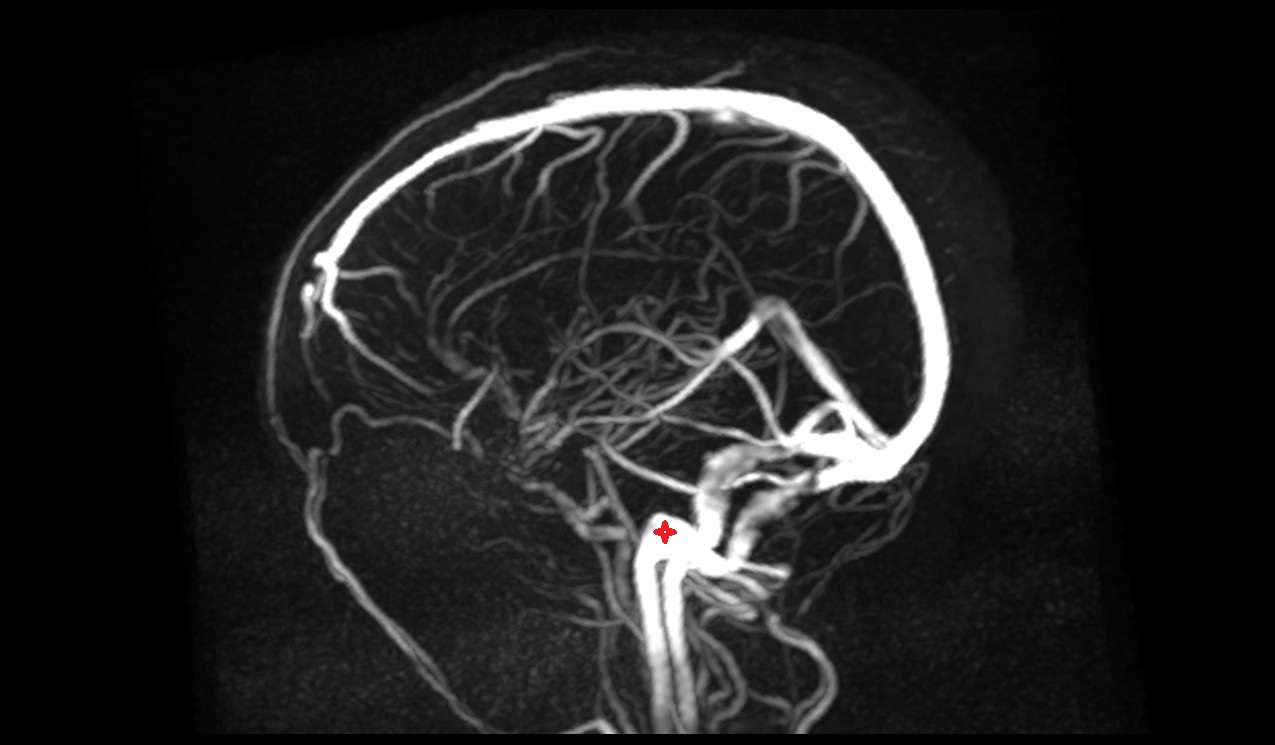

Superior bulb of the internal jugular vein - Copy
