Superior extensor retinaculum

The superior extensor retinaculum (SER) is a strong, fibrous band located at the anterior aspect of the lower leg, just proximal to the ankle joint. It acts as a fibrous restraint that holds the tendons of the anterior compartment of the leg in place as they pass into the foot, preventing them from bowstringing during dorsiflexion.

This structure is an important part of the extensor retinacular complex, which also includes the inferior extensor retinaculum. It provides stability and smooth tendon gliding, especially for the tibialis anterior, extensor hallucis longus, and extensor digitorum longus tendons.

Synonyms

  • Transverse crural ligament

  • Superior ligament of ankle extensors

Attachments and Course

  • Superior attachment: Lower part of the anterior border of the fibula

  • Inferior attachment: Anterior border of the tibia, just above the malleoli

  • Course: A broad, transverse band extending obliquely downward and medially across the anterior aspect of the ankle joint; it forms fibrous tunnels for extensor tendons, lined by synovial sheaths

Tendon Passages Beneath the Retinaculum

From medial to lateral, the tendons passing deep to the SER are:

  1. Tibialis anterior tendon

  2. Extensor hallucis longus tendon

  3. Extensor digitorum longus tendons

  4. Fibularis (peroneus) tertius tendon (occasionally absent)

Each tendon passes through a distinct compartment lined with a synovial sheath, allowing smooth tendon motion.

Relations

  • Anteriorly: Subcutaneous tissue and skin of the lower leg and ankle

  • Posteriorly: Tendons of anterior compartment muscles and anterior tibial vessels

  • Medially: Medial malleolus and tibialis anterior tendon

  • Laterally: Lateral malleolus and peroneus tertius tendon

Function

  • Tendon stabilization: Prevents anterior compartment tendons from bowstringing during ankle dorsiflexion

  • Force transmission: Enhances efficiency of dorsiflexors by maintaining tendon alignment

  • Ankle stabilization: Reinforces anterior aspect of the ankle joint capsule

  • Smooth gliding: Synovial-lined tunnels minimize friction and wear during movement

Clinical Significance

  • Tendinopathy: Chronic friction or overuse may lead to synovial sheath inflammation (tenosynovitis)

  • Injury: Traumatic rupture or strain can cause tendon displacement, most commonly affecting the extensor hallucis longus

  • Post-surgical relevance: Important landmark in anterior ankle surgeries and tendon transfers

  • Entrapment syndromes: Thickening of the retinaculum can contribute to deep fibular nerve entrapment

  • Imaging relevance: Evaluated on MRI and CT to assess for retinacular tears, thickening, or tendon instability

MRI Appearance

  • T1-weighted images:

    • Normal SER: low signal (dark linear structure) superficial to extensor tendons

    • Overlying subcutaneous fat: bright

    • Adjacent tendons: low signal bands within intermediate muscle tissue

  • T2-weighted images:

    • SER remains dark, surrounded by intermediate muscle and bright fat signal

    • Tears or edema: appear as areas of focal hyperintensity or discontinuity in the retinacular band

    • Thickening: indicative of chronic irritation or post-surgical fibrosis

  • STIR:

    • Normal: dark retinacular band

    • Pathology: bright hyperintense areas in cases of edema, inflammation, or injury to surrounding tendons

  • Proton Density Fat-Saturated (PD FS):

    • Normal SER: dark, well-defined band overlying tendon sheaths

    • Inflammation or fluid: hyperintense signal around tendons, especially in tenosynovitis

    • Tear: appears as discontinuity with peritendinous fluid collection

  • T1 Fat-Sat Post-Contrast:

    • Normal: minimal or no enhancement

    • Pathological enhancement: suggests tenosynovitis, post-surgical scarring, or inflammation

    • Useful in differentiating acute vs. chronic tendon or fascial lesions

CT Appearance

Non-Contrast CT:

  • Appears as a thin, dense linear structure anterior to the ankle joint

  • Overlying subcutaneous fat provides contrast for visualization

  • Difficult to distinguish from tendon sheaths without edema or fluid

Post-Contrast CT (standard):

  • Retinaculum may show mild homogeneous enhancement

  • Adjacent tendon sheath thickening or stranding may indicate tenosynovitis or inflammation

  • Useful in detecting calcification, fibrosis, or post-surgical changes

MRI image

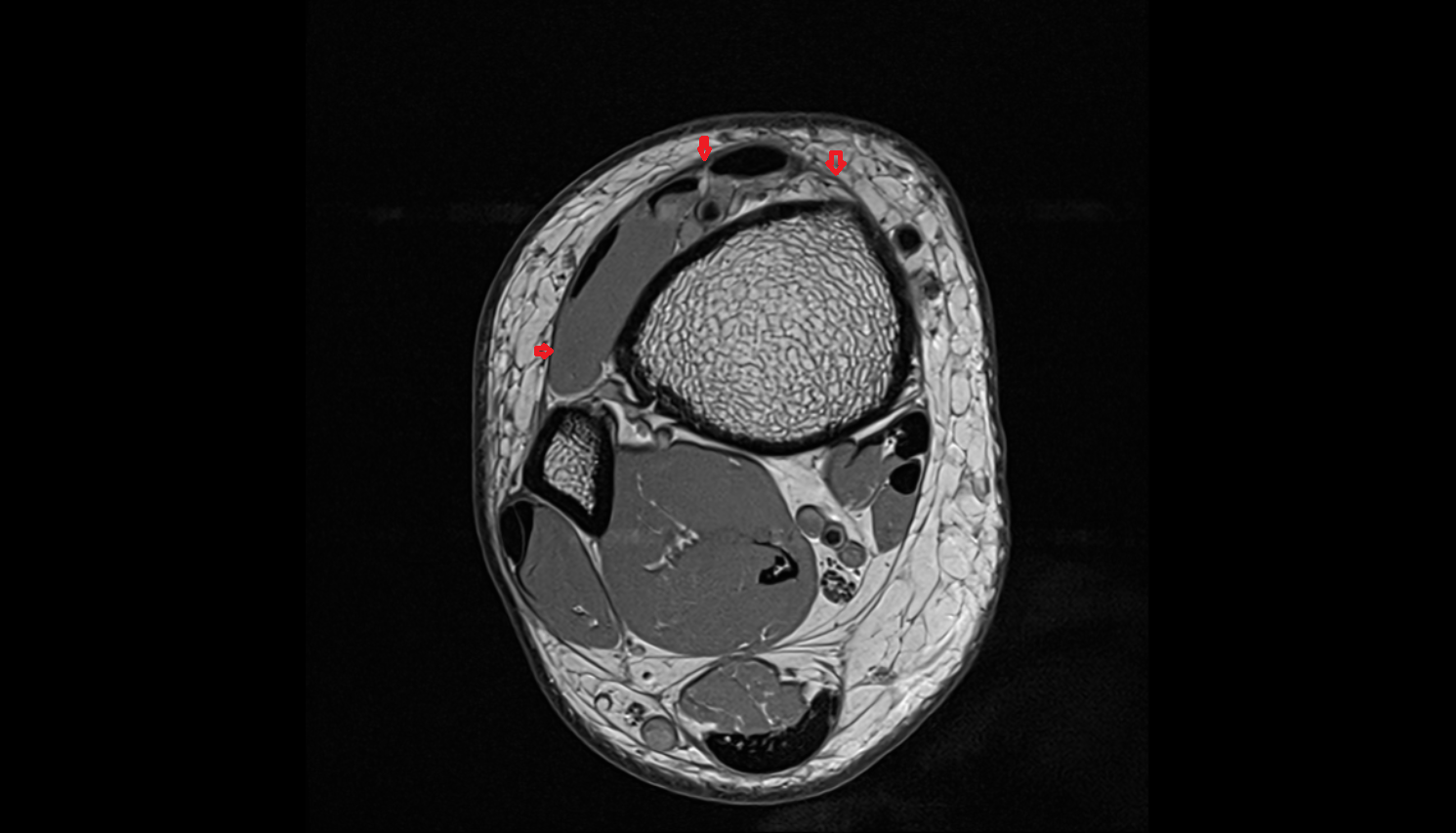

Superior extensor retinaculum axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI image

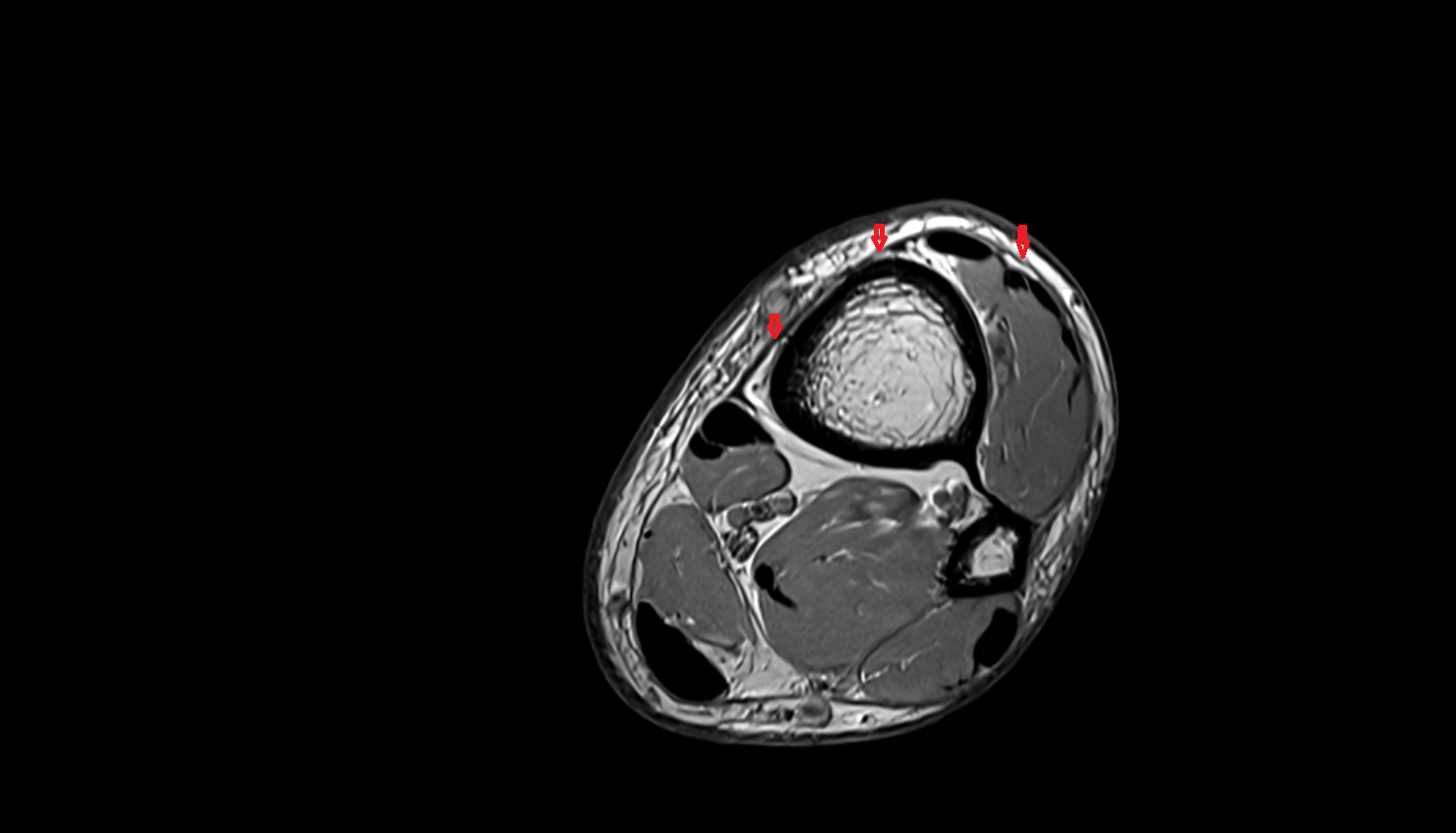

Superior extensor retinaculum axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001

CT image

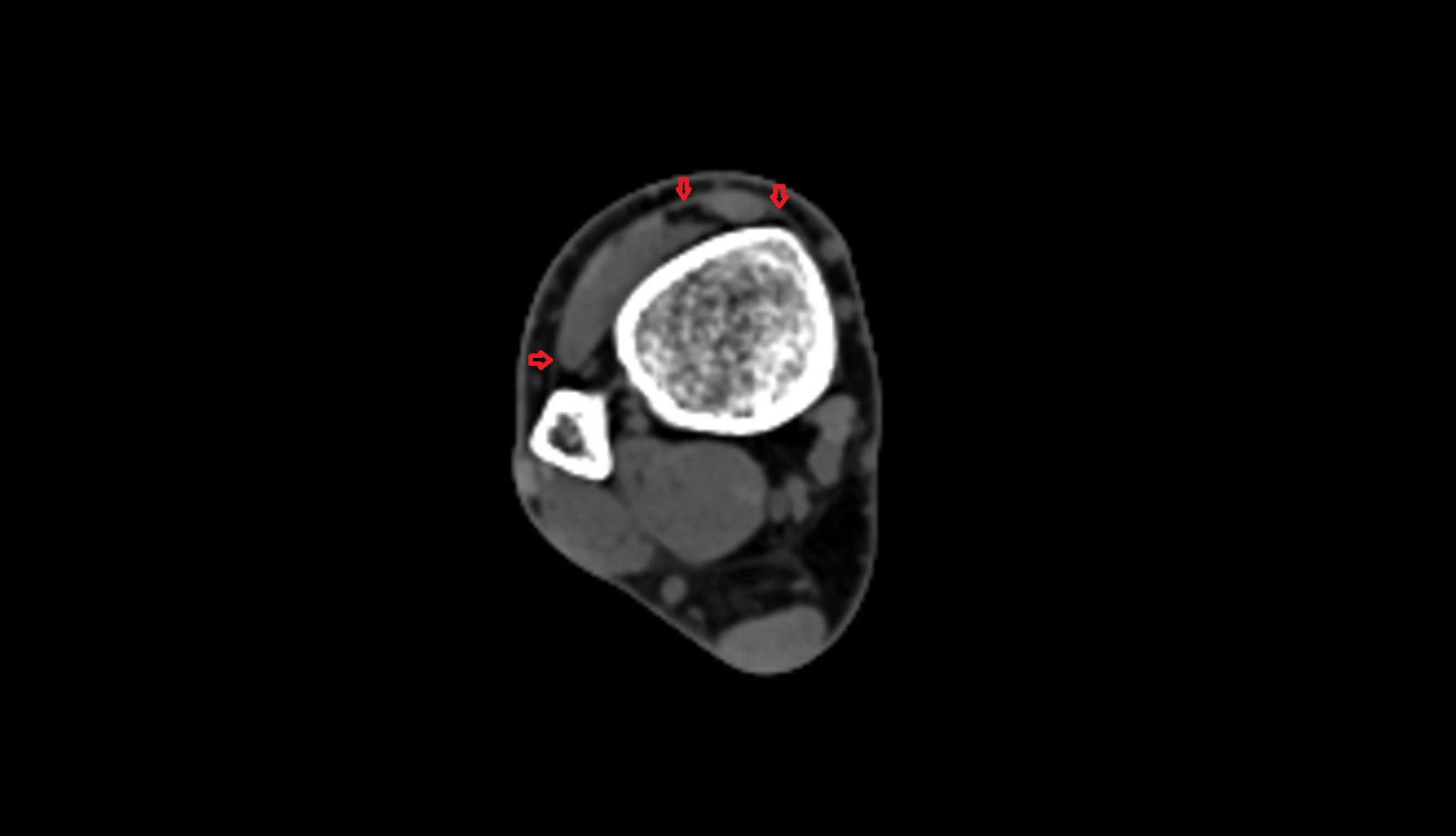

Superior extensor retinaculum ct axial image
