Tendon Sheath: Anatomy, Structure, Function, and Imaging

Topic

Tendon sheath

A tendon sheath is a double-layered synovial covering that surrounds certain tendons, primarily those that pass through confined spaces such as fibrous tunnels or osseous grooves. It facilitates smooth gliding of tendons during motion and reduces friction between the tendon and surrounding structures.

The sheath is particularly well developed in regions of repetitive movement or mechanical stress — such as the hands, wrists, ankles, and feet — where tendons curve or change direction. Pathology of the tendon sheath, including tenosynovitis, infection, or adhesions, can significantly impair motion and cause pain or stiffness.

Synonyms

Synovial tendon sheath
Tendinous synovial sheath
Peritendinous sheath

Structure

Outer (fibrous) layer: Dense connective tissue that anchors the sheath to surrounding fascia, bones, or retinacula, providing mechanical protection.
Inner (synovial) layer: Thin, vascular membrane secreting synovial fluid for lubrication.
Synovial cavity: The space between the two layers containing a small amount of lubricating fluid, allowing tendon gliding.
Mesotendon: A narrow connection between the tendon and sheath providing passage for blood vessels and nerves.
Vincula: Small folds of synovium (vincula brevia and longa) that convey blood vessels to tendons in the fingers and toes.

Locations

Tendon sheaths are prominent in areas of high friction or motion, including:

Hand and wrist: Flexor and extensor tendons of fingers, carpal tunnel, and extensor compartments
Foot and ankle: Flexor and extensor tendons around the malleoli and plantar surface
Shoulder and bicipital groove: Long head of biceps brachii tendon
Knee: Popliteus, pes anserinus tendons

Relations

Deeply related to: Tendons, bone grooves, and retinacula
Superficially related to: Subcutaneous tissue, fascia, and skin
Medially/Laterally: Adjacent tendons within fibrous tunnels (e.g., digital flexors in the fingers and toes)
Contains: Synovial fluid and mesotendon with vascular supply

Nerve Supply

Sensory innervation: Branches from adjacent peripheral nerves supplying the tendon region (e.g., median, ulnar, tibial, or fibular nerves depending on location).
Pain fibers contribute to tenosynovitis-related tenderness.

Function

Lubrication: Reduces friction between tendon and its surrounding structures during movement.
Protection: Cushions tendons from compressive and shear forces within osseofibrous tunnels.
Nutrition: Synovial fluid nourishes avascular portions of tendons.
Guidance: Maintains proper tendon alignment and tracking during joint motion.
Gliding mechanism: Ensures smooth, pain-free motion and prevents adhesions.

Clinical Significance

Tenosynovitis: Inflammation of the sheath due to overuse, infection, or autoimmune disease (e.g., rheumatoid arthritis).
Stenosing tenosynovitis (trigger finger/toe): Thickening or nodular tendon entrapment within sheath.
Infectious tenosynovitis: Bacterial infection causing sheath distention, pain, and swelling (surgical emergency).
Trauma: Hemorrhage or fibrosis within the sheath restricts tendon movement.
Ganglion cysts: Arise from focal outpouchings of synovial sheath.
Postoperative adhesions: Limit tendon excursion following injury or repair.
Imaging role: MRI is the gold standard for detecting sheath inflammation, fluid, or thickening.

MRI Appearance

T1-weighted images:
- Normal tendon: Low signal (dark linear band).
- Sheath: Low-to-intermediate signal; thin, smooth margin around tendon.
- Fluid: Low to intermediate, may be inconspicuous on T1.
- Pathology: Tenosynovitis shows sheath thickening with intermediate signal and variable fluid accumulation.
T2-weighted images:
- Normal tendon: Low signal.
- Sheath fluid: Bright hyperintense, outlining the tendon.
- Thickened synovium: Intermediate-to-bright signal, may have frond-like appearance.
- Chronic inflammation: Mixed low and high signals due to fibrosis and effusion.
STIR:
- Normal sheath: Intermediate-to-dark signal intensity.
- Pathologic sheath: Bright hyperintense signal indicating edema or inflammatory fluid.
- Highly sensitive for early tenosynovitis or sheath distention.
Proton Density Fat-Saturated (PD FS):
- Normal tendon and sheath: Intermediate-to-dark signal, smooth contour.
- Pathology: Bright hyperintense signal around tendon consistent with fluid or inflammation.
- Excellent for detecting subtle peritendinous fluid and synovial proliferation.
T1 Fat-Sat Post-Contrast:
- Normal sheath: Minimal or no enhancement.
- Inflamed sheath: Diffuse or nodular enhancement due to hypervascular synovium.
- Infectious or active inflammatory tenosynovitis: Marked enhancement with peritendinous soft-tissue edema.
- Chronic fibrotic sheath: Peripheral enhancement with central low-signal fibrosis.

CT Appearance

Non-Contrast CT:

Tendon: Soft-tissue density (low attenuation linear structure).
Sheath: Not usually visible unless distended by fluid or calcification.
Pathology: Shows soft-tissue swelling, sheath calcification, or gas in infection.
Chronic tenosynovitis: May reveal subtle calcific densities or sheath thickening.

Post-Contrast CT (standard):

Inflamed sheath: Enhancing soft-tissue ring around tendon.
Infectious tenosynovitis: Marked enhancement and peritendinous edema.
Postoperative or chronic cases: Mild enhancement with fibrotic thickening.
Useful alternative when MRI is contraindicated, though less sensitive for subtle synovial changes.

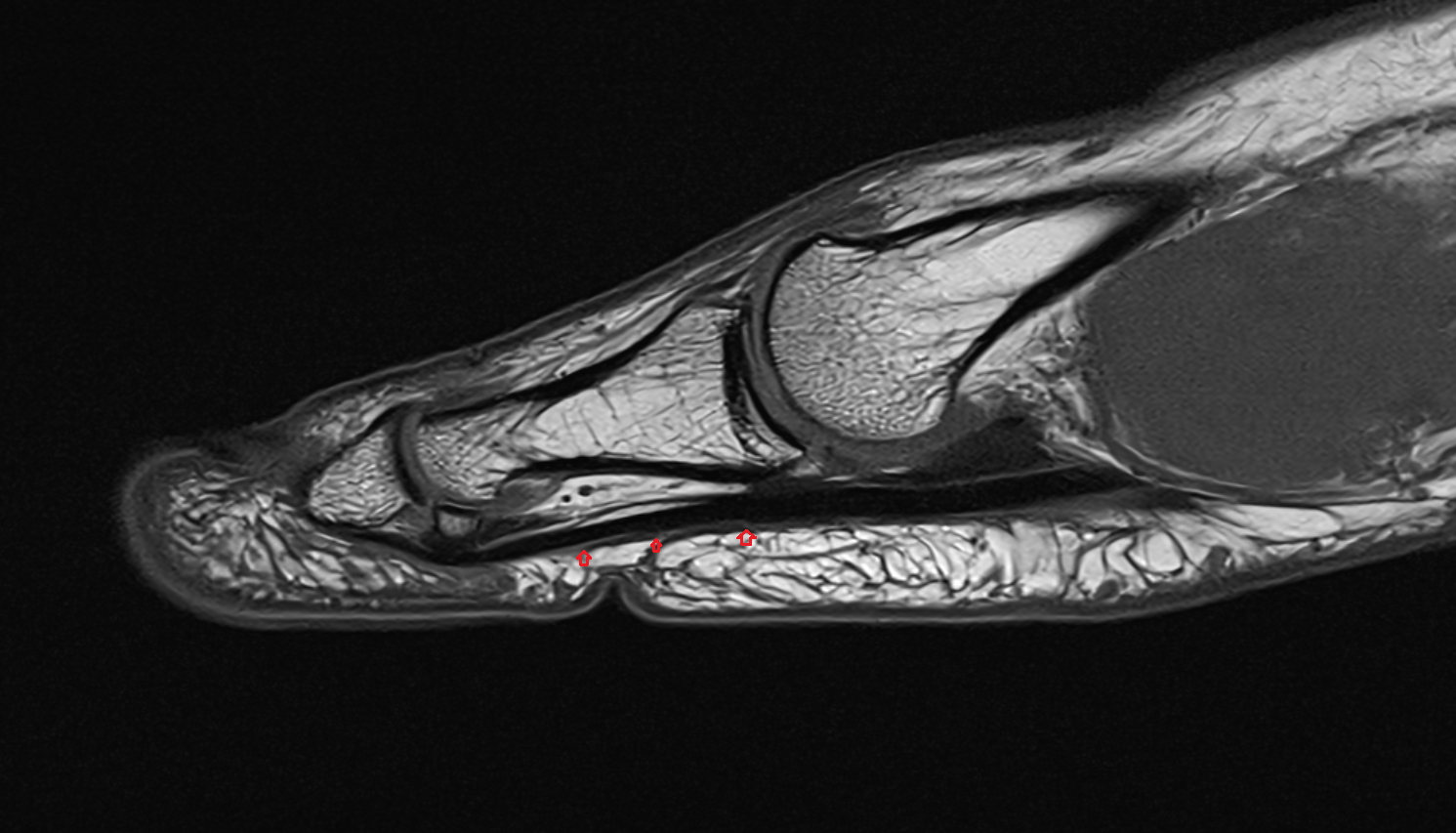

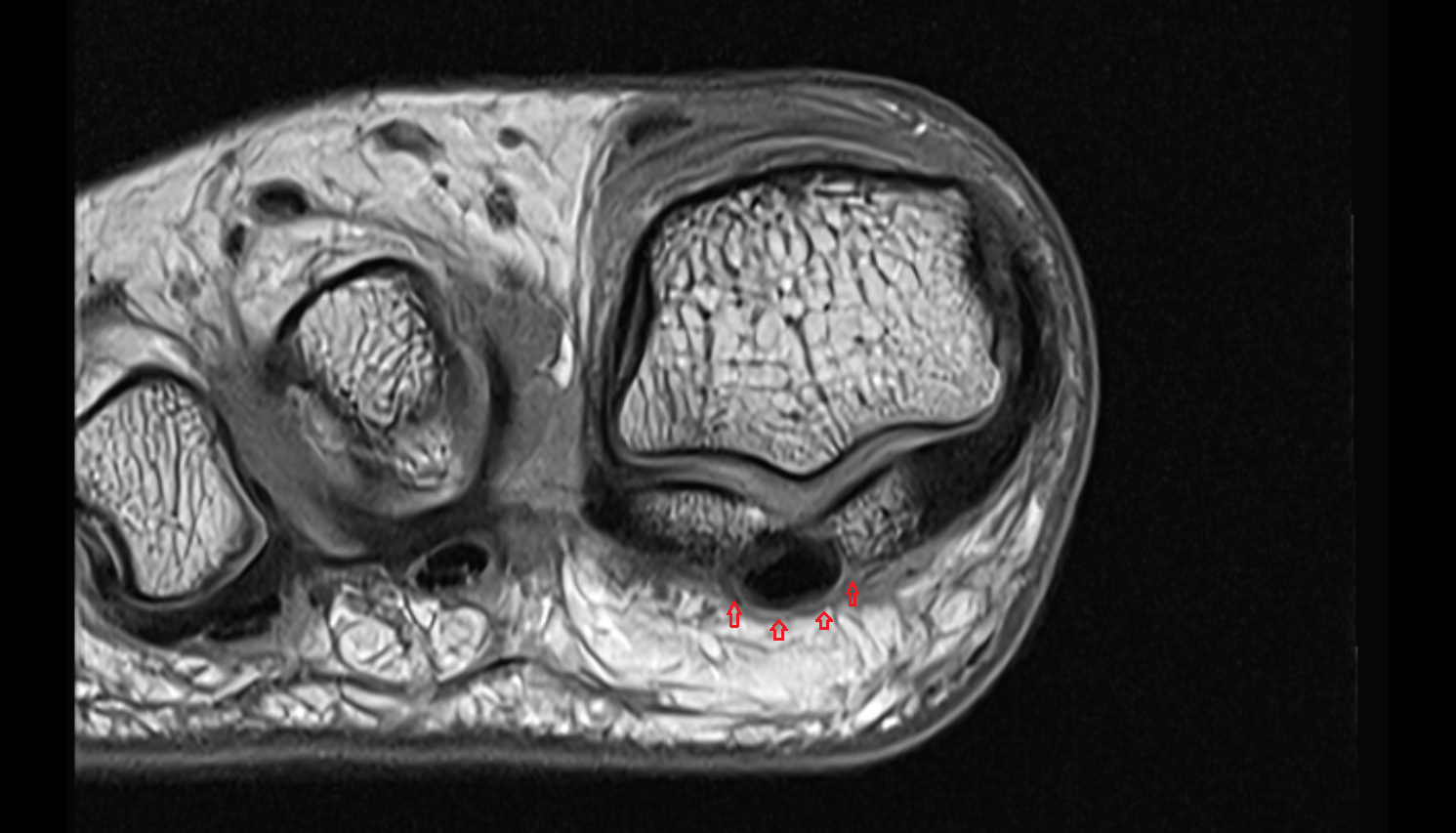

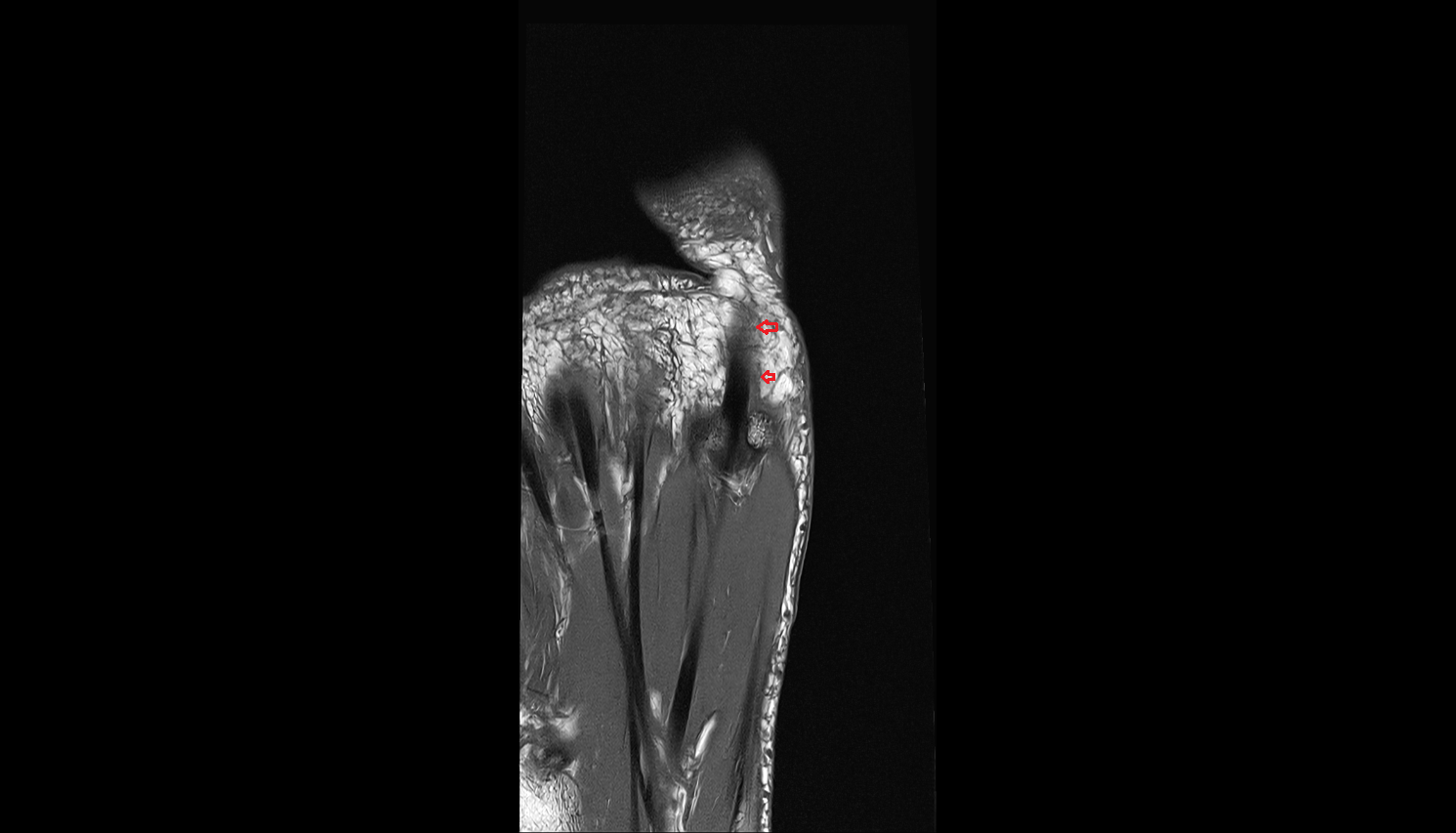

MRI image
