Tibial shaft

The tibial shaft, also known as the diaphysis of the tibia, is the long central portion of the tibia extending between the proximal and distal metaphyses. It is a strong, triangular prism-shaped structure that provides primary weight-bearing support for the lower limb. The shaft transmits forces between the knee and ankle joints and serves as a major attachment site for muscles, fascia, and interosseous membrane.

It is characterized by a thick cortical bone layer surrounding an internal medullary cavity containing fatty marrow. The shaft has three surfaces (medial, lateral, posterior) and three borders (anterior, medial, interosseous), with the anterior border forming the palpable anterior tibial crest.

Synonyms

  • Tibial diaphysis

  • Body of tibia

  • Shaft of tibia

Location and Structure

  • Position: Extends from the tibial tuberosity proximally to the distal metaphysis near the ankle joint

  • Shape: Triangular in cross-section

  • Borders:

    • Anterior border (anterior crest)

    • Medial border

    • Interosseous border (lateral attachment for interosseous membrane)

  • Surfaces:

    • Medial surface (subcutaneous and smooth)

    • Lateral surface (attachment for anterior compartment muscles)

    • Posterior surface (contains soleal line proximally)

  • Internal structure:

    • Thick outer cortical bone for strength

    • Inner medullary cavity containing fatty bone marrow

Relations

  • Anteriorly: Skin, subcutaneous tissue, anterior compartment muscles

  • Posteriorly: Deep posterior compartment muscles (tibialis posterior, flexor digitorum longus)

  • Laterally: Interosseous membrane connecting tibia and fibula

  • Medially: Subcutaneous surface, easily palpable

  • Superiorly: Proximal tibia and knee joint structures

  • Inferiorly: Distal tibia and ankle joint

Attachments

  • Muscular attachments:

    • Tibialis anterior (lateral surface)

    • Soleus (posterior surface, soleal line region)

    • Flexor digitorum longus (posterior surface)

    • Tibialis posterior (posterior surface and interosseous border)

  • Fascial attachments:

    • Deep fascia of the leg attaches along borders

  • Ligamentous attachments:

    • Interosseous membrane attaches along interosseous border

Function

  • Provides primary weight-bearing support between knee and ankle

  • Transmits mechanical forces during standing and walking

  • Serves as attachment site for muscles controlling foot and ankle motion

  • Maintains structural alignment of the lower limb

  • Supports bone marrow for hematopoietic and metabolic functions

MRI Appearance

T1-weighted images:

  • Cortical bone: Very low signal (dark) due to dense mineralization

  • Bone marrow: Bright signal due to fatty marrow within medullary cavity

  • Endosteal margin: Clear interface between bright marrow and dark cortex

  • Periosteum: Thin low-signal line outlining cortex

  • Muscle attachments: Intermediate signal adjacent to cortical surface

T2-weighted images:

  • Cortical bone: Very low signal (dark)

  • Bone marrow: Bright signal, slightly less intense than on T1 but still hyperintense relative to muscle

  • Medullary cavity: Homogeneous signal with smooth margins

  • Adjacent muscle: Intermediate signal, darker than marrow

  • Interosseous membrane: Thin low-signal band along lateral shaft

STIR:

  • Cortical bone: Dark signal

  • Bone marrow: Intermediate-to-dark signal due to fat suppression

  • Periosteum: Thin dark outline

  • Muscle attachments and fascia: Clearly visualized as intermediate signal structures

  • Soft tissue boundaries: Well defined around tibial shaft

CT Appearance

Non-Contrast CT:

  • Cortex: High attenuation (very bright), thick and sharply defined

  • Medullary cavity: Lower attenuation than cortex, representing fatty marrow

  • Endosteal surface: Smooth interface between cortex and marrow cavity

  • External contour: Smooth, straight shaft with triangular cross-section

  • Muscle attachments: Seen as subtle cortical ridges or surface irregularities

  • Interosseous border: Sharp lateral ridge separating tibia from fibula

X-ray Appearance

Plain Radiograph (X-ray):

  • Cortex: Dense radiopaque outer layer forming well-defined margins

  • Medullary cavity: Radiolucent central region due to fatty marrow

  • Anterior crest: Prominent sharp anterior border visible on lateral view

  • Overall alignment: Straight longitudinal structure connecting knee and ankle

  • Trabecular pattern: Fine internal radiolucent pattern visible near metaphyseal transition

  • Soft tissue outline: Visible as faint shadow surrounding the shaft

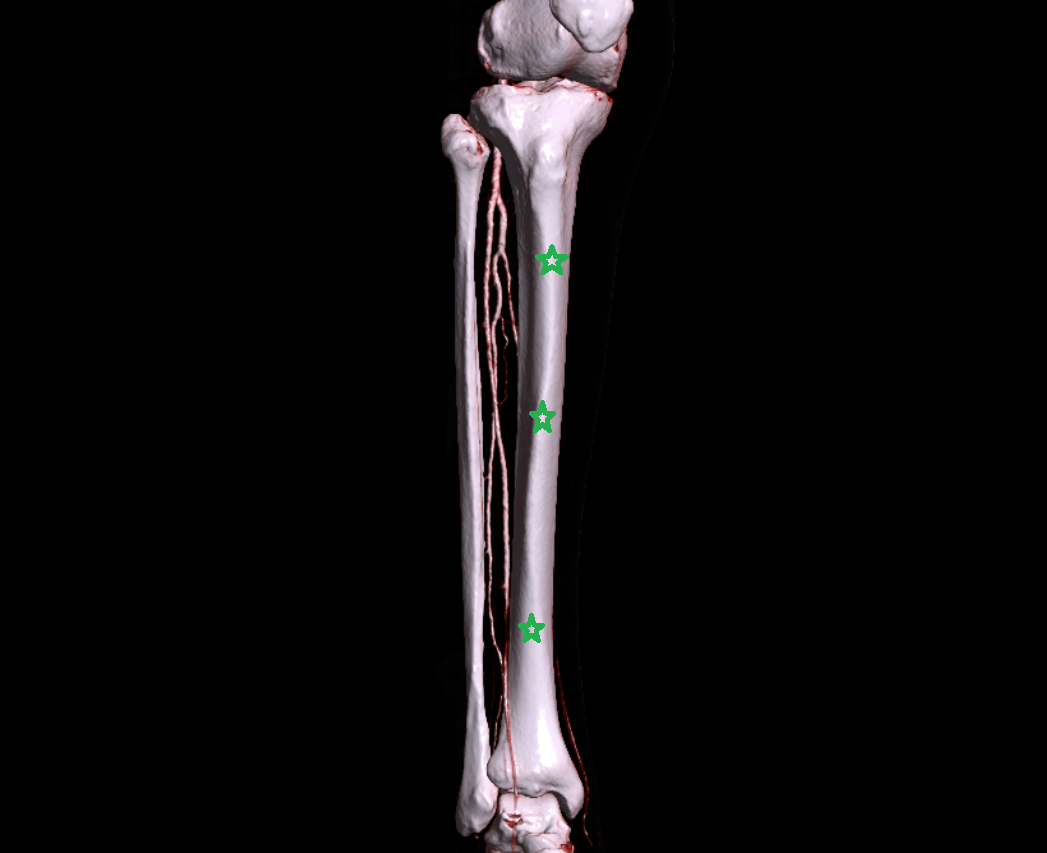

CT VRT 3D image

tibial shaft anatomy labelled image-img-00000-00000

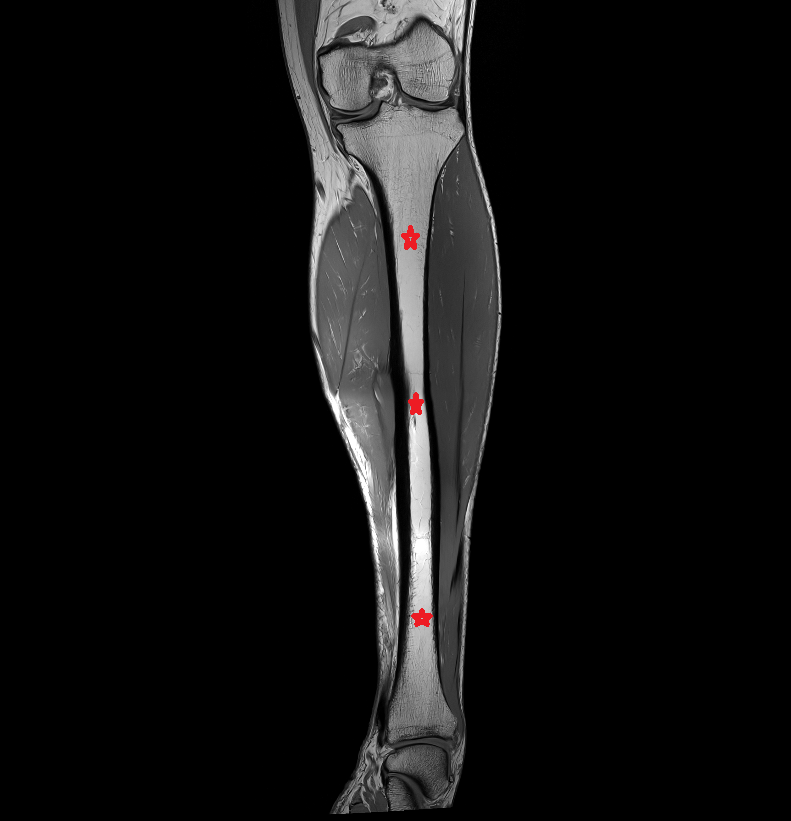

MRI image

tibial shaft mri anatomy labelled image-img-00000-00000

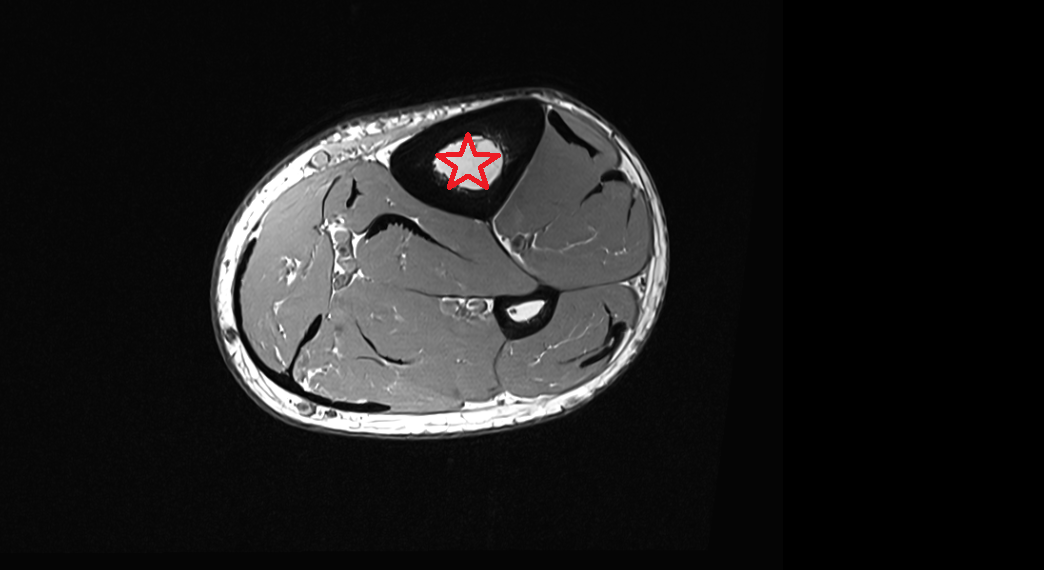

MRI image
