Tibial tuberosity

The tibial tuberosity (tibial tubercle) is a prominent bony projection on the anterior aspect of the proximal tibia, just below the anterior surface of the tibial plateau. It serves as the key attachment site of the patellar ligament, making it an essential component of the extensor mechanism of the knee. It transmits the powerful forces of the quadriceps femoris muscle group to the tibia during knee extension.

It is of major clinical importance in adolescents due to Osgood–Schlatter disease, in athletes due to avulsion injuries, and as a landmark in knee surgery and imaging.

Synonyms

  • Tibial tubercle

  • Tuberositas tibiae

  • Anterior tibial prominence

Muscular Attachments

  • The patellar ligament (tendon) inserts onto the tibial tuberosity

  • Through the patellar tendon, it indirectly connects the quadriceps femoris muscle group (rectus femoris, vastus medialis, vastus lateralis, vastus intermedius) to the tibia

Relations

  • Anteriorly: Subcutaneous tissue and skin of the anterior knee

  • Posteriorly: Proximal tibial metaphysis and anterior tibial cortex

  • Superiorly: Patella via patellar ligament

  • Inferiorly: Shaft of tibia and continuation of anterior tibial surface

  • Laterally: Anterolateral tibial surface

  • Medially: Anteromedial tibial surface

Function

  • Provides strong anchoring point for the patellar ligament

  • Transmits the force of quadriceps contraction to extend the knee joint

  • Acts as a palpable surface landmark for clinical and surgical orientation

Clinical Significance

  • Osgood–Schlatter disease: Common in adolescents, results from repetitive stress and traction at the tibial tuberosity, leading to pain and swelling

  • Avulsion fractures: Seen in young athletes due to forceful quadriceps contraction

  • Surgical relevance: Important in total knee replacement, tibial tubercle osteotomy, and anterior knee reconstruction procedures

  • Imaging importance: Evaluated in knee trauma, extensor mechanism injuries, and chronic anterior knee pain

MRI Appearance

T1-weighted images:

  • Cortical bone of tuberosity: low signal intensity

  • Marrow: intermediate to bright

  • Patellar ligament: linear low signal attached to tuberosity

T2-weighted images:

  • Cortical bone: low signal intensity

  • Marrow: intermediate to bright

  • Pathology (edema, avulsion, Osgood-Schlatter): shows bright hyperintensity around tuberosity

STIR (Short Tau Inversion Recovery):

  • Cortical bone: low signal

  • Marrow: normally suppressed, but edema or inflammation appears bright

  • Useful for detecting subtle bone marrow changes in Osgood-Schlatter or trauma

Proton Density Fat-Saturated (PD FS):

  • Cortical bone: low signal

  • Marrow: low signal in normal states

  • Pathology: marrow edema or periosteal reaction appears bright hyperintensity

​Proton Density (PD):

  • Marrow appears intermediate to bright

  • Good delineation of adjacent ligaments and meniscal attachments

T1 Fat-Sat Post-Contrast:

  • Normal tuberosity: no significant enhancement

  • Inflammation (Osgood-Schlatter, bursitis): enhancement around patellar ligament insertion

  • Infection/tumor: irregular or nodular enhancement

CT Appearance

Non-Contrast CT:

  • Tuberosity appears as a bony prominence on the anterior tibia

  • Cortical margins are well visualized

  • Avulsion fractures, fragmentation, or calcification are clearly demonstrated

Post-Contrast CT:

  • Bone itself does not enhance

  • Adjacent soft tissues (ligament, bursae) may show enhancement if inflamed or infected

  • Useful in complex trauma or surgical planning

CT VRT 3D image

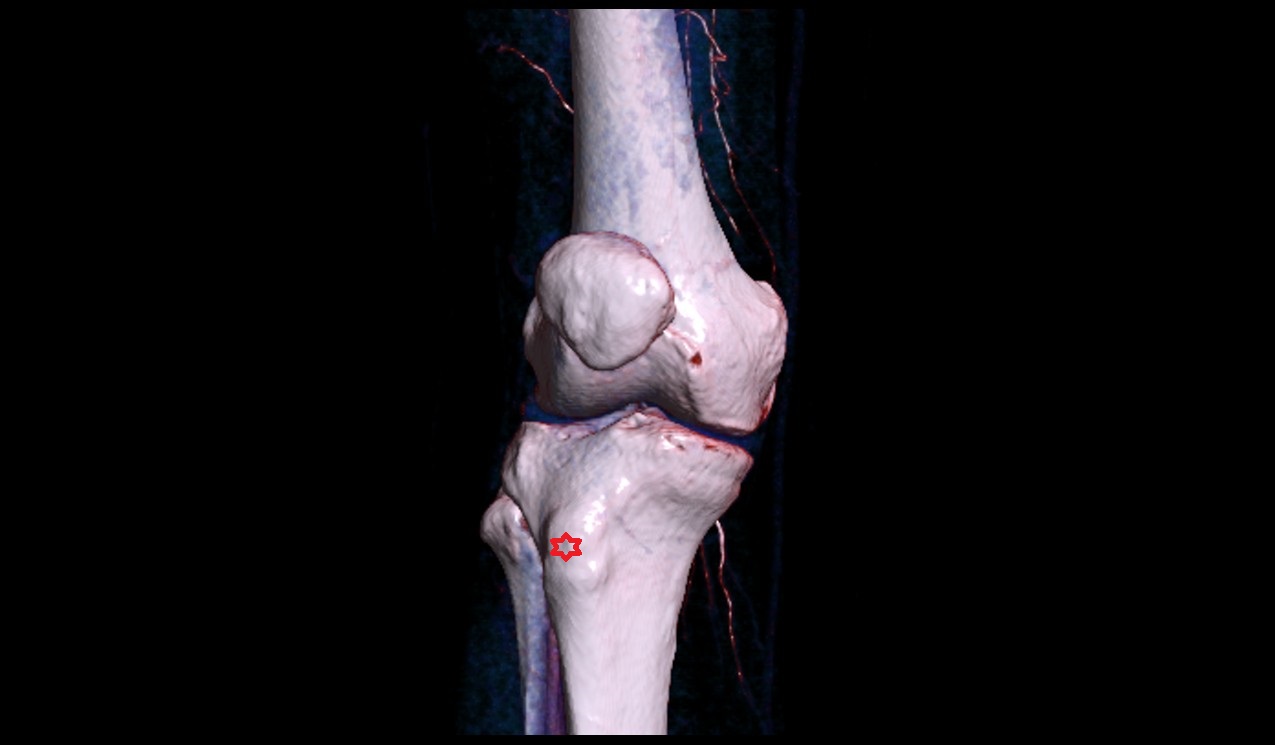

Tibial tuberosity 3d image

MRI image

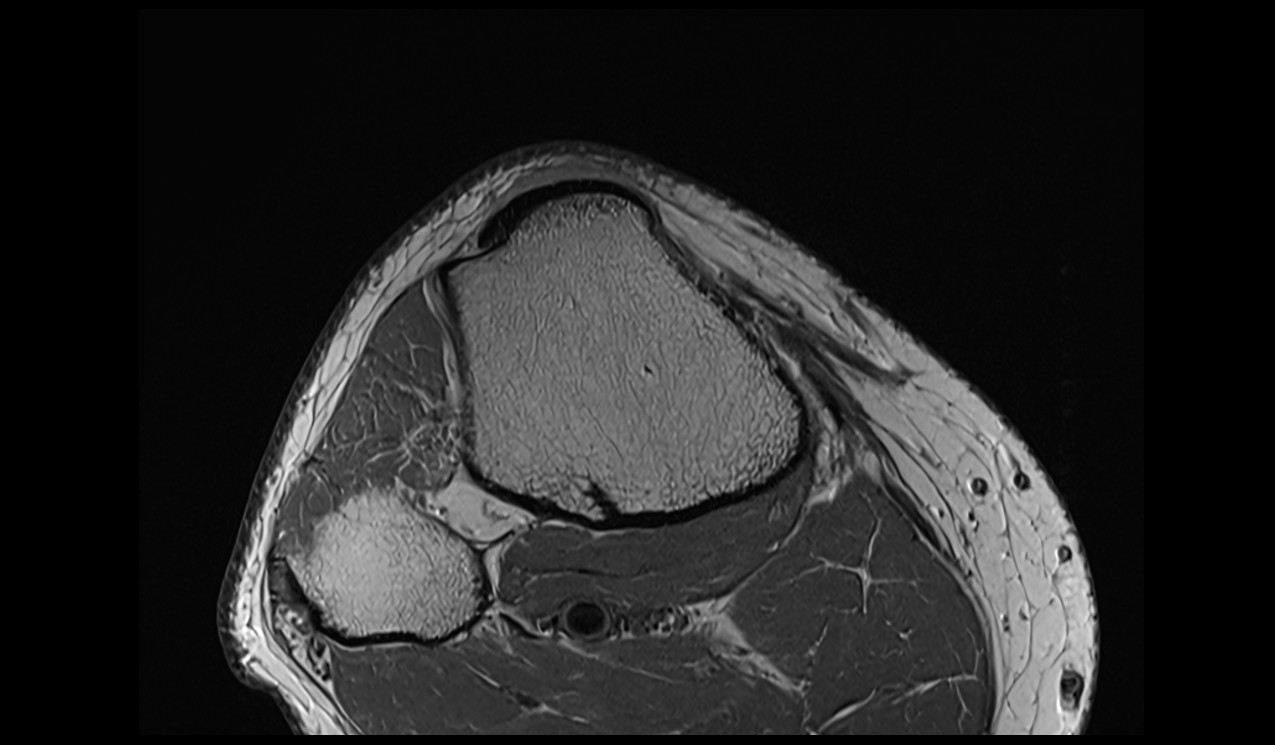

Tibial tuberosity anatomy mri 3t

MRI image

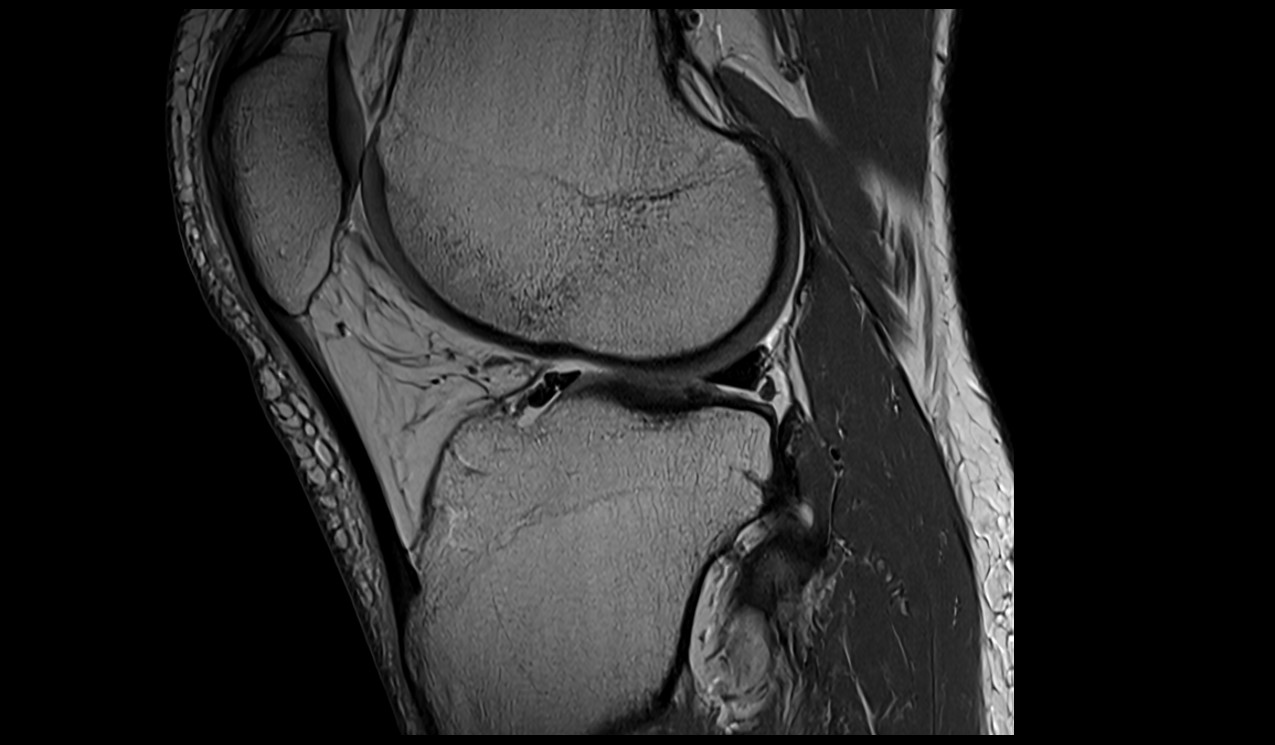

Tibial tuberosity anatomy

CT images

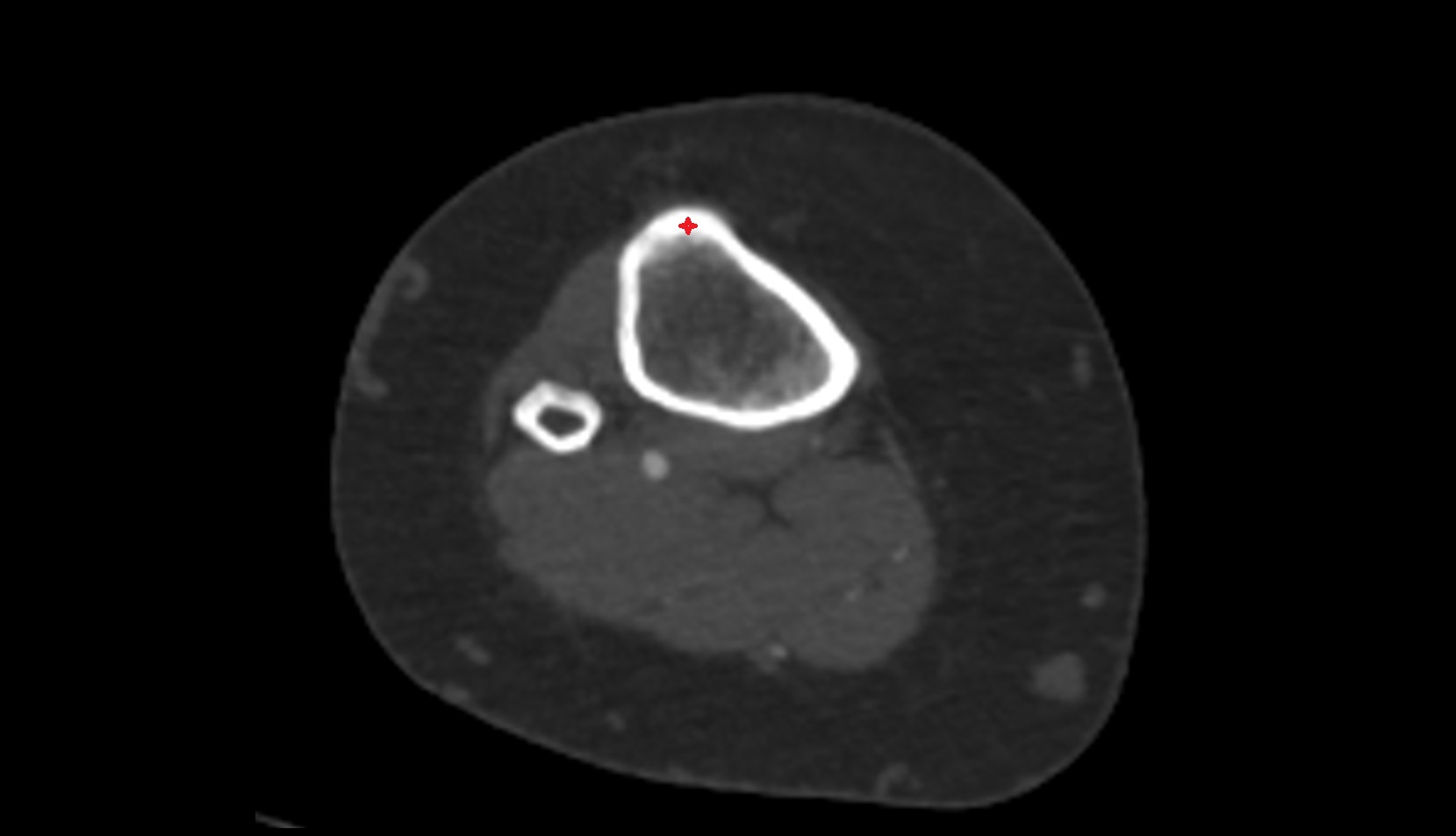

Tibial tuberosity ct axial image

CT images

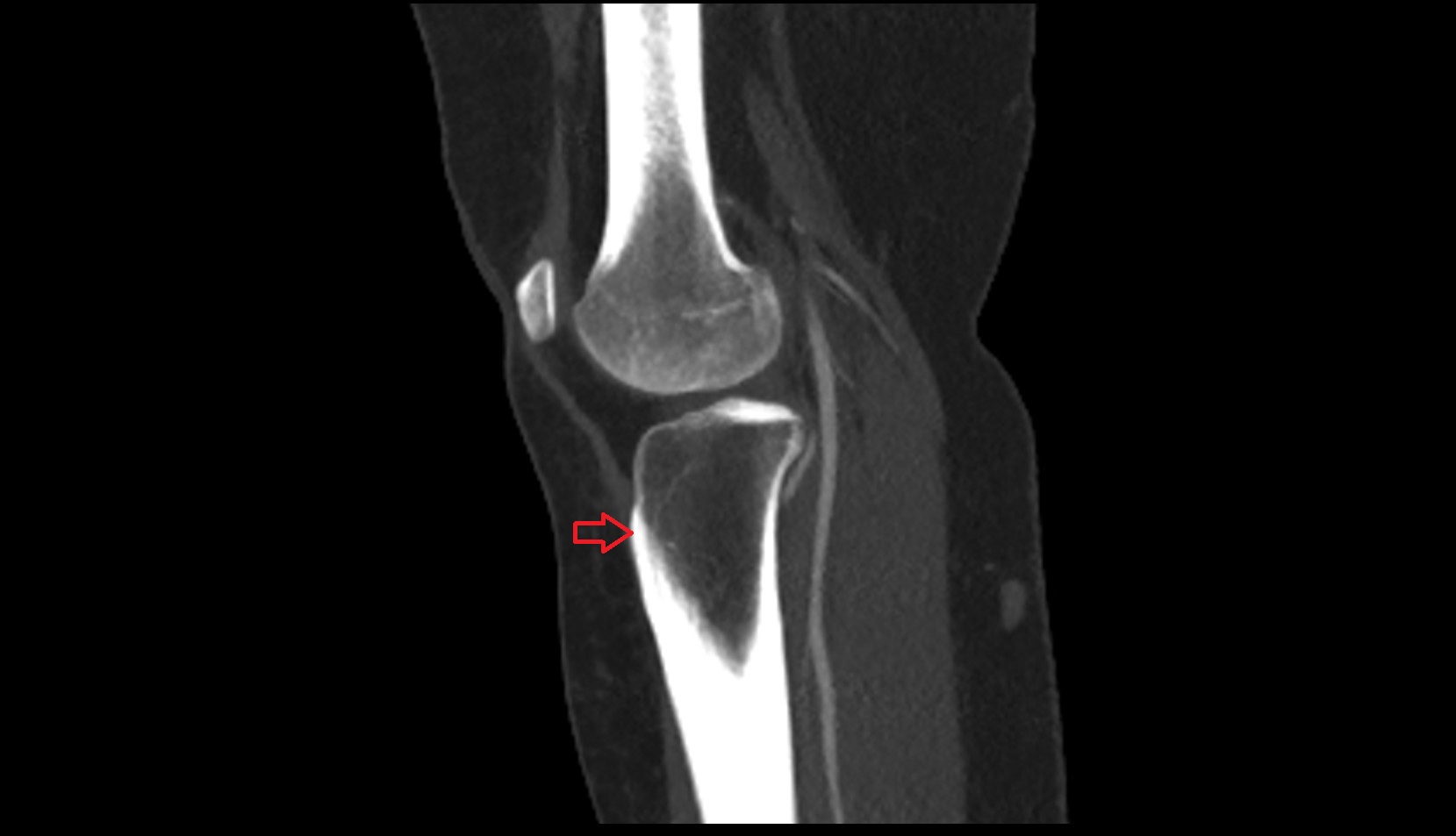

Tibial tuberosity ct sagittal image
