Tibiocalcaneal ligament

The tibiocalcaneal ligament is one of the key bands of the superficial layer of the deltoid ligament complex on the medial side of the ankle. It extends from the medial malleolus of the tibia to the sustentaculum tali of the calcaneus, providing essential stability against eversion forces.

This ligament is broad and strong, reinforcing the medial ankle and working in synergy with the deep deltoid components and surrounding capsuloligamentous structures. Injury to the tibiocalcaneal ligament is usually part of a combined deltoid ligament tear, frequently associated with ankle fractures or chronic instability.

Synonyms

  • Superficial deltoid ligament – tibiocalcaneal part

  • Medial collateral ligament of ankle (tibiocalcaneal portion)

Origin, Course, and Insertion

  • Origin: Medial malleolus of the tibia (anterior and inferior aspects)

  • Course: Fibers pass downward and slightly posteriorly, broadening as they descend

  • Insertion: Medial surface of the calcaneus, primarily at the sustentaculum tali

Relations

  • Superficially: Covered by skin, subcutaneous tissue, and flexor retinaculum

  • Deeply: Related to the deep deltoid ligament and talus

  • Anteriorly: Tibionavicular ligament and talonavicular joint capsule

  • Posteriorly: Posterior tibiotalar ligament

  • Inferiorly: Calcaneus and subtalar joint capsule

Function

  • Medial ankle stabilizer: Prevents excessive eversion of the foot

  • Supports subtalar joint: Reinforces the sustentaculum tali region

  • Dynamic support: Assists in maintaining medial longitudinal arch stability

  • Synergy: Works with other deltoid ligament bands (tibionavicular, tibiotalar, posterior tibiotalar)

Clinical Significance

  • Injury patterns: Rarely injured in isolation; most often part of complete or partial deltoid ligament tear

  • Mechanism: Excessive eversion, pronation, or ankle fractures

  • Symptoms: Medial ankle pain, swelling, tenderness, and instability

  • Chronic insufficiency: Leads to valgus tilt of talus, progressive flatfoot deformity, and instability

  • Imaging relevance: MRI is gold standard for detection; CT useful in fracture-associated injuries

MRI Appearance

  • T1-weighted images:

    • Normal ligament: low signal (dark band) between tibia and sustentaculum tali

    • Thick, continuous, sharply defined fibers

    • Acute tear: disruption or loss of continuity, focal intermediate-to-bright signal intensity

    • Chronic injury: thickened, irregular, heterogeneous signal

  • T2-weighted images:

    • Normal: ligament remains dark (hypointense)

    • Tear: bright hyperintense fluid signal through the ligament substance or at insertion

    • Partial tears: irregular thickening, intrasubstance hyperintensity with preserved continuity

    • Chronic degeneration: mixed signal, irregular borders

  • STIR:

    • Normal: hypointense linear band

    • Pathology: ligament appears bright hyperintense due to edema or fluid, especially in acute tears

    • Surrounding soft tissue swelling highlighted

  • Proton Density Fat-Saturated (PD FS):

    • Normal: thin, dark band with sharp margins

    • Partial tear: bright intraligamentous signal, thickening

    • Complete tear: gap with surrounding hyperintensity

  • T1 Fat-Sat Post-Contrast:

    • Normal: minimal or no enhancement

    • Injured ligament: enhancement around torn fibers due to synovitis, granulation, or scar tissue

CT Appearance

Non-Contrast CT:

  • Ligament itself is poorly defined due to soft-tissue density

  • Indirect signs: medial joint space widening, calcifications, avulsion fractures at medial malleolus or sustentaculum tali

Post-Contrast CT (standard):

  • Soft tissue definition slightly improved

  • Enhancing periligamentous tissue may suggest inflammation or healing response

  • Limited role compared to MRI

MRI images

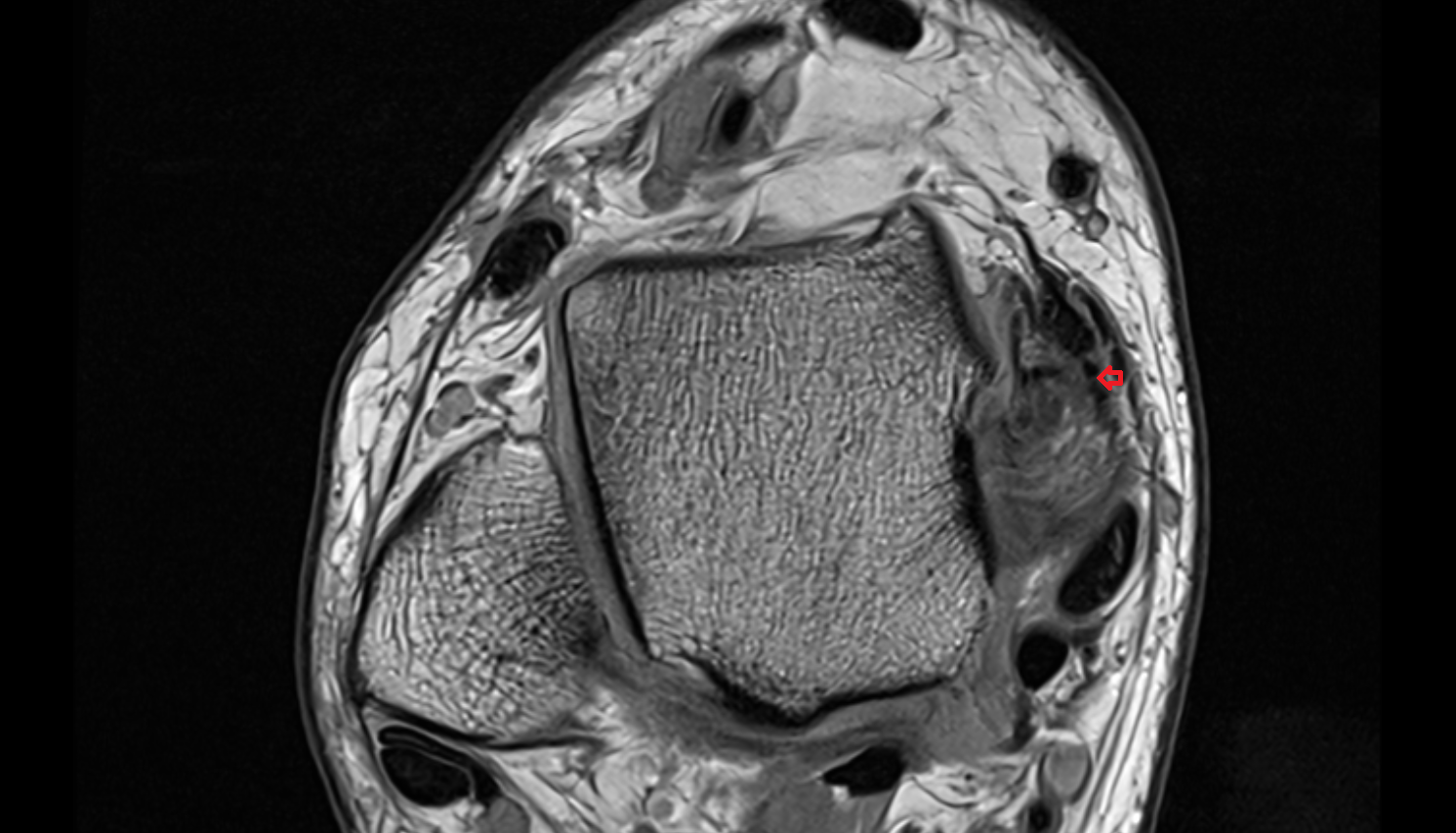

Tibiocalcaneal ligament (Superficial deltoid) axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI images

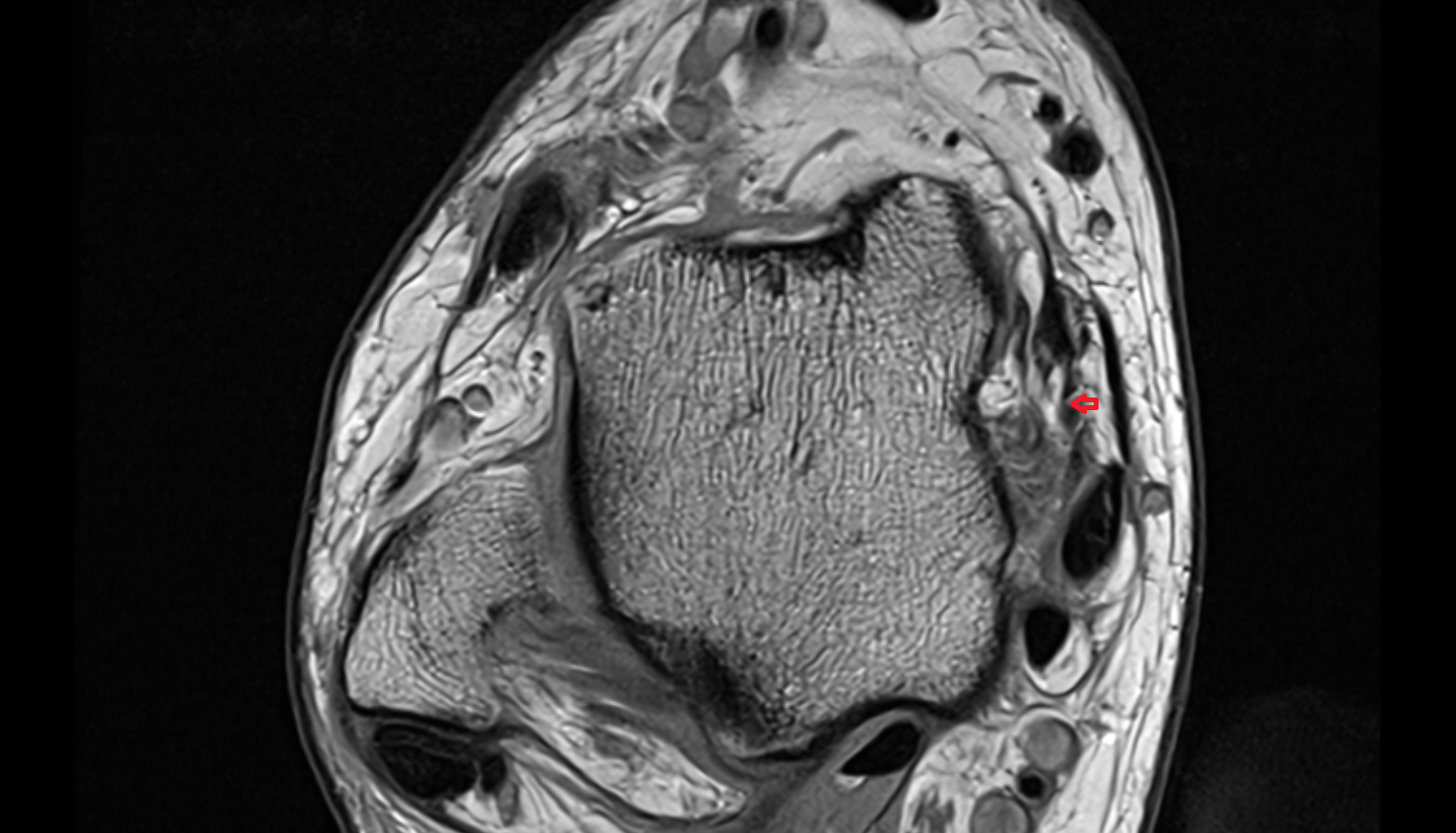

Tibiocalcaneal ligament (Superficial deltoid) axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001

MRI images

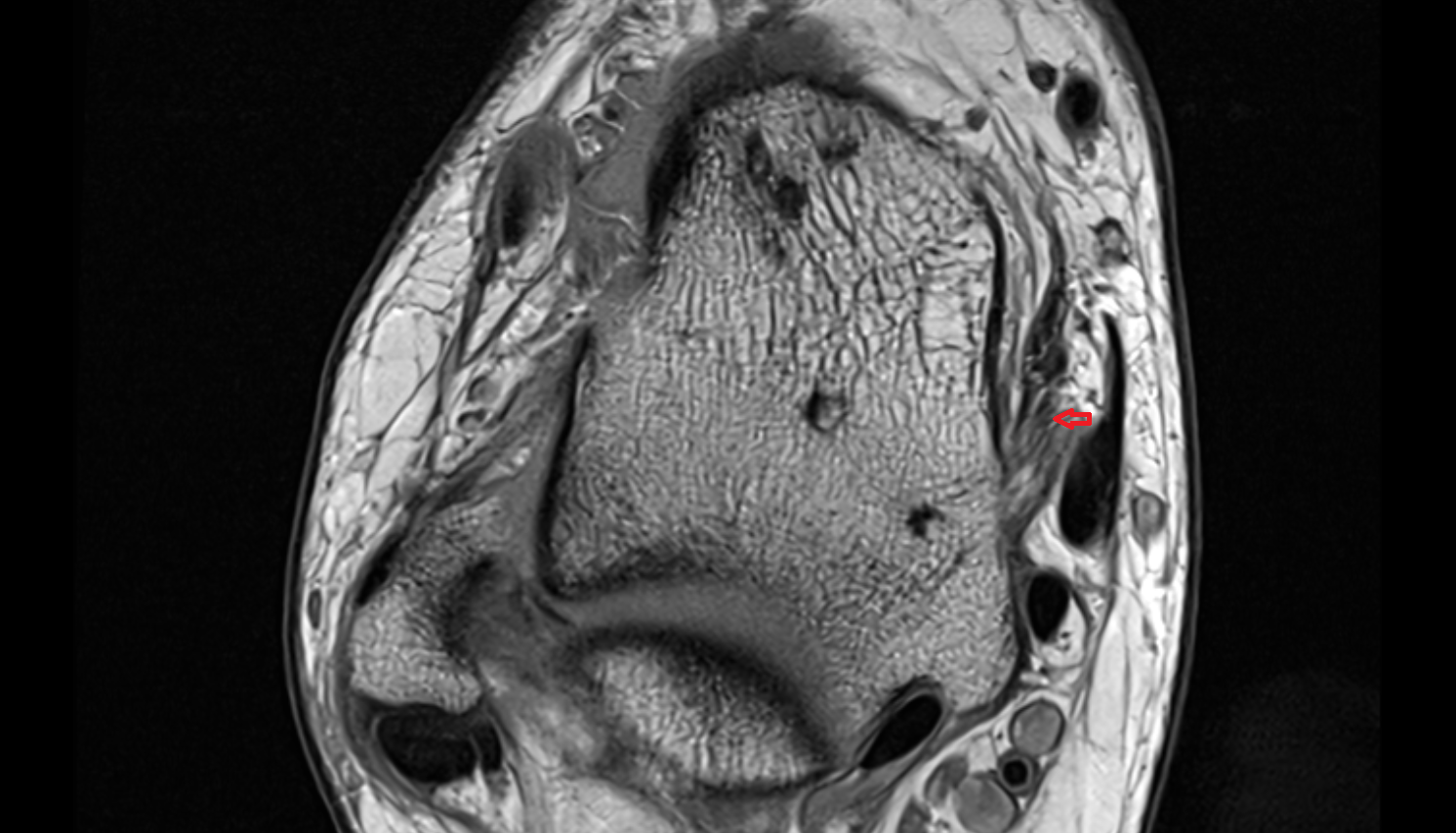

Tibiocalcaneal ligament (Superficial deltoid) axial cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00002

MRI images

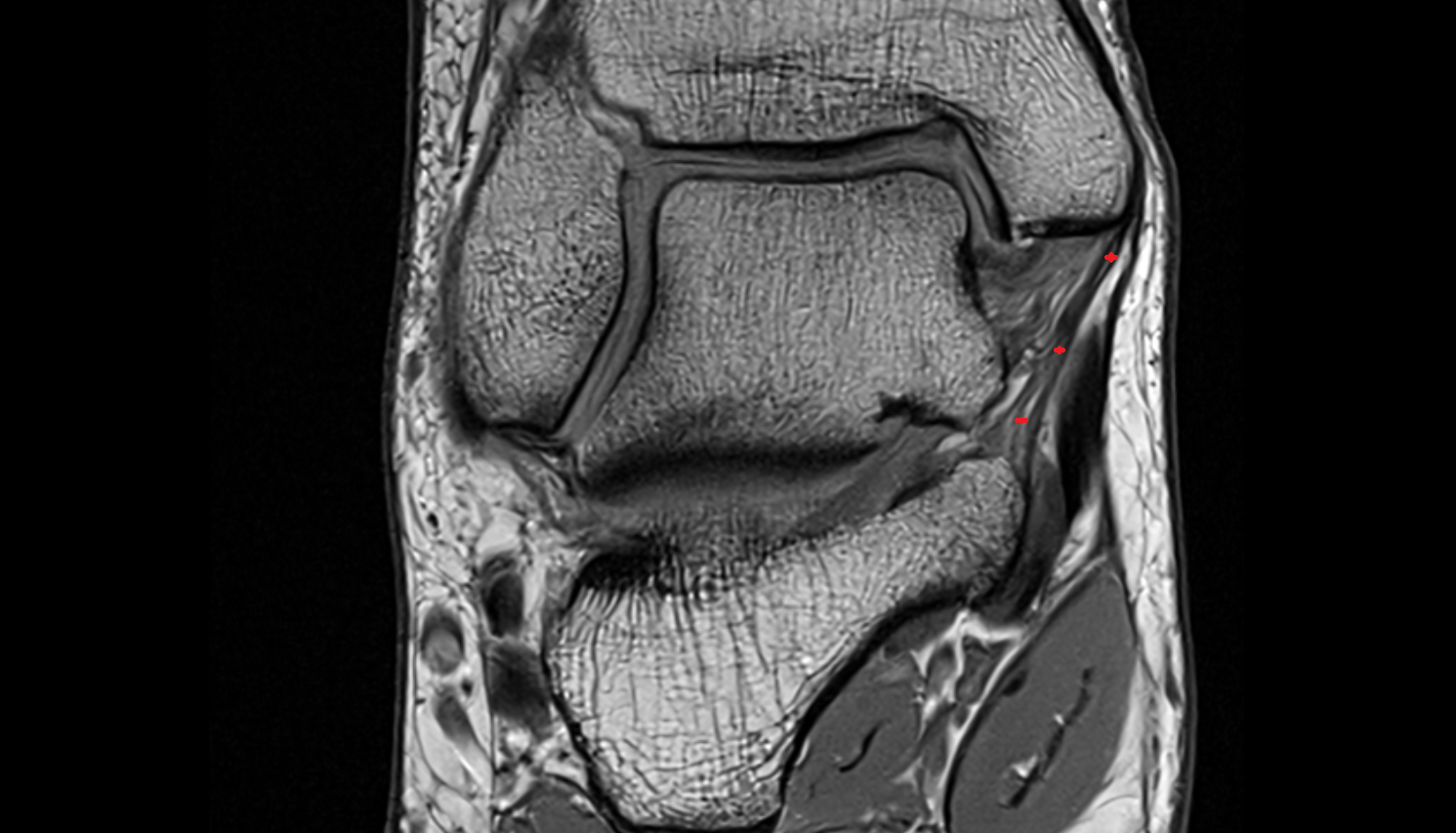

Tibiocalcaneal ligament (Superficial deltoid) coronal cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000
