Tibiofemoral joint space

The tibiofemoral joint space refers to the radiologic and anatomical interval between the distal femur and the proximal tibia, representing the articulation of the knee joint. Although not a true empty space anatomically, it corresponds to the region occupied by articular cartilage, menisci, synovial fluid, and supporting soft tissues.

It is a key parameter in knee assessment, serving as an indirect indicator of cartilage thickness and joint integrity in orthopedic practice and musculoskeletal imaging.

Synonyms

  • Knee joint space

  • Femoro-tibial joint space

Location

  • Situated between the femoral condyles and tibial plateaus

  • Forms the main weight-bearing articulation of the knee

  • Divided into medial and lateral compartments

  • Inferior to the femoral condyles

  • Superior to the tibial plateaus

Anatomical components

  • Articular cartilage of femur and tibia

  • Medial and lateral menisci

  • Synovial fluid and synovial lining

  • Supporting ligaments:

    • Collateral ligaments (medial and lateral)

    • Cruciate ligaments (indirect stabilizers)

Relations

Superiorly:

  • Medial and lateral femoral condyles

Inferiorly:

  • Medial and lateral tibial plateaus

Medially:

  • Medial collateral ligament

  • Medial meniscus

Laterally:

  • Lateral collateral ligament

  • Lateral meniscus

Anteriorly:

  • Patellofemoral joint space and infrapatellar fat pad

Posteriorly:

  • Posterior joint capsule

  • Popliteal structures

X-ray appearance

Plain radiographs (AP, lateral, and weight-bearing views):

  • Joint space: Radiolucent gap between femur and tibia

  • Compartments: Medial and lateral joint spaces assessed separately

  • Best assessment: On standing weight-bearing AP views

  • Alignment: Symmetry indicates normal load distribution

CT appearance

Non-contrast CT:

  • Joint space: Seen as a separation between opposing bony surfaces

  • Subchondral bone: Clearly visualized beneath joint space

  • Menisci and cartilage: Not well visualized but inferred by spacing

  • Utility: Useful for evaluating bony congruity and joint surface morphology

MRI appearance

T1-weighted images:

  • Articular cartilage: Intermediate signal outlining femoral and tibial surfaces

  • Joint space contents: Low signal synovial fluid

  • Menisci: Low-signal triangular structures within the joint space

T2-weighted images:

  • Synovial fluid: High signal

  • Articular cartilage: Intermediate-to-high signal

  • Menisci: Low signal against bright fluid

STIR:

  • Joint fluid: High signal

  • Fat suppression: Improves visualization of intra-articular structures

  • Cartilage and menisci: Clearly contrasted

Proton density fat-saturated (PD FS):

  • Excellent depiction of cartilage thickness and surface integrity

  • Menisci: Low signal with sharp margins

  • Joint fluid: Bright signal

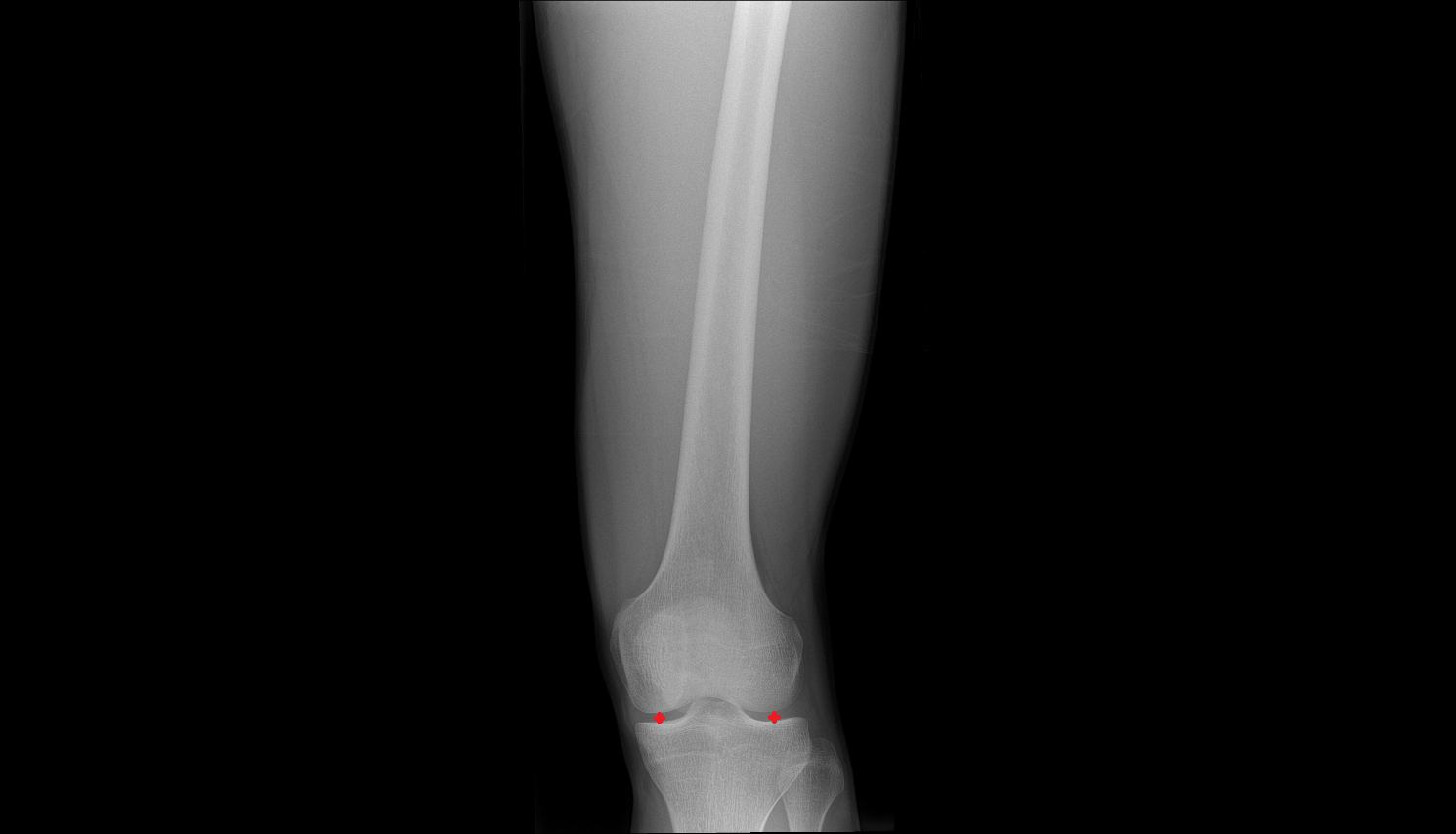

X ray image

Tibiofemoral joint space mri anatomy labelled image-img-00000-00000_00001

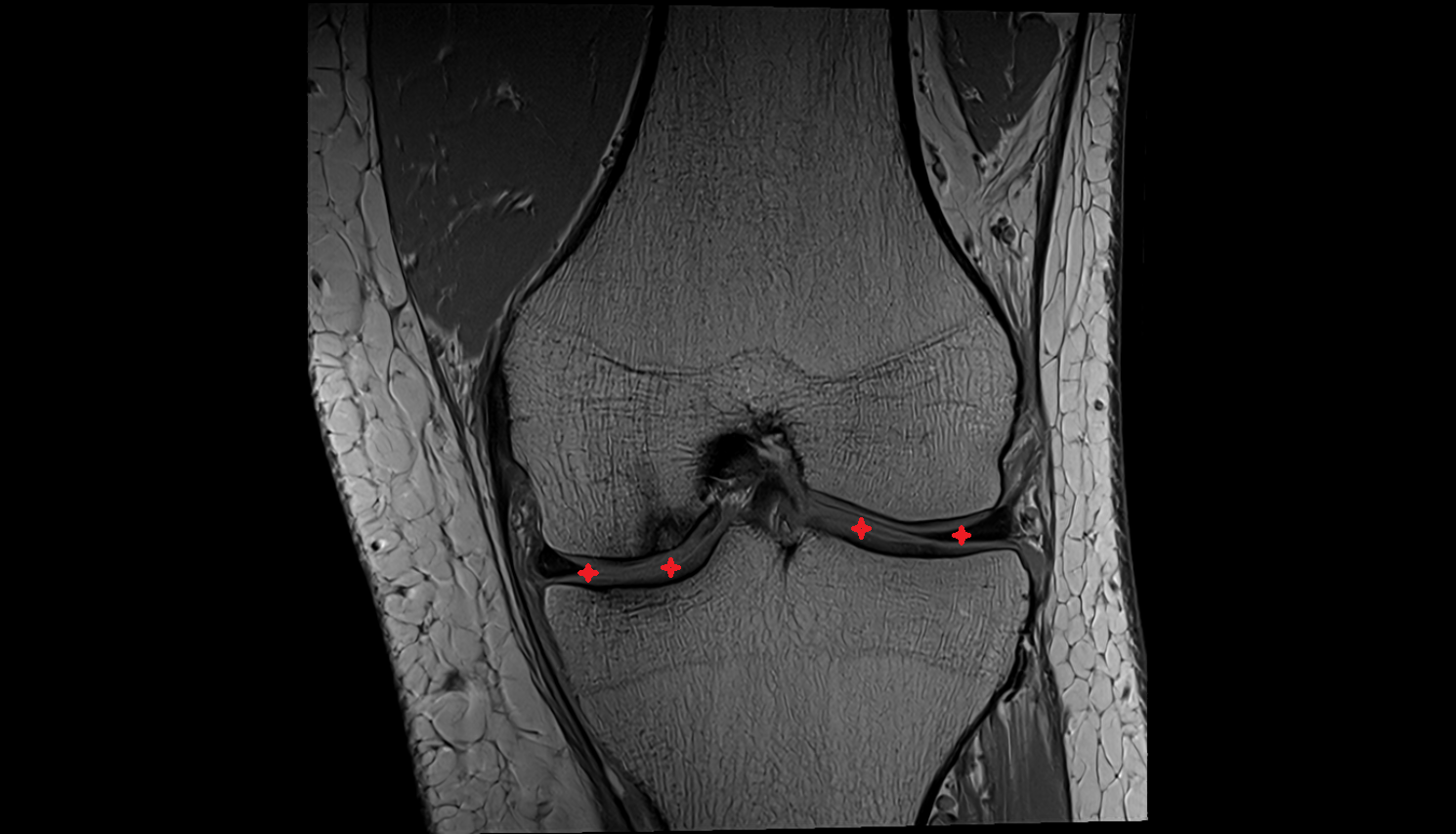

MRI image

Tibiofemoral joint space mri anatomy labelled image-img-00000-00000

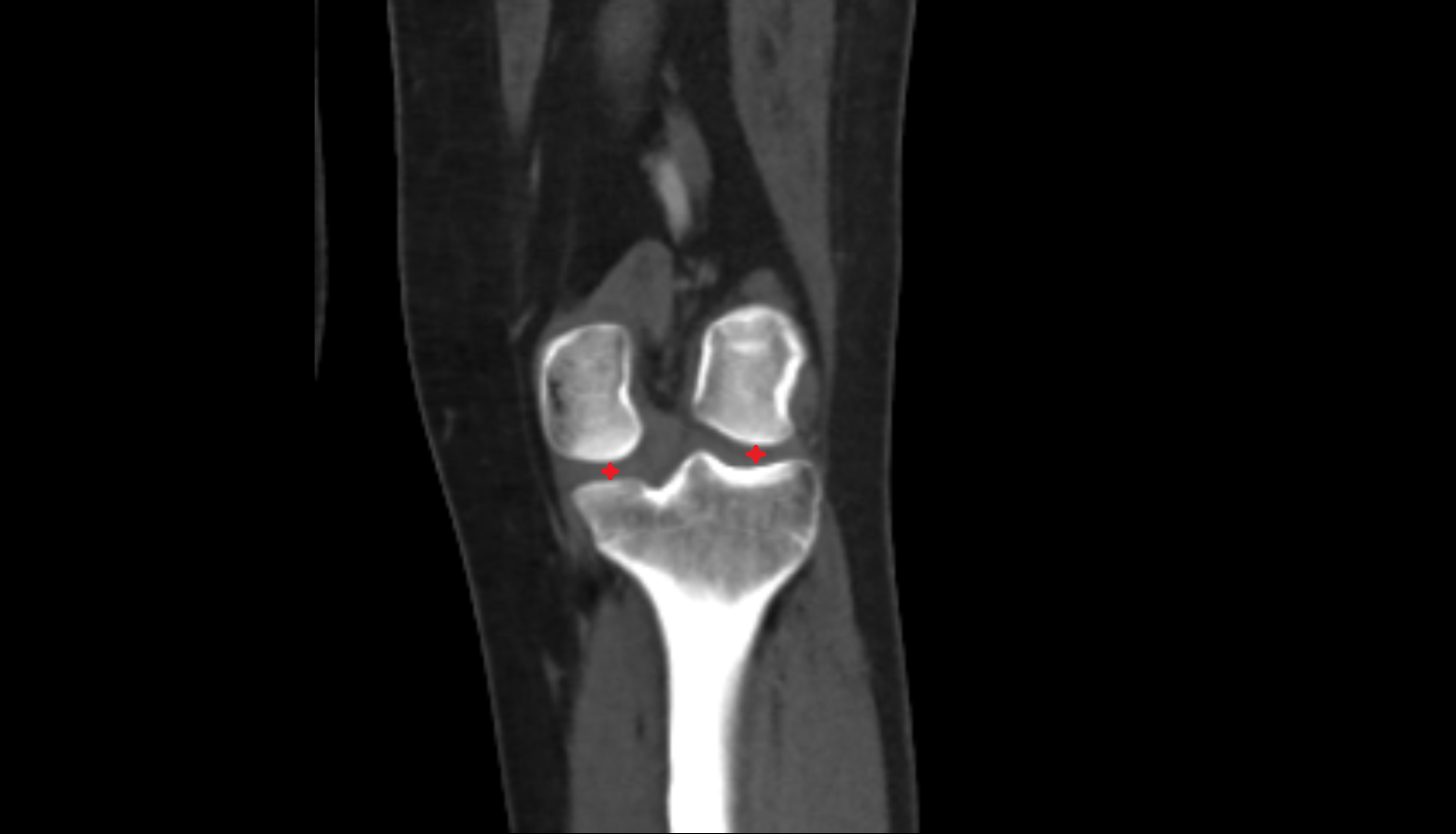

CT images

Tibiofemoral joint space ct anatomy labelled image-img-00000-00000
