Tibiofibular joint (proximal)

The proximal tibiofibular joint (also called the superior tibiofibular joint) is a small plane-type synovial joint between the lateral condyle of the tibia and the head of the fibula. It is enclosed in a joint capsule and stabilized by anterior and posterior tibiofibular ligaments.

This joint allows small gliding movements of the fibula relative to the tibia, essential for force transmission during ankle motion and maintaining stability of the lateral knee. Although less commonly injured than the ankle or knee, the proximal tibiofibular joint can be involved in trauma, instability, arthritis, or ganglion cysts.

Synonyms

  • Superior tibiofibular joint

  • Tibiofibular articulation (proximal)

  • Upper tibiofibular joint

Relations

  • Superiorly: Lateral tibial condyle

  • Inferiorly: Neck of the fibula

  • Anteriorly: Anterior tibiofibular ligament, extensor digitorum longus, and peroneus longus muscles

  • Posteriorly: Posterior tibiofibular ligament, popliteus muscle, and soleus muscle

  • Laterally: Head of the fibula, peroneal nerve passing superficially

  • Medially: Tibial condyle and capsule of the knee joint (closely related)

Ligaments

  • Anterior superior tibiofibular ligament: Connects the anterior aspect of the fibular head to the tibia; resists forward displacement

  • Posterior superior tibiofibular ligament: Stronger; connects the posterior aspect of the fibular head to tibia; resists backward displacement

  • Joint capsule: Surrounds the joint, reinforced by the ligaments

  • Interosseous membrane (indirect relation): Extends distally, providing stability between tibia and fibula

Function

  • Stability: Provides lateral stability of the knee by anchoring fibular head to tibia

  • Force transmission: Helps distribute axial forces from ankle and foot to the knee

  • Mobility: Allows small gliding and rotation movements of the fibula during ankle dorsiflexion and plantarflexion

  • Muscle leverage: Provides a stable base for muscles attached to the fibular head and upper tibia

  • Protection: Shields the common peroneal (fibular) nerve which wraps around the fibular neck

Clinical Significance

  • Instability: May occur after trauma, ligament injury, or dislocation of fibular head

  • Arthritis: Degenerative changes may cause localized pain and swelling

  • Ganglion cysts: Common at this joint, may compress the common peroneal nerve

  • Association: Injuries here often coexist with knee trauma or ankle instability

  • Symptoms: Lateral knee pain, swelling, instability, or peroneal nerve symptoms (foot drop, paresthesia)

  • Surgical importance: Stabilization or cyst excision may be required in symptomatic cases

MRI Appearance

  • T1-weighted images:

    • Joint space: low signal line between tibia and fibula

    • Normal ligaments: low-signal dark bands anteriorly and posteriorly

    • Joint capsule and surrounding fat: bright on T1

    • Pathology: effusion or cyst shows intermediate to bright signal

  • T2-weighted images:

    • Joint space: narrow, low-signal cleft

    • Effusion or ganglion cysts: bright hyperintense fluid signals

    • Ligament tears: appear as discontinuous or hyperintense bands

    • Arthritis: joint space narrowing, irregularity, or cartilage loss

  • STIR:

    • Normal ligaments remain dark

    • Edema, synovitis, or cysts appear bright hyperintense

    • Sensitive for subtle marrow edema of tibia or fibula in trauma

  • Proton Density Fat-Saturated (PD FS):

    • Ligaments: dark, continuous fibers

    • Tears: bright signal clefts replacing normal fibers

    • Joint fluid: high signal, better for small effusions or cysts

  • T1 Fat-Sat Post-Contrast:

    • Normal ligaments: no enhancement

    • Synovitis: linear or diffuse enhancement of joint capsule

    • Ganglion cysts: rim enhancement with central non-enhancing fluid

MRI Arthrogram Appearance

  • Contrast fills the joint space, outlining articular surfaces

  • Capsular tears: contrast extravasation

  • Ganglion cysts: contrast outlines cyst neck if in communication

  • Useful for distinguishing synovial pathology from degenerative change

CT Appearance

Non-Contrast CT:

  • Joint seen as narrow space between tibia and fibula

  • Ligaments not well defined but may appear as thin soft tissue bands

  • Degenerative changes: joint space narrowing, subchondral sclerosis, osteophytes

  • Fibular head fractures or bony avulsions may be detected

Post-Contrast CT (standard):

  • Joint structures poorly enhanced

  • Synovial or periarticular masses may enhance, but ligaments not directly visualized

CT Arthrogram Appearance

  • Contrast outlines the proximal tibiofibular joint space clearly

  • Capsular tears: contrast extravasates outside the joint capsule

  • Cysts or synovial outpouchings: appear as contrast-filled extensions

  • Helpful in patients with contraindications to MRI

MRI image

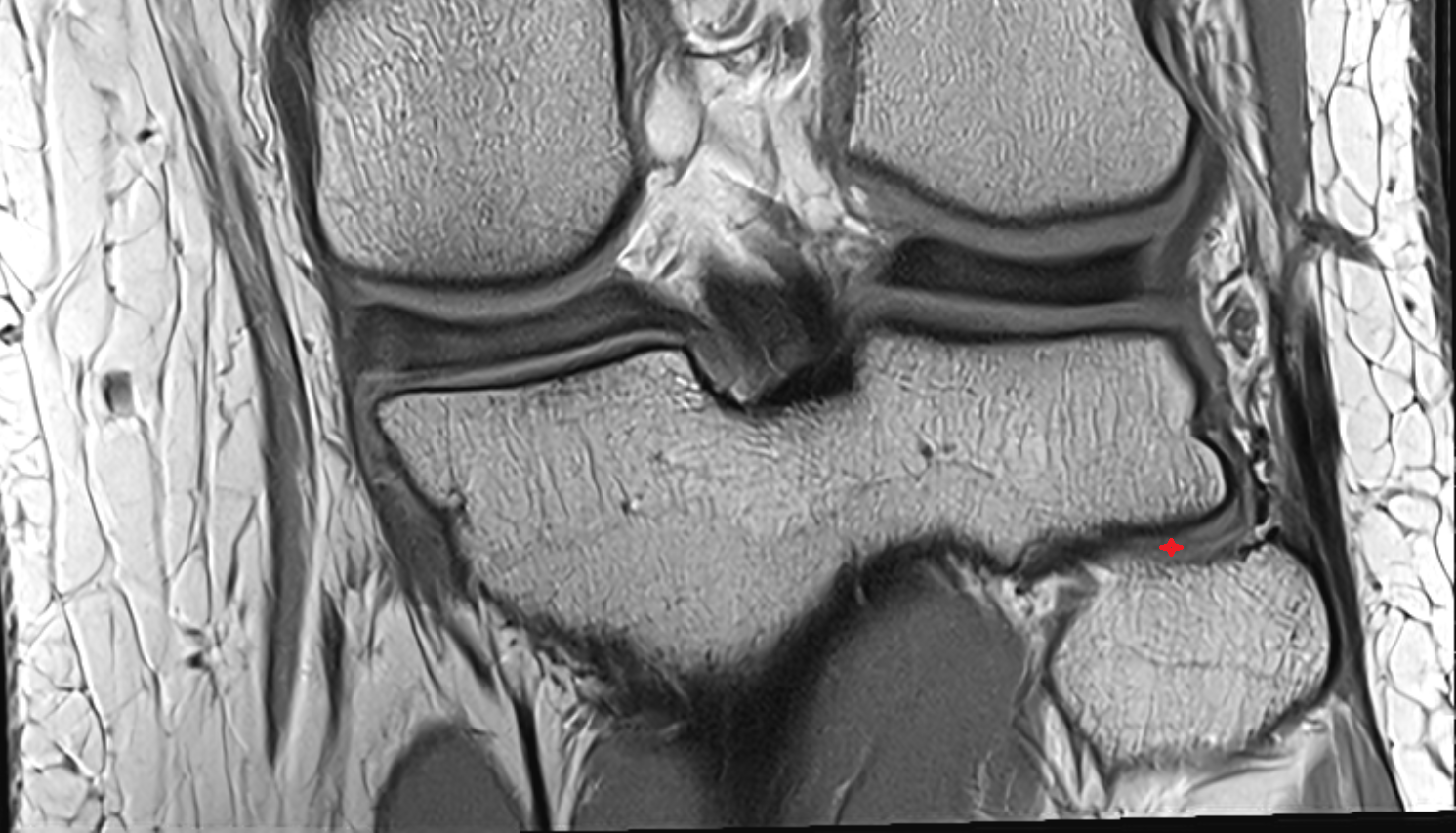

Tibiofibular joint (proximal) coronal cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000

MRI image

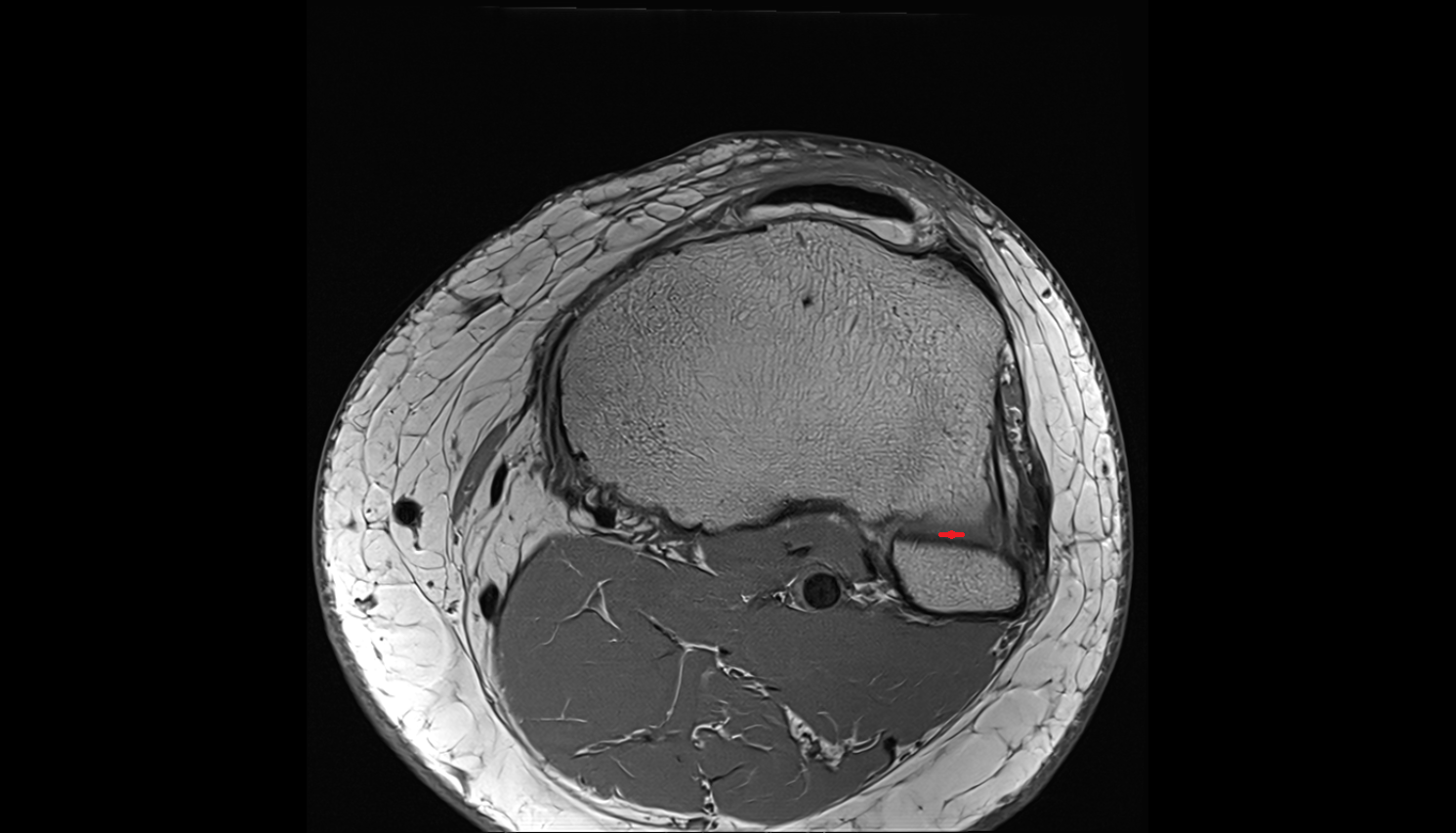

Tibiofibular joint (proximal) axial cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000

MRI image

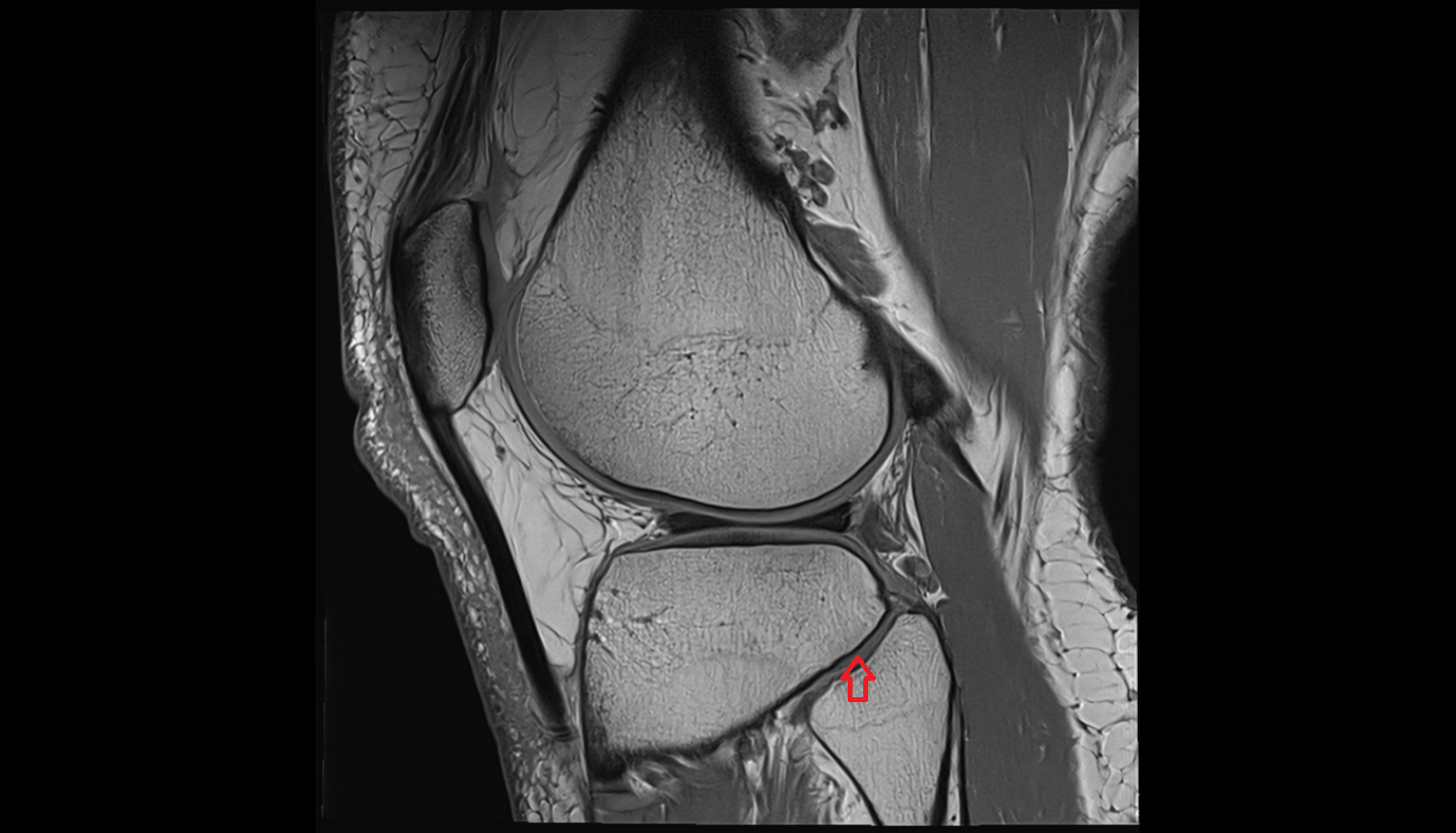

Tibiofibular joint (proximal) sagittal cross sectional anatomy 3T MRI AI enhanced radiology anatomy image-img-00000-00000

CT image

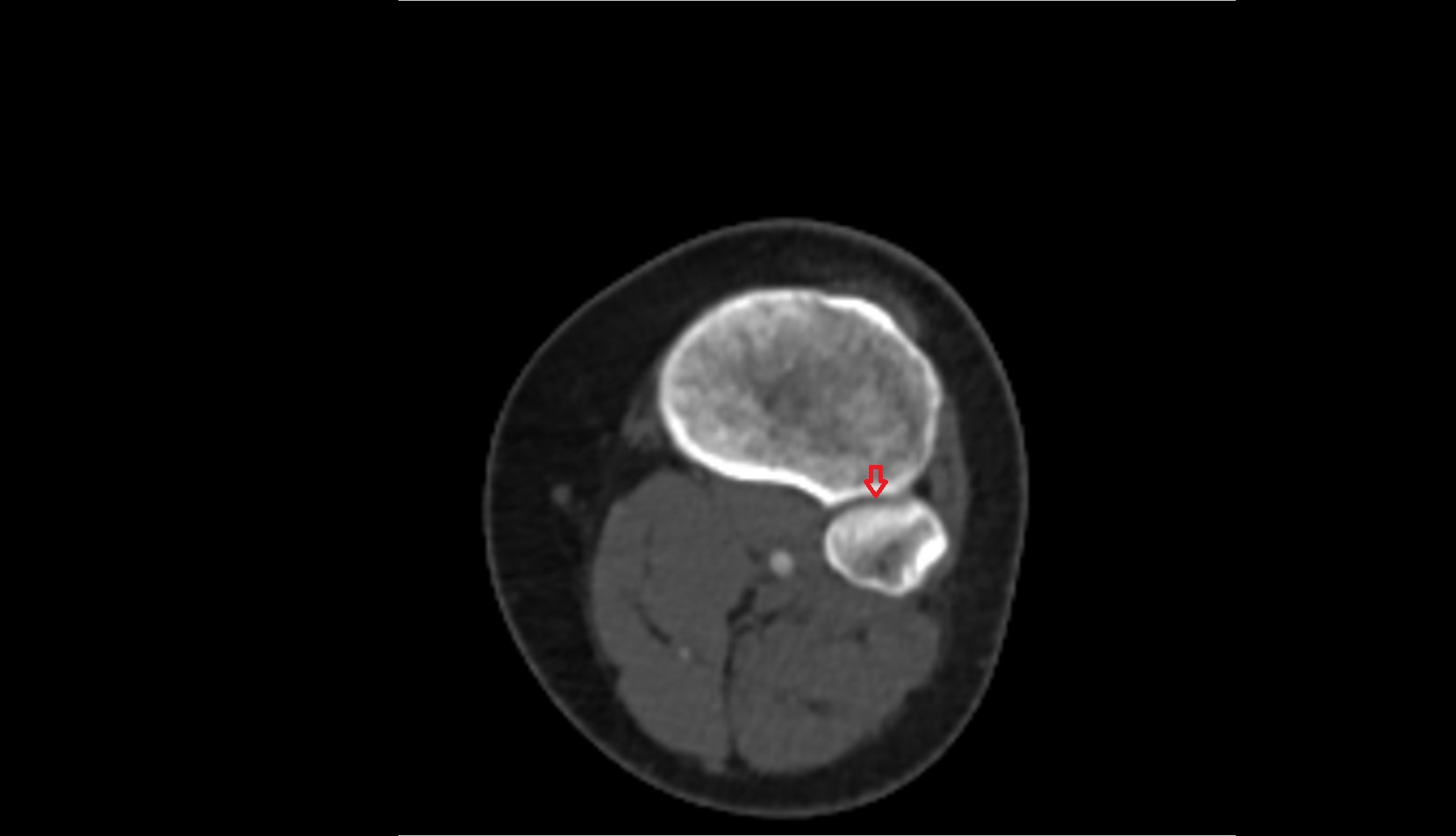

Tibiofibular joint (proximal) ct axial

CT image

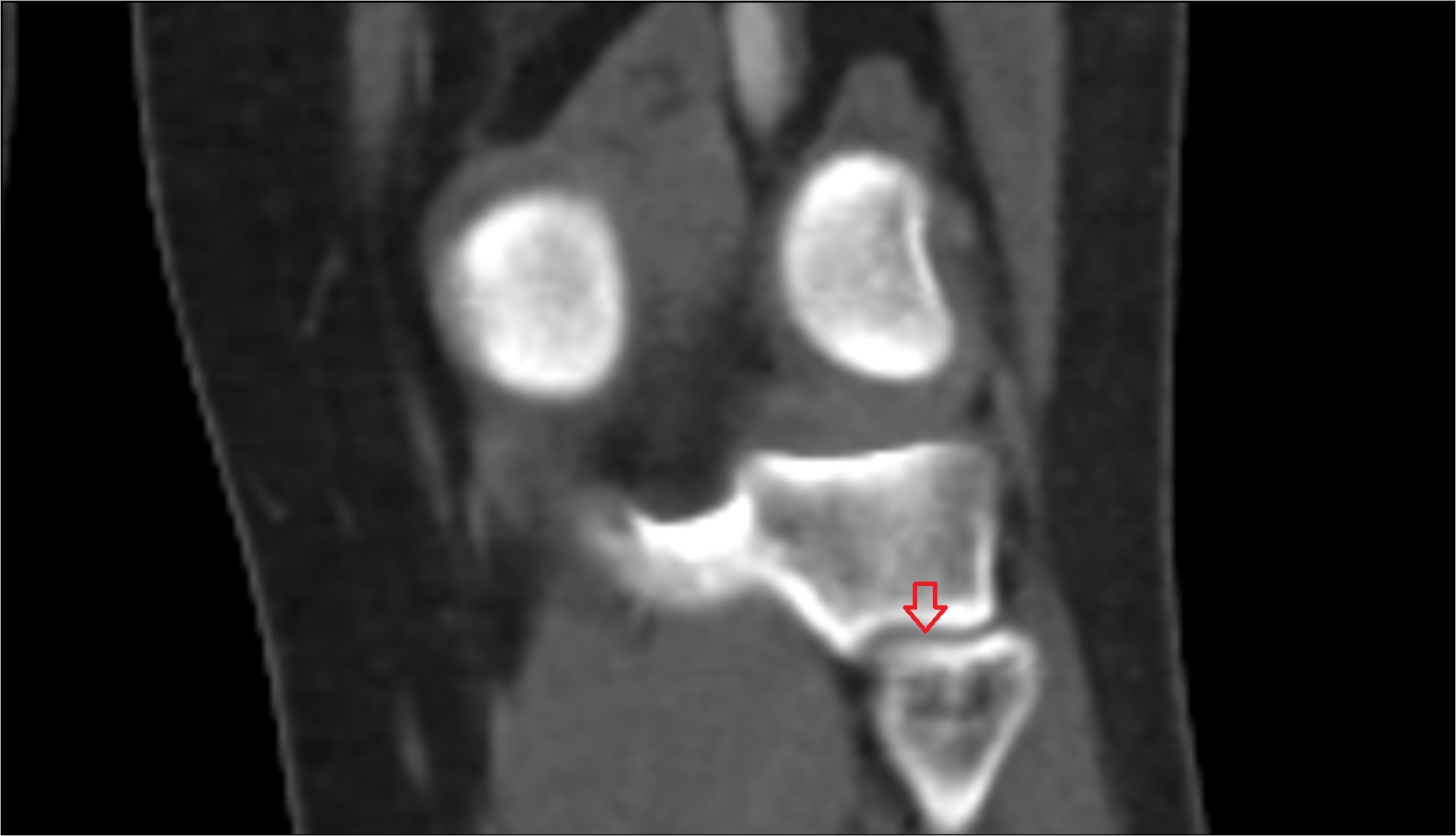

Tibiofibular joint (proximal) ct coronal

CT image

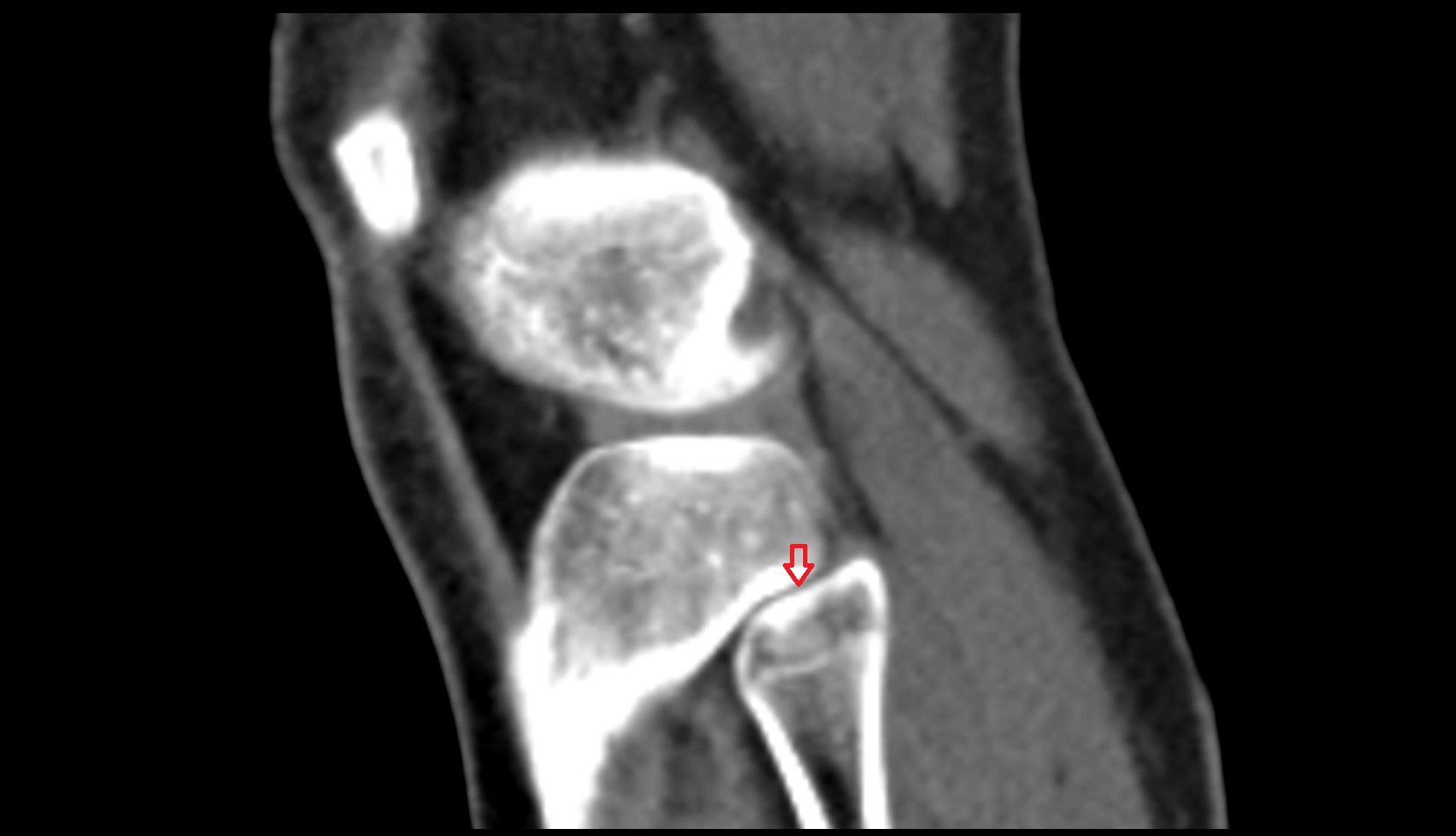

Tibiofibular joint (proximal) ct sag
