Tibiospring Ligament

The tibiospring ligament, also called the superficial deltoid ligament, is one of the key components of the medial ankle ligament complex. It extends from the medial malleolus of the tibia to the spring ligament (calcaneonavicular ligament), forming part of the broader deltoid ligament.

This ligament stabilizes the medial ankle by resisting excessive eversion and external rotation. It also plays a vital role in supporting the talonavicular joint and maintaining the medial longitudinal arch of the foot. Injury to the tibiospring ligament is usually associated with deltoid ligament sprains, posterior tibial tendon dysfunction, or flatfoot deformity.

Synonyms

  • Superficial deltoid ligament

  • Tibiospring portion of deltoid ligament

  • Medial ankle superficial deltoid band

Origin, Course, and Insertion

  • Origin: Medial malleolus of tibia (anterior colliculus)

  • Course: Descends obliquely downward and forward across the medial ankle joint

  • Insertion: Blends with the spring ligament (calcaneonavicular ligament) and attaches to the superomedial aspect of the navicular bone

Relations

  • Superiorly: Medial malleolus and overlying skin and retinaculum

  • Inferiorly: Spring ligament and superomedial navicular

  • Anteriorly: Tibionavicular component of the superficial deltoid

  • Posteriorly: Tibiocalcaneal component of the superficial deltoid

  • Deep relations: Deep deltoid ligament fibers, talus, and ankle joint capsule

Function

  • Medial ankle stabilizer: Resists eversion and external rotation of the foot

  • Arch support: Supports the medial longitudinal arch via its connection with the spring ligament

  • Talonavicular stability: Helps maintain congruency of the talonavicular joint

  • Load distribution: Shares stress with posterior tibial tendon and other deltoid fibers during stance and gait

Clinical Significance

  • Injury association: Commonly injured in medial ankle sprains, flatfoot deformity, and posterior tibial tendon dysfunction

  • Chronic insufficiency: Leads to medial arch collapse and valgus deformity

  • Sports relevance: Injuries often result from twisting, eversion, or pronation stress

  • Surgical importance: Frequently evaluated in ankle reconstructive procedures and flatfoot corrective surgeries

  • Imaging relevance: MRI is the gold standard for assessing ligament continuity, tears, and degeneration

MRI Appearance

  • T1-weighted images:

    • Normal tibiospring ligament: low signal intensity (dark band) attaching medial malleolus to spring ligament/navicular

    • Surrounding fat appears bright, outlining the ligament clearly

    • Partial tears: focal thickening, irregular contour, or increased intermediate signal

  • T2-weighted images:

    • Normal ligament: low signal (darker than muscle)

    • Tears or degeneration: bright hyperintense signal within fibers or discontinuity

    • Surrounding edema or effusion appears hyperintense

  • STIR:

    • Normal ligament: remains dark

    • Pathology: hyperintense signal indicates sprain, edema, or rupture

    • Best for detecting periligamentous inflammation

  • Proton Density Fat-Saturated (PD FS):

    • Normal ligament: thin, uniform low-signal band

    • Tears: focal or diffuse bright signal crossing the ligament fibers

    • Excellent for detecting subtle sprains or partial disruptions

  • T1 Fat-Sat Post-Contrast:

    • Normal ligament: minimal or no enhancement

    • Injured ligament: enhancement along fibers or surrounding soft tissues due to inflammation or healing response

CT Appearance

Non-Contrast CT:

  • Ligament itself poorly visualized (thin soft-tissue band)

  • Indirect findings: ankle joint malalignment, calcifications in chronic injury, or avulsion fractures of medial malleolus/navicular

Post-Contrast CT (standard):

  • Ligament fibers remain indistinct

  • Enhancement may be seen in periligamentous soft tissues in acute injuries

MRI image

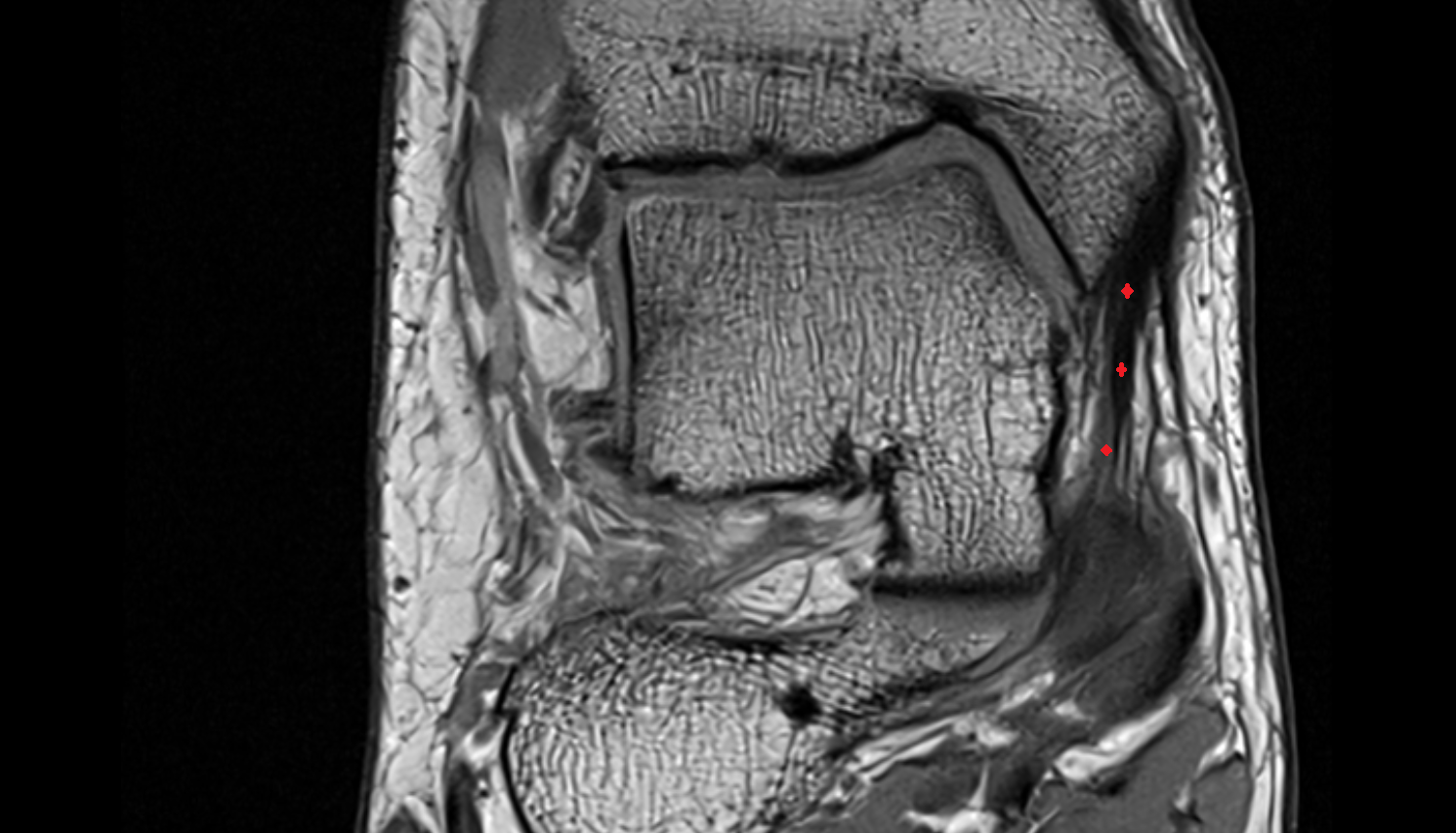

Tibiospring Ligament (Superficial Deltoid) coronal cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI image

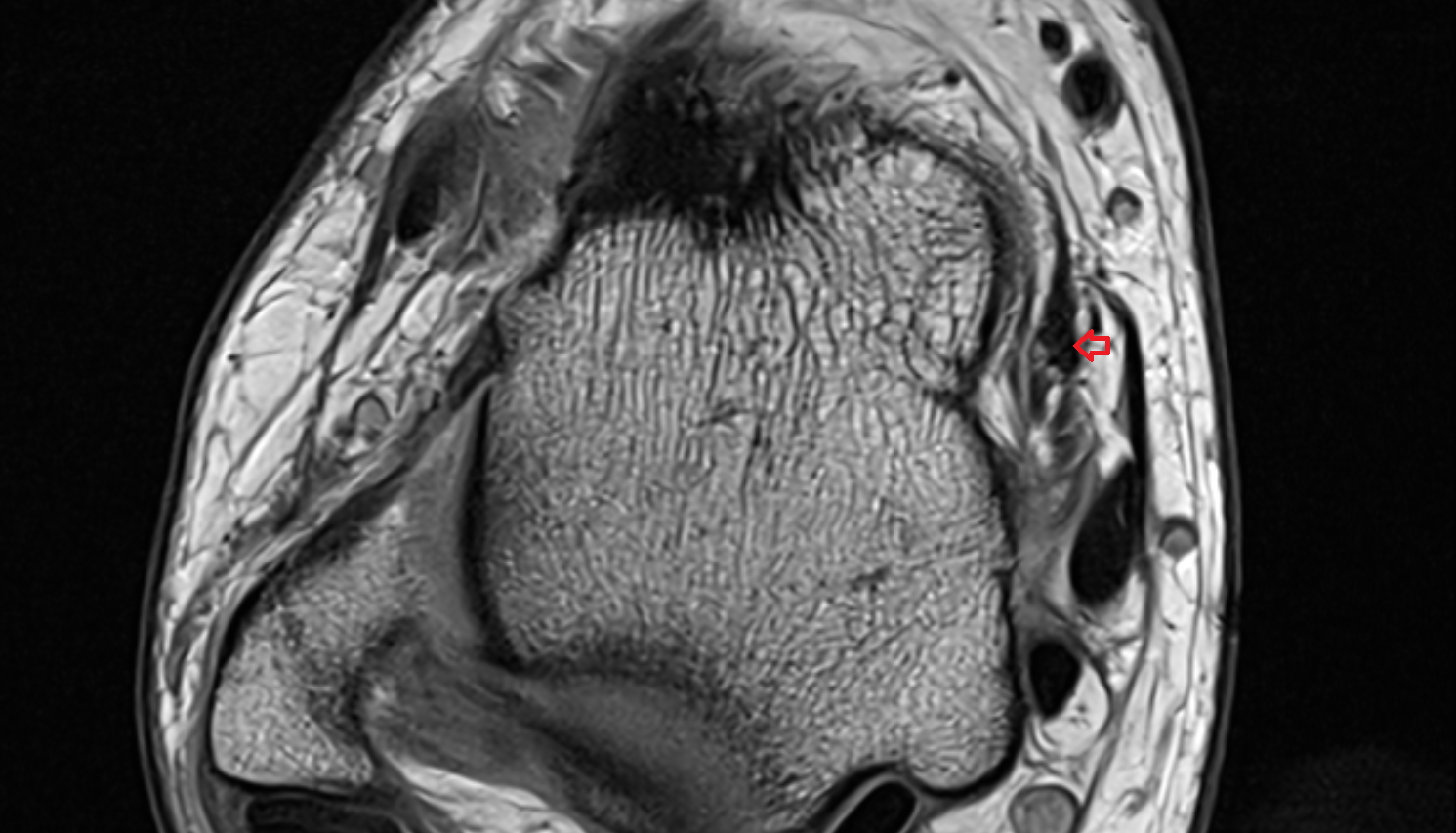

Tibiospring Ligament (Superficial Deltoid) sag cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000

MRI image

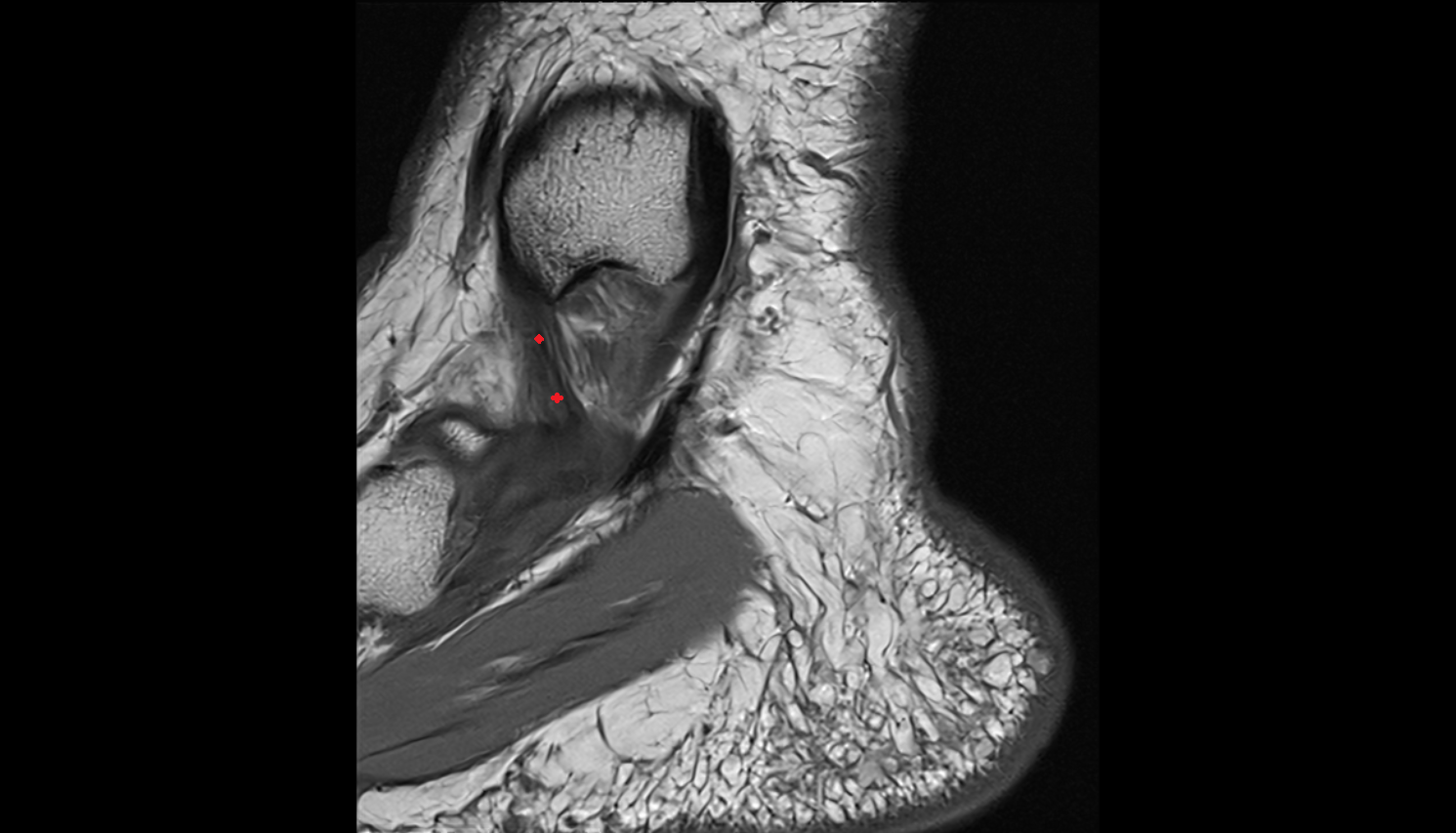

Tibiospring Ligament (Superficial Deltoid) sag cross sectional anatomy 3T MRI AI enhanced radiology image-img-00000-00000_00001
