Tympanic segment of facial nerve

The tympanic segment of the facial nerve is the second intratemporal portion of the facial nerve, located within the fallopian canal of the medial wall of the middle ear cavity. It begins at the first genu (site of the geniculate ganglion) and extends horizontally posteriorly toward the second genu, where the nerve curves inferiorly into the mastoid segment.

This segment runs just superior to the oval window and stapes footplate, maintaining an intimate relationship with the ossicular chain and middle ear mucosa. Because of its proximity to middle ear pathology, it is highly susceptible to injury from cholesteatoma, otitis media, temporal bone fractures, and iatrogenic surgical trauma.

Synonyms

  • Horizontal segment of the facial nerve

  • Tympanic facial canal

  • Middle ear segment of CN VII

Location and Structure

  • Position: Medial wall of middle ear cavity, running horizontally above the oval window

  • Length: Approximately 8–11 mm

  • Canal: Enclosed within the fallopian canal, a bony tunnel; may have partial dehiscence

  • Orientation: Extends posteriorly from geniculate ganglion to the second genu

  • Morphology: Narrowest part of the intratemporal facial nerve pathway

Relations

  • Superiorly: Tegmen tympani (roof of middle ear)

  • Inferiorly: Oval window, stapes footplate, cochlear promontory

  • Anteriorly: Geniculate ganglion and labyrinthine segment

  • Posteriorly: Second genu leading to mastoid segment

  • Laterally: Tympanic cavity air space and middle ear mucosa

  • Medially: Medial wall of tympanic cavity and cochlea

Branches

  • Nerve to stapedius (origin may be near posterior aspect of tympanic segment)

  • Minute sensory twigs to middle ear mucosa

Function

  • Conducts motor fibers of facial expression from the brainstem toward the extracranial face

  • Transmits fibers to stapedius muscle, regulating sound attenuation

  • Carries parasympathetic preganglionic fibers destined for lacrimation and salivation

  • Provides sensory fibers to portions of the external auditory canal and tympanic cavity

Clinical Significance

  • Facial nerve palsy: Middle ear infections, cholesteatoma, or iatrogenic surgical injury

  • Temporal bone fractures: Longitudinal fractures frequently involve the tympanic segment

  • Dehiscence: Common site of bony canal dehiscence, increasing vulnerability to disease

  • Tumors: Facial nerve schwannoma or hemangioma may arise within this segment

  • Surgical relevance: Landmark during tympanoplasty, stapedectomy, and cochlear implantation

MRI Appearance

T1-weighted images (pre-contrast)

  • Facial nerve:

    • Appears as a linear intermediate-to-slightly hyperintense structure within the bony fallopian canal.

  • Canal margins:

    • Low signal rim (cortical bone).

  • Middle ear air: Very low signal (black).

  • Landmarks: Geniculate ganglion shows slightly higher T1 signal due to neural tissue and fat.

T2-weighted images

  • Facial nerve:

    • Intermediate signal, slightly darker than CSF but brighter than cortical bone.

  • Surrounding air spaces: Black (air signal void).

  • Fallopian canal walls: Thin low-signal cortical bone.

  • Labyrinth landmarks:

    • Cochleariform process and promontory appear as low-signal bony structures adjacent to the nerve.

3D MRI (3D T2, 3D FIESTA/CISS, or 3D SPACE)

  • Nerve:

    • Sharp visualization as a smooth intermediate-signal tubular structure coursing horizontally along the medial tympanic wall.

  • Bony canal:

    • Clear delineation of the fallopian canal contours.

  • Adjacent osseous and soft-tissue anatomy: Superior semicircular canal, oval window, and ossicles well demonstrated.

  • Provides excellent delineation of nerve trajectory, curvature at geniculate and second genu, and relationship to tiny middle ear structures.

T1-weighted Fat-Saturated Post-Contrast

  • Facial nerve:

    • Mild, uniform enhancement of the nerve segment is normal (vascularized neural tissue).

  • Fallopian canal:

    • Non-enhancing cortical bone.

  • Landmark identification:

    • Geniculate ganglion shows stronger enhancement than the tympanic segment due to higher vascularity.

CT Temporal Bone Appearance

Non-Contrast High-Resolution CT (HRCT)

  • Fallopian canal:

    • Visualized as a thin, continuous bony tunnel running horizontally above the oval window.

  • Facial nerve:

    • Not directly visualized (soft tissue), but its position is inferred by the canal boundaries.

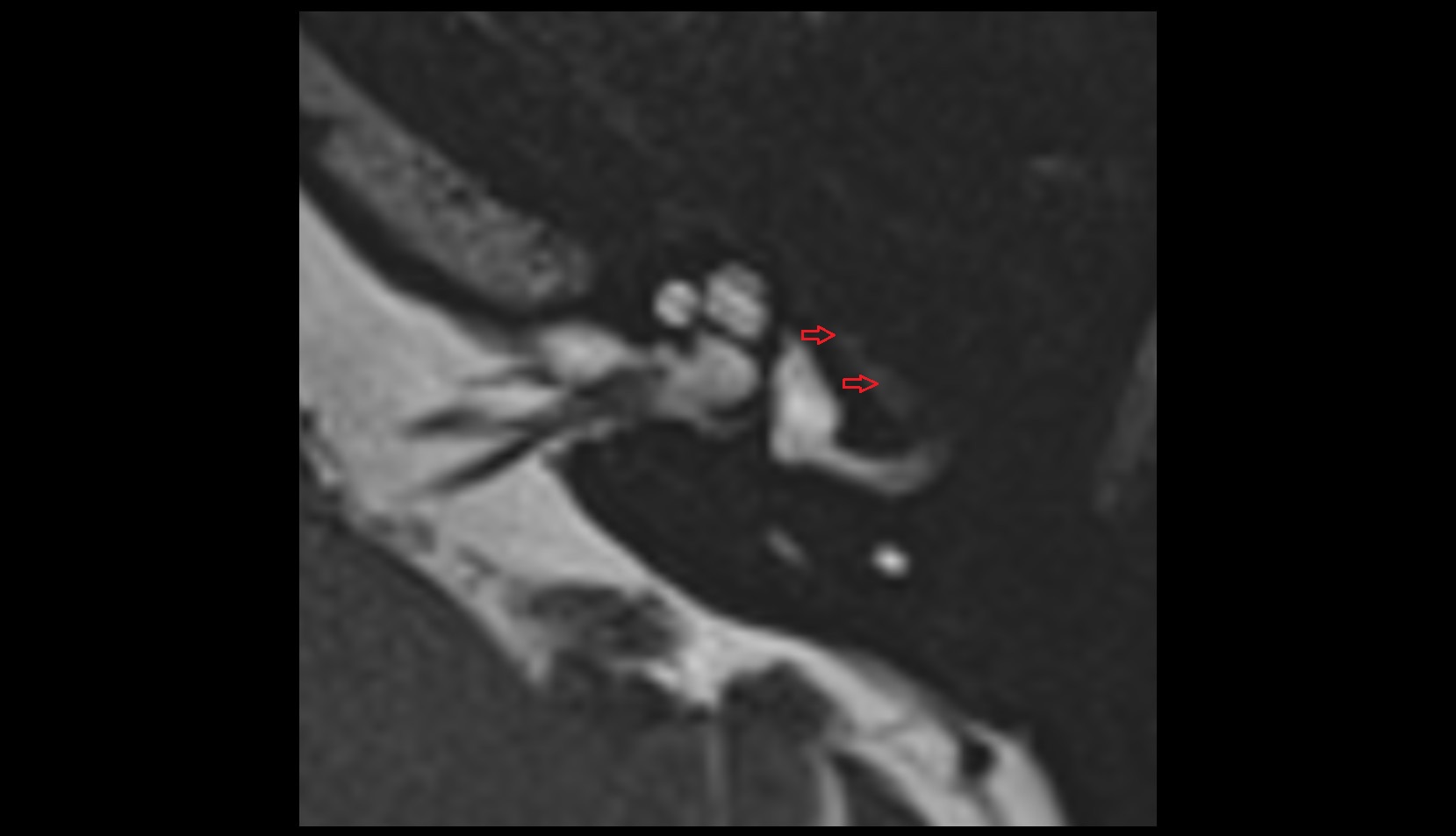

MRI image

tympanic segment of facial nerve axil mri image
