Ulnocapitate Ligament: Anatomy, Function, and Imaging

Topic

Ulnocapitate ligament

The ulnocapitate ligament (UCL) is one of the major ulnocarpal ligaments forming part of the ulnocarpal complex within the wrist. It extends from the ulnar aspect of the triangular fibrocartilage complex (TFCC) or the ulnar styloid process to the palmar surface of the capitate bone, reinforcing the volar (palmar) wrist capsule.

It works in coordination with the ulnolunate and ulnotriquetral ligaments to stabilize the ulnar side of the wrist joint and transmit forces from the forearm to the carpus. The UCL also helps maintain alignment during wrist motion, particularly in pronation and ulnar deviation.

Synonyms

Palmar ulnocapitate ligament
Ulnocarpal capsular ligament (medial component)

Origin, Course, and Insertion

Origin: Palmar radioulnar joint capsule or anterior aspect of the ulnar styloid process and TFCC (triangular fibrocartilage complex).
Course: Runs obliquely distally and laterally across the ulnar aspect of the wrist joint, deep to the ulnolunate ligament, forming part of the ulnocarpal capsule.
Insertion: Palmar surface of the capitate bone, occasionally blending with fibers of the ulnolunate ligament and the volar radiocapitate ligament.

Relations

Anteriorly: Palmar wrist capsule and flexor tendons (notably flexor carpi ulnaris and flexor digitorum profundus).
Posteriorly: Ulnolunate ligament and ulnar head of the triquetrum.
Medially: Ulnar styloid process and triangular fibrocartilage complex (TFCC).
Laterally: Capitate and lunate bones, adjacent to the ulnolunate ligament.

Attachments

Proximal: Ulnar capsule and anterior margin of the TFCC.
Distal: Palmar surface of the capitate and occasionally the lunate.
Blends with: Deep palmar radiocarpal ligaments, contributing to ulnocarpal stability.

Function

Wrist stabilization: Restrains excessive palmar and ulnar translation of the proximal carpal row.
Load transmission: Distributes axial and rotational forces from the ulna to the carpus.
Joint congruency: Maintains alignment between the distal ulna and proximal carpal bones during wrist motion.
Functional integration: Works synergistically with the ulnolunate and ulnotriquetral ligaments as part of the ulnocarpal ligament complex.

Clinical Significance

Ulnocarpal impaction syndrome: Chronic microtrauma may stretch or tear the ulnocapitate ligament as part of TFCC degeneration.
Traumatic tears: Can occur with hyperextension or rotational wrist injuries.
Degenerative changes: Seen in repetitive loading (e.g., racket sports, gymnastics).
Instability: Injury may lead to pain, clicking, or limited motion on the ulnar side of the wrist.
Imaging relevance: Important in evaluating TFCC tears, ulnocarpal instability, and ulnar impaction disorders.

MRI Appearance

T1-weighted images:
- Ligament appears as a low-signal (dark) band extending from the TFCC to the capitate.
- Surrounding fat and muscle planes are bright, aiding delineation.
- Chronic thickening or scarring: low-to-intermediate signal with loss of definition.
T2-weighted images:
- Normal ligament: low signal intensity, uniform and well-defined.
- Partial tear or degeneration: focal bright hyperintense signal or discontinuity within the dark band.
- Associated joint effusion or synovitis may appear as surrounding hyperintensity.
STIR:
- Ligament: intermediate-to-dark signal.
- Pathology: bright hyperintensity indicating edema, strain, or partial rupture.
- Helps visualize adjacent inflammatory changes in the ulnocarpal joint.
Proton Density Fat-Saturated (PD FS):
- Ligament: dark, linear band along ulnocarpal margin.
- Partial or complete tears: bright signal disrupting continuity.
- Excellent for assessing fibrous thickening, partial tears, and periligamentous fluid.
T1 Fat-Sat Post-Contrast:
- Normal ligament: minimal or no enhancement.
- Inflamed or injured fibers: mild to moderate enhancement along course.
- Synovitis or scarring: patchy or diffuse enhancement in periligamentous tissue.

MR Arthrography Appearance

Normal: Ligament remains as a continuous low-signal band with no contrast extension through its substance.
Partial tear: Contrast seeps along ligament margins but does not fully traverse it.
Complete tear: Contrast passes freely from the ulnocarpal joint space toward midcarpal recess or capitate articulation.
Utility: Superior for detecting small ligament perforations, ulnocarpal instability, and associated TFCC pathology.

CT Appearance

Non-Contrast CT:

Ligament itself not distinctly visualized due to similar soft-tissue density.
Indirect signs: ulnar variance, subtle bone remodeling, or calcifications in chronic impaction.
Bony landmarks (ulnar styloid, capitate) clearly visible for anatomical correlation.

Post-Contrast CT (standard):

Provides limited soft-tissue definition compared to MRI.
Inflammation or thickening may appear as mild enhancement in periligamentous tissues.

CT Arthrography Appearance

Normal: Ligament appears as a fine non-opacified band between the ulnar capsule and capitate, with intact contrast containment.
Partial tear: Contrast outlines the ligament or extends subtly between its fibers.
Complete tear: Contrast flows between the ulnocarpal and midcarpal spaces, confirming communication.
Advantages: Excellent spatial resolution for evaluating ulnocarpal ligament complex tears, TFCC involvement, and carpal instability patterns.

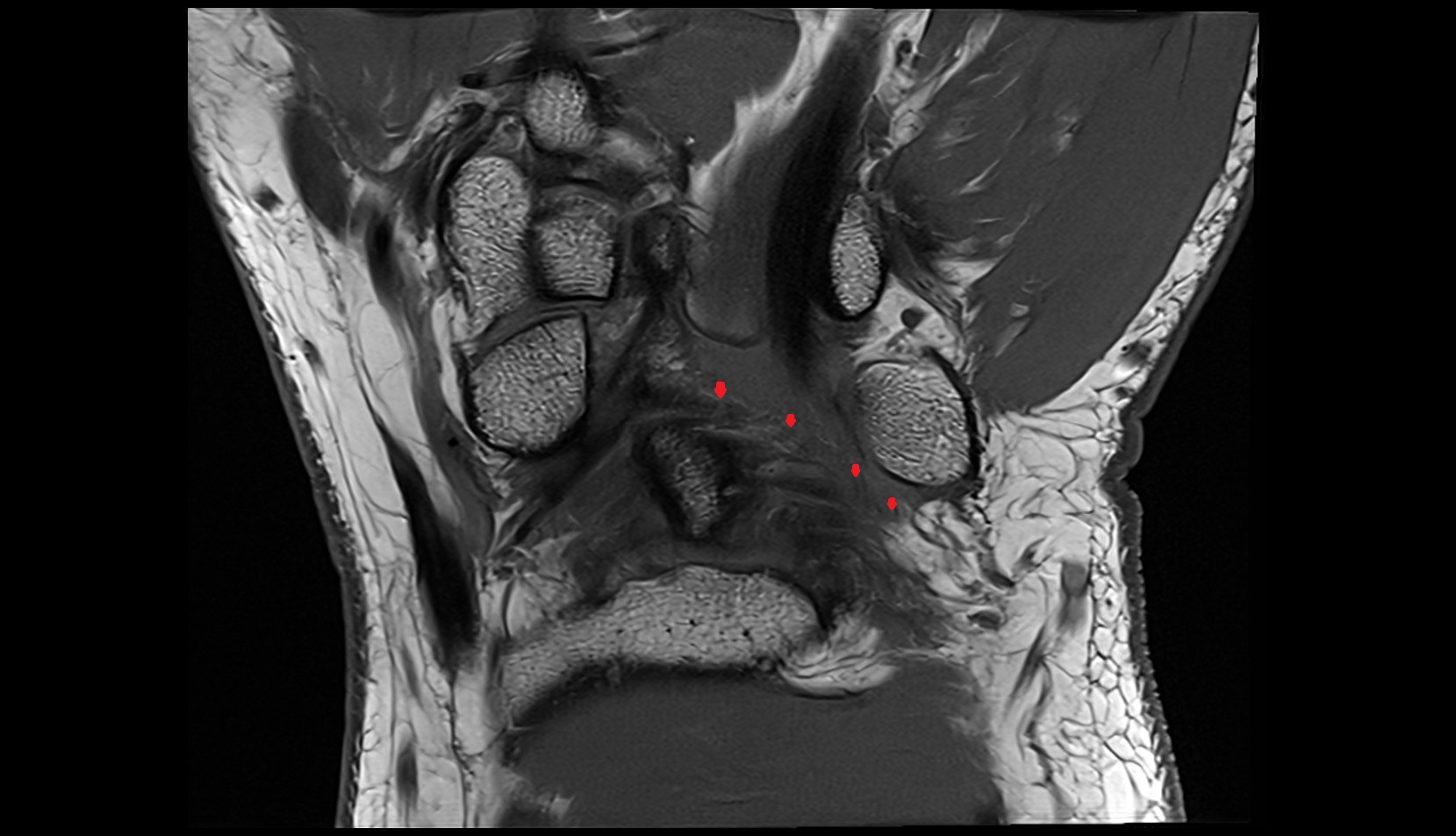

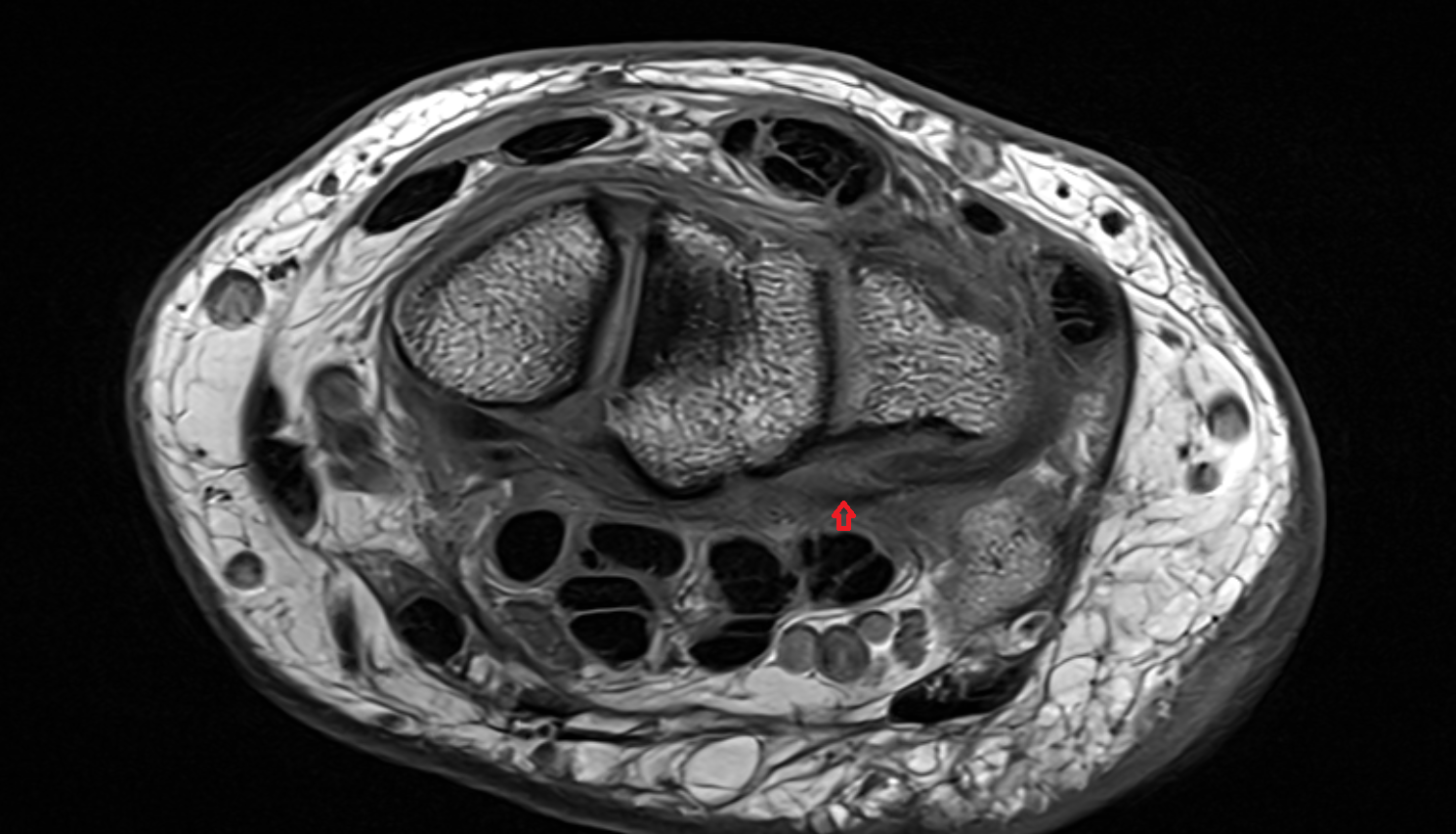

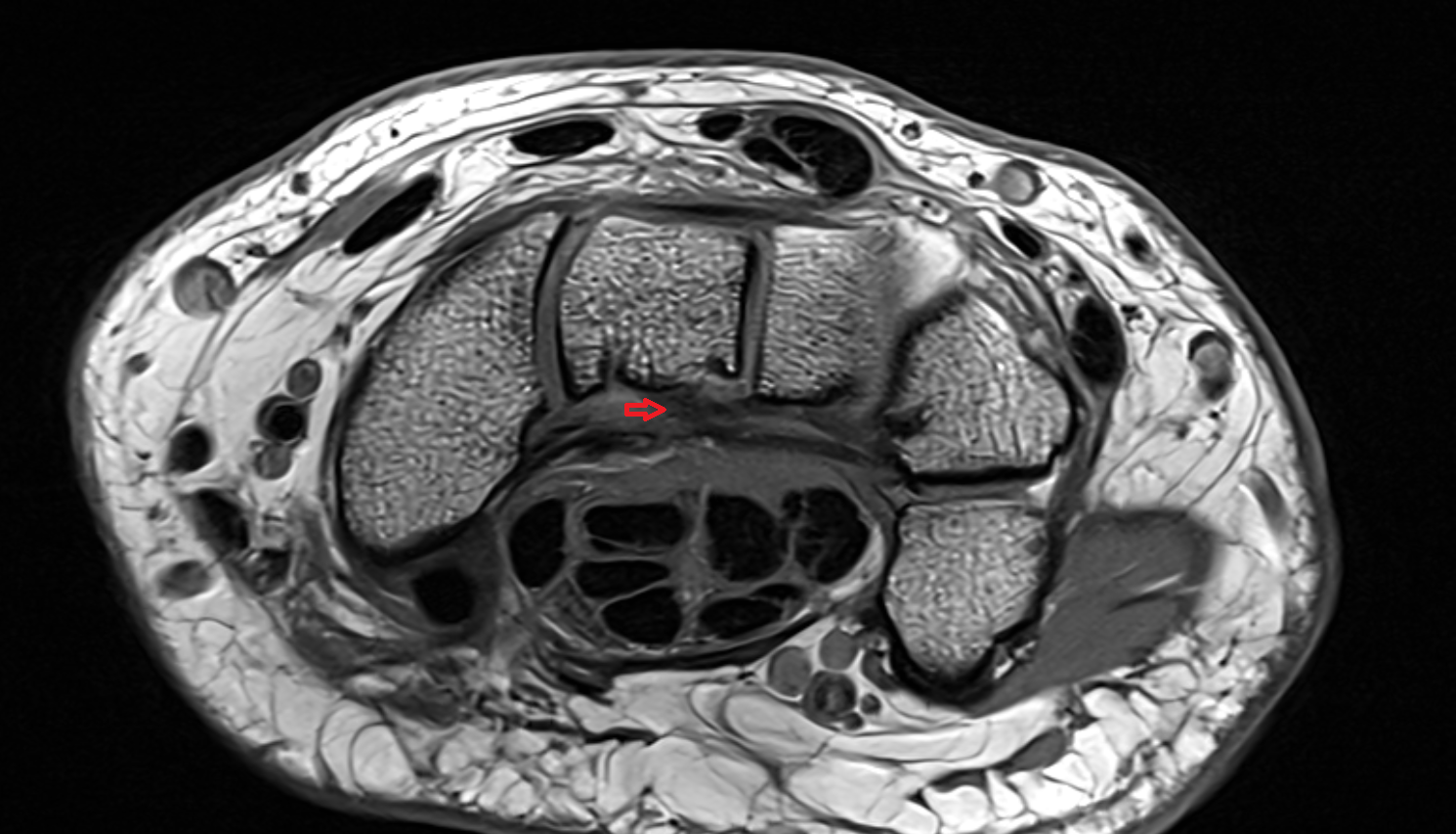

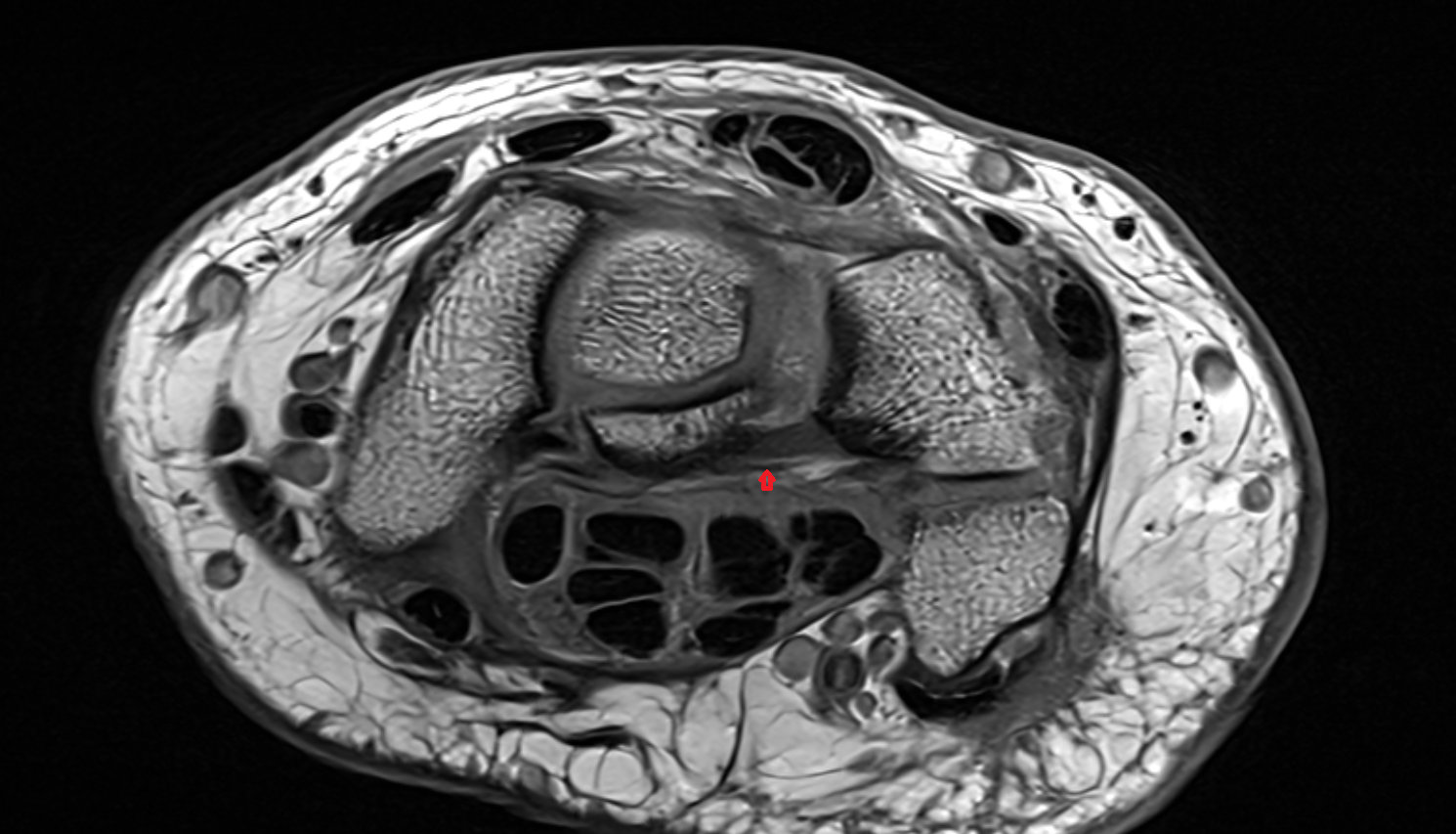

MRI images
