cavernous sinus

The cavernous sinus is a complex, paired venous plexus located on either side of the sella turcica at the base of the skull. It acts as a critical conduit for venous blood from the brain and face, while housing several essential cranial nerves and the internal carotid artery. Its strategic location and vital neurovascular contents make it a key structure in neuroanatomy and radiology, especially in the context of trauma, tumors, infection, and vascular pathologies.

Synonyms

  • Lateral sellar compartment

  • Sinus cavernosus

  • Cavernous venous sinus

Function

  • Venous Drainage: Drains blood from the orbit, pituitary gland, parts of the face, and brain via the superior and inferior ophthalmic veins and sphenoparietal sinus.

  • Neurovascular Conduit: Houses cranial nerves III (oculomotor), IV (trochlear), V1 and V2 (ophthalmic and maxillary divisions of trigeminal nerve), and VI (abducens), as well as the cavernous segment of the internal carotid artery (ICA).

  • Thermoregulation: Assists in cooling arterial blood before it reaches the brain.

  • Immunological Role: Acts as a pathway for the spread of infection due to venous connections with facial structures.

MRI Appearance

  • T2-weighted Imaging:

    • Cavernous sinus appears as a structure of intermediate to low signal intensity compared to brain parenchyma.

    • Cranial nerves and internal carotid artery may be seen as flow voids or low signal dots/lines within the sinus.

    • Pathology (tumors, inflammation) can appear as hyperintense or heterogeneous areas.

  • T1-weighted Imaging (Pre-contrast):

    • The cavernous sinus shows intermediate signal intensity, similar to other venous sinuses.

    • Cranial nerves are generally not distinguishable unless surrounded by pathology or fat.

    • The ICA appears as a flow void (black dot).

  • 3D Phase Contrast (PC 3D) Imaging:

    • Used for visualizing venous flow and vascular anatomy within the cavernous sinus.

    • High resolution can delineate the internal carotid artery and venous channels.

    • Useful for assessing vascular anomalies and thrombosis.

  • Post-Contrast T1-weighted Imaging:

    • Homogeneous enhancement of the cavernous sinus due to its venous nature.

    • Pathological enhancement (nodular, irregular, or asymmetric) may indicate tumors (meningioma, pituitary adenoma extension), thrombosis, or infection.

    • Cranial nerves may become more conspicuous if surrounded by enhancing pathology.

CT Appearance

  • Non-contrast CT:

    • Cavernous sinus appears as a soft tissue density lateral to the sella turcica, often isodense with brain parenchyma.

    • Bony landmarks: Located between the sphenoid bone’s anterior and posterior clinoid processes and the body of the sphenoid.

  • Contrast-enhanced CT:

    • Cavernous sinus enhances homogeneously.

    • Thrombosis may present as expansion of the sinus with lack of contrast enhancement or a filling defect.

    • Adjacent bony erosion or hyperostosis may suggest an invasive neoplastic process.

MRI images

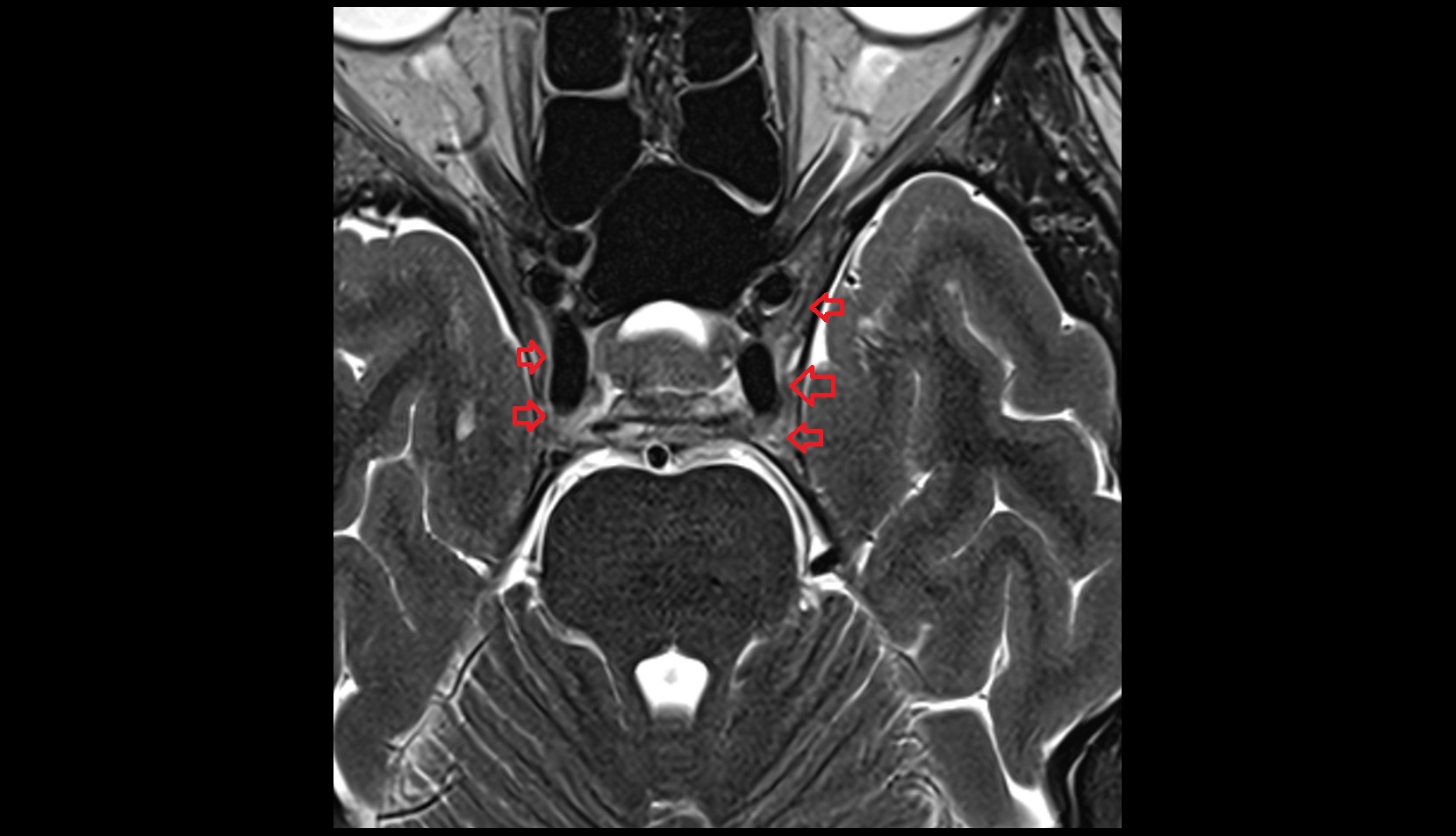

Cavernous sinus MRI axial 3t image

MRI images

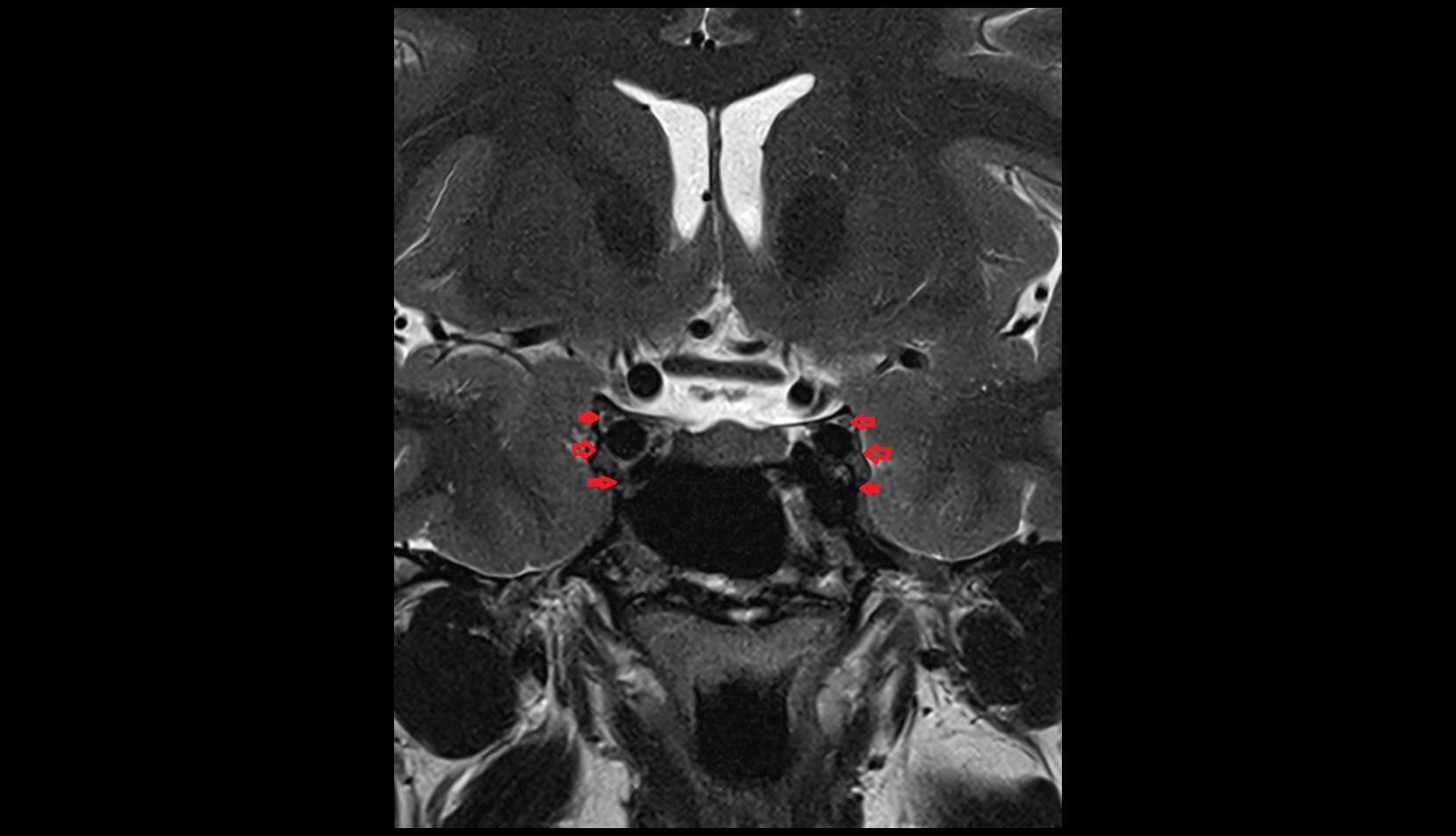

Cavernous sinus MRI coronal 3t image

CT images

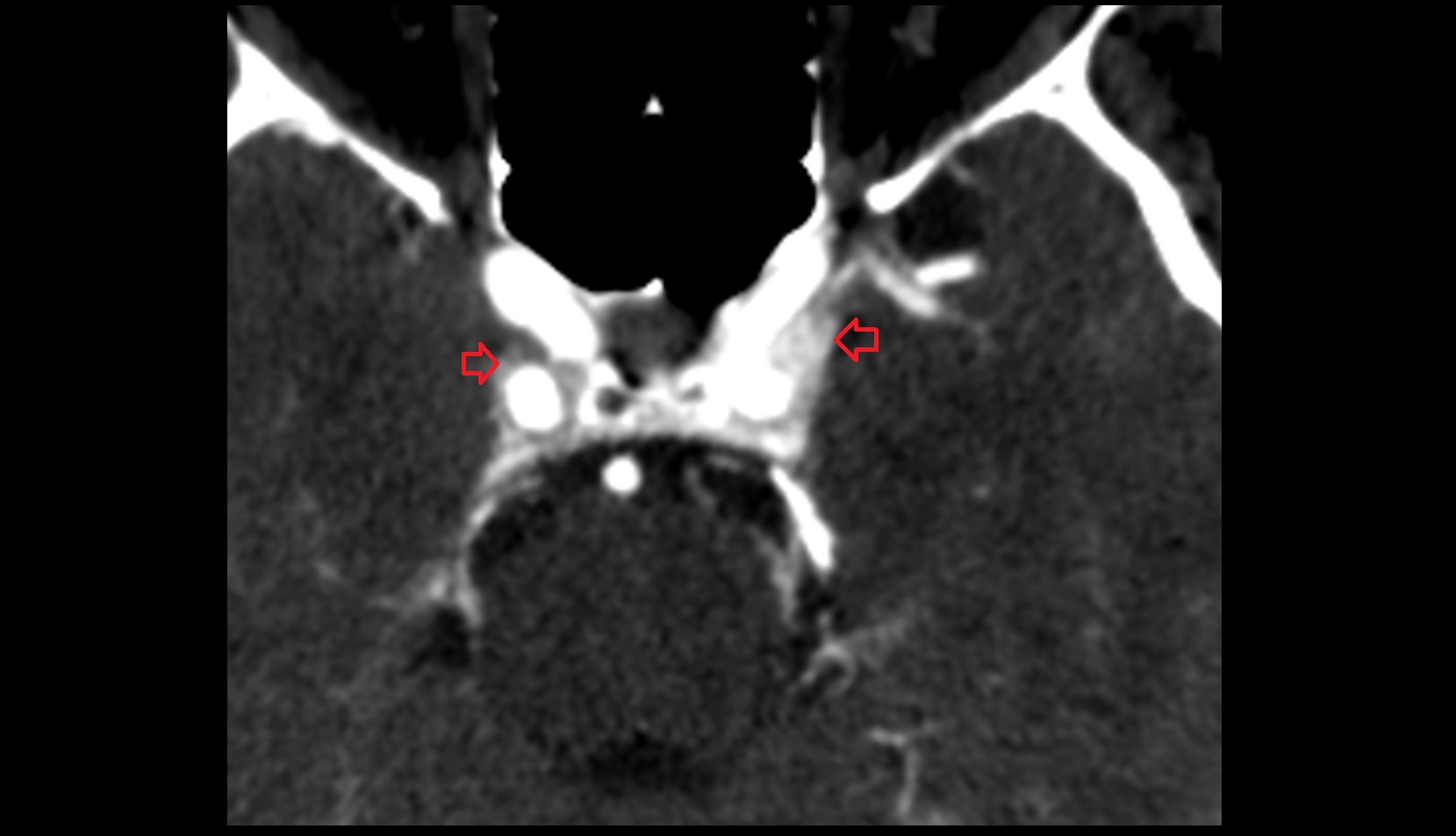

cavernous sinus CT
